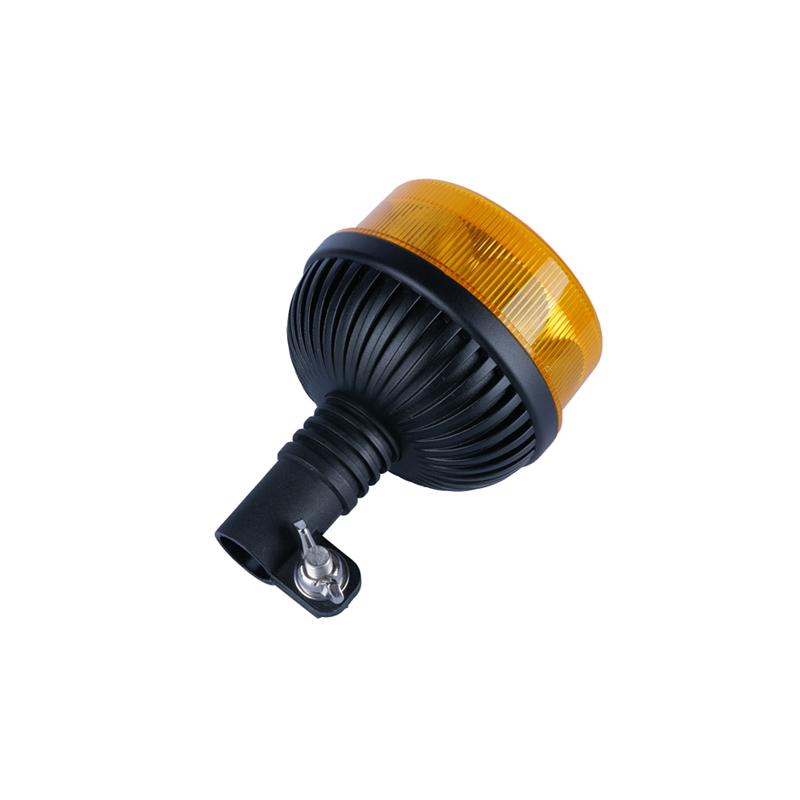

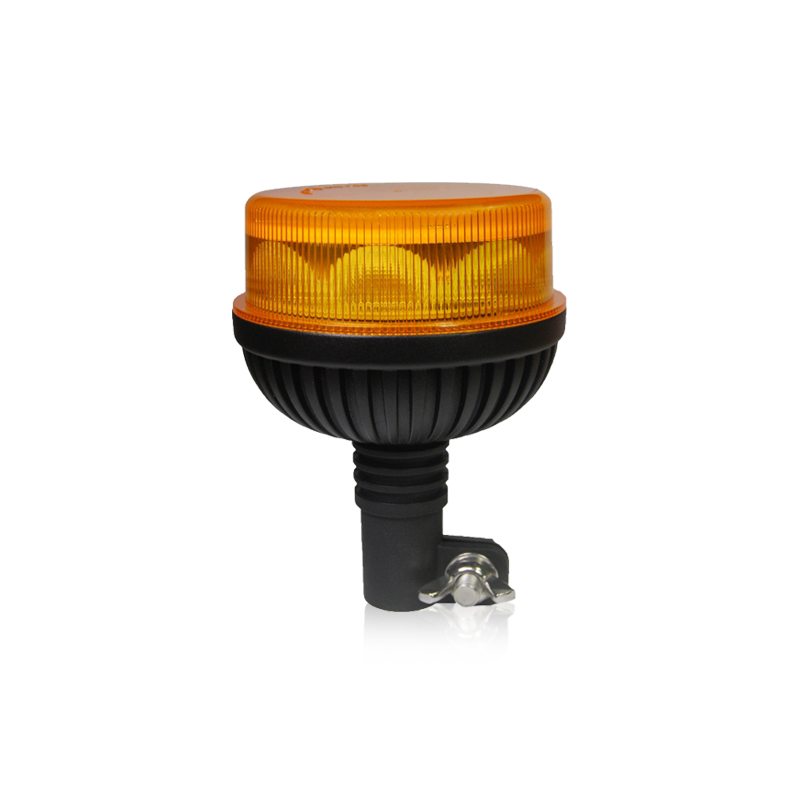

LED Beacon Light

Model : DF-J-KY16-DM
Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products.

Product Description

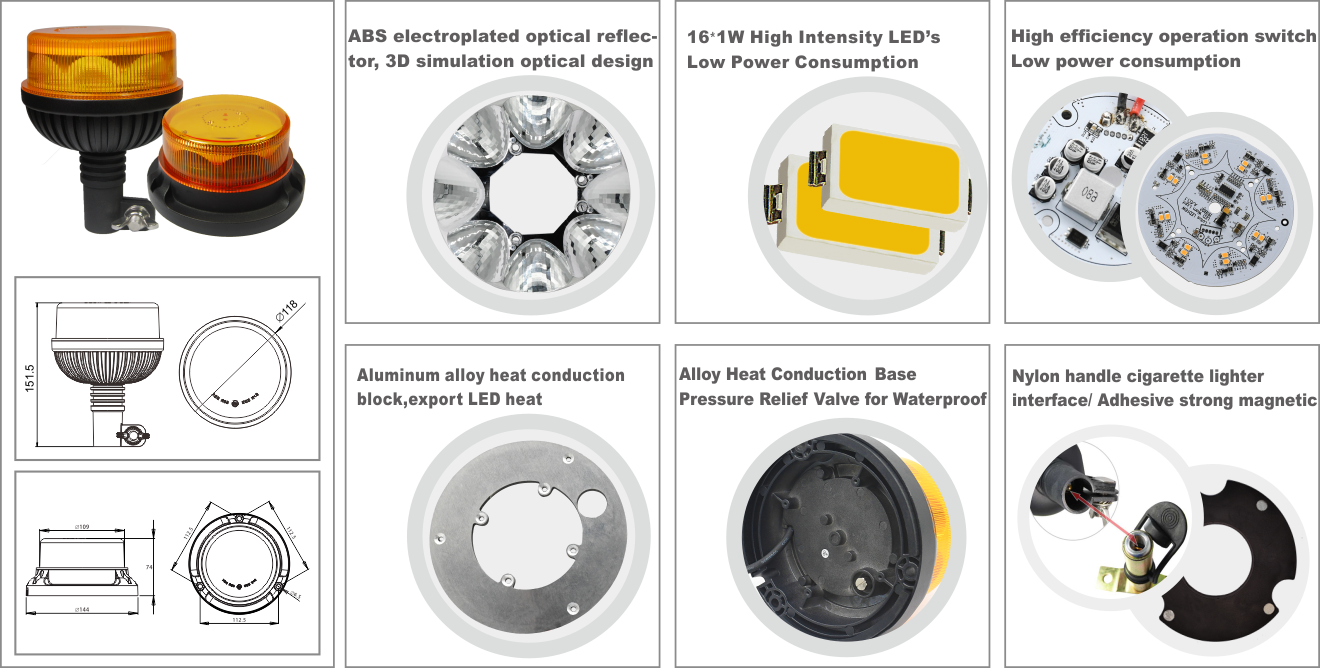

Product Features

ECE R65、SAEJ845 Class1 international standards: 16-watt LED, combined with the mixed wide-angle optical reflector, produces a diffuse light intensity greater than 120 cd (0°), which serves a role in long-distance safety warning.
The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the effect of high temperature on the early light decay of the warning light, and achieves a warranty period of more than three years.
IP69K waterproof grade: The fully sealed pressure uniform patent design of the vehicle warning light is suitable for outdoor, rain, dust, high-pressure water, and other mechanical equipment vehicle safety warnings.
Fixed flashing mode, flashing frequency: 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65, SAEJ845 Class1.
International universal cigarette lighter power supply connection plug, nylon flexible bracket is high-temperature resistant and shock-resistant.
Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design to avoid damage to the warning light due to improper use and vehicle pulse voltage.
Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicle safety warnings.

Product Parameters

IP69K waterproof car warning light

Model	DF-J-KY16-DM
Maximum Power Consumption	16W
Light Source Type	16X1W high brightness LED
Waterproof Grade	100% IP69K(100KPa)
Anti-fogging Process	100% nitrogen fillling
Thermal temperature pressure relief process	stainless steel waterproof breathable valve
Warning Light Color	amber
Material	die-casting aluminum alloy base（ADC12）+aluminum alloy heat sink+ PC lampshade
inner Lens	ABS special optical design of mixed wide-angle reflector
alarm mode	single mode(double flash)
Color Temperature	y≤x-0.120 y≥0.390 y≥0.790-0.670x
0-degree light intensity（cd/eff）	≥160
Flash Frequency	2 Hz ≤F ≤ 4 Hz
International Quality Standard	ECE R65/ R10(EMC) /SAE J845 Class 1
ntallation method	international universal cigarette lighter interface
Anti-vibration Grade	10G
Operating Temperature	-40℃ to +65℃
operating voltage range	DC10-32V
Weight	650g

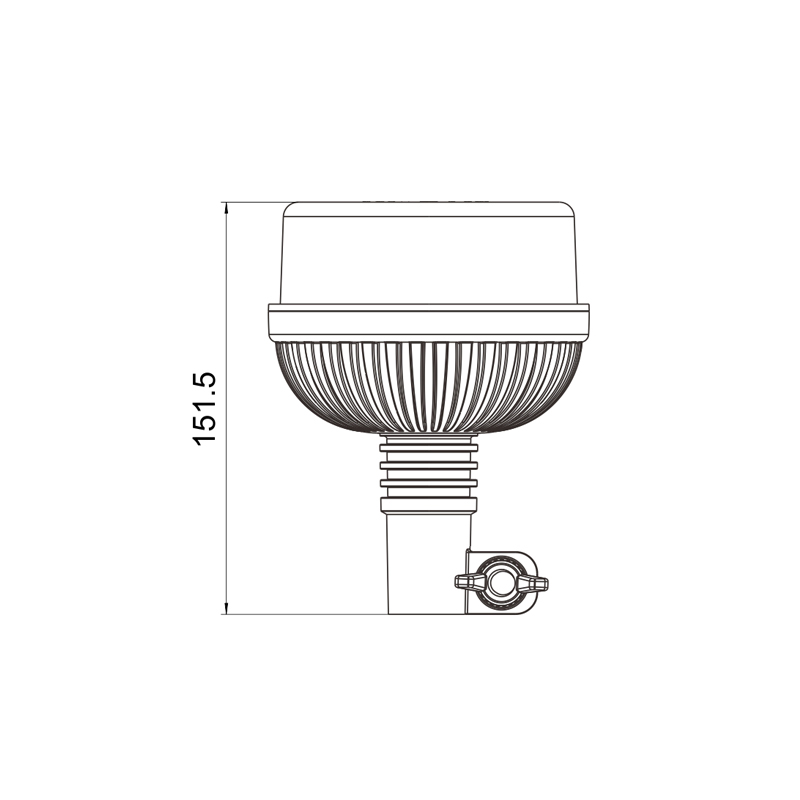

Specification Size	151.5(H) x118(D) mm

International Test Standards and Light Intensity Tests for Warning Lights
