Explosion-Proof Beacon Light

Model : DF-J-GY24-DM-PN
Summarize : Vehicle warning lights are widely used in various vehicles and industries, including municipal maintenance, transportation, construction machinery, construction sites, healthcare, firefighting, school buses, ships, aviation, factories, and other sectors. They are particularly essential in poor visual conditions such as rainy, foggy, or dark weather, as well as during nighttime when visibility is less than 50 meters. These lights serve to timely alert drivers of passing vehicles to pay attention to safety, providing warnings for special situations and helping to prevent economic losses. Therefore, there are certain technical specifications for the optical parameters, frequency, waterproofing, and other aspects of warning lights. Both the National Ministry of Transportation and the European Economic Commission (ECE) have implemented certification systems (R65/R10) for warning lights, requiring the corresponding certification mark (E-mark) to be imprinted on the products.
More Info : Online Service

Product Description

Product Features

ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the wide-angle optical reflector, the diffused light intensity is greater than 280 cd (0°), playing a role in long-distance safety warning.
The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of high temperature on the early light decay of the warning light, and realizes a warranty period of more than three years.
IP69K waterproof grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing, and other mechanical equipment vehicle safety warnings.
Flash shrinkage fixed mode, flash frequency: 2 Hz ≤ F ≤ 4 Hz compliant with ECE R65, SAEJ845 Class1 international standards.
The cold-resistant and low-temperature power supply connection line adapts to the snow and ice climate environment and is not easily brittle and broken.
External 304 stainless steel anti-collision shield, enhancing the impact resistance of the warning light in case of collision.
The built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage.
Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicle safety warnings.

Product Parameters

IP69K waterproof car warning light

model	DF-J-GY24-DM-PN
maximum power consumption	28W
light source type	24X1W high brightness LED
waterproof grade	100% IP69K(100KPa)
anti-fogging process	100% nitrogan filling
thermal temperature pressure relief process	Stainless steel waterproof breathable valve.
warning light color	amber
material	Die-cast aluminum alloy base (ADC12) + aluminum alloy heat sink + aluminum-based PCB board + PC lampshade.
lens	PC fresnel special optical design
Alarm mode	Dual flashing fixed mode
color temperature	y≤x-0.120 y≥0.390 y≥0.790-0.670x
00-degree illumination intensity（cd/eff）	≥270
flash frequency	2 Hz ≤F ≤ 4 Hz
international quality standard	ECE R65/ R10(EMC)

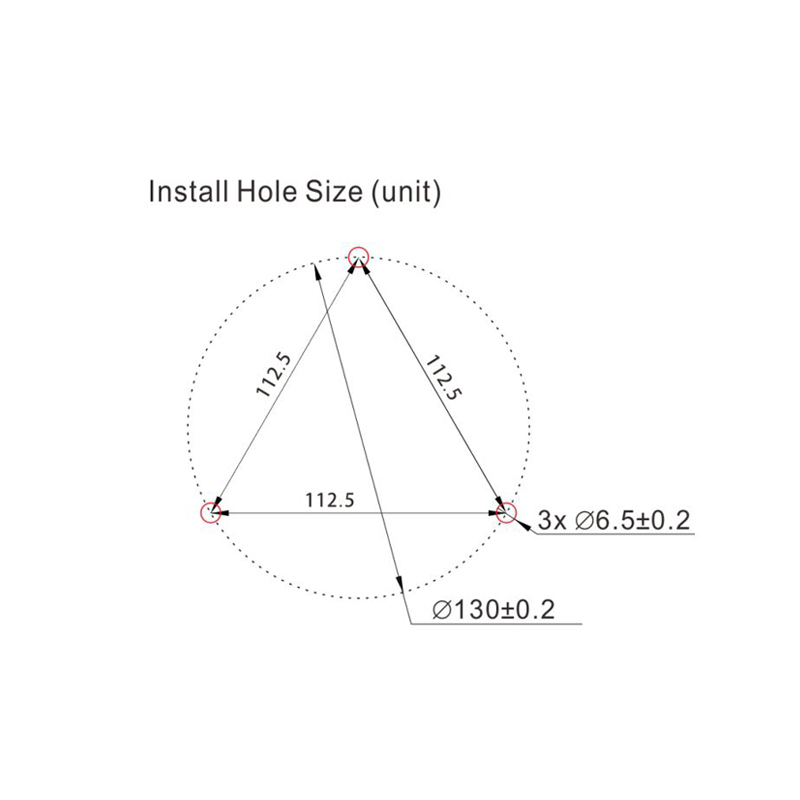

installation method	Flange base with three-hole screw fixation and magnetic base attachment (optional), external stainless steel protective cover for collision prevention
anti-vibration grade	10G
operating temperature	-40℃ to +65℃
operating operating range	DC10-32V
weight	800g

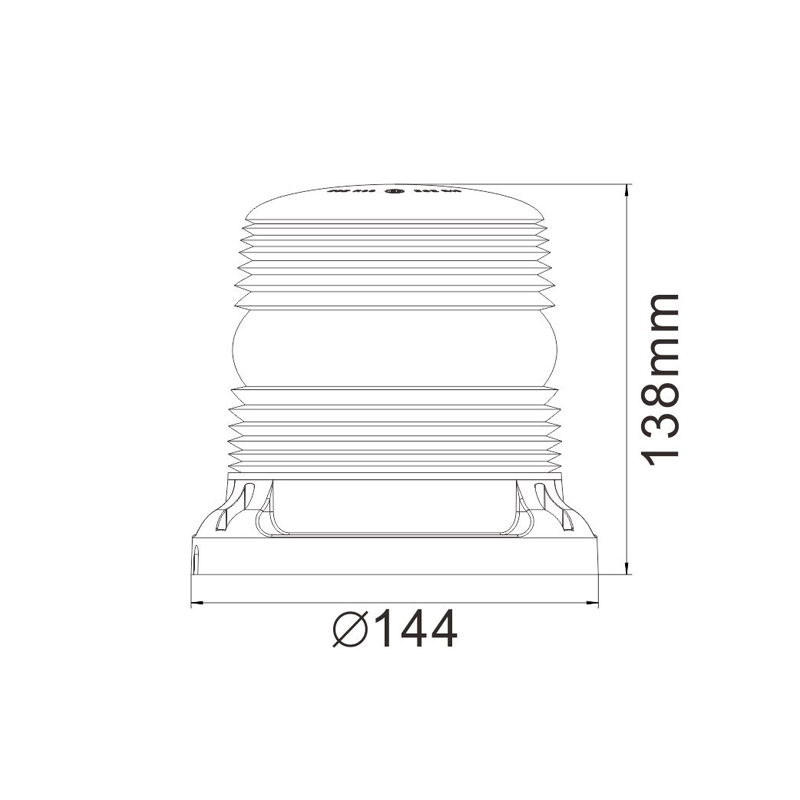

specification size	138(H) x144(D) mm

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
