Product Features
ECE R65 and SAEJ845 Class1 international standards: 24-watt LED, combined with the mixed wide-angle optical reflector, produces a diffused light intensity greater than 280 cd (0°), which plays a role in long-distance safety warning.

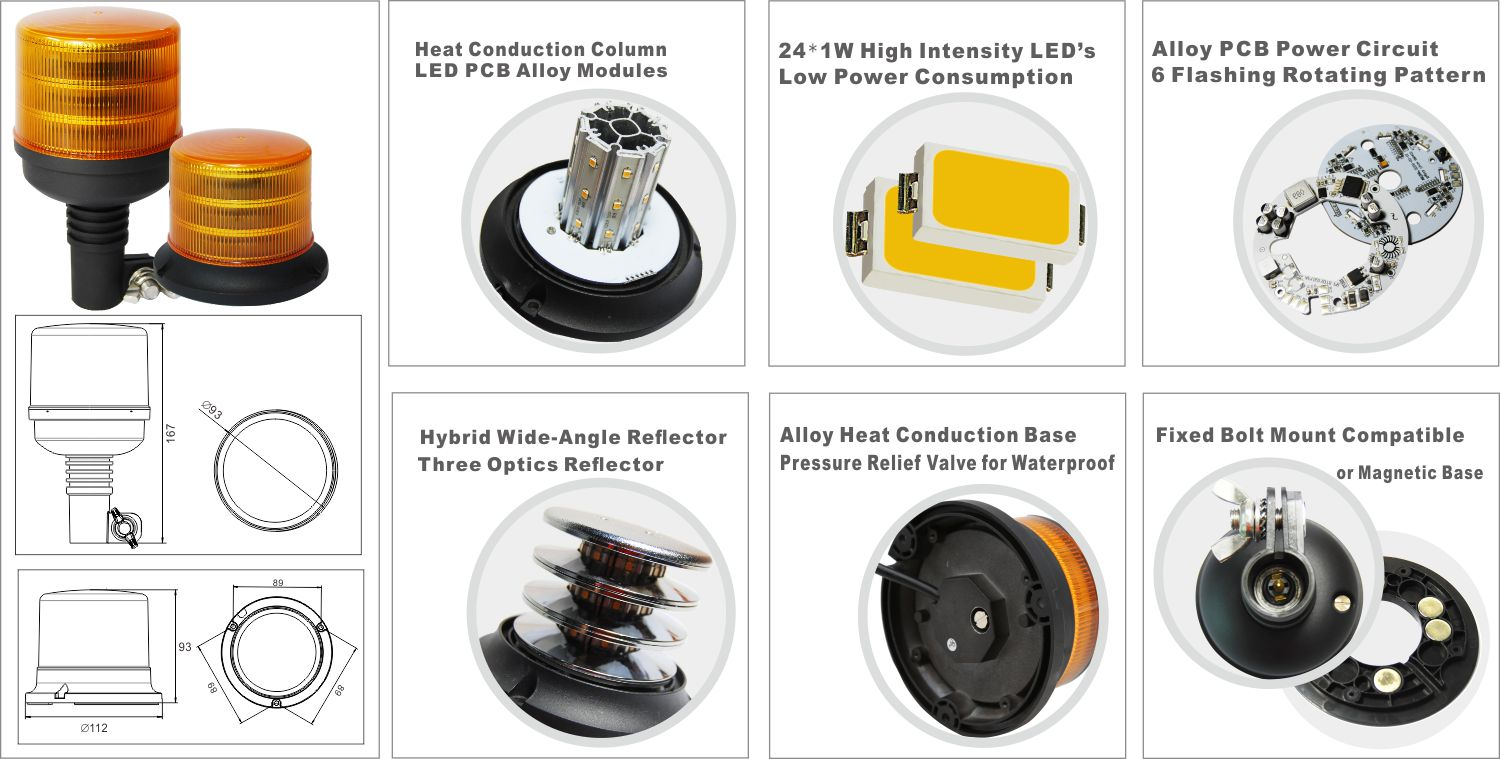

The thermal characteristic solution of the warning light LED: The modular integrated heat dissipation structure design of the LED circuit board and the aluminum base, combined with the LED constant current and constant voltage protection circuit, eliminates the influence of high temperature on the early light decay of the warning light, and achieves a warranty period of more than three years.
IP69K Waterproof Grade: The fully sealed and uniformly pressured patented design of the vehicle-mounted warning light is suitable for outdoor, rain, dust, high-pressure water flushing, and other mechanical equipment vehicle safety warnings.
Flashing frequency: 6 flashes + 2 rotating light warning mode, with a built-in trigger switch for optional selection and memory storage function. 2 Hz ≤ F ≤ 4 Hz meets the international standards of ECE R65 and SAEJ845 Class1.
The cold-resistant and low-temperature power supply connection line adapts to the snow and ice climate environment and is not easily brittle and broken.
Built-in wide voltage DC10-32V circuit, polarity reverse connection protection circuit, and throw-load pulse voltage simulation protection circuit design avoid damage to the warning light due to improper use and vehicle pulse voltage.
Vehicle warning lights are widely used in engineering excavation, agricultural machinery, forklifts, snow sweepers, sprinklers, road rescue vehicles, wreckers, sanitation vehicles, school buses, and other vehicle safety warnings.
Product Features
IP69K waterproof car warning light
| Model | DF-J-BY24 |
| Maximum Power Consumption | 28W |
| Light Source Type | 24X1W high brightness LED |
| Waterproof Grade | 100% IP69K(100KPa) |
| Anti-fogging Process | 100% nitrogan filling |
| Thermal temperature pressure relief process | stainless steel waterproof breathable valve |
| alarm light color | amber |
| Material | Die-cast aluminum alloy base (ADC12) + aluminum alloy heat sink + aluminum-based PCB board + PC lampshade |
| inner Lens | special optical design of mixed wide-angle reflectors |
| alarm mode | 6 + flashing and rotating modes are controlled and memorized via internal momentary switches |
| Color Temperature | y≤x-0.120
y≥0.390
y≥0.790-0.670x |
| 0-degree illumination intensity（cd/eff） | ≥360 |
| Flash Frequency | 2 Hz ≤F ≤ 4 Hz |
| International Quality Standard | ECE R65/ R10(EMC) |

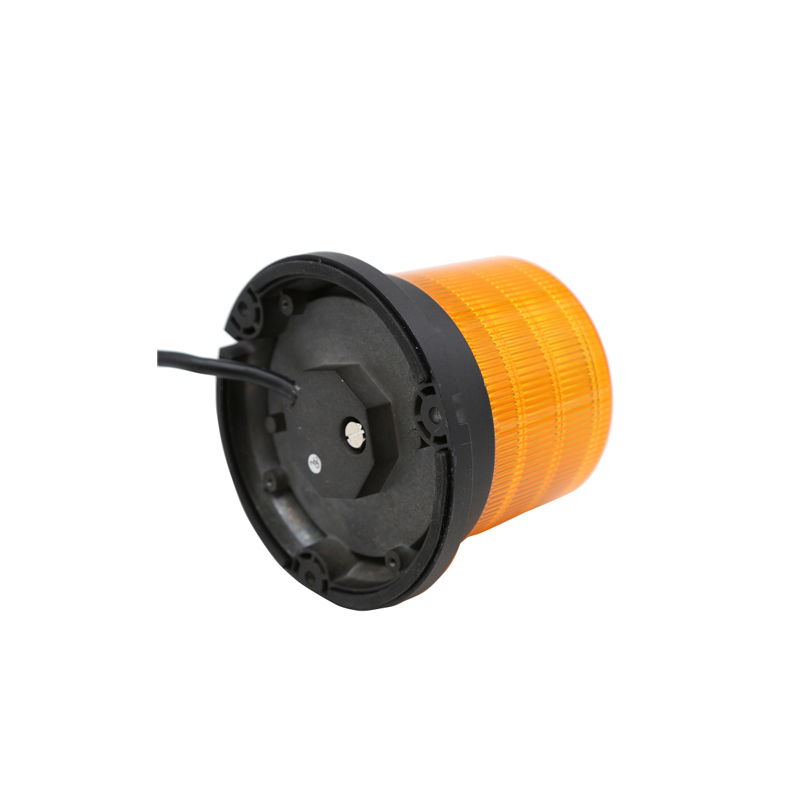

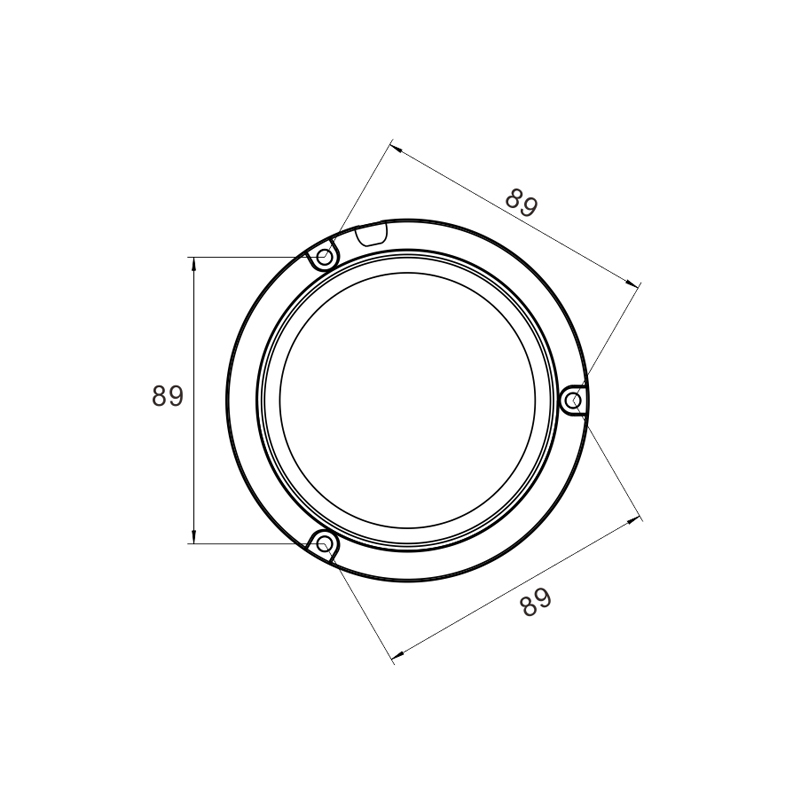

| Installation Method | Flange base with three-hole screw fixation and magnetic base attachment (optional) |
| Anti-vibration Grade | 10G |
| Operating Temperature | -40℃ to +65℃ |
| operating voltage range | DC10-32V |
| Weight | 500g |

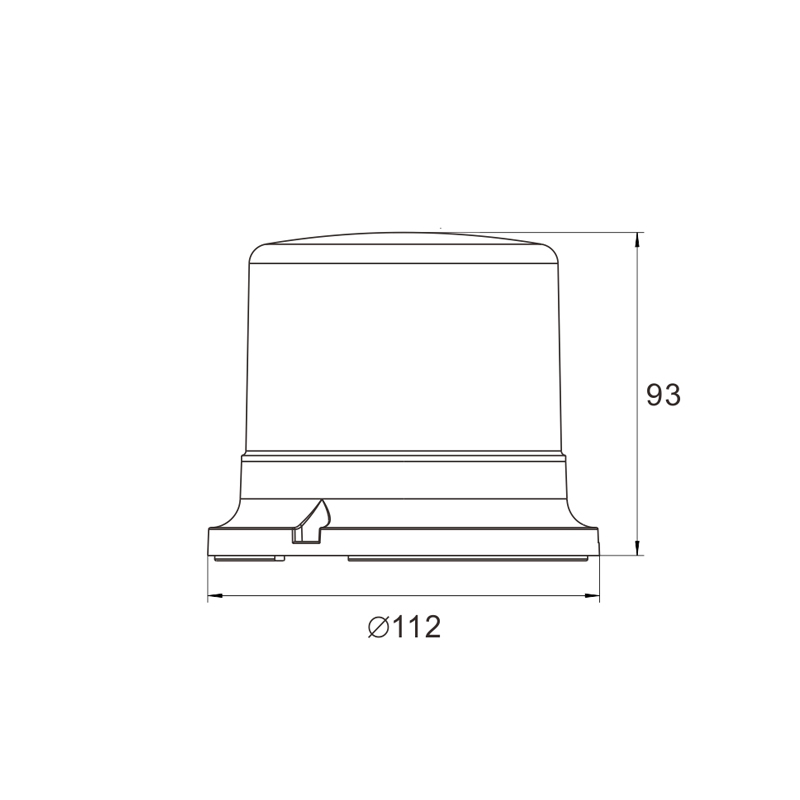

| Specification Size | 93(H) x112(D) mm |

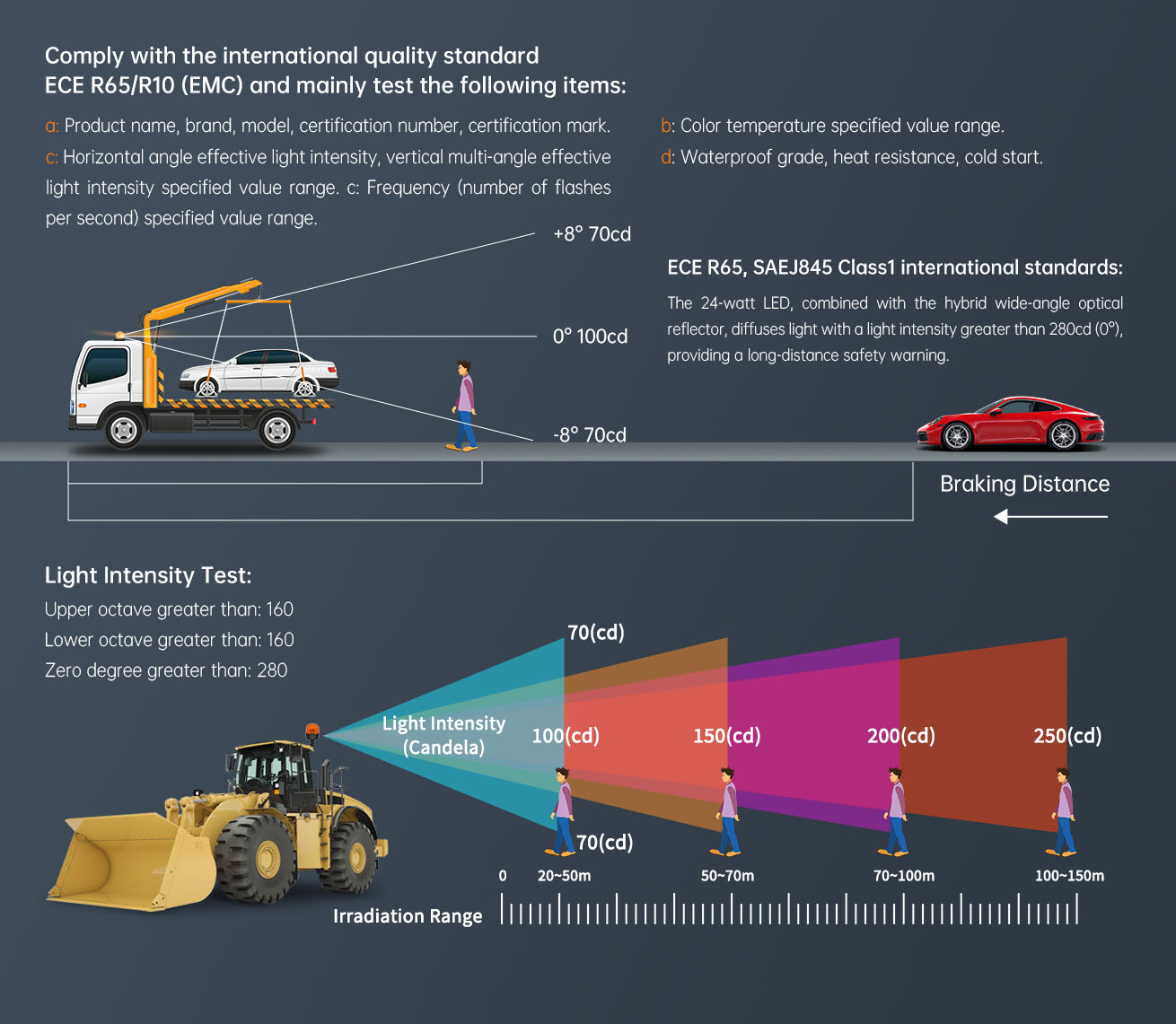

International Test Standards and Light Intensity Tests for Warning Lights
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
