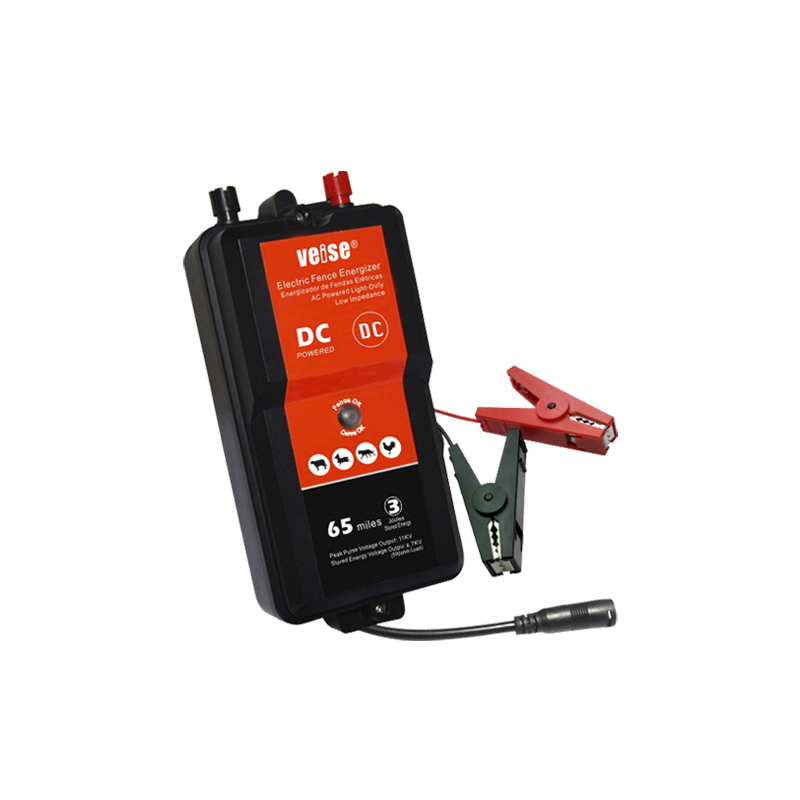

Horse DC Powered Electric Fence Controller

  • Model : EF-A1D020

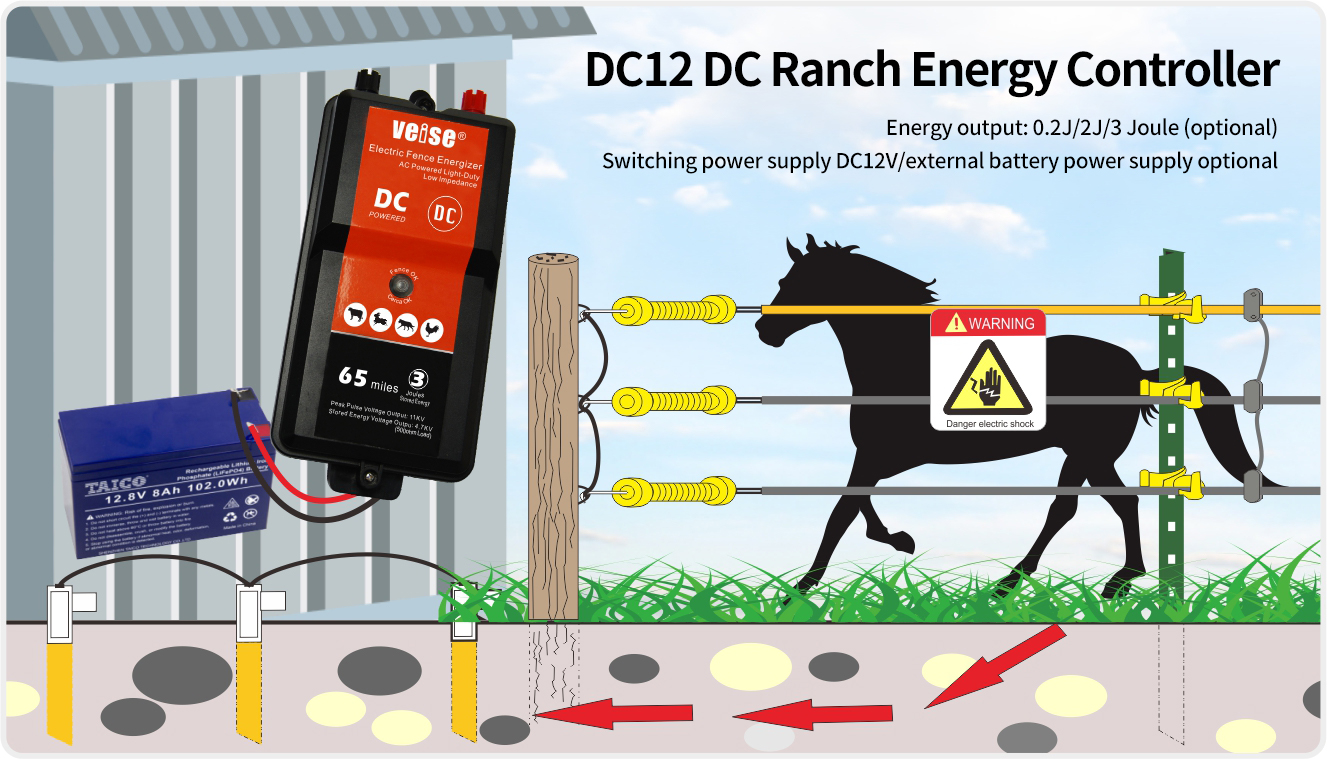

  • Summarize : The electric fence is a very convenient and economically efficient way of animal management. Previously, farms needed to set up tangible fences made of wood or chains to prevent animals from escaping. However, tangible fences require more input of manpower and material resources and are also easily damaged by animals. Now, by using the electronic fence host to send pulse low-current and high-voltage electric shocks to the animals to deter them from reflecting and no longer approaching, it can better and more efficiently manage the animals. The DC12V DC electronic fence host has a small volume and is used in combination with a power transformer and a vehicle-mounted power supply for small-scale pen-raising and entertainment horses, farmhouse cattle, sheep, poultry, and wild animal invasion and damage to the surrounding crops around the home.

Product Features

Load energy storage output: 2 joules @ 500Ω

Peak energy storage pulse voltage output: 10kV

Load pulse voltage output: 4.3 KV @ 500Ω

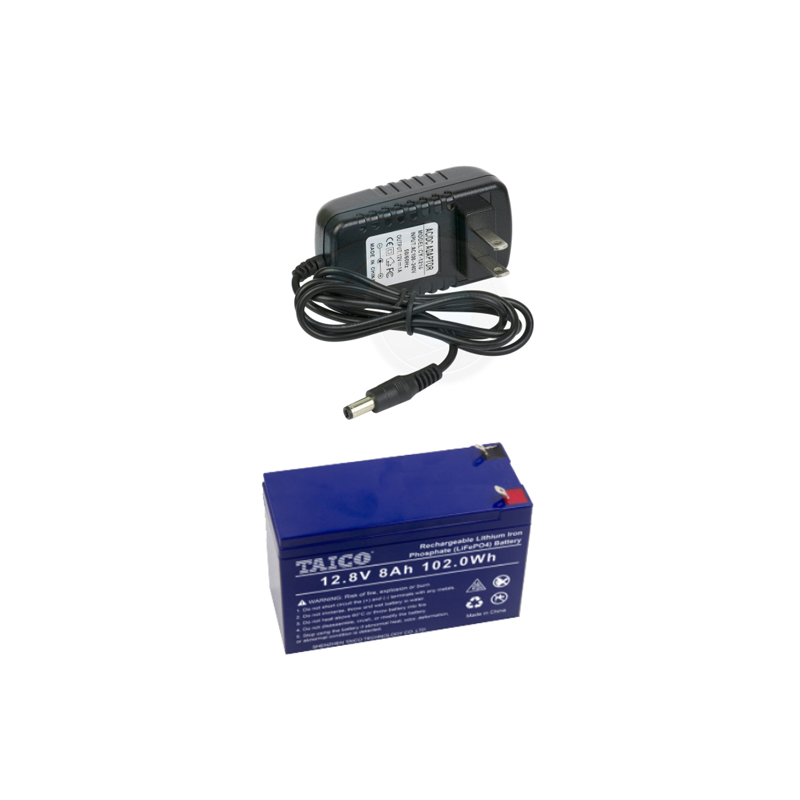

Power supply input voltage: DC12V power supply and battery

50mA power supply, low power consumption, can be used for a long time Low impedance, high energy output, and multiple-line distance rated value:

Without vegetation: up to 50 miles

Average vegetation: up to 20 miles

High vegetation: up to 10 miles

Pulse voltage flashing red working indicator light

Product Parameters

Peak stored energy output: 2 joules

Peak stored pulse voltage output: 10 kV

Load pulse voltage output: 4.3 KV @ 500 Ω

Conduction effective distance: 15 KM

Power input: DC12V

Maximum Power Consumption: 2.4 W

The shell is strong and durable, waterproof and dustproof, with built-in lightning protection.

Shell Material: ABS insulating Material

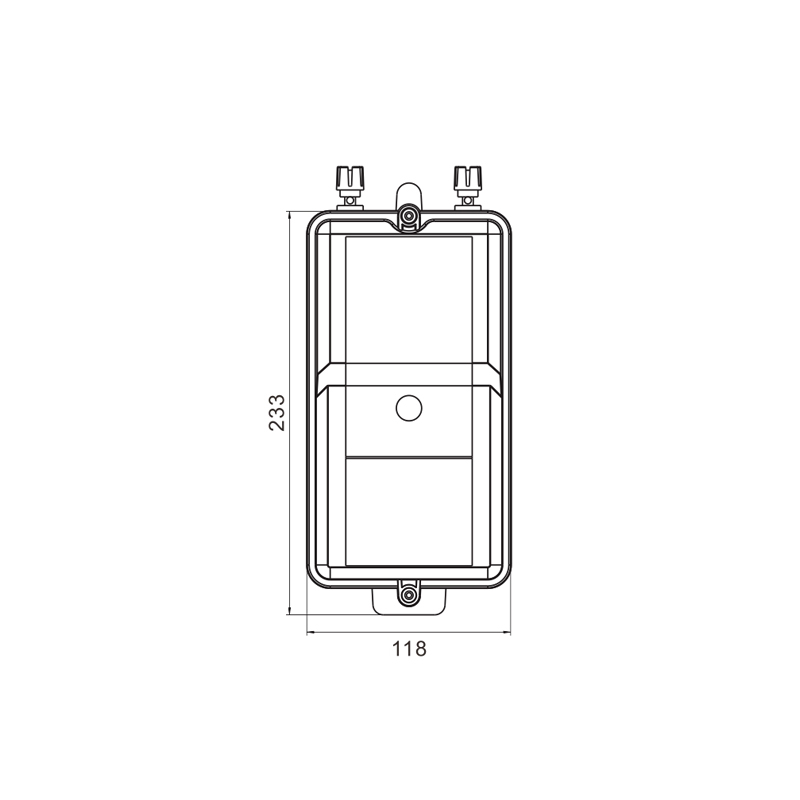

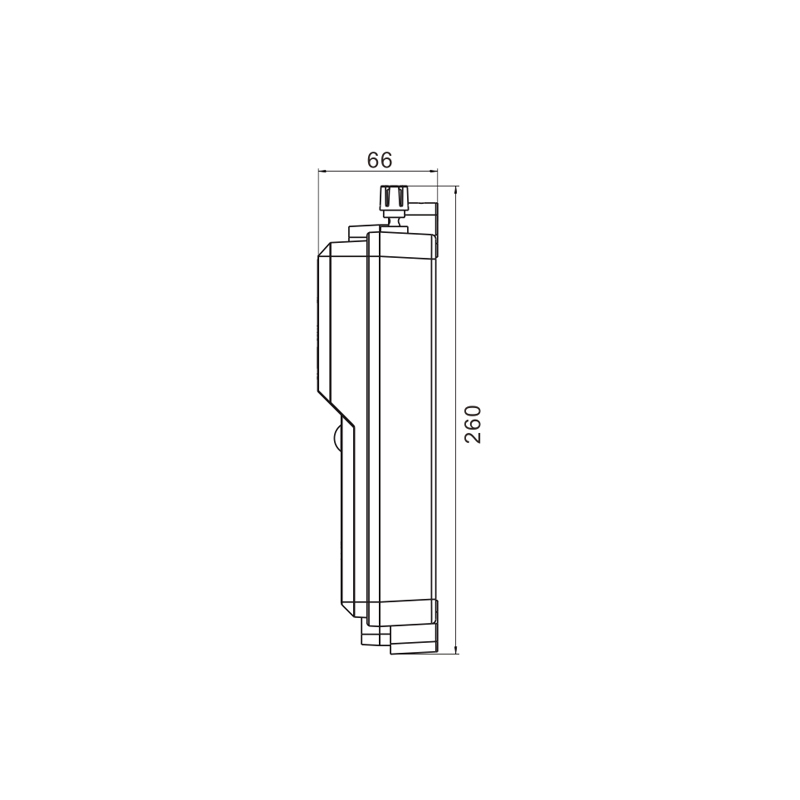

Size: 233 x 118 x 66 mm

Weight: 700 g

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
