Product Features
Load energy storage output: 2.5 joules @ 500Ω
Peak energy storage pulse voltage output: 10 kV
Load pulse voltage output: 4.3 KV @ 500Ω
Power supply input: AC 110V (220V optional)
Maximum Power Consumption: 50 mA power supply
Pulse voltage flashing red indicator light
Low impedance, high energy output, and multiple-line distance rated value:
Without vegetation: up to 50 miles
Average vegetation: up to 20 miles
High vegetation: up to 10 miles

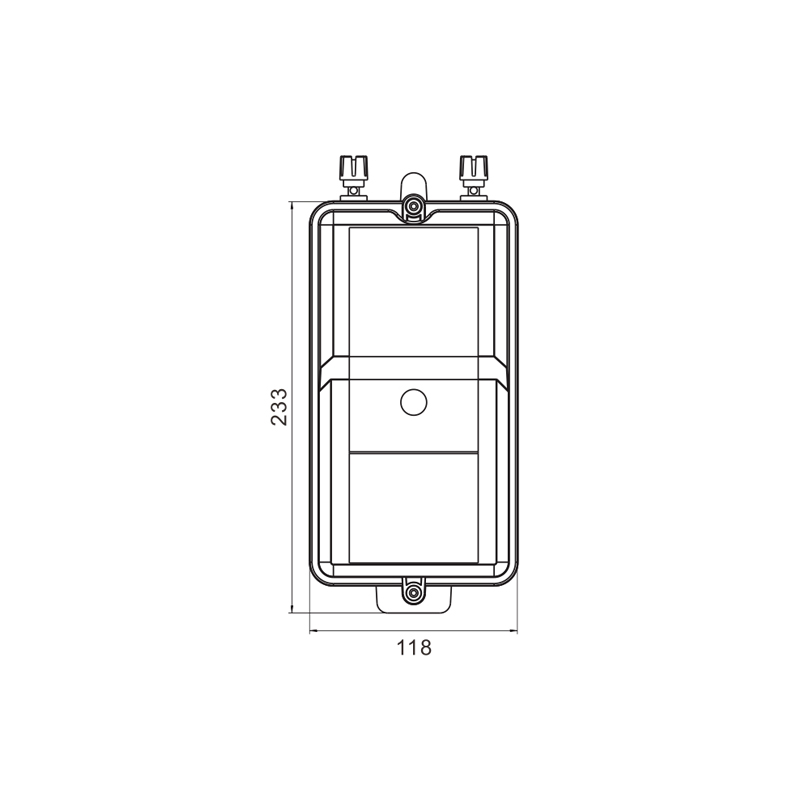

Size: 233 * 118 * 66mm
Weight: 700g
Product Parameters

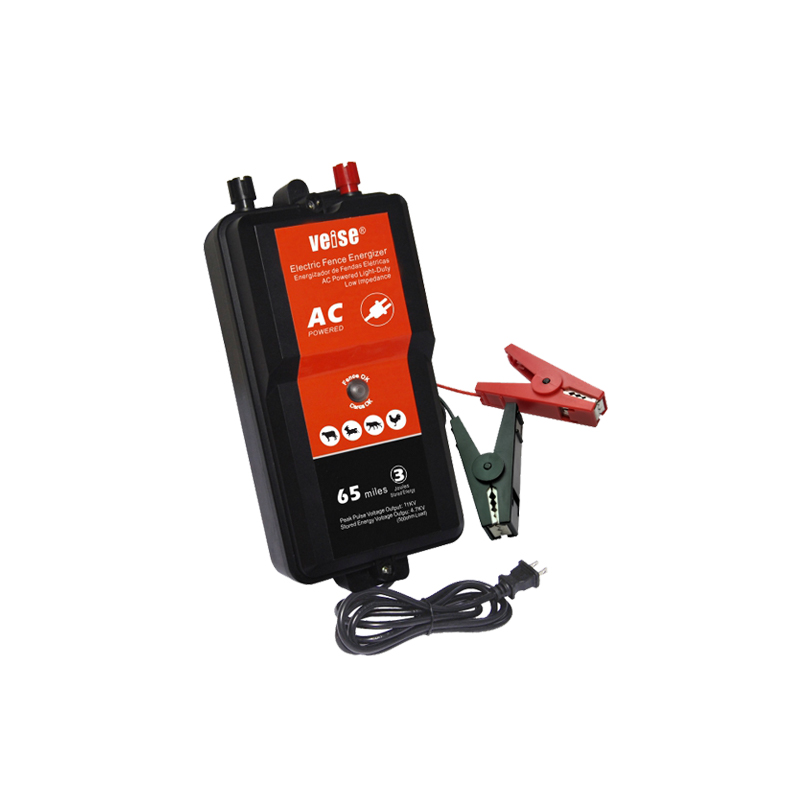

AC alternating current fence energy device
Load stored energy output: 2.5 joules @ 500 Ω
Peak energy storage pulse voltage output: 10 KV
Load pulse voltage output: 4.3 KV @ 500 Ω
Power supply input: AC 110V (220V optional)
Shell Material: ABS
Maximum Power Consumption: 50mA
Protection level: IP65
Pulse voltage output indicator light: red

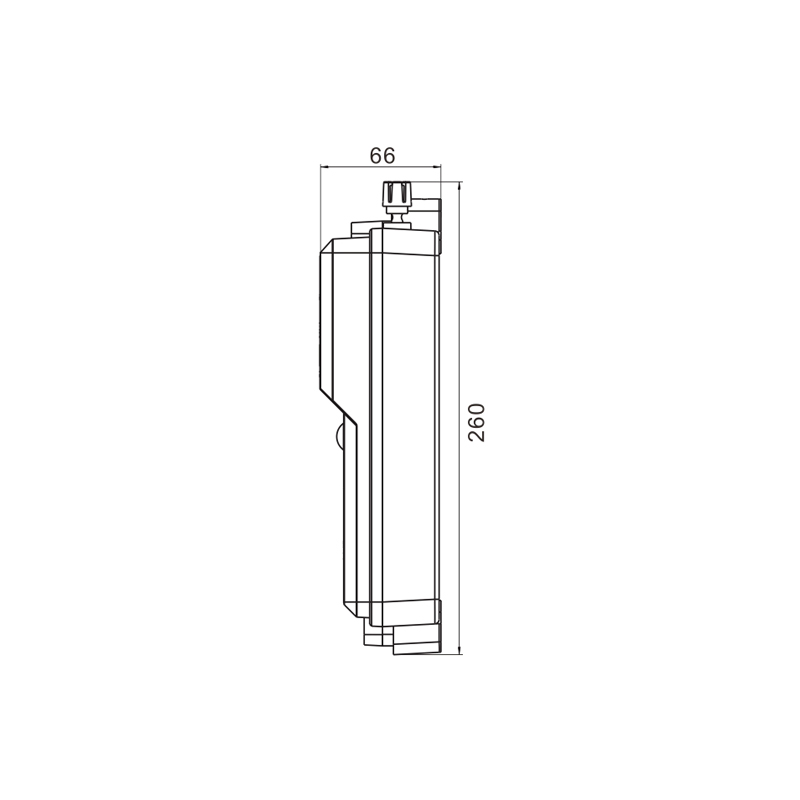

Size: 233 118 66mm
Weight: 700g
Application scope: poultry, livestock, cattle, horses, pigs, sheep, goats, rabbits
Model | pulse storage power output | peak pulse voltage output(maximum) | load dump pulse voltage output(500ohm) | distance(mile) | range(acre) |
EF-A1A025 | 2.5 joules | up to 11KV | up to 4.8KV | up to 65 | up to 200 |
EF-A1A020 | 2 joules | up to 11KV | up to 4KV | up to 50 | up to 165 |
EF-A1A010 | 1 joule | up to 10KV | up to 3KV | up to 25 | up to 80 |
EF-A1A005 | 0.5 joule | up to 10KV | up to 2KV | up to 15 | up to 60 |
EF-A1A002 | 0.2 joule | up to 1.7KV | up to 1KV | up to 8 | up to 30 |

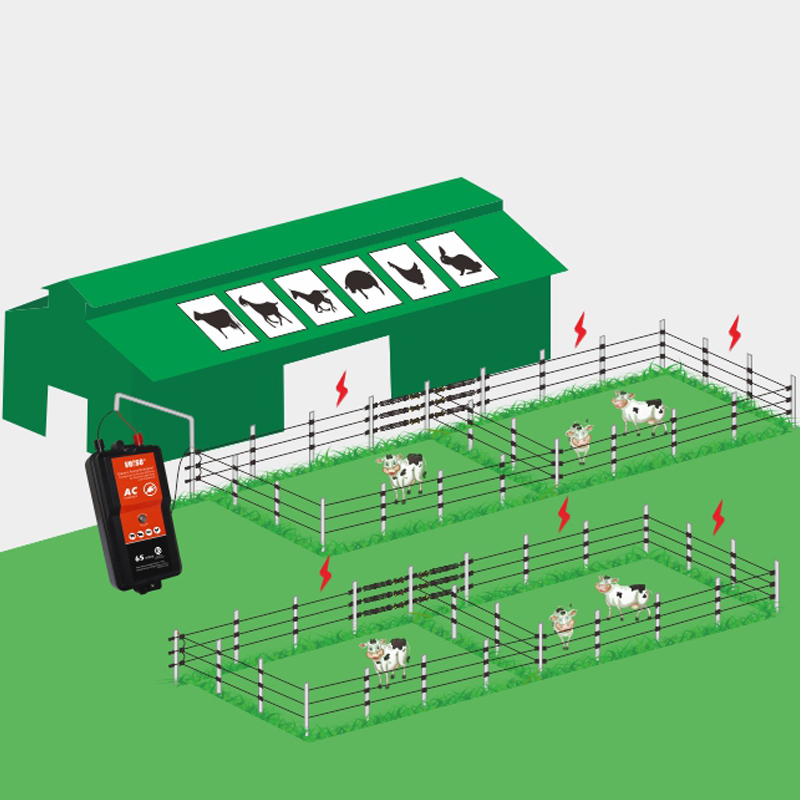

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
