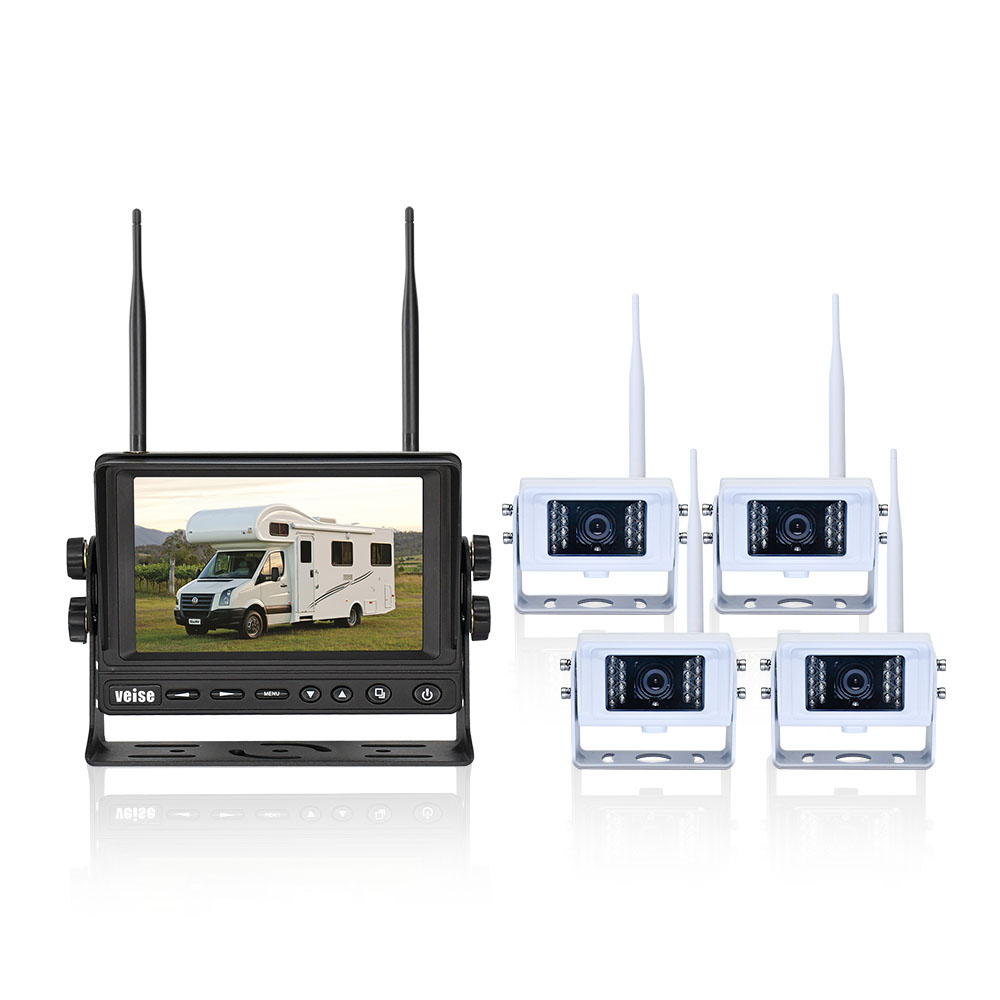

5-inch 1080P Quad Screen RV/Trucks Wireless Camera Monitor System

  • Model : HDWS-5014H152M4

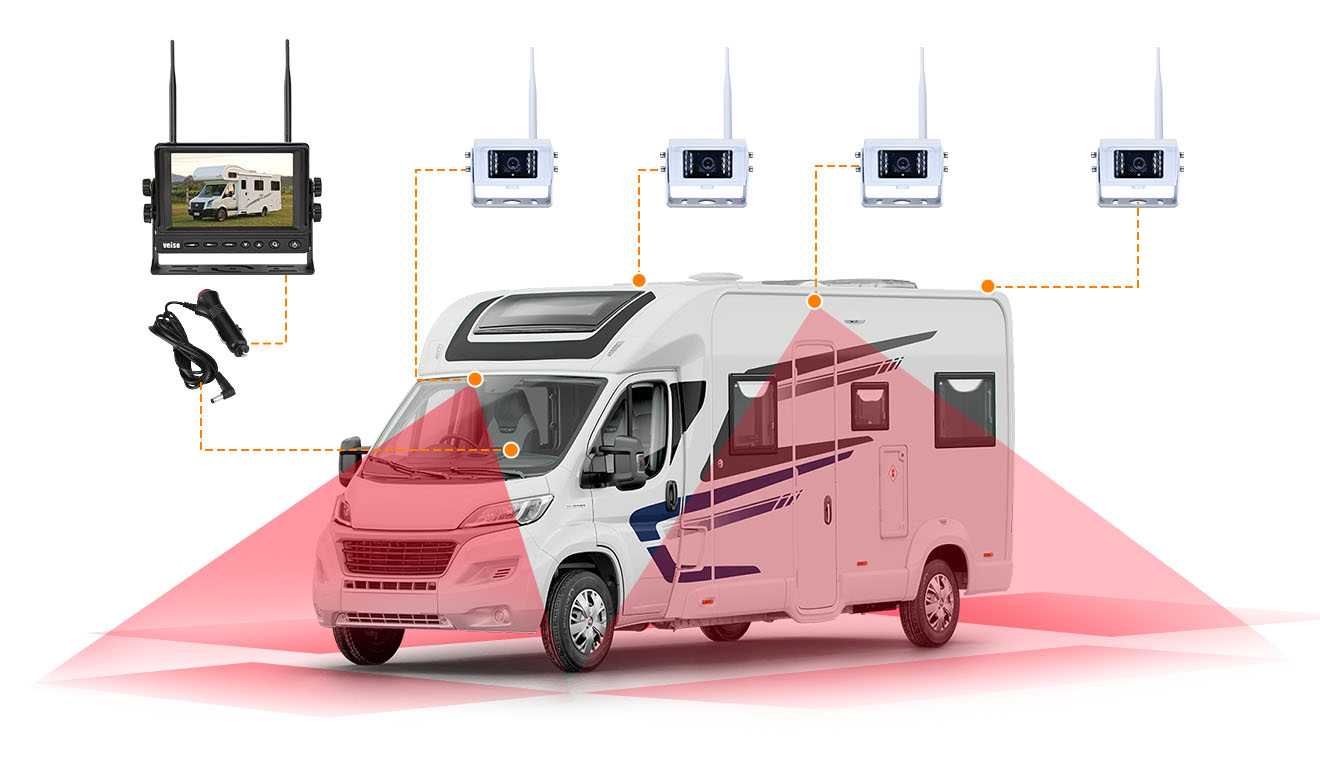

  • Summarize : For RVs and trucks, which have larger dimensions, visibility around the driver's seat is often restricted, particularly in the rear and rear-side areas where blind spots can make it difficult to directly observe the surroundings. Wireless camera monitoring systems for RVs and trucks help drivers by providing real-time views of the front and rear of the vehicle through a display monitor, thereby reducing blind spots and enhancing overall visibility.
  • More Info : Online Service

Product Features

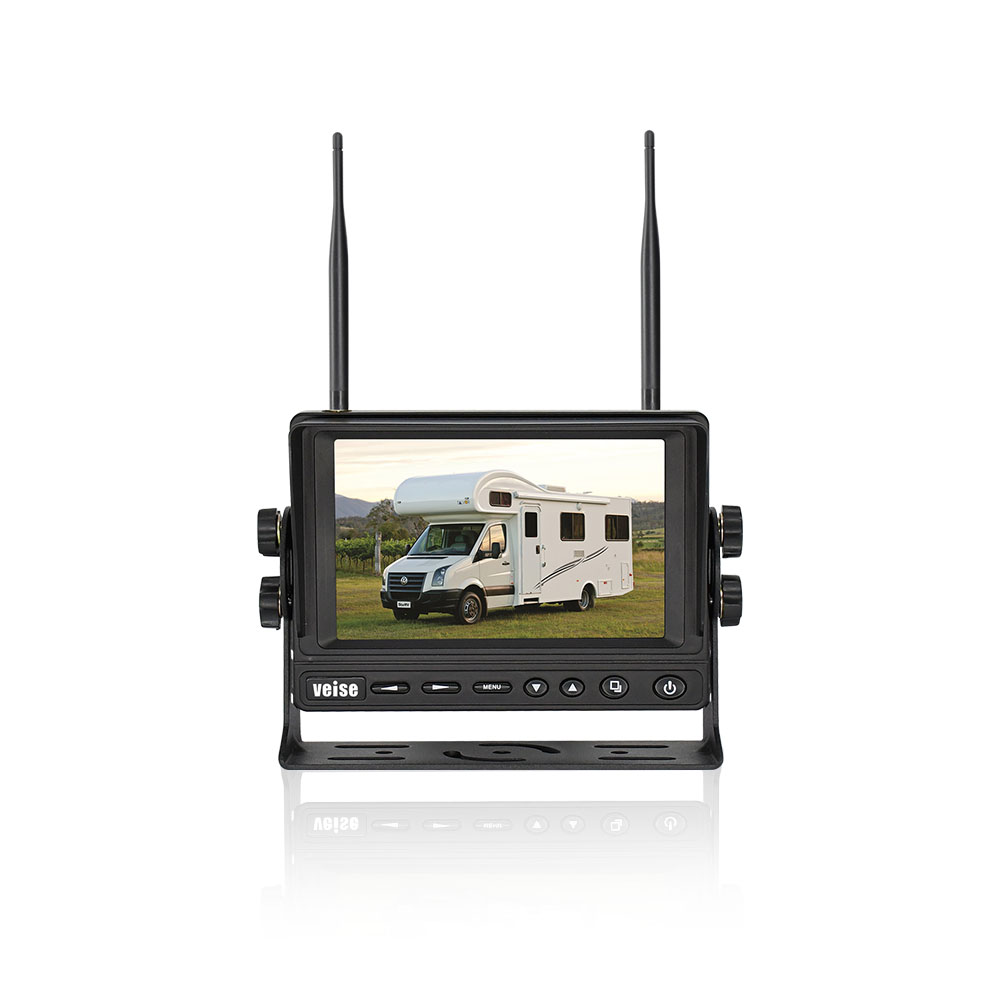

Wireless HD LCD Vehicle Monitor

Display Performance:

  • 5-inch digital screen

  • 1024x600 high resolution

  • 600 cd/m² high brightness

  • Wireless Reception:

    • Built-in 2.4GHz wireless receiver

    • Multi-frequency hopping for interference avoidance

    • Open space transmission distance up to 300 meters

Function Settings:

  • Vehicle-grade industrial DSP

  • Graphical OSD menu

  • Adjustable settings for image mirroring, normal view, reverse guidelines, and priority trigger functions

Physical Design:

  • Rust-resistant metal bracket

  • U-shaped and dual-side vibration-resistant design

Power and Protection:

  • Wide operating voltage: DC 8~32V

  • Load dump pulse voltage circuit design

  • Reverse polarity protection circuit

  • LED thermal response constant current and voltage protection circuit to prevent misuse and damage from vehicle pulse voltage, ensuring product longevity

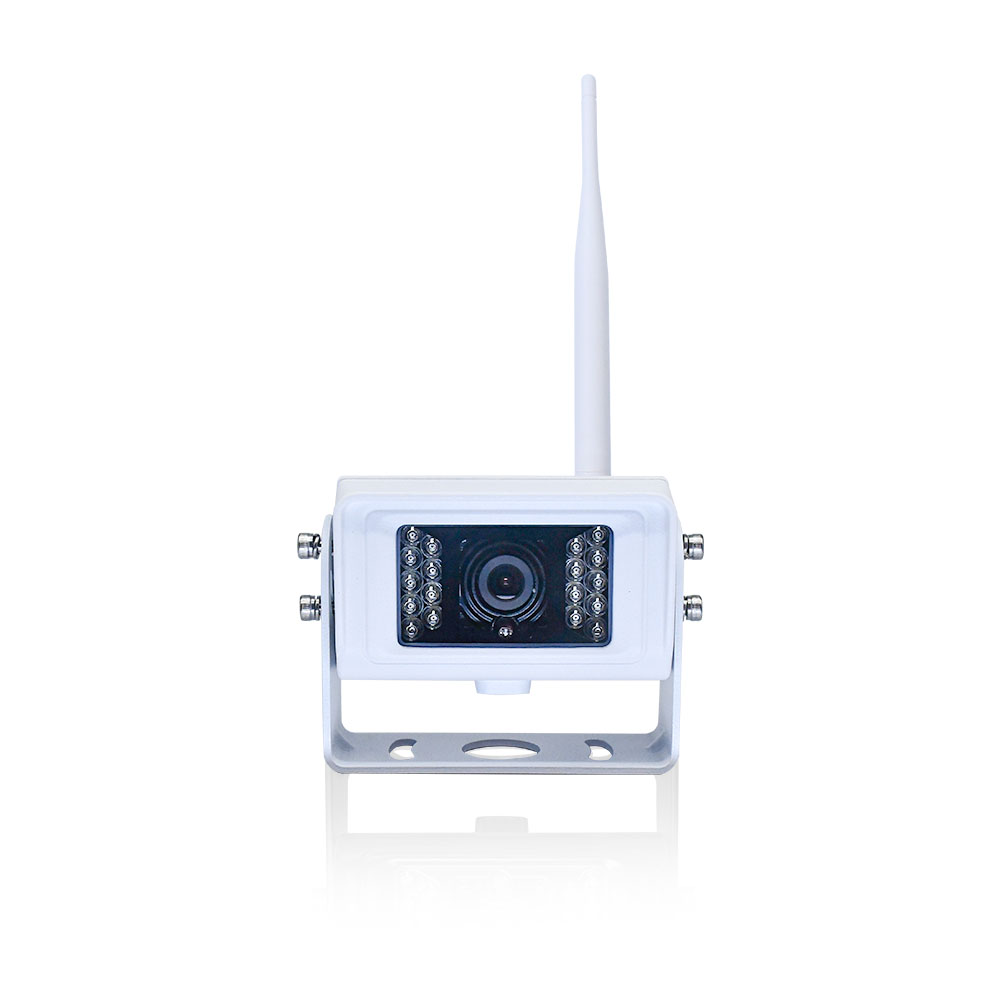

Wireless HD Vehicle-Mounted Waterproof Camera

Image Quality:

  • 1080P high definition resolution

  • High-definition with millions of pixels

Wireless Transmission:

  • 2.4GHz wireless technology

Waterproof Performance:

  • IP69K waterproof rating

Night Vision Function:

  • IR LED night vision capability

Product Parameters

Waterproof Wireless HD Monitor (MWHD-5014H)

Color Monitor5-inch IPS screen
Wireless ReceptionBuilt-in 2.4G wireless receiver
Display Mode1/2/3/4 screen modes
Operating Frequency2400〜2483.5MHz
Reception Sensitivity≤-86 dB
Reception Distance≤300 meters in open space
Frequency Hopping Channels80
Resolution1024(H) x 600(V) dots
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m²)600
Load DumpISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Protection RatingIP69K
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC8-32V
Dimensions (L x W x T)218 x 150 x 54 mm

Wireless HD Waterproof Camera (CWHD-152M)

Image Sensor1/3.7 Color DSP
Wireless TransmissionBuilt-in 2.4G digital wireless transmitter
Transmission Power18dBm
Transmission Distance≤100 meters in open space
Resolution1080P
Effective Pixels1920(H) x 1080(V)
Viewing Angle130°
Infrared Distance15 meters
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Operating VoltageDC8-32V
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Dimensions (W x H x D)106 x 75 x 70.4 mm

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
