Product Features

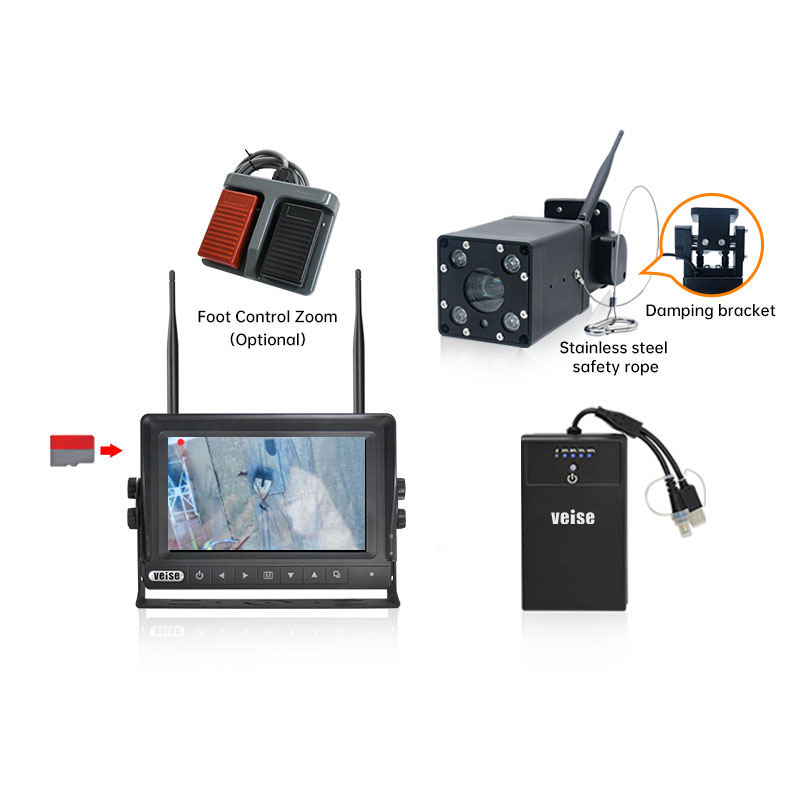

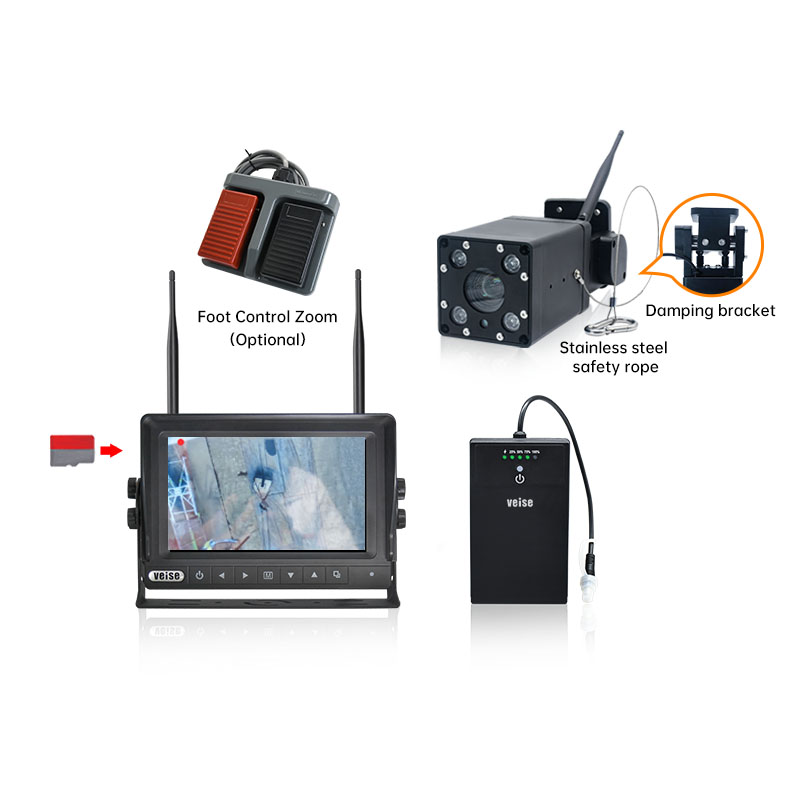

Wireless Zoom Video System Features:
Wireless Control for Easy Operation:
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.
These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.
Waterproof Wireless HD Monitor
7-inch digital screen waterproof monitor with built-in 2.4GHz wireless receiver, featuring high resolution of 1024x600 and high brightness of 600cd/㎡.
Multi-frequency hopping code pairing for anti-frequency interference and a clear transmission distance of up to 200 meters.
Car-grade industrial DSP with a graphical OSD menu for separate settings of screen mirroring and normal image, reverse scale, and trigger priority application functions.
Front plastic and back aluminum fully sealed pressure-balanced patented waterproof structure design, with an IP68 waterproof rating.
The bracket is made of rust-resistant metal material, with a U-shaped design and double-sided tightening for vibration resistance.
Wide range working voltage of DC11~32V, load dump pulse voltage circuit design, reverse polarity protection circuit design, and LED thermal response constant current and constant voltage protection circuit design to prevent damage from improper use, car pulse voltage, and to ensure the warranty period.
1080P Digital Wireless 20x Zoom Camera
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.

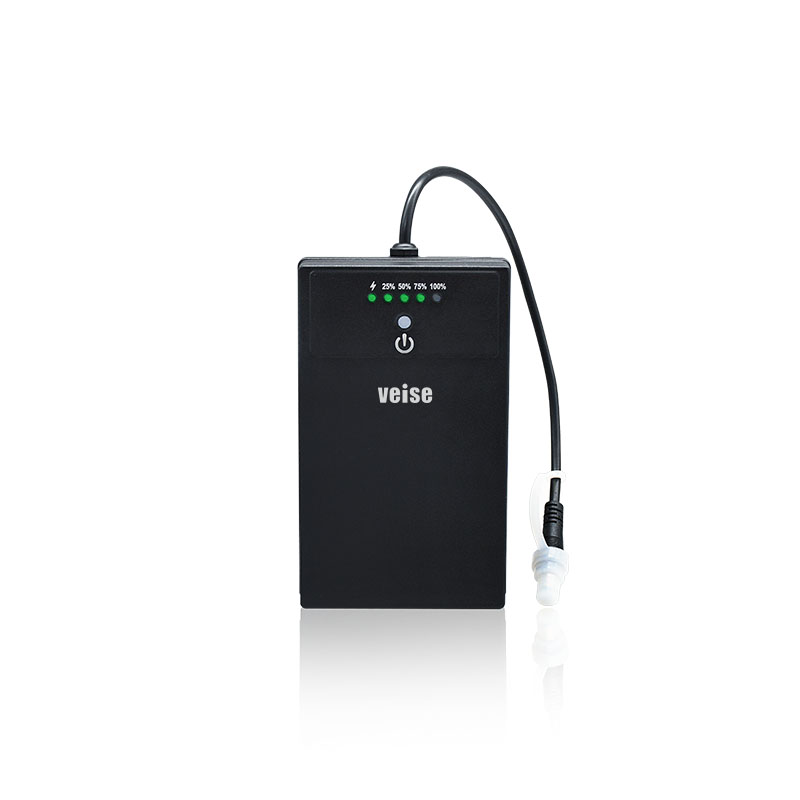

Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Battery Capacity: 8000mAh fast-charging battery, supporting fast-charging protocols.
Design and Waterproofing: Magnetic adsorption design, IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours of use.
Product Parameters
| Model | MWHD-754H |
| Display | 7-inch IPS screen |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Picture Mode | 1/2/3/4 picture modes |
| Operating Frequency | 2400-2483.5MHz |
| Sensitivity | ≤-86 dB |
| Reception Distance | Up to 200 meters in open space |
| Multi-frequency Hopping Channel Code Selection | 80 channels |
| Resolution | 1024(H) x 600(V) dots |
| Color System | PAL/NTSC (AUTO) |
| Brightness | 600 cd/m² |
| Load Dump | ISO16750-2 standard (24V system Us=174V, Ri= 4Ω, td=350ms) |
| Protection Rating | IP68 |
| Vibration Resistance | 5G according to GB/T 2423.56-2018 standard (random 5G vibration) |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Voltage | DC11-32V |
| Dimensions | (L x W x T) (218 x 150 x 54mm) |
| Model | 1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X) |
| Image Sensor | 1/2.8 Color |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Range | Open space ≤200 meters |
| Resolution | 1080P |
| Effective Pixels | 1920(H) x 1080(V) |
| Optical Zoom | 20x (Touch screen control zoom) |
| Focal Length | 5.35～96.3mm |
| Aperture | F1.6～F3.5 |
| Horizontal Angle of View | 64.1～3.6 degrees (Wide-angle - Telephoto) |
| Viewing Distance | 5-200 meters |
| Zoom Speed | Approximately 3 seconds (Optical, Wide-angle - Telephoto) |
| Focus Mode | Auto Focus |
| Day/Night Mode | IR-CUT automatic switching (Color in daytime, Black and white at night) |
| Infrared Distance | 50 meters (Built-in 4 high-power infrared lights) |
| Housing Material | Aluminum alloy, with anti-drop wire rope clip design |
| Mounting Bracket | Vertical gravity stainless steel bracket |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12-24V |
| Operating Temperature | -20°C to +60°C |
| Storage Temperature | -30°C to +70°C |
| Vibration Resistance | 5G (Compliant with GB-T2423056-2006 standard) |
| Dimensions | 220(W) x 90(H) x 90(D) mm |
| Model | Magnetic Rechargeable Portable Power Supply (MP-03B10W1) |
| Battery Type | Lithium Polymer Battery |
| Product Capacity | 30000mAh (3.7V) 111Wh |
| USB Input (Supports Fast Charging) | Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours) |
| DC Output | DC12V/0.8A (DC5.5/2.1 male connector) |
| Charging Cycle Temperature | 0°C to +40°C |
| Charge/Discharge Cycles | >800 times |
| Discharge Operating Temperature | -10°C to +50°C |
| Anti-Drop Design | Anti-drop wire rope clip design |
| Mounting Method | Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg) |
| Waterproof Rating | IP67 |
| Shock Resistance | 5G |
| Dimensions | 148(W) x 88(H) x 45.5(D) mm |

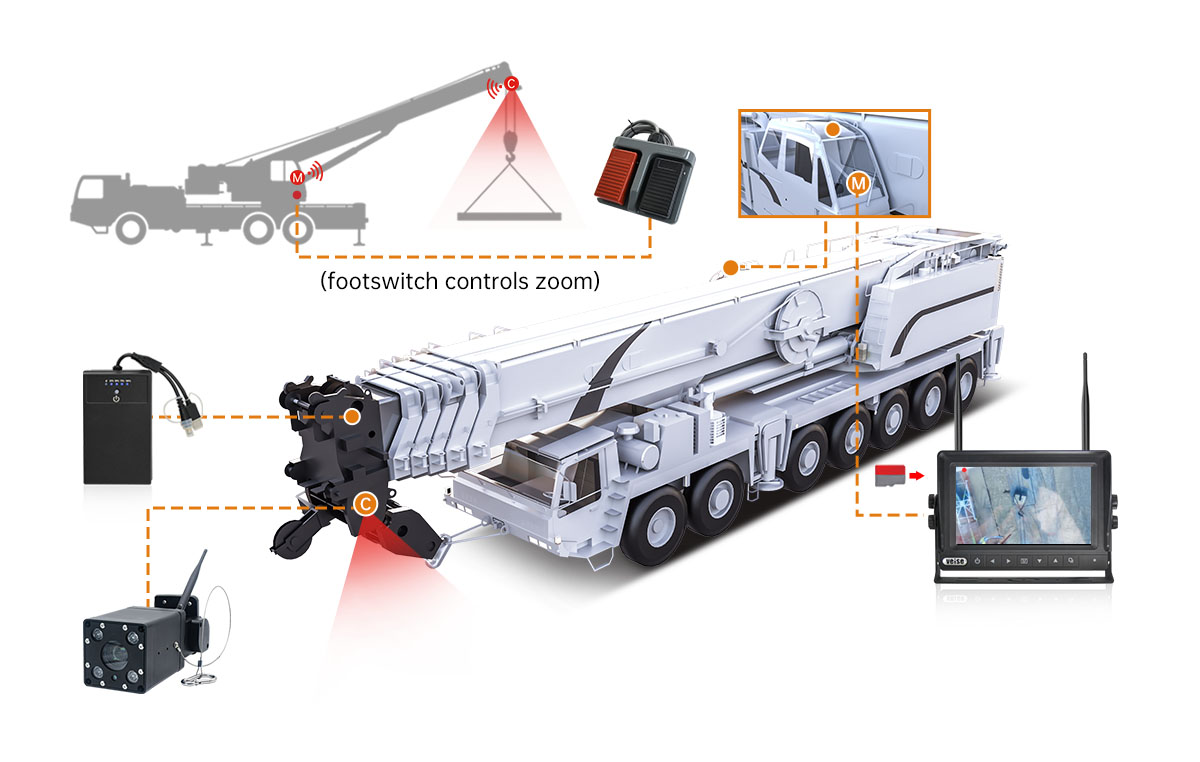

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
