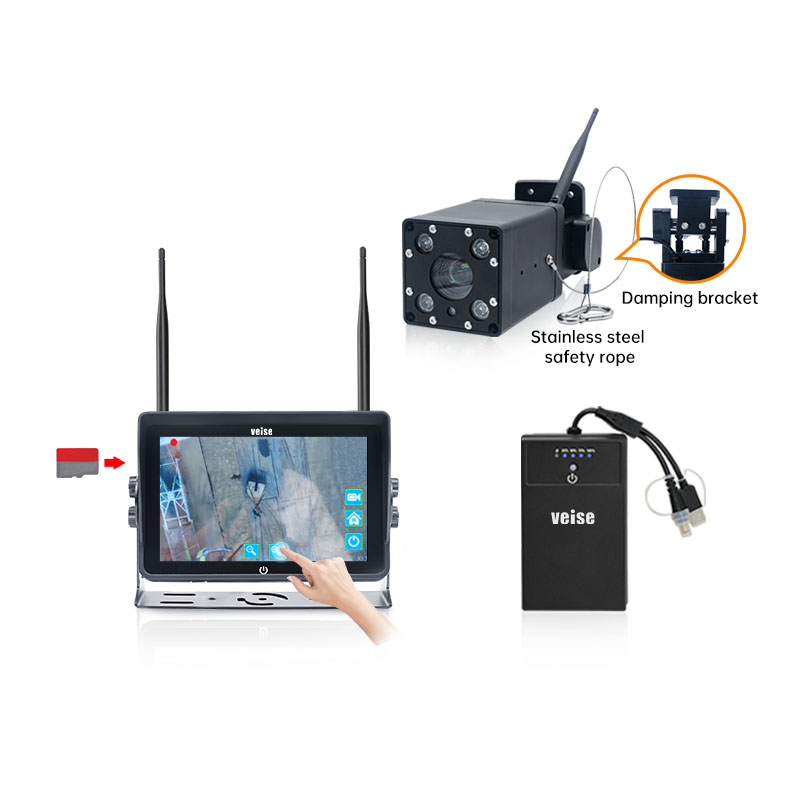

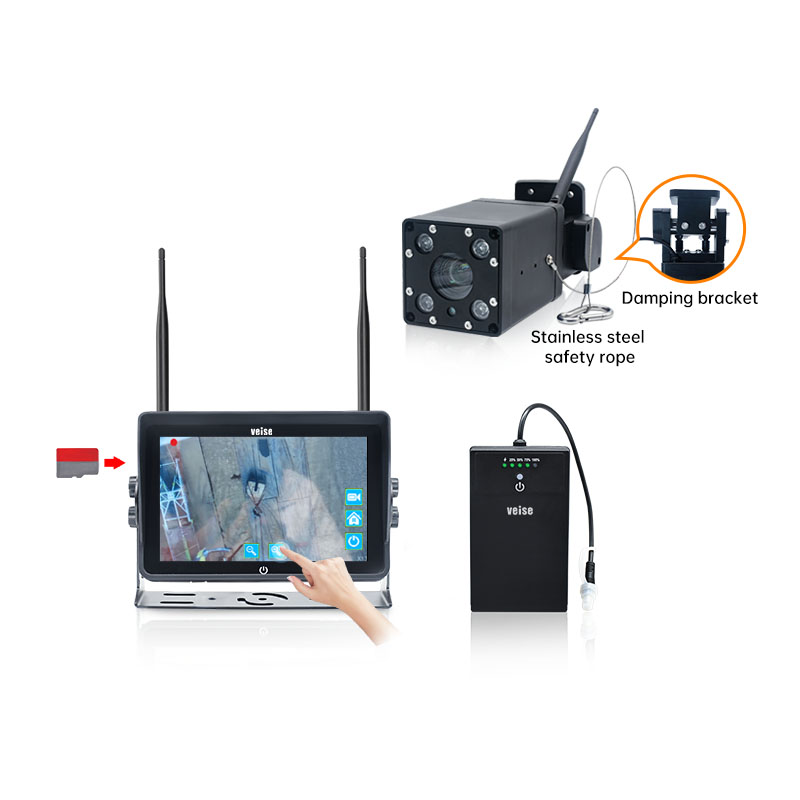

7-inch 20x zoom wireless blind spot detection system, fully laminated touch screen can control camera zoom.
Model :
MWHD-7154H672H1-AF
Summarize :
This system product is a 7-inch high-definition touch display monitor, equipped with a 7-inch IPS HD screen, supporting multiple signal inputs, and featuring high resolution and brightness, specifically designed for automotive and industrial-grade standards. It supports quad-view display and a graphical OSD menu, with touch operation capabilities, enhancing user interaction. The appearance is independently designed, using high-temperature resistant materials, equipped with a detachable sunshade and high-precision laser-engraved keys. The bracket is made of anti-rust metal material and features anti-vibration design. The product also has load dump pulse voltage protection, under-voltage and over-voltage protection circuits, a wide range working voltage, external power supply polarity reversal protection, and LED constant current and constant voltage protection. Additionally, it comes with a 1080P digital wireless 20x zoom camera, featuring optical zoom, digital image stabilization, night vision support, and a high waterproof rating along with a mechanically vertical bracket design.
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.
These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

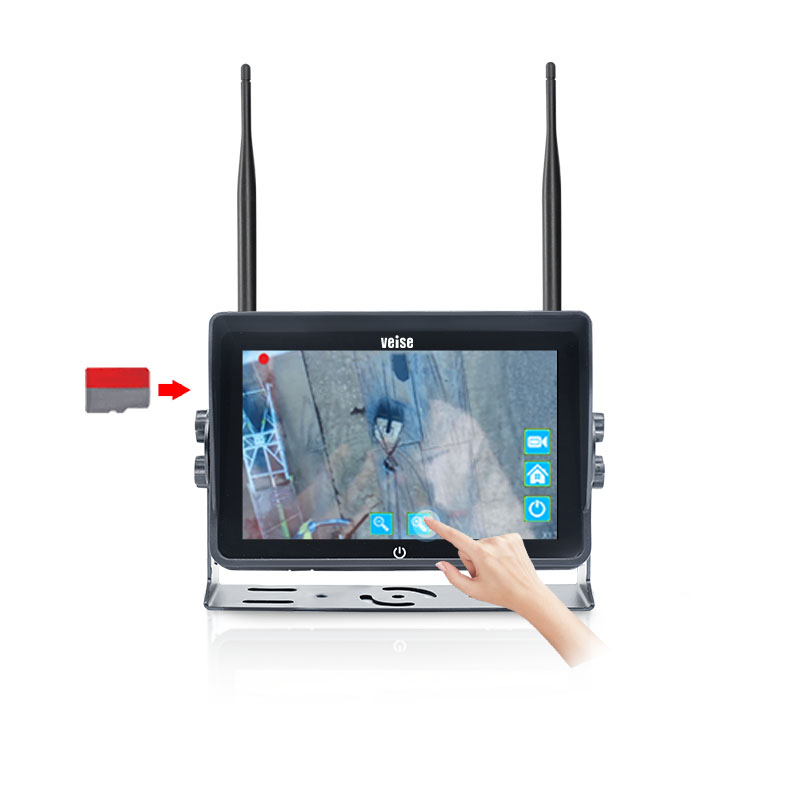

7-inch Full Laminate High-Definition Touch Screen
7-inch IPS HD screen display supports mixed input of four 1080P/960P/720P/CVBS signals.
1024RGBX600 high resolution with 600cd/㎡ high brightness for clear images.
Automotive-grade industrial digital video processor.
Supports quad-view display/graphic OSD menu, supports single-channel image flip left, right, up, and down, reverse scale, reverse trigger, reverse delay, and other functions.
Touch function: Supports direct finger touch operation, greatly enhancing the flexibility of user interaction with the display.
Display screen full lamination process: The protective glass panel and display screen of the monitor use a spaceless full lamination process structure, eliminating mirror reflection light, ensuring the image screen is clear and transparent.
Independently designed appearance with a patent, the casing is made of ABS+PC material, featuring high-temperature resistance.
Detachable sunshade to prevent the impact of sunlight on display picture quality.
Buttons feature high-precision laser-engraved white characters for clear visibility and aesthetics.
Bracket made of anti-rust metal material, U-shaped + double-sided tightening for anti-vibration design.
Design protection against load dump pulse voltage with DC24V+174V(350ms) to prevent damage from vehicle transient pulses.
Built-in under-voltage and over-voltage protection circuits/DC12~32V wide range working voltage.
Built-in external power supply polarity reversal protection, LED constant current and constant voltage protection for extended lifespan circuit design.
1080P Digital Wireless 20x Zoom Camera
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.
Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
ISO 16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Connector Socket
18-pin waterproof interface
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Vibration Resistance
GB∕T 2423.56-2018 standard (Random 5G vibration)
Power Supply
DC11-32V
Dimensions (LxWxH)
265X168X37(mm) (Without Stand)
Model
1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X)
Image Sensor
1/2.8 Color
Wireless Transmission
Built-in 2.4G digital wireless transmitter
Transmission Power
18dBm
Transmission Range
Open space ≤200 meters
Resolution
1080P
Effective Pixels
1920(H) x 1080(V)
Optical Zoom
20x (Touch screen control zoom)
Focal Length
5.35～96.3mm
Aperture
F1.6～F3.5
Horizontal Angle of View
64.1～3.6 degrees (Wide-angle - Telephoto)
Viewing Distance
5-200 meters
Zoom Speed
Approximately 3 seconds (Optical, Wide-angle - Telephoto)
Focus Mode
Auto Focus
Day/Night Mode
IR-CUT automatic switching (Color in daytime, Black and white at night)
Infrared Distance
50 meters (Built-in 4 high-power infrared lights)
Housing Material
Aluminum alloy, with anti-drop wire rope clip design
Mounting Bracket
Vertical gravity stainless steel bracket
Waterproof Rating
IP69K
Operating Voltage
DC12-24V
Operating Temperature
-20°C to +60°C
Storage Temperature
-30°C to +70°C
Vibration Resistance
5G (Compliant with GB-T2423056-2006 standard)
Dimensions
220(W) x 90(H) x 90(D) mm
Model

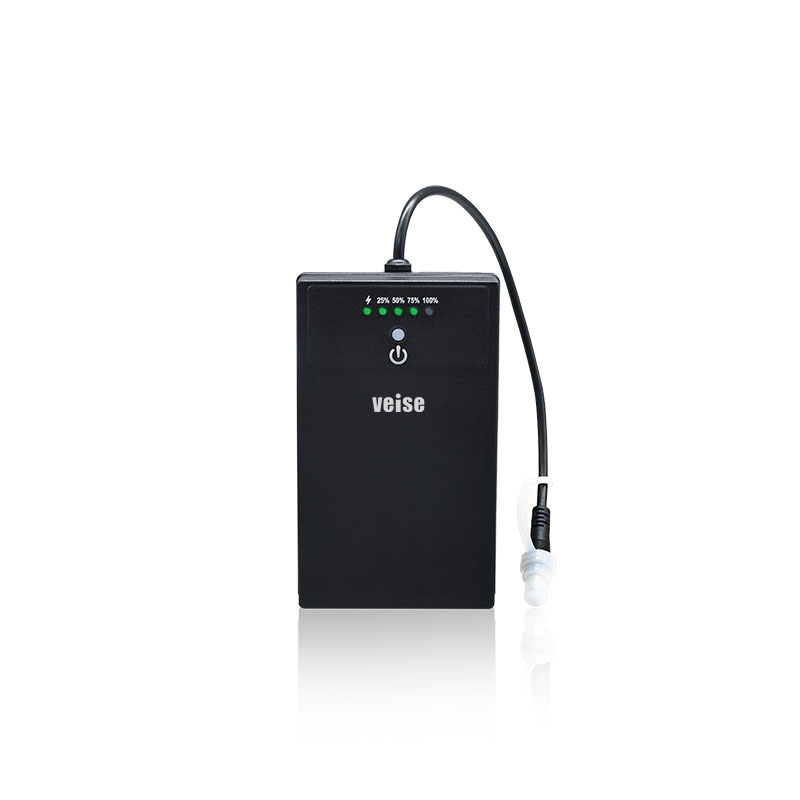

Magnetic Rechargeable Portable Power Supply (MP-03B10W1)
Battery Type
Lithium Polymer Battery
Product Capacity
30000mAh (3.7V) 111Wh
USB Input (Supports Fast Charging)
Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours)
DC Output
DC12V/0.8A (DC5.5/2.1 male connector)
Charging Cycle Temperature
0°C to +40°C
Charge/Discharge Cycles
>800 times
Discharge Operating Temperature
-10°C to +50°C
Anti-Drop Design
Anti-drop wire rope clip design
Mounting Method
Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg)
Waterproof Rating
IP67
Shock Resistance
5G
Dimensions
148(W) x 88(H) x 45.5(D) mm

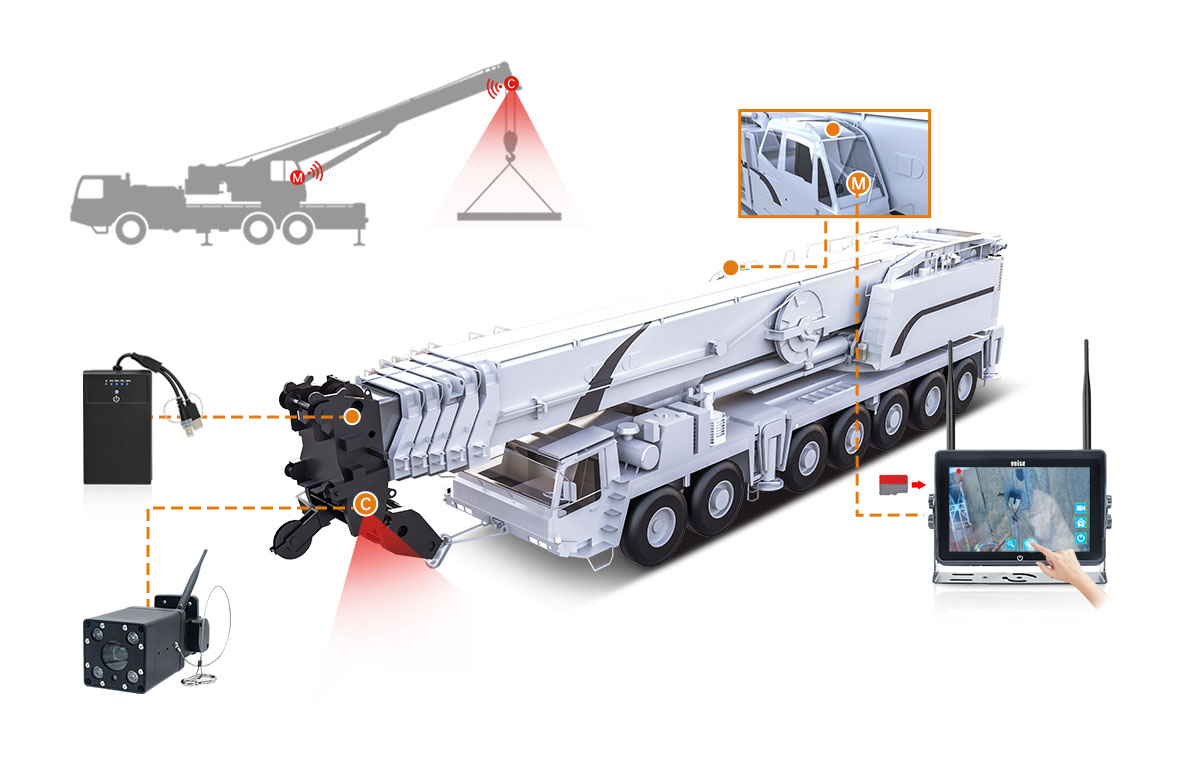

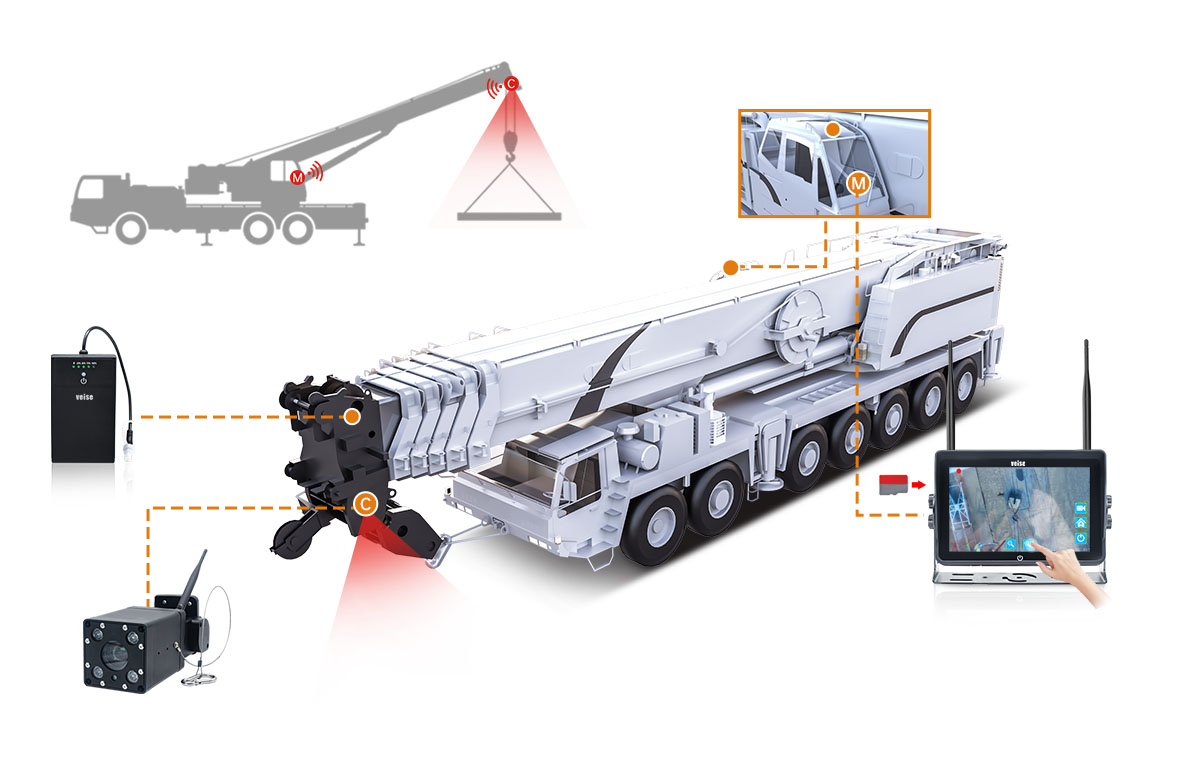

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
