7 inch 20x zoom wireless car monitor system, waterproof touch button monitor can control zoom
Model :
MWHD-7184H672H1-AF
Summarize :

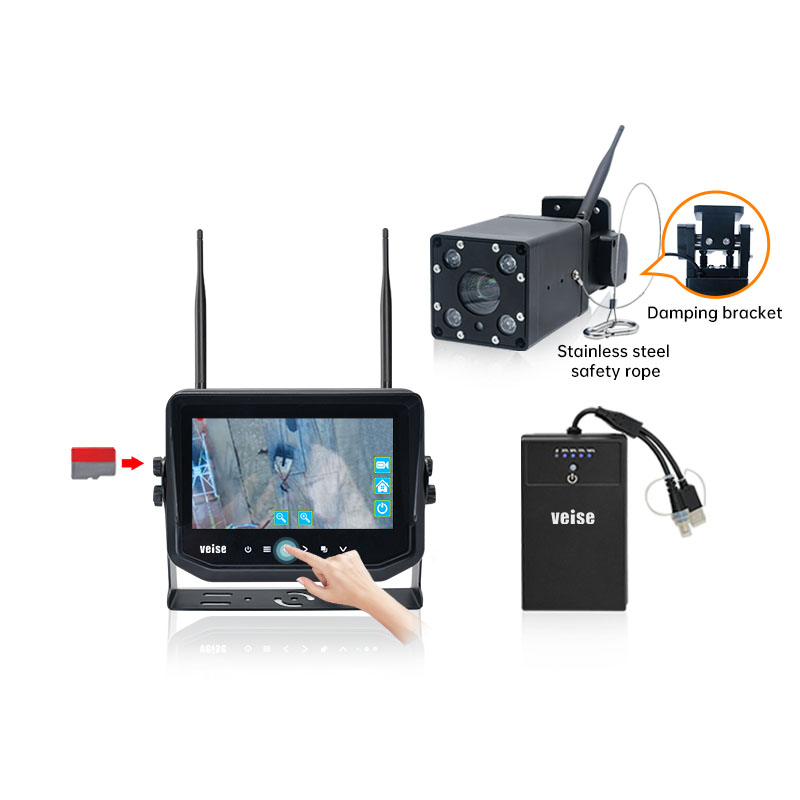

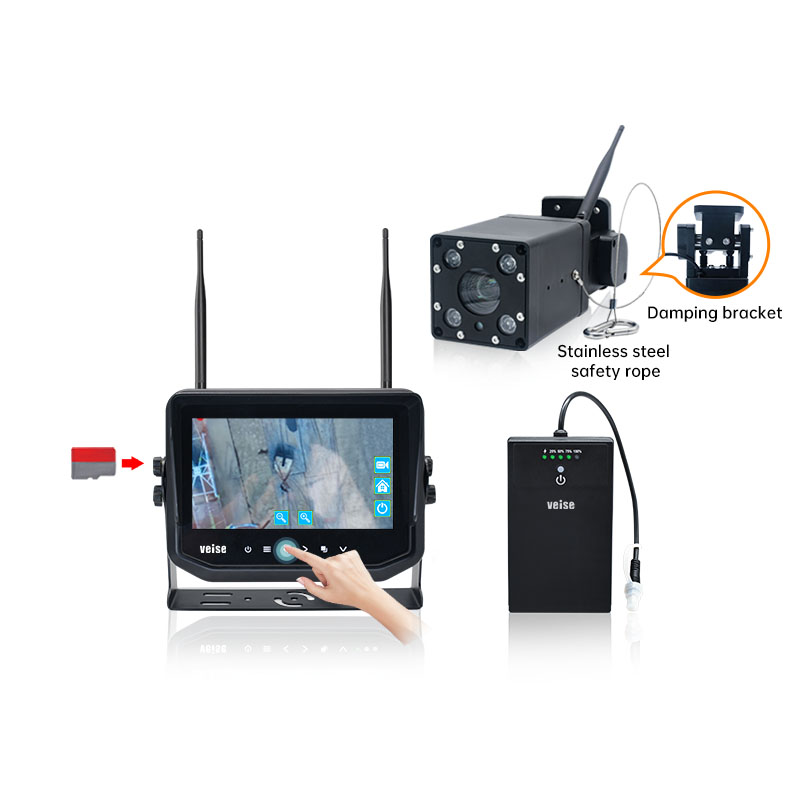

The system, paired with a 7-inch waterproof touch button monitor, offers a clear and intuitive operational experience with its IPS screen, high resolution, and graphical menu. It integrates DVR functionality, supports large-capacity TF card storage, and enhances display effects through full lamination technology. The AI warning system provides security alerts through a built-in buzzer, while the protective circuit design ensures stable operation and anti-interference capabilities across a wide voltage range. The product also features a sunshade design and a sturdy metal bracket, as well as a 1080P high-definition wireless camera that supports 20x optical zoom and digital image stabilization, providing clear images in various environments, with night vision capabilities and a high waterproof rating.
The wireless monitor supports image zooming in and out through buttons, foot pedals, or touch controls on the wireless camera.
Simple operation enables visual tasks, effectively improving work efficiency.
Enhances job safety by reducing operational risks.
Outstanding Performance of Wireless Zoom Camera:
Equipped with 20x optical zoom capability to meet observation needs at various distances.
Features four built-in infrared LED lights to enhance imaging effects in low-light environments.
Comes with an anti-shake gravity damping mount to effectively prevent image shaking caused by wind or high-altitude operations.
Strong stability ensures clear image output in various environments.

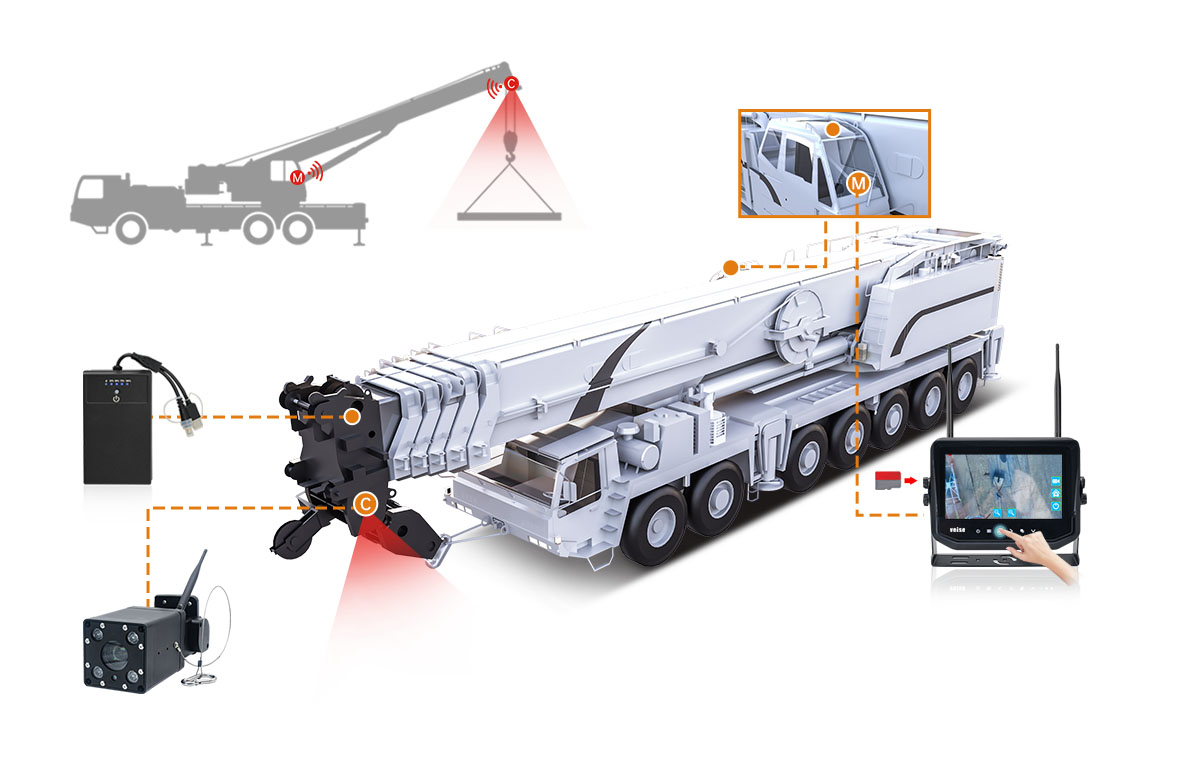

These features make the wireless zoom video system play a significant role in a variety of job scenarios, especially in situations requiring remote observation and precise operation.

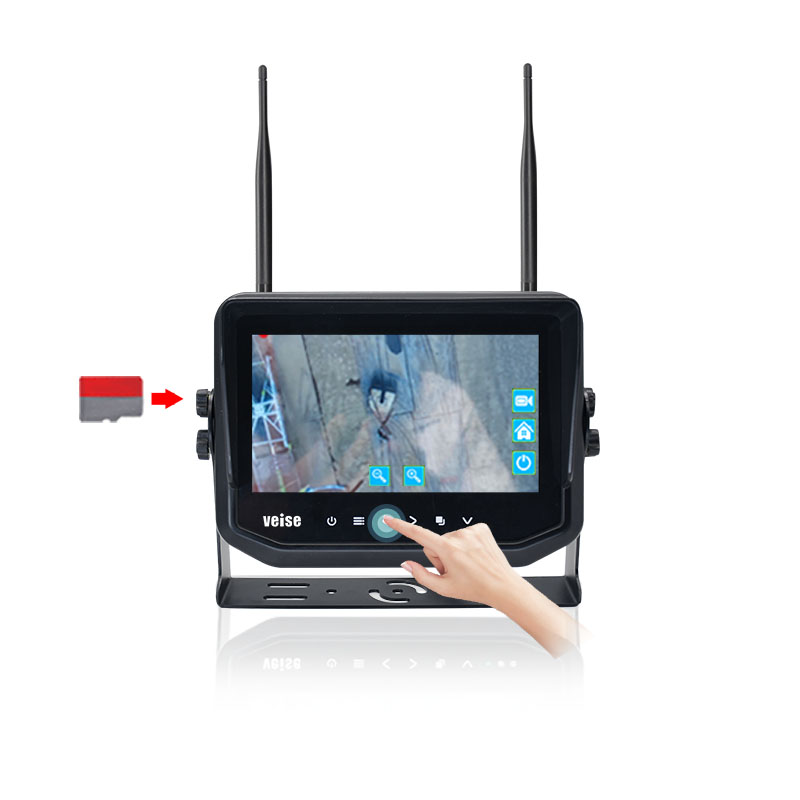

7-inch waterproof touch button monitor
Screen: 7-inch IPS screen, fast response, wide viewing angle, true color, resolution 1024x600. Graphical menu for simple and quick operation.
Display Screen Full Laminate Process: The monitor's protective glass panel and display screen use a spaceless full lamination process structure to eliminate mirror reflection and ensure clear and transparent image screens.
Protective Circuit Design: Wide range working voltage DC8-32V; resists load dump pulse voltage DC24V+174V(350ms); protects against in-vehicle transient pulse power damage; external power supply polarity reversal and backlight LED thermal response constant current and constant voltage protection; independent power output for energy-saving and low power consumption; effectively ensures the service life cycle.
Sunshade Design: Removable sunshade cap to prevent the impact of sunlight on display effects.
Zoom Function: Optical 20x zoom with digital image stabilization.
Viewing Range: Viewable distance from 5 to 200 meters, with 4 built-in LED infrared lights. The infrared light power automatically adjusts according to the zoom level, supporting 50 meters HD night vision.
Image Quality: Car-grade DSP, million high-definition pixels, IP69K waterproof rating, mechanically vertical bracket design, with anti-drop rope function.
Magnetic All-Aluminum Rechargeable Waterproof Portable Power Bank
Mirror/Normal image settings, reverse delay settings, trigger priority, multi-language support
Color System
PAL/NTSC (auto)
Video Recording Format
AVI
Video Recording Capacity
Supports 16-512GB TF cards (standard 64G)
Video Recording Function
Real-time recording
Brightness (cd/m2)
600
Contrast Ratio
800:1
Surge and Load Protection
ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Operating Voltage
DC11-32V
Vibration Level
GB∕T 2423.56-2018 standard (random 5G vibration)
Dimensions (L x W x H)
210 x 143 x 84 mm
Model
1080P Digital Wireless 20x Zoom Camera (CWHD-672H-20X)
Image Sensor
1/2.8 Color
Wireless Transmission
Built-in 2.4G digital wireless transmitter
Transmission Power
18dBm
Transmission Range
Open space ≤200 meters
Resolution
1080P
Effective Pixels
1920(H) x 1080(V)
Optical Zoom
20x (Touch screen control zoom)
Focal Length
5.35～96.3mm
Aperture
F1.6～F3.5
Horizontal Angle of View
64.1～3.6 degrees (Wide-angle - Telephoto)
Viewing Distance
5-200 meters
Zoom Speed
Approximately 3 seconds (Optical, Wide-angle - Telephoto)
Focus Mode
Auto Focus
Day/Night Mode
IR-CUT automatic switching (Color in daytime, Black and white at night)
Infrared Distance
50 meters (Built-in 4 high-power infrared lights)
Housing Material
Aluminum alloy, with anti-drop wire rope clip design
Mounting Bracket
Vertical gravity stainless steel bracket
Waterproof Rating
IP69K
Operating Voltage
DC12-24V
Operating Temperature
-20°C to +60°C
Storage Temperature
-30°C to +70°C
Vibration Resistance
5G (Compliant with GB-T2423056-2006 standard)
Dimensions
220(W) x 90(H) x 90(D) mm
Model

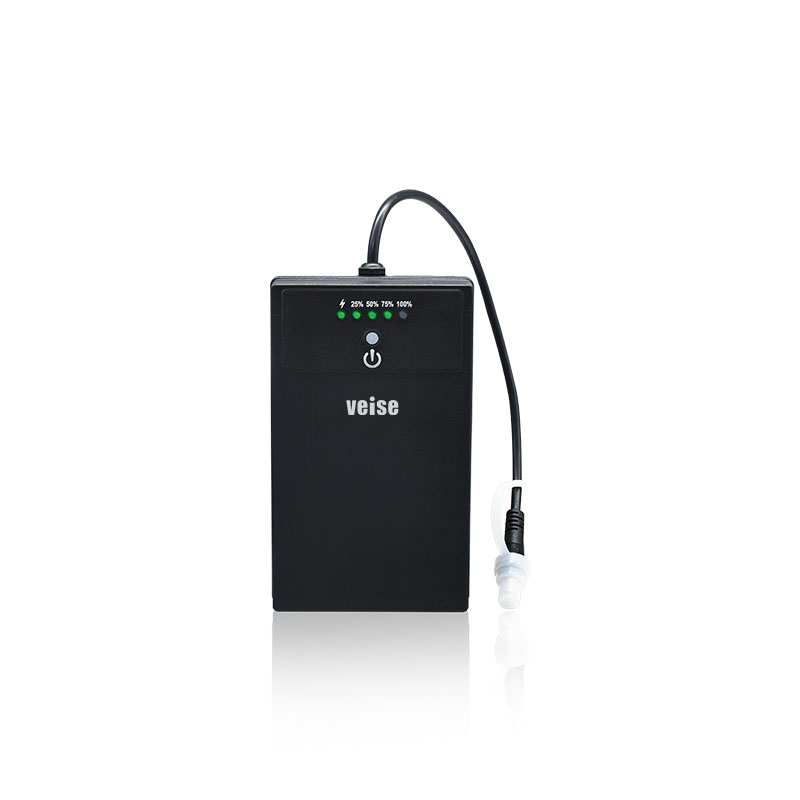

Magnetic Rechargeable Portable Power Supply (MP-03B10W1)
Battery Type
Lithium Polymer Battery
Product Capacity
30000mAh (3.7V) 111Wh
USB Input (Supports Fast Charging)
Universal USB port with protocol fast charging, 12V/1.5A (Full charge takes approximately 10.5 hours)
DC Output
DC12V/0.8A (DC5.5/2.1 male connector)
Charging Cycle Temperature
0°C to +40°C
Charge/Discharge Cycles
>800 times
Discharge Operating Temperature
-10°C to +50°C
Anti-Drop Design
Anti-drop wire rope clip design
Mounting Method
Magnetic base mounting (Built-in 11 strong magnets, front horizontal pull force >20kg, side pull force >8kg)
Waterproof Rating
IP67
Shock Resistance
5G
Dimensions
148(W) x 88(H) x 45.5(D) mm

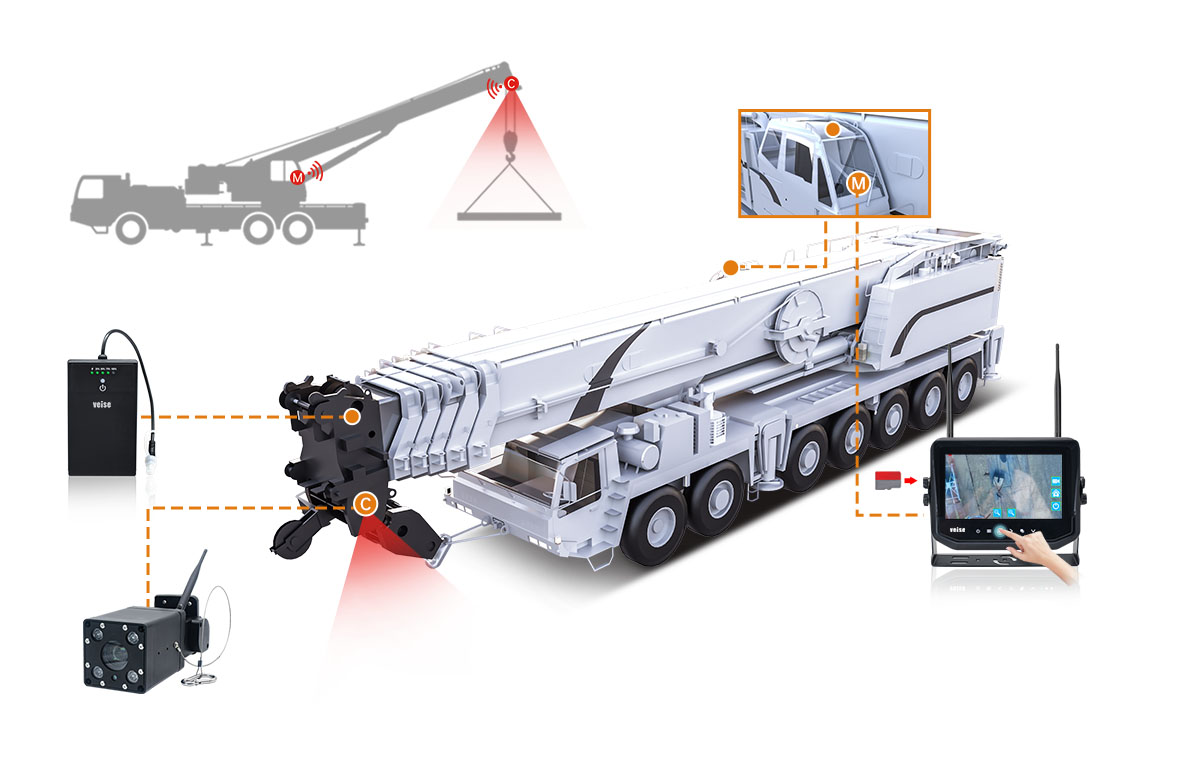

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
