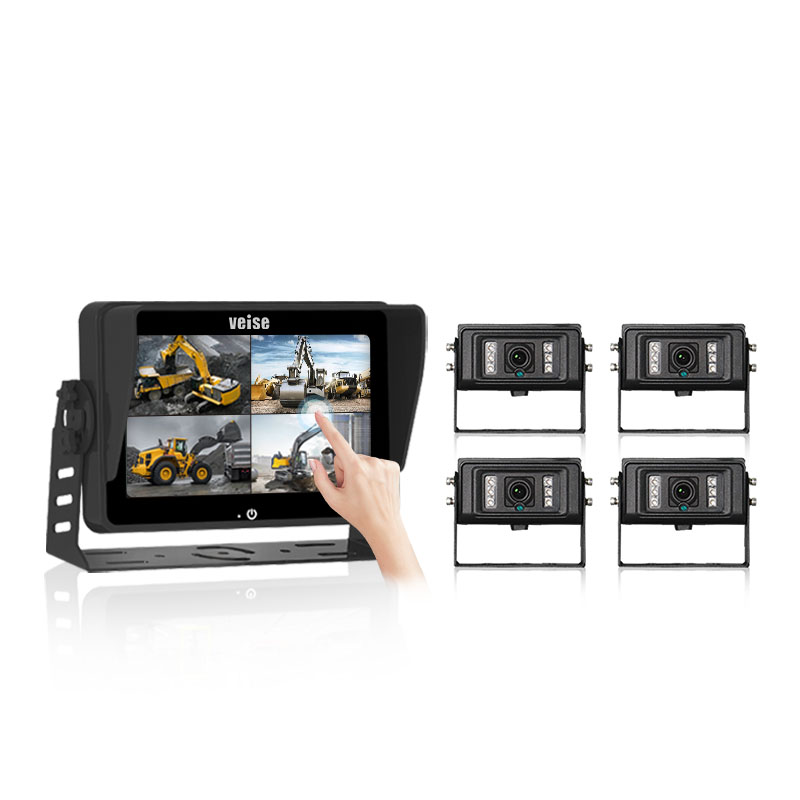

Product Features

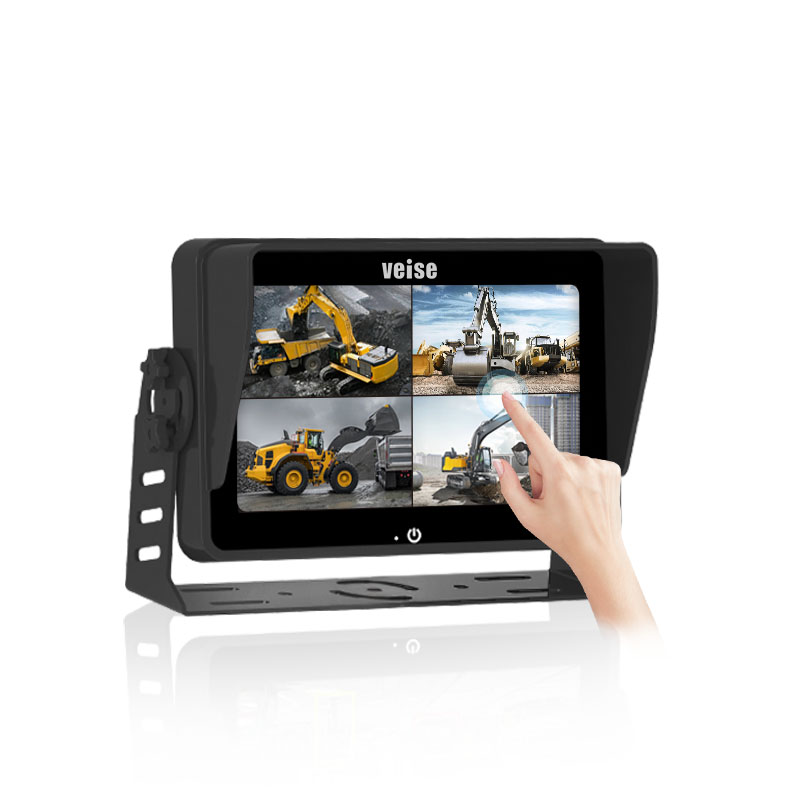

HD DVR Touch Screen Monitor
Screen: 7-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600, graphical menu for easy and quick operation.
DVR: real-time recording and playback functionality, supports 16-512GB TF cards(Standard 64G)
Video input: supports up to 4-6 video inputs and has real-time recording and playback functionality.
Display Modes: 1/2/3/4-Screen Split
Full bonding process for Screen: the protective glass panel, touch screen and Screen of the monitor adopt a space free fully bonded process structure,Eliminate specular reflection to ensure clear and transparent image Screen.
Power and Protection: Operates within a wide voltage range of DC 8-32V. Features include pulse voltage protection against load disconnection, reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

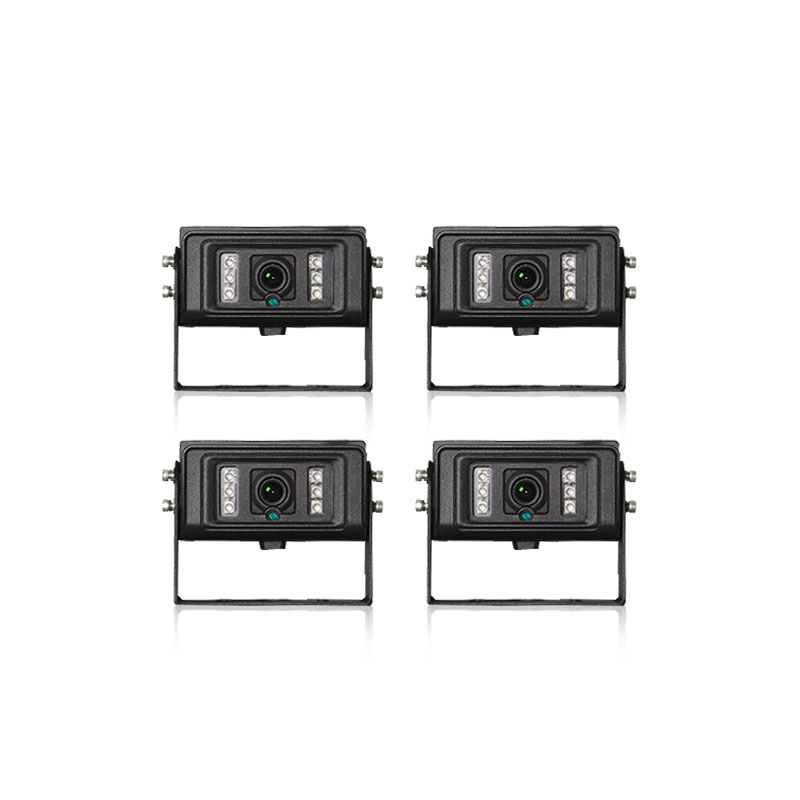

HD waterproof camera
AHD camera, car-standard DSP, 2 million high-definition pixels, IP69K waterproof rating, IR LED night vision function, cold-resistant and waterproof signal output line.
Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Parameters
System Model | HDS-7154MD162M4-64G | HDS-7154M162M4 |
| HD Monitor | MHD-7154MD-64G | MHD-7154M |
| Display Size | 7-inch IPS Screen with Touch Screen |
| Resolution | 1024 x 600 pixels (RGB) |
| Video Inputs | 4 channels |
| Display Modes | 1/2/3/4-screen split |
| Video Signal Inputs | CVBS/AHD720P/1080P |
| OSD Menu Functions | Mirror/normal settings, reverse delay time, trigger priority, multi-language support |
| Color Format | PAL/NTSC (AUTO) |
| Brightness | 600 (cd/㎡) Automatically adjusts based on ambient light |
| Contrast Ratio | 800:1 |
| Video Recording Function | Real-time recording(2GB per hour per channel) | / |
| Video File Format | AVI | / |
| Video Recording Capacity | Supports 16-512GB TF cards(Standard 64G) | / |
| Surge and Load Protection | ISO 16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms) |
| Connector Socket | 18-core waterproof interface |
| Operating Temperature | -20°C to +70°C |
| Storage Temperature | -30°C to +80°C |
| Operating Voltage | DC 11-32V |
| Vibration Resistance | GB/T 2423.56-2018 standard (random 5G vibration) |
| Dimensions (L x W x T) | 210 x 143 x 84 mm |
| Weight | 800g |
HD Waterproof Camera(CHD-162M) |
| Image Sensor | 1/2.8 Color Sony |
| Effective Pixel | 1920(H) X 1080(V) |
| Definition | 1080P |
| Visible Angle | 130° |
| Infrared Distance | 5 Meters (Built-In 6pcs Of 850nm Infrared Lights） |
| Waterproof Rating | IP69K |
| Working Voltage | DC12V±10% (Powered By The Monitor） |
| Working Temperature | -20℃ To +60℃ |
| Storage Temperature | -30℃ To +70℃ |
| Vibration Rating | GB∕T 2423.56-2018 Standard (Random 5G Vibration) |
| Dimension | 70.5(W) X 118.5(H) X 76(D) Mm |
Product Applications
Agricultural Vehicles Backup Camera System Solutions
