10.1-inch HD waterproof touchscreen with customized reverse guide line monitor for reverse camera systems
Model :
HDS-1014MDTP122MX4
Summarize :
This product includes a high definition DVR touch screen waterproof monitor and a high definition waterproof reversing camera. The waterproof monitor is IP65 rated, and the housing is made of aluminum alloy which is good for heat dissipation. It adopts the screen lamination process to ensure clear images and supports the customized scale function of the monitor. Equipped with a 10.1-inch IPS display with a resolution of 1024RGBx600 for easy operation, the DVR features real-time recording and playback, supports 16-512GB TF cards, easy-to-plug SIM card slot, up to 4 video inputs, multiple split-screen modes, brightness can be automatically adjusted according to the ambient light, and it can work in a wide range of voltages from DC11 to 32V with various power supply protection functions. protection functions. Reversing camera adopts automotive grade DSP, 2 million HD pixels, IP69K waterproof rating, cold and waterproof signal output cable.
Touch monitor with customizable reverse guide lines function:

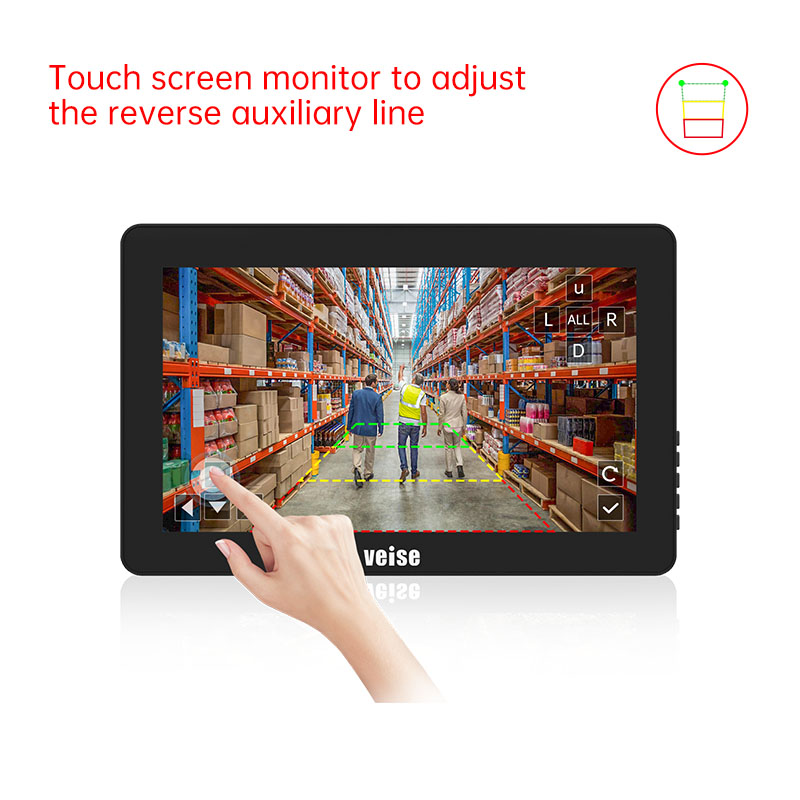

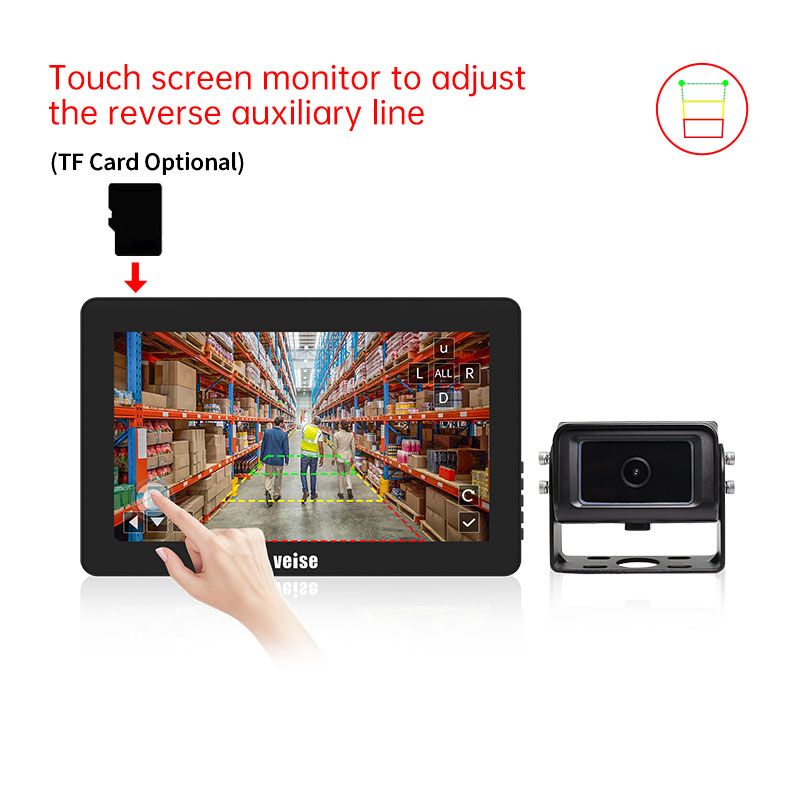

HD DVR Touch Screen Waterproof Monitor (Adjustable Reverse Guide Line Function)
Waterproof Rating: IP65
Shell Material：auminum alloy is beneficial for heat dissipation.

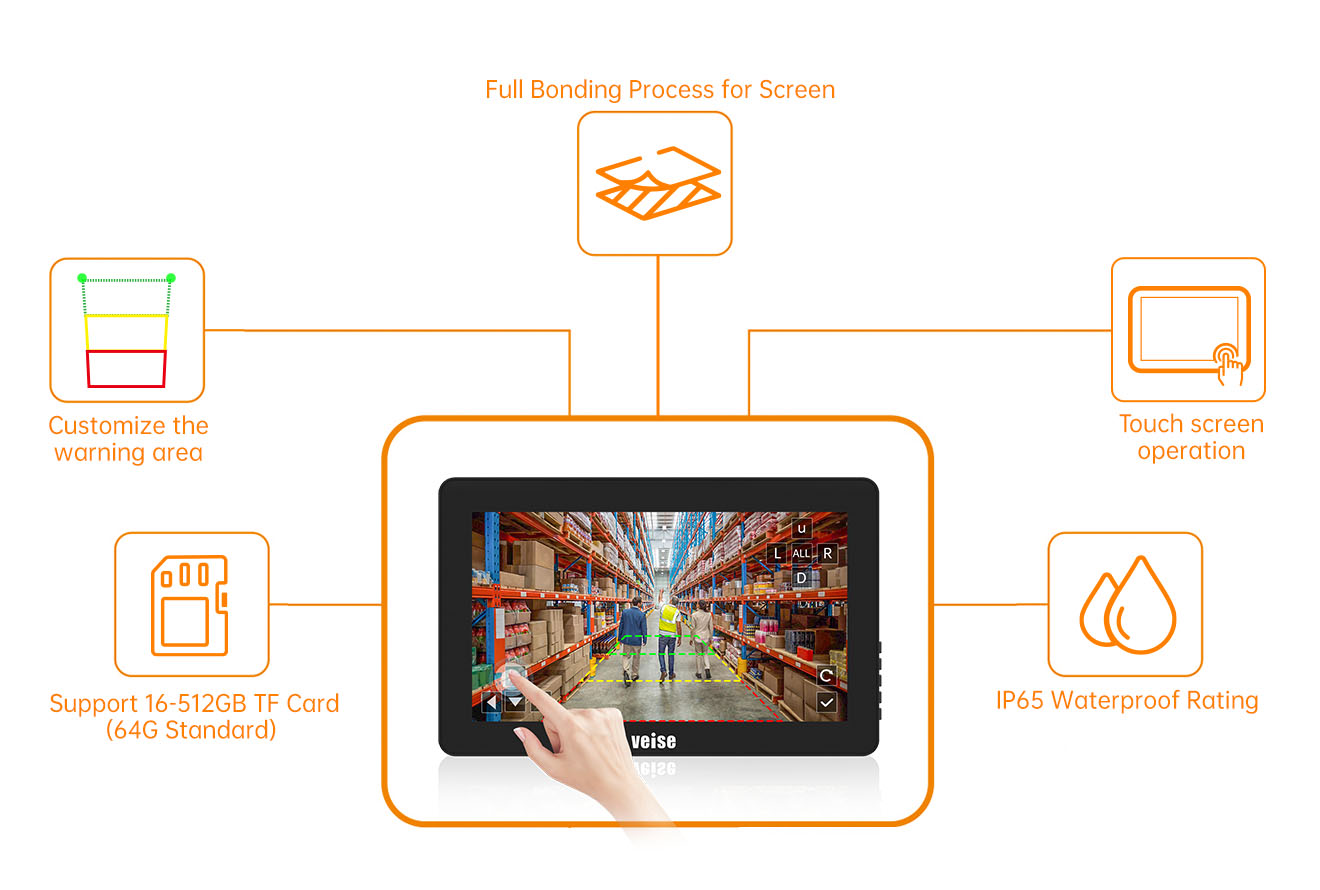

Full Bonding Process for Screen: the protective glass panel, touch screen and display screen of the monitor adopt a space free fully bonded process structure, eliminate specular reflection to ensure clear and transparent image screen.
Screen: 10.1-inch IPS screen with fast response speed, wide viewing angles, true colors, resolution of 1024RGBx600.,graphical menu for easy and quick operation.
DVR: real-time recording and playback functionality, supports 16-512GB TF cards, SIM card slot for easy removal and insertion.
Video Input: supports up to 4-6 video inputs
Display Modes: 1/2/3/4-screen split.
Brightness (600 cd/m2): automatically adjusts based on ambient light
Power and Protection: operates within a wide voltage range of DC11-32V. Features include pulse voltage protection against load disconnection, reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

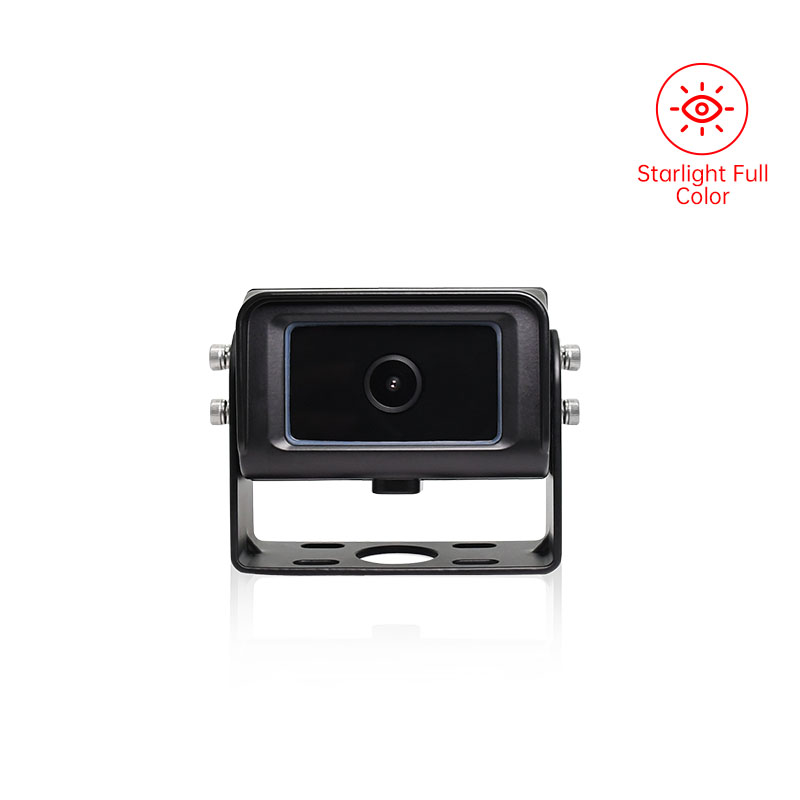

HD Waterproof BackupCamera
Automotive grade DSP, 2 million HD pixels, IP69K waterproof rating, starlight full color, cold resistant and waterproof signal output cable.

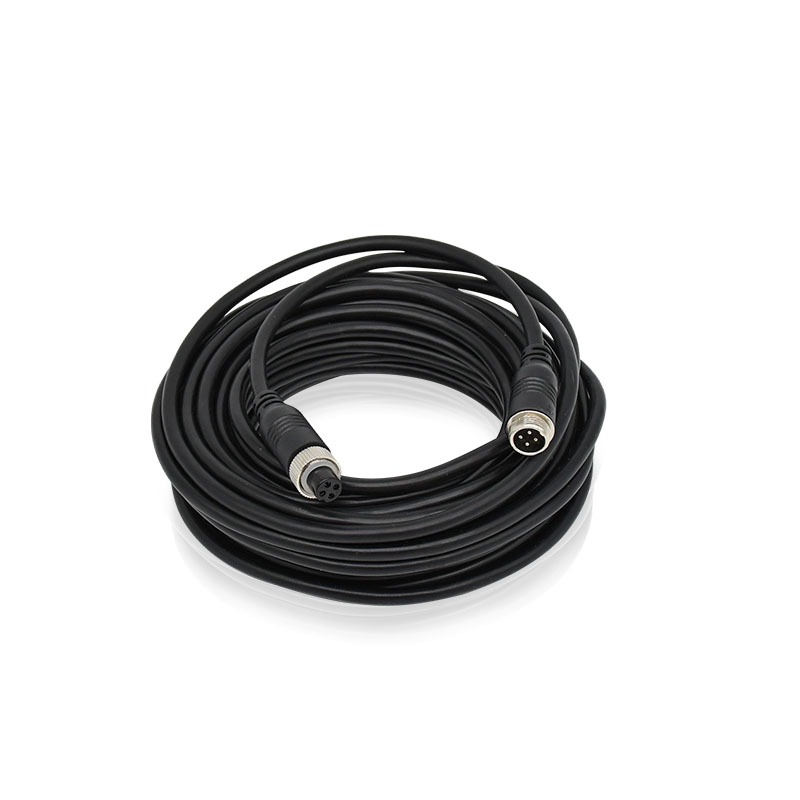

Video Power Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Parameter
System Model
HDS-1014MDTP122MX4
Monitor Model
MHD-1014MDTP
Display
10.1-Inch IPS Screen
Resolution
1024×(RGB)×600
Video Input
4 Channels (1080P/960P/720P/CVBS) Of Signal Mixed Input
Screen Modes
1/2/3/4-Screen Split
OSD Menu Functions
Mirror/Normal Settings, Reverse Delay Time, Trigger Priority, Multi-Language Support
Standard
PAL/NTSC (AUTO)
Viewing Angle (L/R, U/D)
L/R: 85/85; U/D: 85/85
Contrast Ratio
800:1
Brightness
600 (Cd/㎡) Automatically Adjusts Based On Ambient Light
Response Time (Ms)
25
Video Recording Format
AVI
Video Recording Capacity
Supports 16-512GB TF Cards(Standard 64G)
Recording Resolution
1080P/720P/480P
Load Reject
DC24+174V/350ms
Operating Temperature
-20℃ To +70℃
Storage Temperature
-30℃ To +80℃
Input Power
DC11-32V
Dimensions (LxWxT)
105 X 178 X 50 (mm)
Model
CHD-122MX
Image Sensor
1/2.8 IMX307 CMOS
Pixels
1920(H) x 1080(V)
Resolution
1080P
Video Signal
AHD 1080P
Signal-to-Noise Ratio
≥50dB
White Balance
Automatic
Illumination
0.01Lux
Horizontal Angle
80° (3.6mm lens/F1.8)
Night Vision
Starlight Level
Operating Voltage
DC12V
Operating Temperature
-30℃ to 70℃
Storage Temperature
-30℃ to 70℃
Water Resistance
IP69K
Vibration Resistance
5G
Overall Dimensions
103.6mm x 87mm x 67.5mm
Mounting Method
U-shaped Bracket
Product Applications
