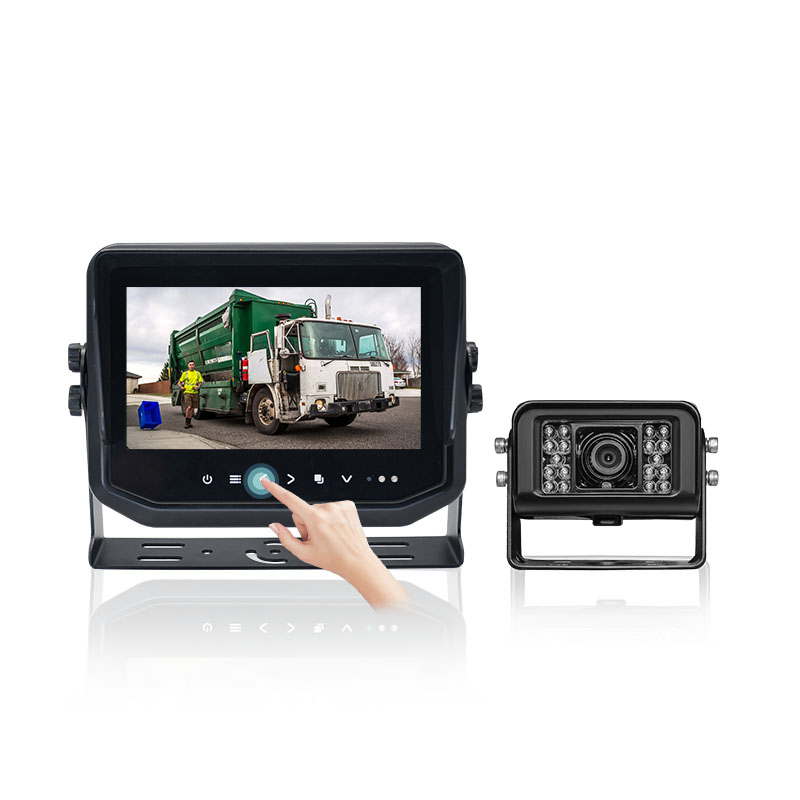

7-inch Waterproof Monitor Rearview Camera System

7-inch Waterproof Monitor Rearview Camera System

Model : HDS-7181122M1
Summarize : Utilizes the backup camera to capture the real-time image of the rear of the vehicle and displays it on the camera display. It provides drivers with a more intuitive and clear vision when reversing, thus effectively avoiding the safety hazards brought about by the rear blind spot and improving the safety of reversing.

Product Description

Product Features

Display Screen : 7-inch IPS screen with fast response speed, wide viewing angles, true colors.

DVR: Real time recording and playback function, supporting 16-512GB TF card (standard 64GB);

Display Screen Full lamination Process: The protective glass panel of the monitor and the display screen adopt a space free full lamination process structure to eliminate specular reflection and ensure clear and transparent image screens;

Appearance Patented Design: Fully sealed aluminum alloy structure and IP69K waterproof design

Protection Circuit Design: free operates voltage input DC 8-32V. pulse voltage protection against load disconnection,reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

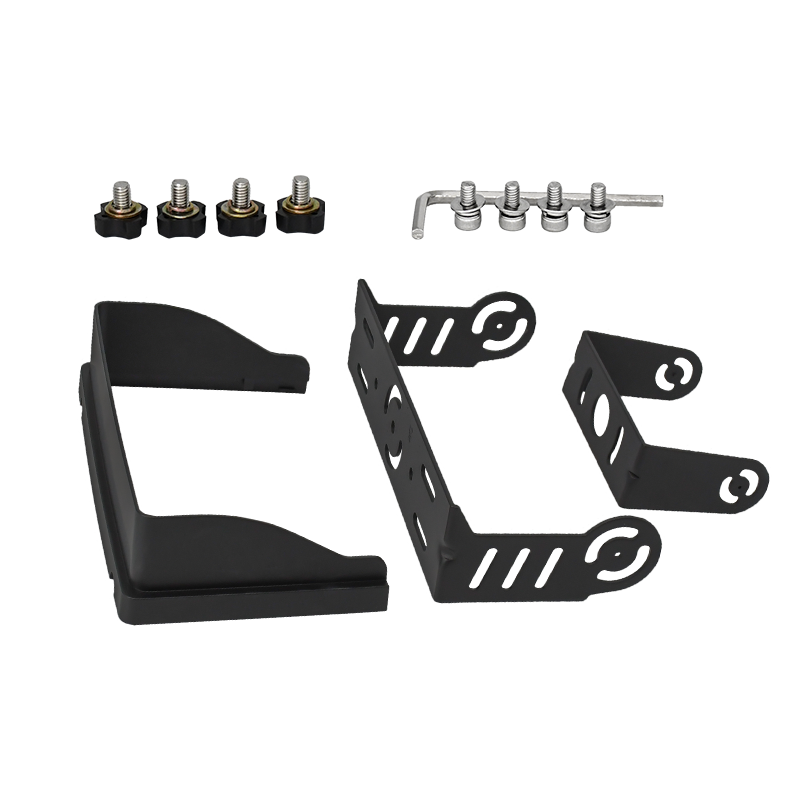

Sunshade Patented Design: Detachable sunshade to prevent sunlight interference.

Bracket Patented Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.

Product Parameters

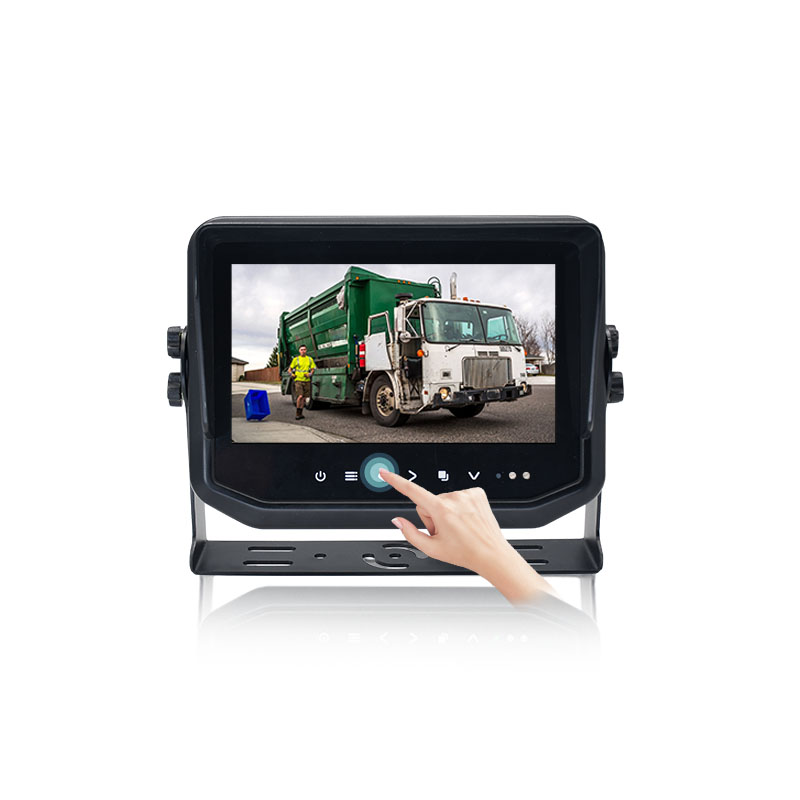

Waterproof HD LCD Monitor (MHD-7181)
Color Monitor Screen	7-inch IPS screen
Resolution	1024(H) X 600(V)dot
Video Input	Max. support 2CH AHD1080P/ 720P /CVBS Video Signal Inputs
TV System	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
Load Dump	ISO16750-2 standard（24V system Us=174V,Ri= 4Ω,td=350ms)
Waterproof Rating	IP68
Vibration rating	GB∕T 2423.56-2018 standard (random 5G vibration)
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Working Voltage	DC11-32V
Dimension	(L x W x T) (218 x 150 x 54mm)

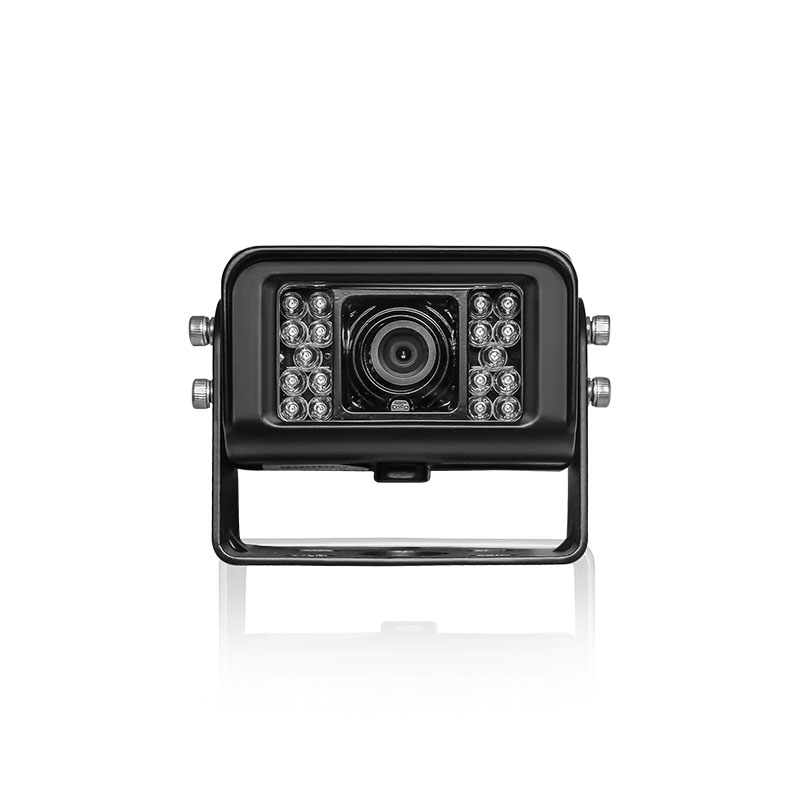

HD Waterproof Camera (CHD-122M)
Image Sensor	1/2.8 Color Sony
Effective Pixel	1920(H) X 1080(V)
Definition	1080P
Visible Angle	130°
Infrared Distance	15meters (18 built-in 850nm infrared lights)
Waterproof Rating	IP69K
Working Voltage	DC12V±10% (be powered by the monitor )
Working Temperature	-20℃ to +60℃
Storage Temperature	-30℃ to +70℃
Vibration rating	GB∕T 2423.56-2018 standard (random 5G vibration)
Dimension	82(W) x 73(H) x 68(D) mm
HD video signal cable (XC-HD0004-B-15M)
interface	4 pin aviation connector (male-female)
length	15 meters

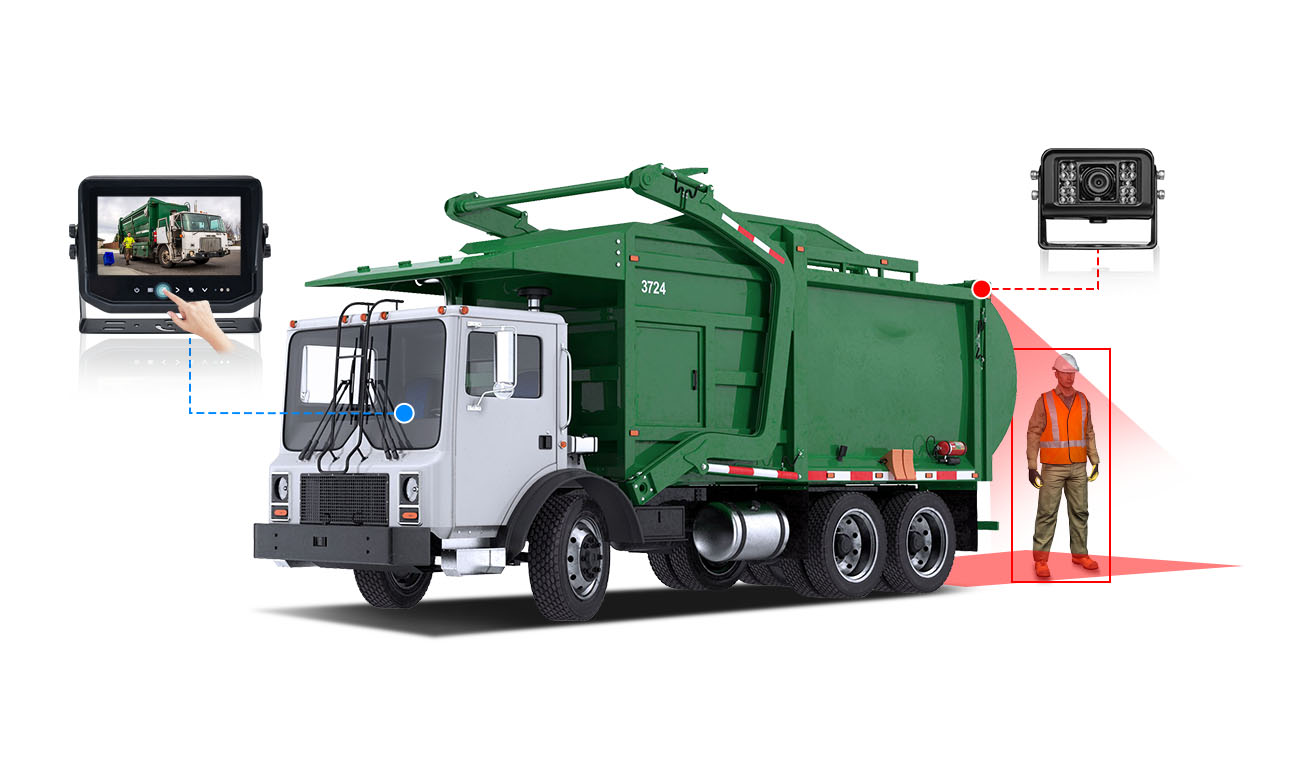

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
