Product Features
Screen: The system is equipped with a 10.1-inch 1024 x 600 high-resolution full-lamination touch IPS display screen.

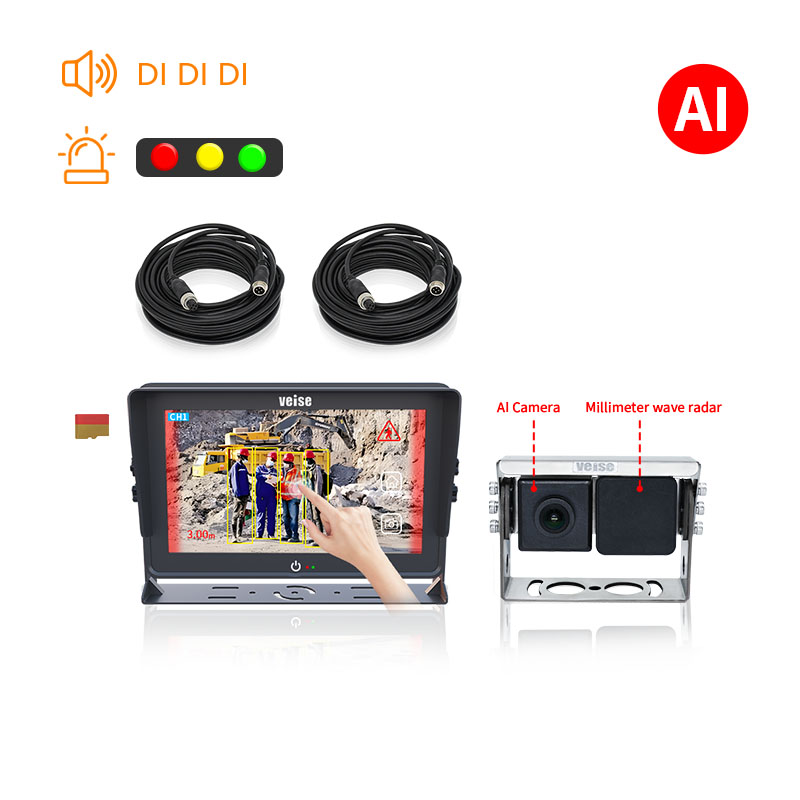

Integrated Camera and Radar: The camera integrates AI functionality and millimeter-wave radar in one.
High-Resolution Camera: The AI camera has a resolution of 1080P and features a wide-angle starlight full-color capability.

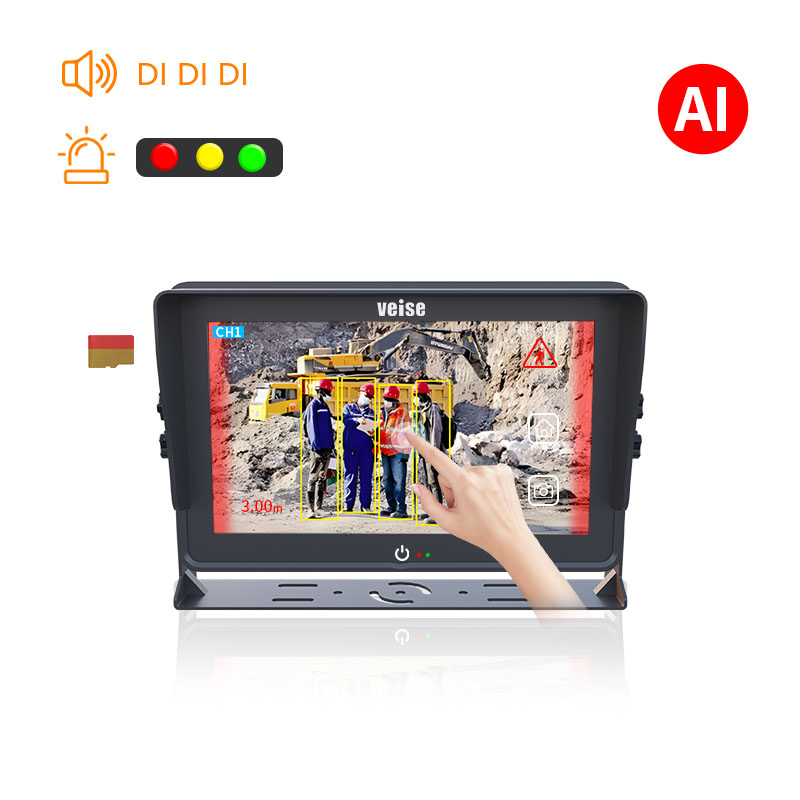

Intelligent Detection and Early Warning: The AI camera is equipped with a pedestrian detection algorithm and provides audio-visual early warning alerts on the display screen.
Radar Ranging and Early Warning Display: The display integrates a millimeter-wave radar ranging algorithm, supports customizable red, yellow, and green zone parameters, and offers various early warning display modes.
All-Weather Operation Capability: The radar system can operate around the clock under various weather conditions, with good anti-interference performance and distance detection capability.
Ultra-Wide Angle Detection: The radar system has an ultra-wide angle detection capability of 120° horizontally and vertically, with a detection range of 0 - 20 meters, and is equipped with an RS 485 interface to ensure stable and anti-interference signal transmission.
Intelligent Mode Support: Supports multiple intelligent modes for automatic switching of early warning screens.
Voltage Input Range: The display supports a wide range of voltage input DC 11 V - 32 V, and the millimeter-wave radar power supply voltage input is 9 - 24 V.
Power Protection Design: The display has an internal power reverse polarity protection circuit to effectively prevent equipment damage due to human error.
Storage and Recording Function: The system has an internal TF card for storage and recording, supporting up to 512G capacity, with automatic overwrite of recording files. The display supports real-time recording and photography functions and can receive signals from four AHD cameras.
Ease of Operation: The display's graphical menu supports full-touch operation and provides OSD menu operation in 10 languages.
Flexibility in Picture Settings: Individual channel picture display can be independently set for horizontal mirroring.

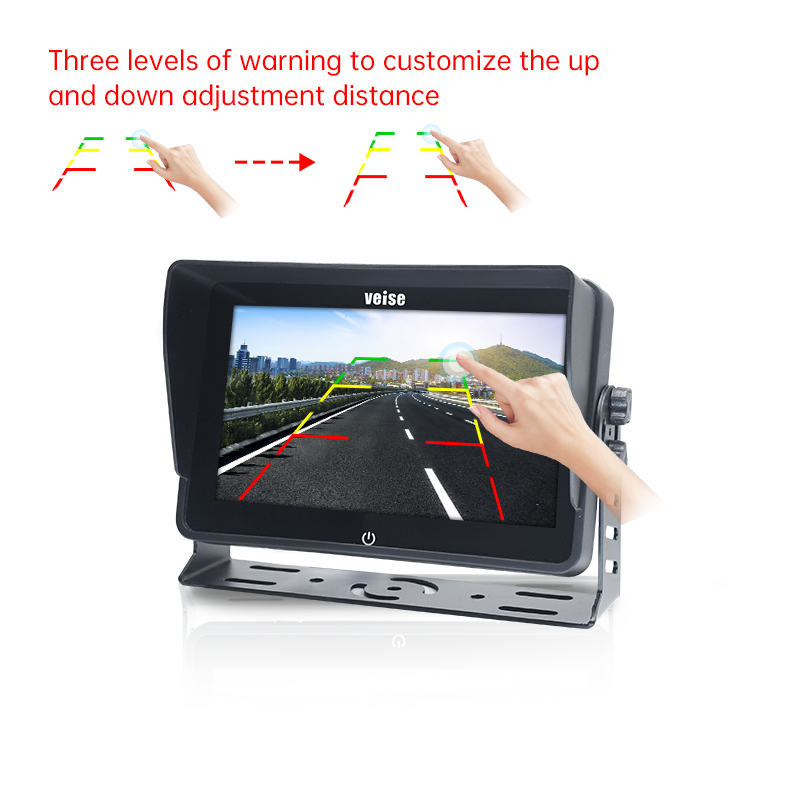

Reverse Assist Function: The display OSD menu can set the reverse trigger delay time for individual channels (0 - 10 seconds) and supports the opening/closing of reverse scale assist lines for individual channels.
Structural and Waterproof Design: The system has a complete and compact structure, with shock resistance meeting the GB/T 2423.10-2008 standard. The AI camera has an IP69K waterproof rating, and the millimeter-wave radar has an IP67 waterproof rating.

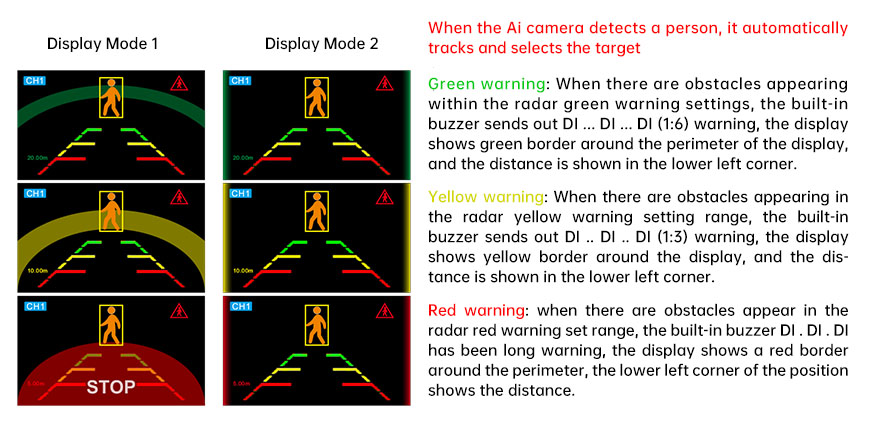

Early warning display style (customizable):
Product Parameters
Monitor:
| Model | MHD-1034MD-RM |
| Screen | 10.1-inch IPS HD fully laminated touch IPS display screen (capacitive) |
| Resolution | 1024×RGB×600 |
| Viewing Angle (LR/UD) | L/R: 85/85 U/D: 85/85 |
| Contrast Ratio | 800:1 |
| LED Backlight Brightness (cd/m²) | 600 |
| Response Time (ms) | 25 |
| System | PAL/NTSC auto |
| Recording Video Format | AVI |
| Recording Storage Card Type | TF card (up to 512G) |
| Recording Resolution | 1080P/720P/480P |
| Video Signal Input | Supports 1080P/720P/CVBS signals |
| Load Dump | DC 24+174V/350ms |
| Operating Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Input Voltage | DC 11～32V |
| Dimensions (mm) | 293.5 X 197 X 90 (including bracket and sunshade) |

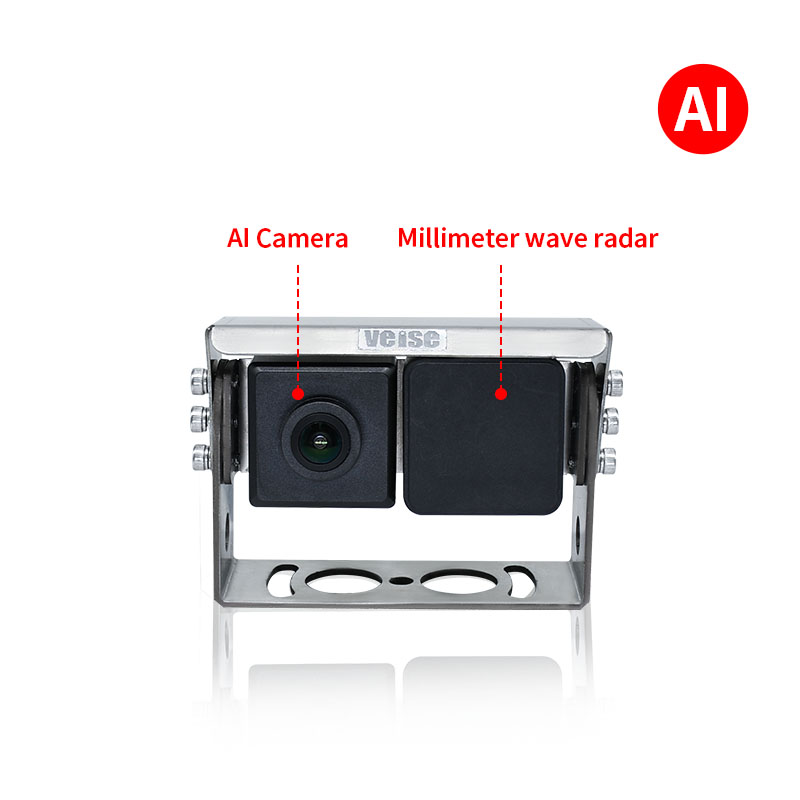

AI millimeter wave radar all-in-one camera:
| Model | CHD-302MAI-RM-20M |
|---|
| AI Camera Parameters |
| Image Sensor | 1/2.9 |
| Effective Pixels | 1920(H) x 1080P(V) |
| Minimum Illumination | 0.01LUX |
| Horizontal Angle | 120° |
| AI Detection Target | Pedestrian Detection |
| Early Warning Area | Full Screen Warning (Customizable 0-4 Level Area Warning) |
| Starlight Night Vision | Starlight Full Color Night Vision |
| Water Resistance Rating | IP69K |
| Shock Resistance Rating | 10G |
| Operating Temperature | -20℃~+60℃ |
| Storage Temperature | -30℃~+80℃ |
| Operating Voltage | DC12V |
| Dimensions (mm) | 108 x 78 x 75 |
| Millimeter-Wave Radar Parameters |
| Operating Voltage | DC9-24V |
| Power Supply Range | 8 ~ 32 V |
| Operating Temperature | -40℃~85℃ |
| Power Consumption | <2.5 W |
| Water Resistance Rating | IP67 |
| Frequency Band | 76~77 GHz |
| Cycle Period | 40 ms |
| Communication Interface | Rs485 Baud Rate: 115200 bps |
| Distance Resolution | 0.2 m |
| Speed Resolution | 1.9 Km/h |
| Speed Measurement Range | ±60 Km/h |
| Detection Range | 20 m |
| Transmit/Receive Channels | 3 TX * 4 RX |
| Antenna Elevation Beam Width (-6 db) | 120° |
| Antenna Horizontal Beam Width (-6 db) | 120° |

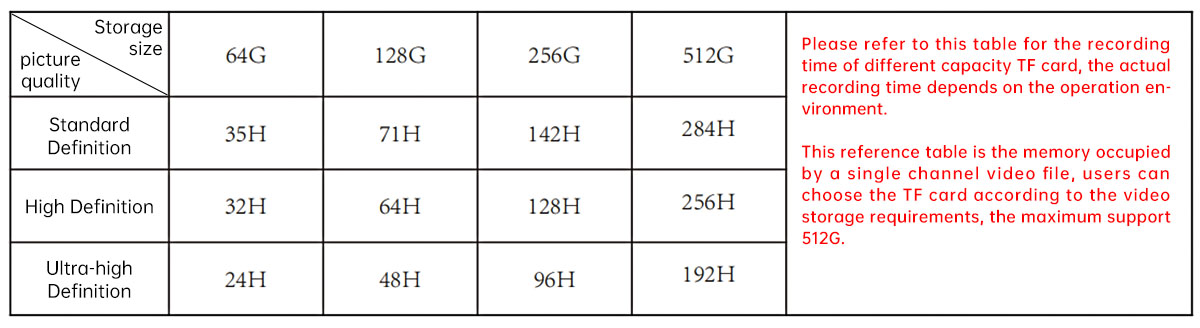

Video Duration Reference Notes：

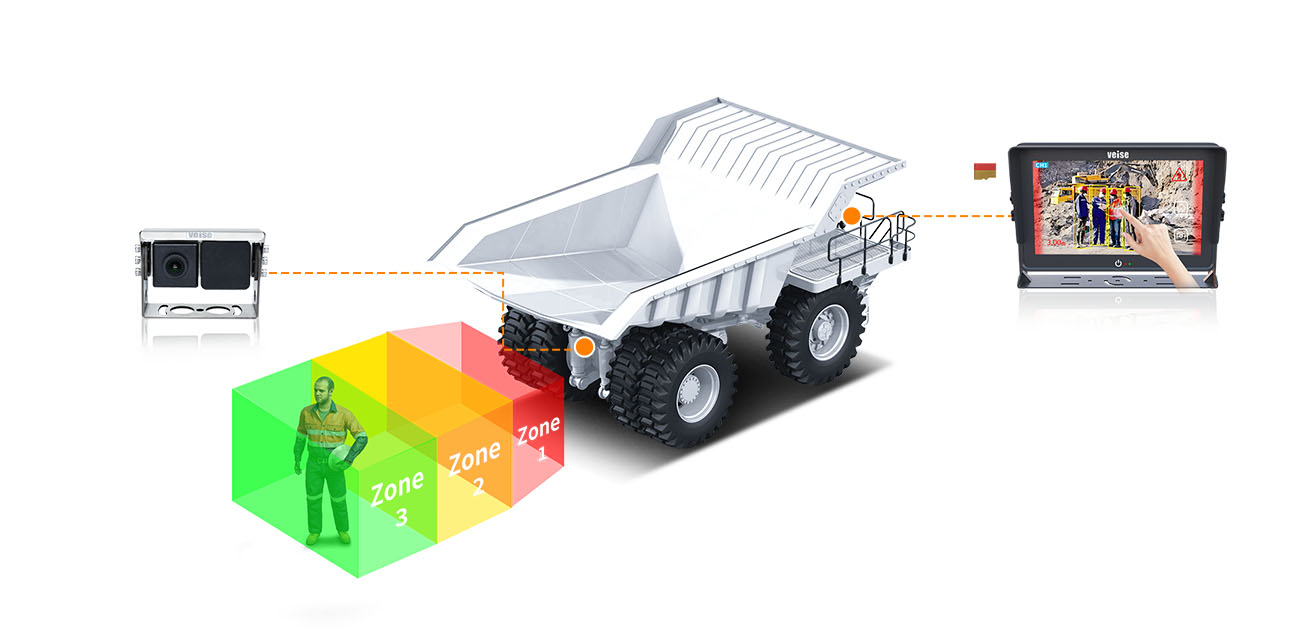

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
