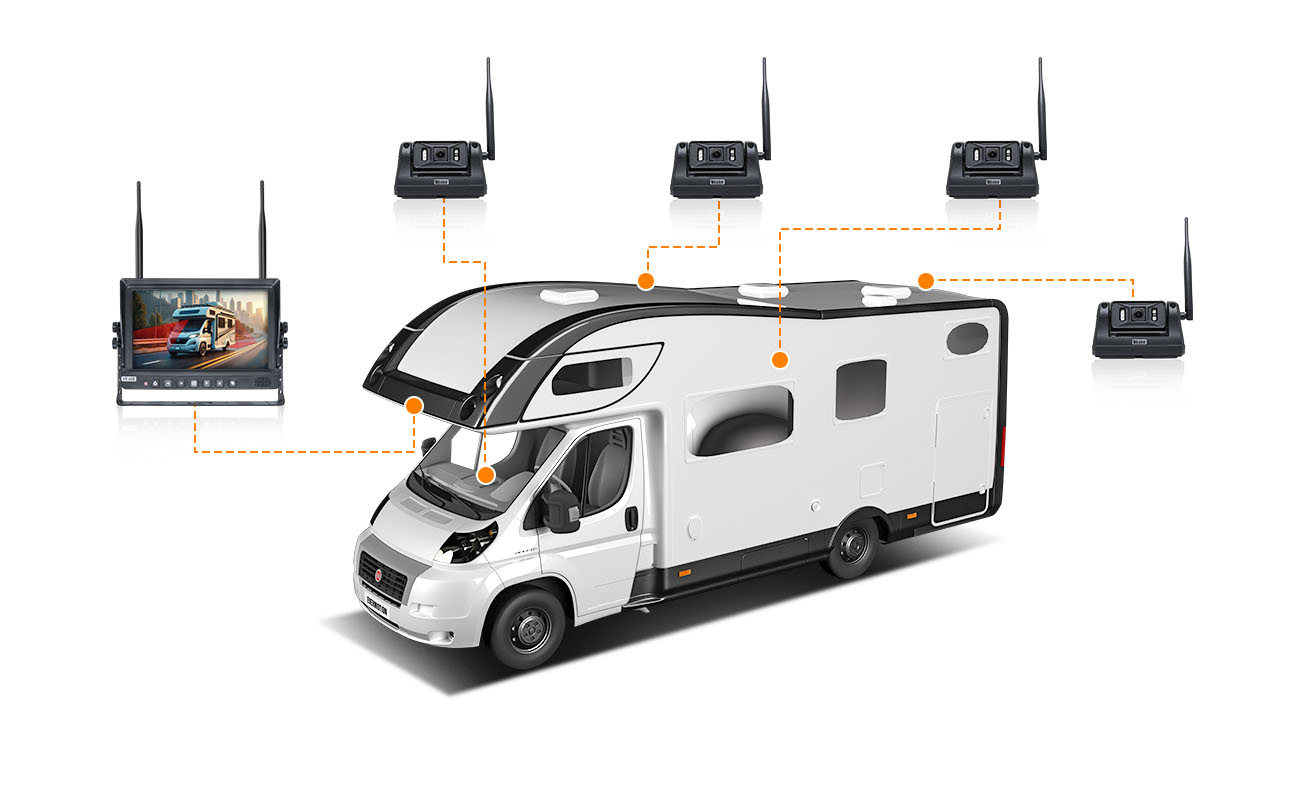

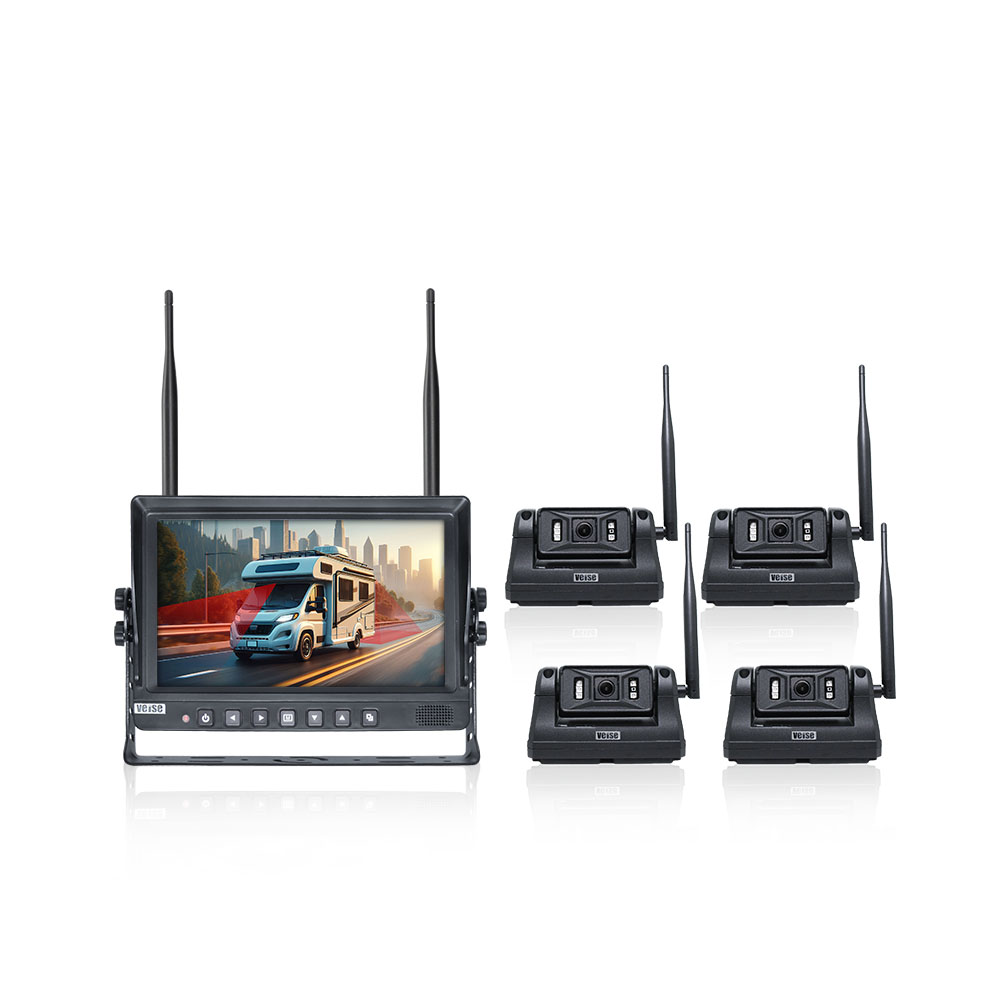

Supports 4-channel video input
1024RGBX600 high resolution
Built-in DVR with support for 256G SD card storage
Automotive-grade industrial digital video processor (-40°~85°)
Supports 1/2/3/4 multi-window display modes
OSD menu allows individual settings for each display window, including mirror and normal image, delay time, and dual trigger priority function
Unique design with patent, shell made of ABS+PC material, featuring high-temperature resistance, etc.
600cd/㎡ high brightness for clear images
Protection design against load dump pulse voltage DC24V+174V (350ms) to prevent damage from vehicle transient pulses
DC11~32V wide-range operating voltage
Built-in and external power polarity reverse protection, LED thermal response constant current and constant voltage protection for extended service life circuit design
1080P 2.4GHz wireless camera, built-in 8000mAh fast-charging battery, magnetic attachment, automotive-grade DSP, million-pixel high-definition resolution, IP69K waterproof rating, IR LED night vision function

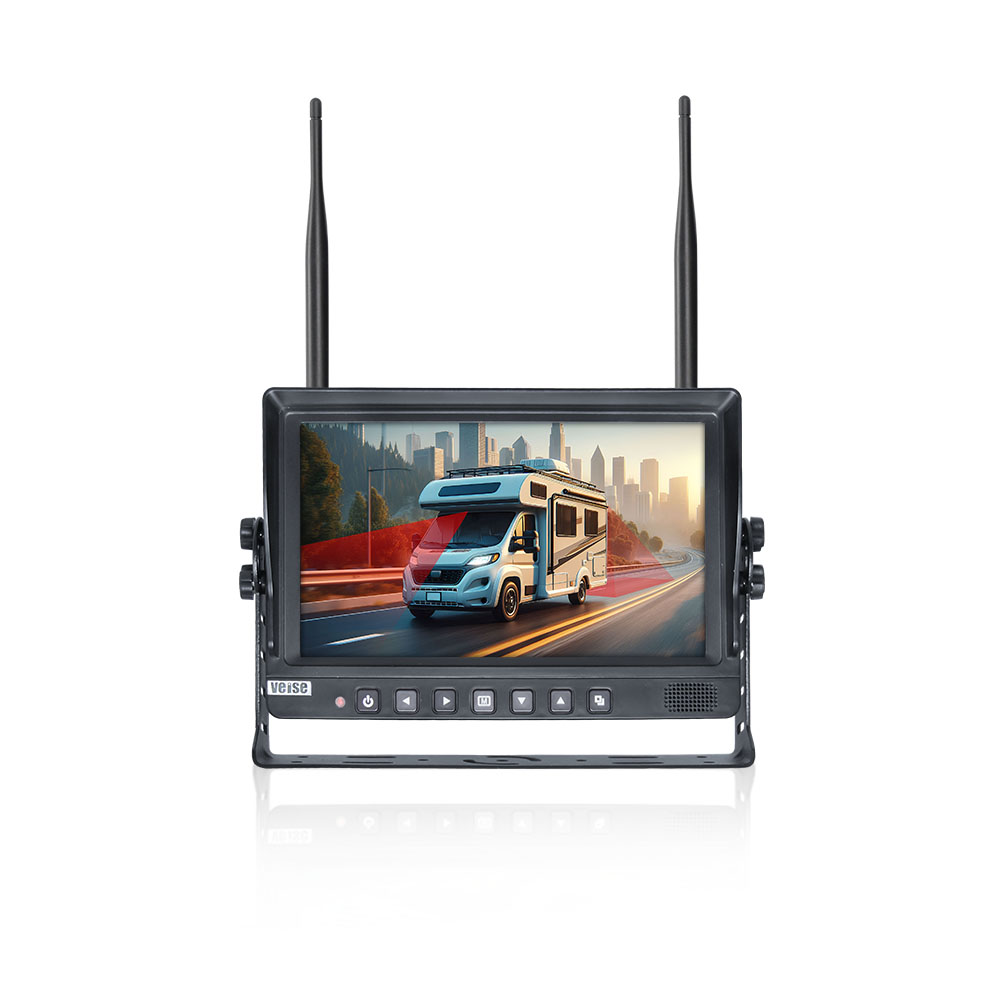

| Model | MHD-916H |
| Color LCD Display | 9-inch IPS screen |
| Wireless Reception | Built-in 2.4G wireless receiver |
| Operating Frequency | 2400-2483.5 MHz |
| Reception Sensitivity | ≤-86 dB |
| Reception Distance | Open space ≤200 meters |
| Resolution | 1024RGB(H) × 600(V) dot |
| Video Input | 4-channel video signal input |
| Display Modes | Single, dual, triple, and quad |
| Storage Capacity | External SD card (up to 256G) |
| OSD Menu Functions | Supports single-channel image flipping left/right, up/down, reverse gear scale, reverse gear trigger, reverse gear delay, reverse gear priority, power-off memory, etc. Menu languages: Chinese/English (selectable) |
| Color System | PAL/NTSC (AUTO) |
| Brightness (cd/m²) | 600 |
| Contrast Ratio | 800:1 |
| Surge and Load Dump Protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Connector Socket | 18-pin S-connector |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Vibration Resistance Level | GB/T 2423.56-2018 standard (random 5G vibration) |
| Dimensions | LxWxT (244 × 179 × 81) mm |
| Weight | 1140g |

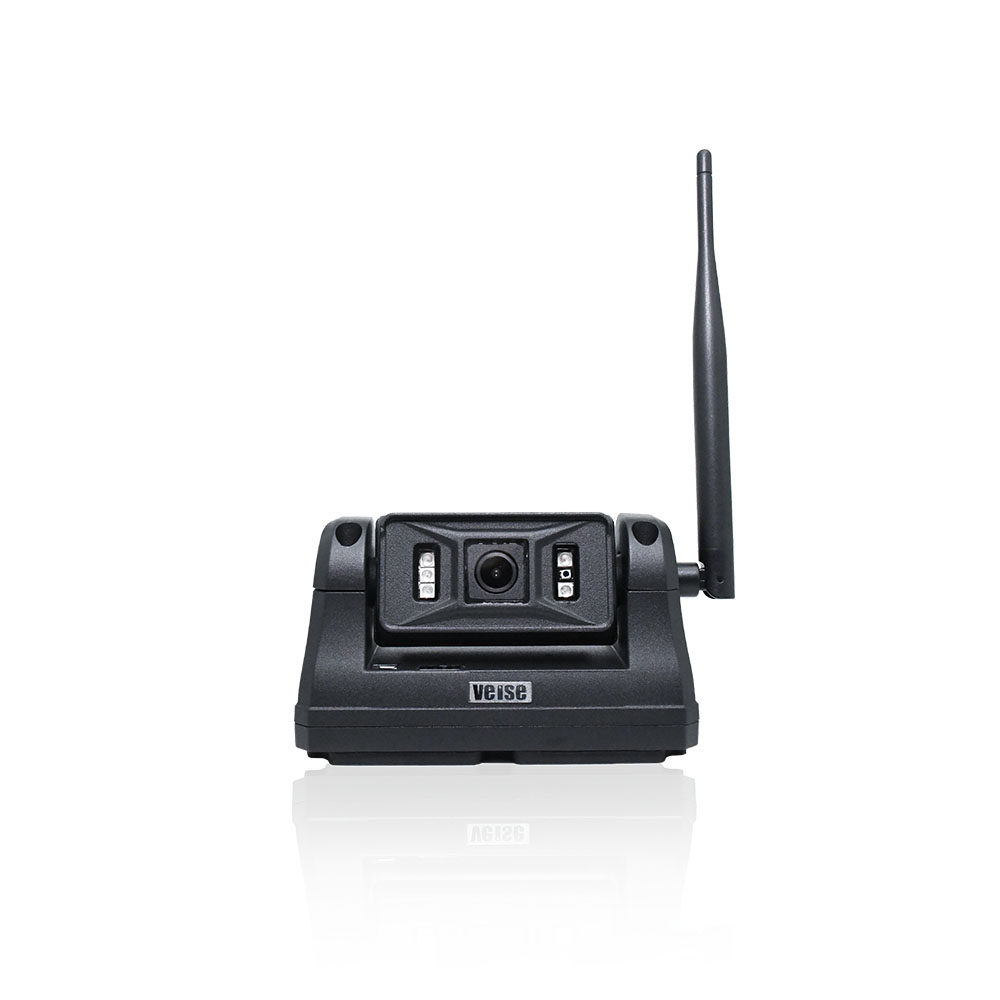

| Model | 1080P Wireless HD In-Built Battery Waterproof Magnetic Camera (CWHD-362M) |
| Image Sensor | 1/2.9 Color CMOS |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Distance | Open space ≤200 meters |
| Resolution | 1080P |
| Effective Pixels | 1280(H) × 960(V) |
| Viewing Angle | 130° |
| Infrared Distance | 5 meters |
| Housing Material | Aluminum alloy |
| Water Resistance Rating | IP69K |
| Battery Type | Lithium-polymer battery |
| Product Capacity | 8000mAh (3.7V) 29.6Wh |
| Interface Input | Type-C waterproof interface (with QC2.0 fast charge protocol) 12V/1.5A |
| Battery Indicator | Fast charge indicator light and 25%-50%-75%-100% battery level indicator lights |
| Battery Switch | Touch switch |
| Charging Cycle Temperature | 0℃~+40℃ |
| Charge/Discharge Cycles | >800 times |
| Discharge Duration | Approximately 20 hours |
| Installation Method | Silicone rubber magnetic base installation |
| Operating Temperature | -10℃ to +60℃ |
| Storage Temperature | -20℃ to +70℃ |
| Vibration Resistance Level | GB/T 2423.56-2018 standard (random 5G vibration) |
| Dimensions | 138(W) × 80(H) × 70(D) mm (excluding antenna) |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
