Product Features

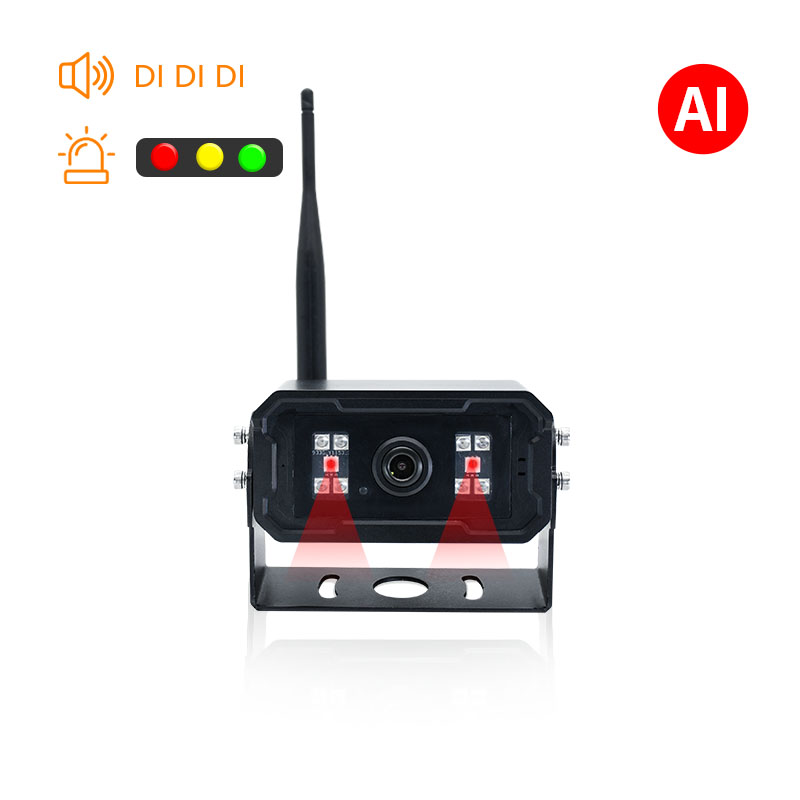

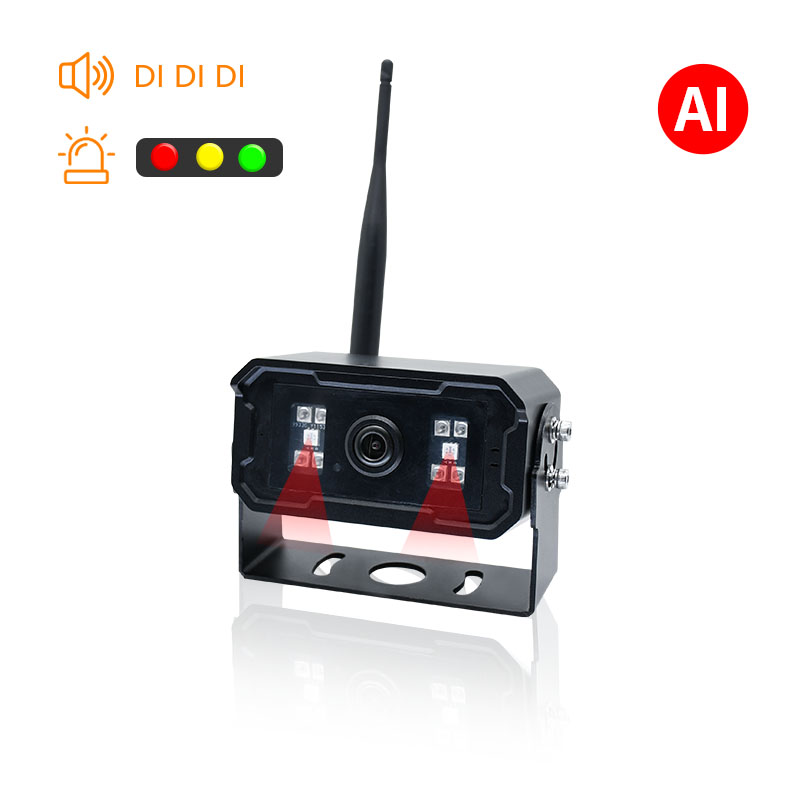

AI Humanoid Analysis Wireless Camera

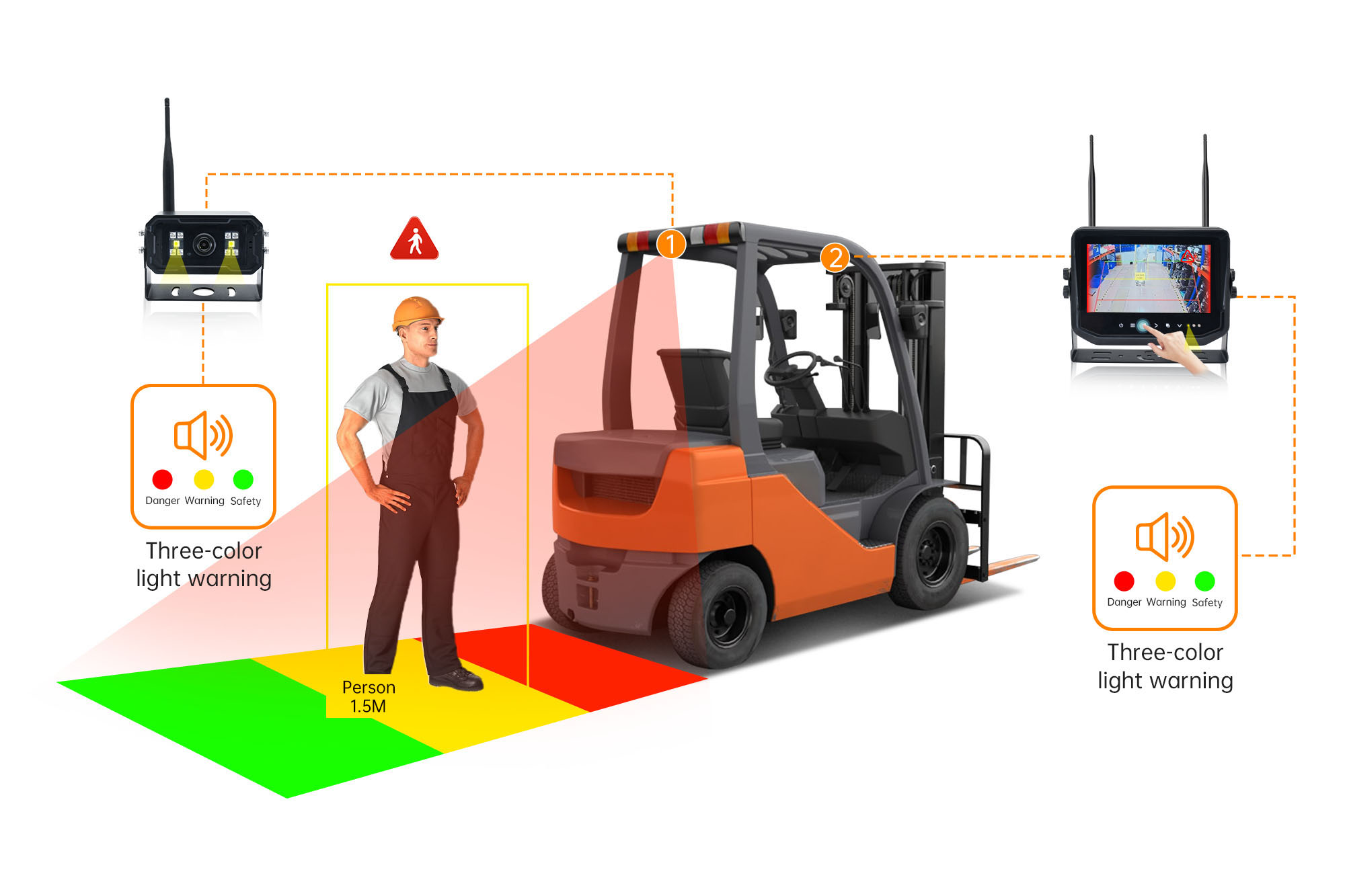

It is mainly used to monitor whether there are people entering the areas where entry is prohibited or specific areas;
The AI humanoid analysis camera is based on cloud-based intelligent recognition algorithms, which can learn and recognize specific limb movements of people. It can accurately identify humans in complex environments and push AI PWM pulse warning signals to the relevant monitoring systems for safety alerts;
AI Warning Prompts: 1-3 levels (green light flashing for level 1, yellow light flashing for level 2, red light constantly on for level 3);
Sound Reminder: Built-in buzzer
100° ultra-wide-angle lens, automotive-grade DSP, 2 million high-definition pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail wires.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Product Parameters
| Model | AI Wireless Camera (CWHD-732MAI) |
| Wireless Transmission | Built-in 2.4G digital wireless transmitter |
| Transmission Power | 18dBm |
| Transmission Distance | Open area ≤ 200 meters |
| Image Sensor | 1/2.9 Color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 100° |
| AI Warning Signal Output | 1-3 levels (Green light - Safe, Yellow light - Caution, Red light - Danger) |
| Sound Reminder | Built-in buzzer |
| Detection Target | Pedestrian/non-motorized vehicle detection and warning |
| Signal-to-Noise Ratio | ≥38dB (AGC Off) |
| Housing Material | Aluminum alloy |
| Water Resistance Rating | IP69K |
| Operating Voltage | DC 10-32V ± 10% |
| Operating Temperature | -20°C to +60°C, RH 95% Max |
| Storage Temperature | -30°C to +70°C, RH 95% Max |
| Vibration Resistance Rating | 5G (Complies with GB-T2423056-2006 standard) |
| Body Interface | DC female connector |
| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
