Product Features

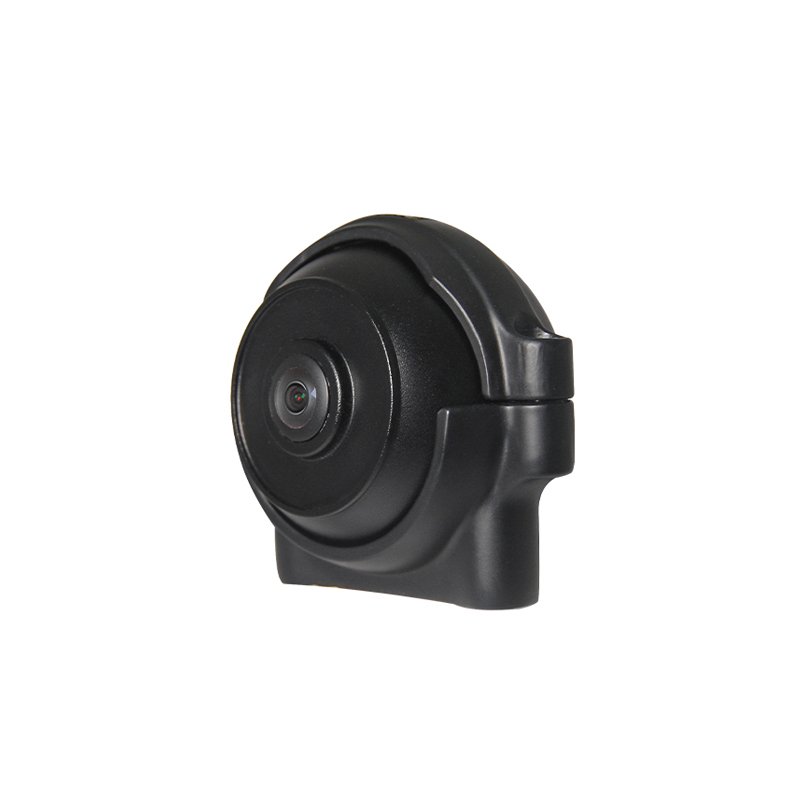

The pedestrian&vehicle detecting and reverse warning camera is a reverse safety monitoring device specially designed for industrial vehicles, such as stackers, forklifts and other engineering equipments. It can detect the dangerous state of the work area in real time and provide early warnings, thus enhancing the safety of the operation of engineering vehicles. It is an indispensable safety system in the smart industrial age.
The reverse camera takes the Al image intelligent recognition technology as the core. Through the artificial intelligence deep learning technology, it learns and summarizes the rules of a large number of video image data of the cameras, realizing the automatic detection and analysis of real-time video images, and making prompts, warnings, and controls.
1. Human figure and vehicle Model detection algorithm.
By using algorithms to perform precise calculations on the images captured by the front cameras, analyzing the presence of humanoid and vehicle objects, and accurately locating humanoid and vehicle objects, thus generating an alarm. By analyzing the objects in the image through the NPU, it can effectively filter situations such as tree branches shaking, animal walking, light changing and other conditions to improve the accuracy of the alarm.
2. Linkage function
Pedestrian/vehicle detection: when there are motor vehicles/non-motor vehicles/pedestrians approaching the reverse area, it prompts a buzzer alarm.
It supports external buzzer warning and high-temperature overload protection.
3. Universality
Universal to AHD HD Screens; The cameras can achieve AI intelligent pedestrian detection and warning.
Effective Pixels: 1920(H) x 1080(V)
Waterproof Rating: IP69K
| AI Camera (CHD-19B2AI) |
| Image Sensor | 1/2.9 Color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Field of View | 100° |
| AI Alarm I/O Output | 1-4 levels PWM |
| Detection Targets | Pedestrians/non-motorized vehicles |
| Detection Image Ranging | 0-5 meters (customizable) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | AHD 1080P |
| Housing Material | Aluminum alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C (RH95% Max) |
| Storage Temperature | -30°C to +70°C (RH95% Max) |
| Vibration Resistance | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Body Interface | 4-core aviation connector |

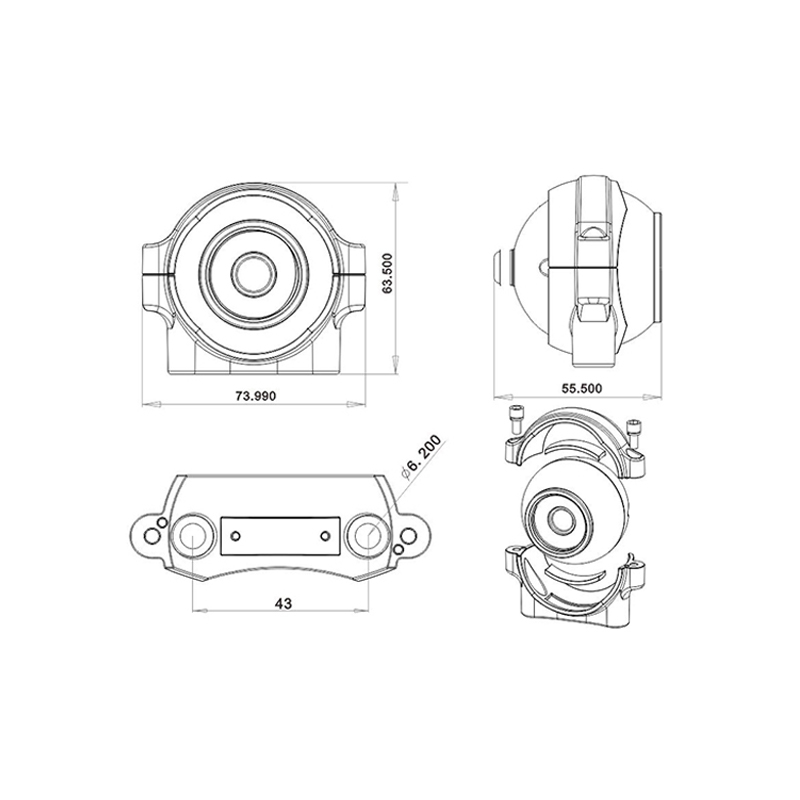

| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
