Product Features

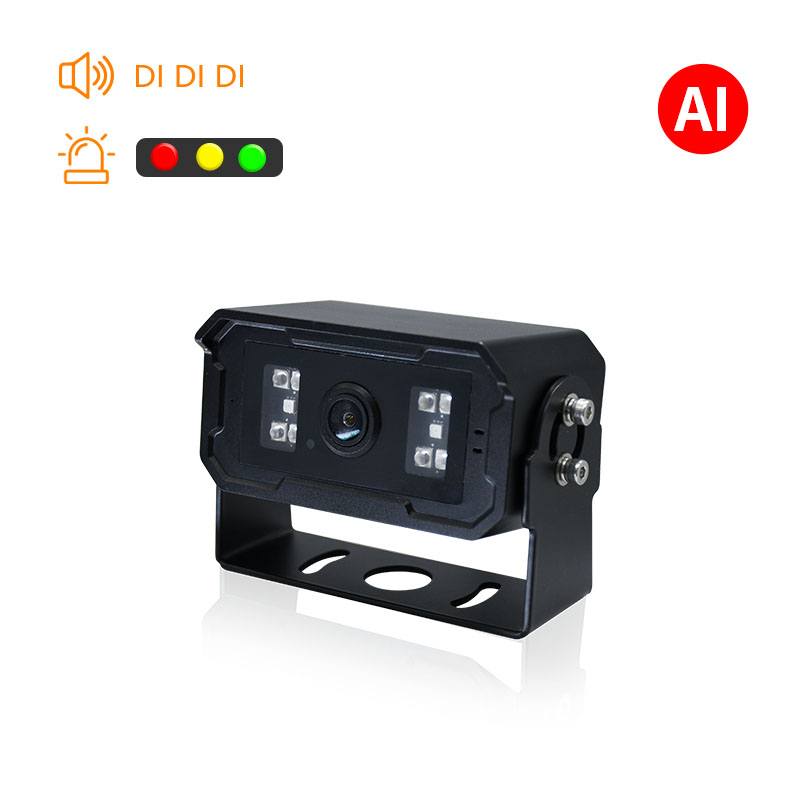

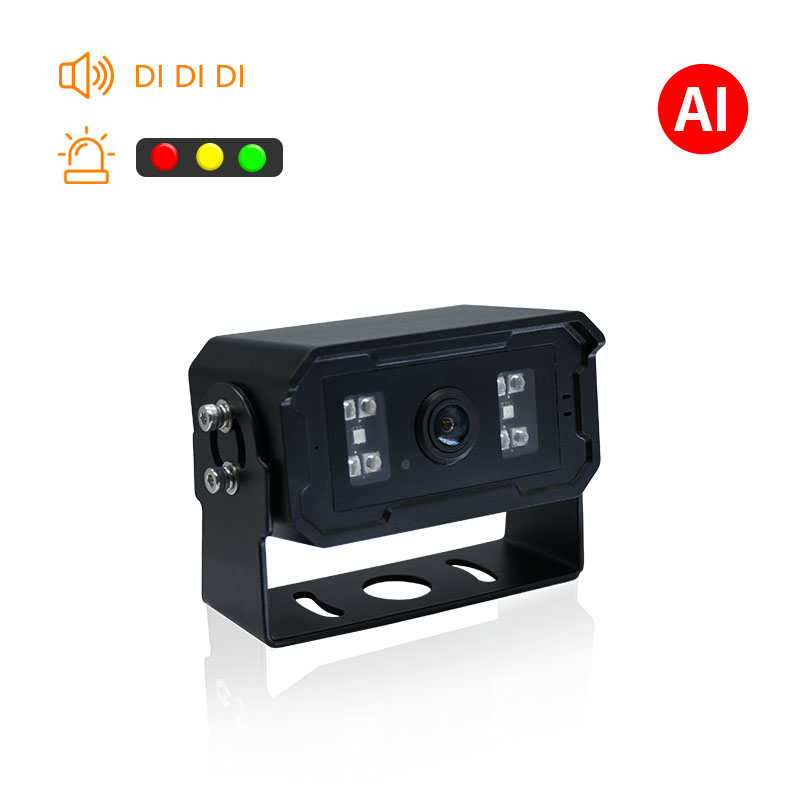

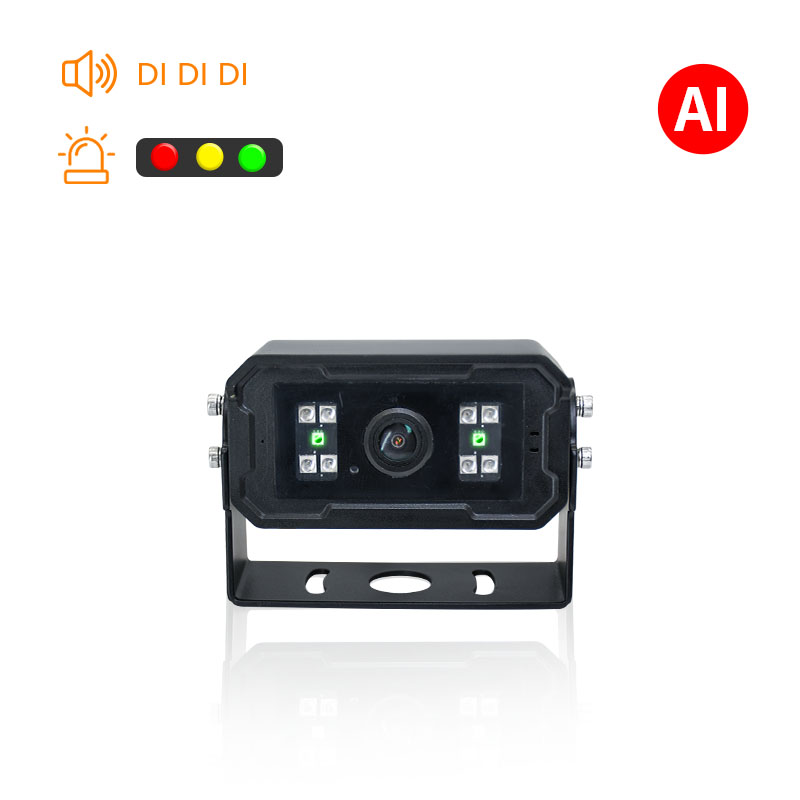

HD AI Pedestrian Detection Camera
HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!
Monitoring area personnel safety warning:
Green light blinking one, yellow light blinking two, red light blinking three, red light always on and buzzer alarm sound
Image distance measurement: 2 meters (within 0-5 meters can be customized)
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Product Parameters
HD AI Pedestrian Detection Camera (CHD-732MAI) |
| Image Sensor | 1/2.9 Color CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Field of View | 100° |
| AI Alarm I/O Output | 1-4 levels PWM |
| Audible Alerts | Built-in Buzzer |
| Detection Targets | Pedestrians/non-motorized vehicles |
| Detection Image Ranging | 0-5 meters (customizable) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | AHD 1080P |
| Housing Material | Aluminum alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C (RH95% Max) |
| Storage Temperature | -30°C to +70°C (RH95% Max) |
| Vibration Resistance | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Body Interface | 4-core aviation connector |
| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
