1080P Reverse Camera

Model : CHD-122M
Summarize : The waterproof backup camera has the characteristics such as HD image quality, night vision function and waterproof and dustproof function. Being able to provide high-resolution image quality not only enhances the driver's driving experience, but also helps them more accurately identify road conditions and obstacles, making safer driving decisions. It can work normally under harsh weather conditions, such as rainy days and snowy days. It is equipped with night vision function to enhance the shooting effect at might. This allows the camera to still capture clear images in dimly light, providing drivers with sufficient visual information.

Product Description

Product Features

High-Definition Vehicle-Mounted Camera

Original Imported SONY DSP

2 Megapixel High-Definition

Heat-Dissipating Aluminum Alloy Housing

Nitrogen-Filled to Prevent Fogging, Waterproof IP69K (Patented Waterproof Testing Equipment)

Cold-Resistant and Waterproof Tail Line to Adapt to Various Extreme Environments

Product Parameters

Model	CHD-122M
Image Sensor	1/2.8 Color Sony 307
Effective Pixel	1920(H) X 1080(V)
Horizontal Definition	1080P
Visible Angle	130°
Infrared Distance	15 m (18 built-in 850nm infrared lights）
Signal-to-noise Ratio	≥48dB(AGC Off)
Video Output	AHD 1080P
Housing Material	aluminum alloy
Waterproof Rating	IP69K
Working Voltage	DC 12V±10%
Working Temperature	- 20°C~+60°C RH95%Max
Storage Temperature	- 30°C~+70°C RH95%Max
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)

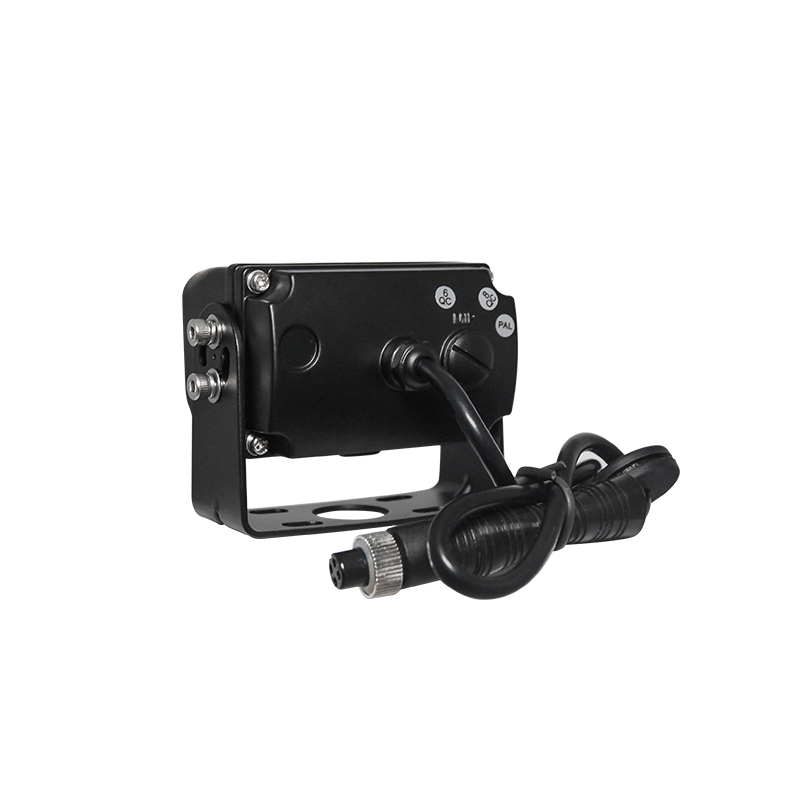

Interface Spec	4 pin aviation female plug

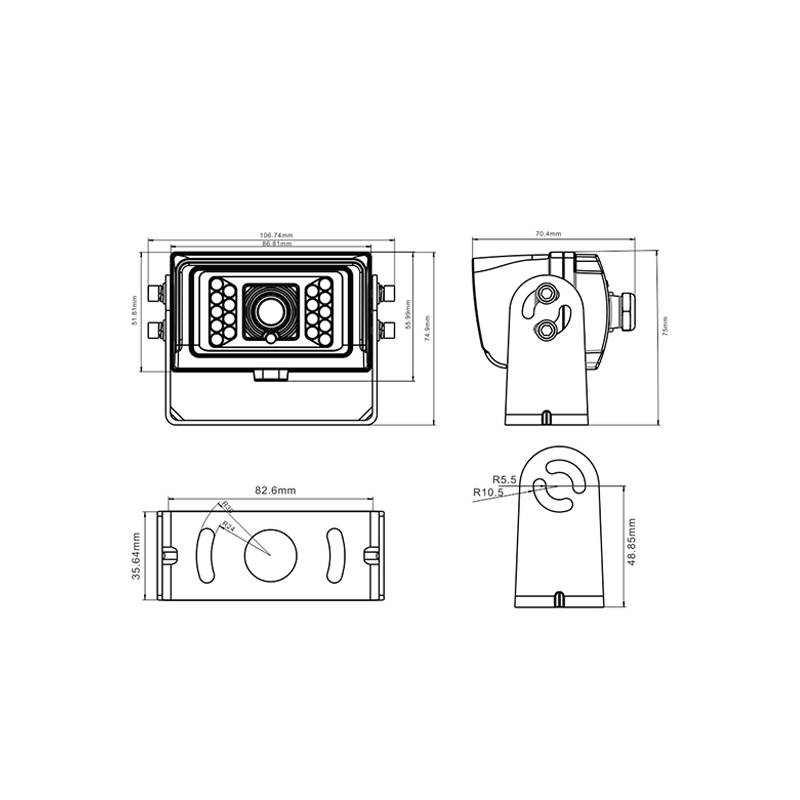

Size	82(W) x 73(H) x 68(D) mm

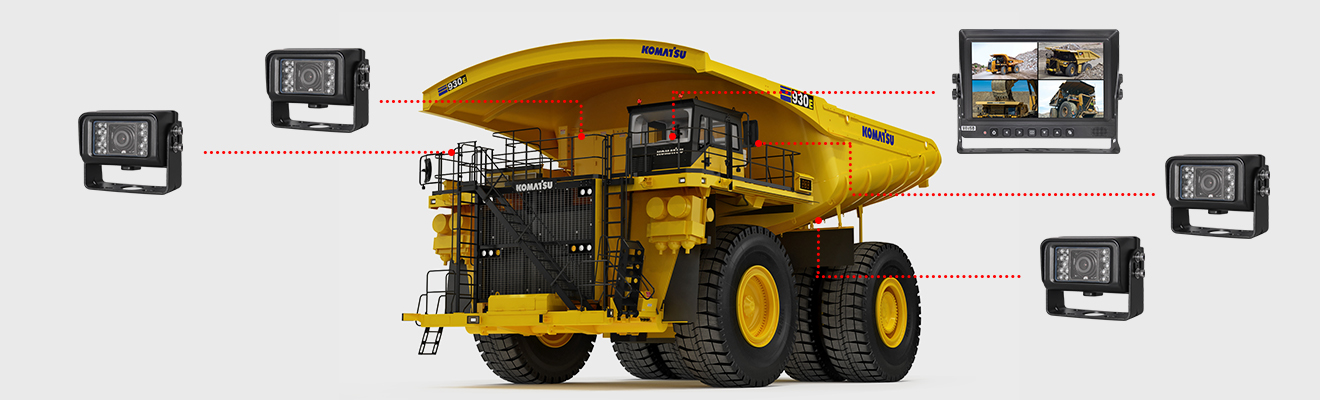

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
