Product Features
Starligth night vision in vehicle camera
Originally imported SONY DSP
Million HD pixels
Heat dissipation aluminum alloy casing
Waterproof level IP69K with full glue filling process
DC12V working voltage
Cold resistant and waterproof tail line to adapt to various extreme environments
Product Parameters
| Model | CHD-271S |
| Image Sensor | 1/3 Color Sony |
| Effective Pixel | 1280(H)X960(V) |
| Horizontal Definition | 720P |
| Visible Angle | 165° |
| Night Vision Mode | full-colored night vision |
| Signal-to-noise Ratio | ≥48dB(AGC Off) |
Video Signal Output
| AHD 720P |
| Housing Material | aluminum alloy |
| Waterproof Rating | IP69K |
| Working Voltage | DC 12V±10% |
| Working Temperature | - 20°C~+60°C |
| Storage Temperature | - 30°C~+70°C |
| Anti-vibration Rate | 5G (meets GB-T2423056-2006 standard） |
| Interface Spec | 4 pin aviation female plug |
| Size | 87(W) x 75(H) x 70(D) mm |

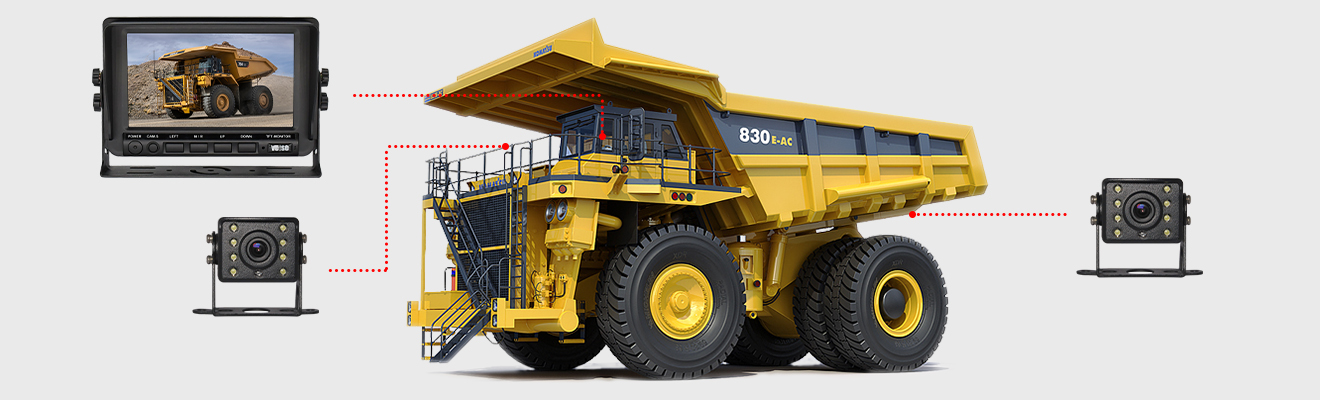

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
