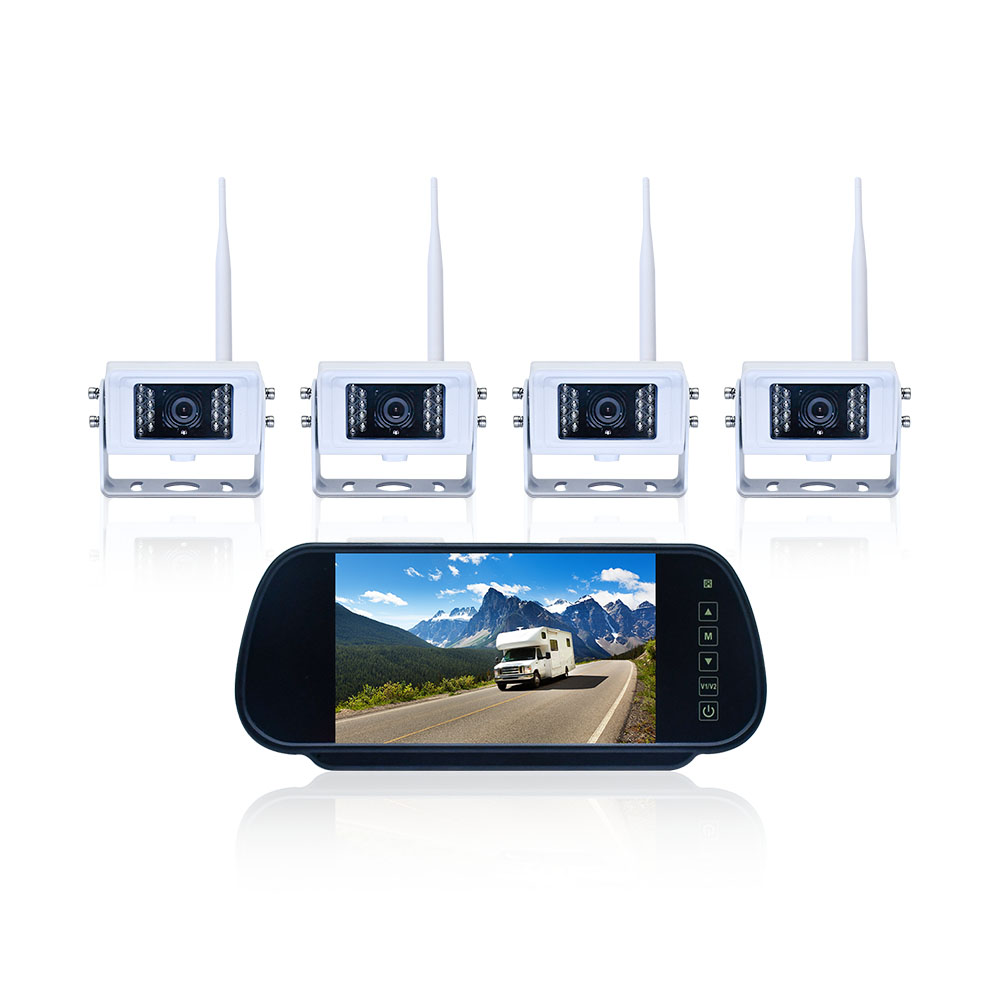

7-inch 1080P 4-screen Electronic Rearview Mirror Wireless Camera System

  • Model : HDWS-7104H152M4
  • Summarize : Wireless monitoring systems use radio waves to transmit video, audio, and control signals. They are a quick installation option when wired systems are impractical or impossible to install. Vehicle-mounted wireless monitoring systems are particularly suited for operations involving telescopic forklifts, cranes, construction tower cranes, port container gantry cranes, as well as mobile monitoring needs for home and urban public security. A quad-view monitor meets the requirement for monitoring multiple areas.
  • More Info : Online Service

Product Features

7-Inch HD IPS Monitor:

  • Supports 4-channel split-screen display

  • Features industrial-grade DSP

  • OSD menu for independent settings, including image mirroring, reverse guidelines, and priority trigger functions

Wide Operating Voltage:

  • DC 8~32V

  • Independent power output

  • Load pulse voltage protection

  • External power polarity reverse protection

  • LED constant current and voltage protection to ensure safe use and maintain product quality

Wireless HD Vehicle-Mounted Waterproof Camera:

  • 1080P resolution

  • 2.4GHz wireless transmission

  • Vehicle-grade DSP

  • High-definition with millions of pixels

  • IP69K waterproof rating

  • IR LED night vision functionality

Product Parameters

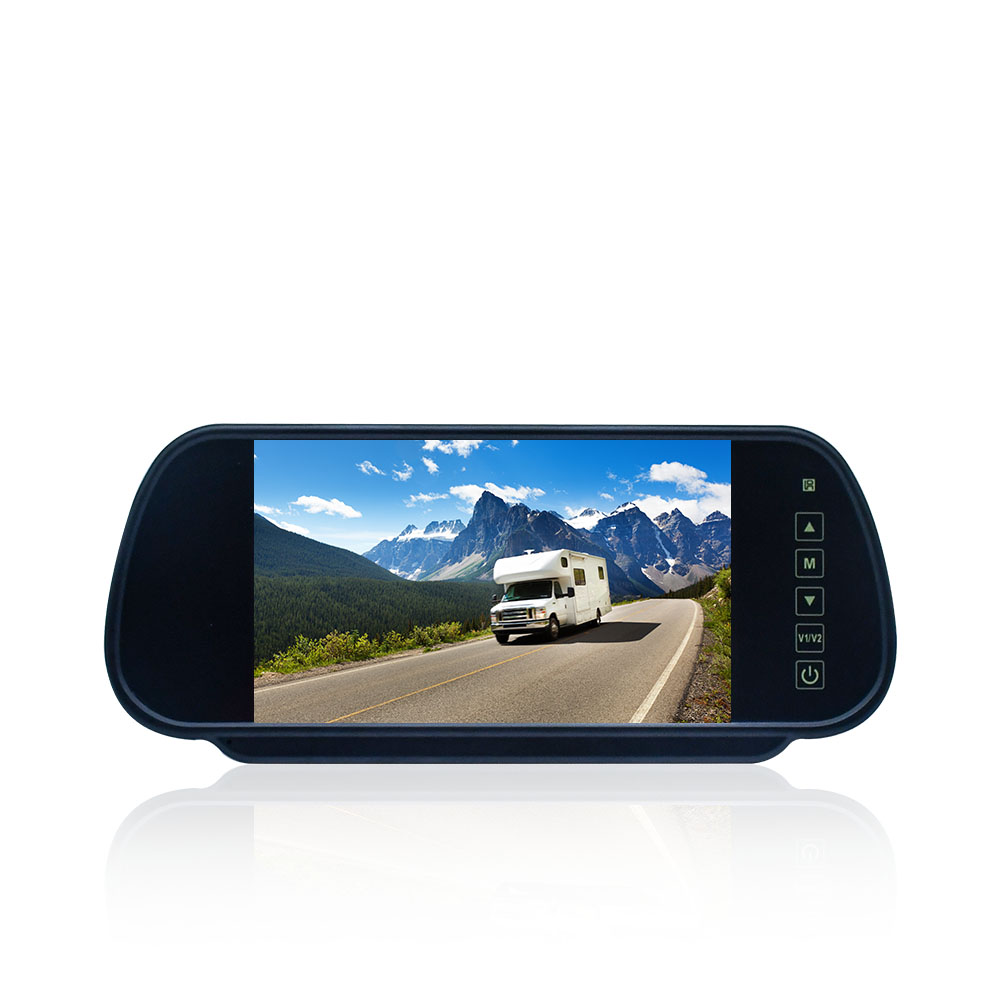

HD Monitor (MHD-7104H)

Color Monitor7-inch IPS screen
Resolution1024(H) x 600(V) dots
Video InputSupports up to 4 channels AHD1080P / 720P / CVBS
Display ModeQuad screen
Color SystemPAL/NTSC (AUTO)
Brightness (cd/m²)600
Load DumpISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms)
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Operating Temperature-20℃ to +70℃
Storage Temperature-30℃ to +80℃
Operating VoltageDC11-32V
Dimensions (L x W x T)193 x 118 x 35 mm

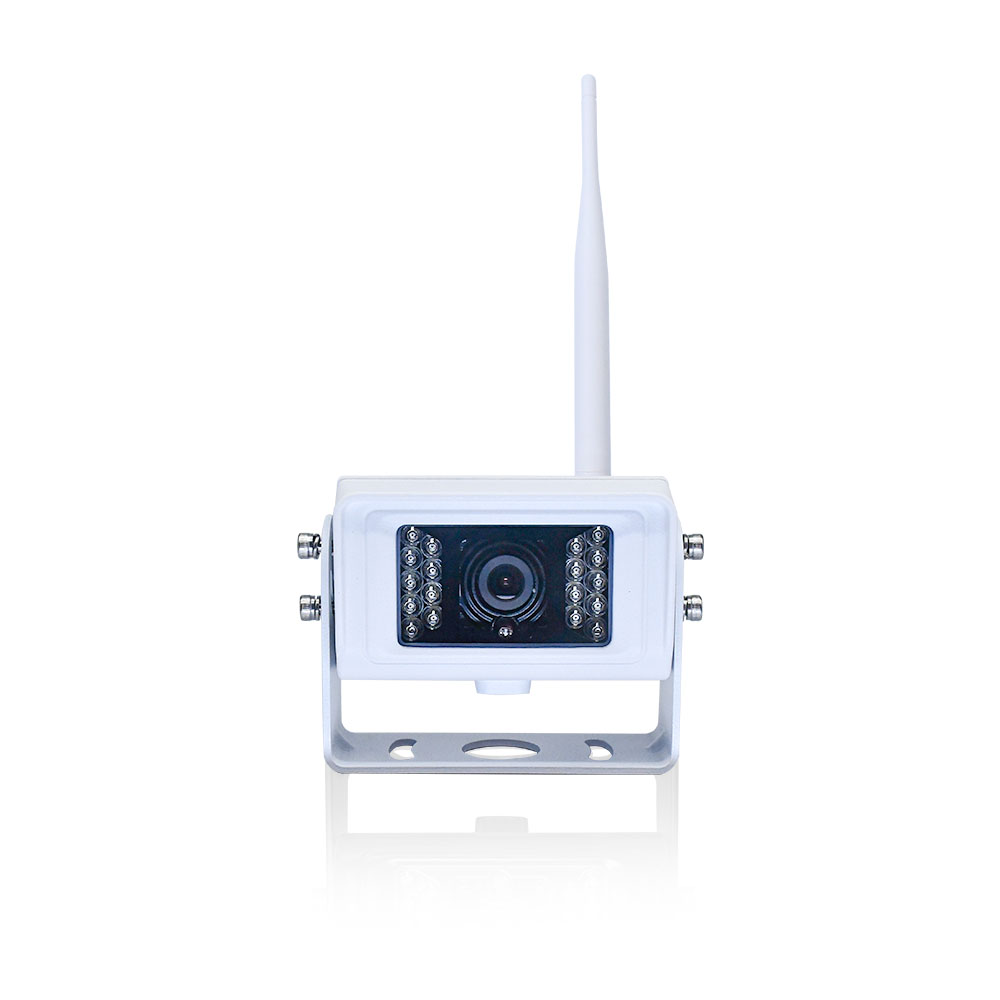

Wireless HD Waterproof Camera (CWHD-152M)

Image Sensor1/3.7 Color DSP
Wireless TransmissionBuilt-in 2.4G digital wireless transmitter
Transmission Power18dBm
Transmission Distance≤100 meters in open space
Resolution1080P
Effective Pixels1920(H) x 1080(V)
Viewing Angle130°
Infrared Distance15 meters
Housing MaterialAluminum alloy
Waterproof RatingIP69K
Operating VoltageDC8-32V
Operating Temperature-20℃ to +60℃
Storage Temperature-30℃ to +70℃
Vibration ResistanceGB/T 2423.56-2018 standard (random 5G vibration)
Dimensions (W x H x D)106 x 75 x 70.4 mm

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
