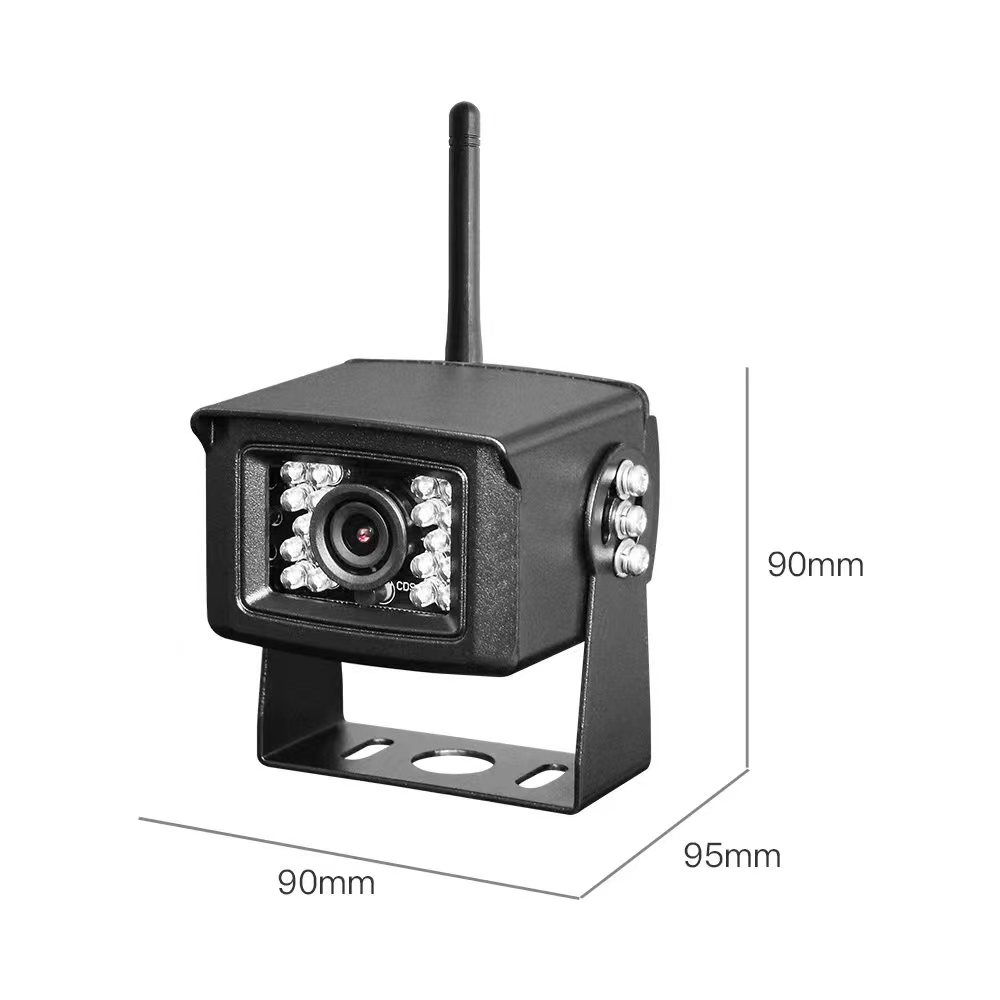

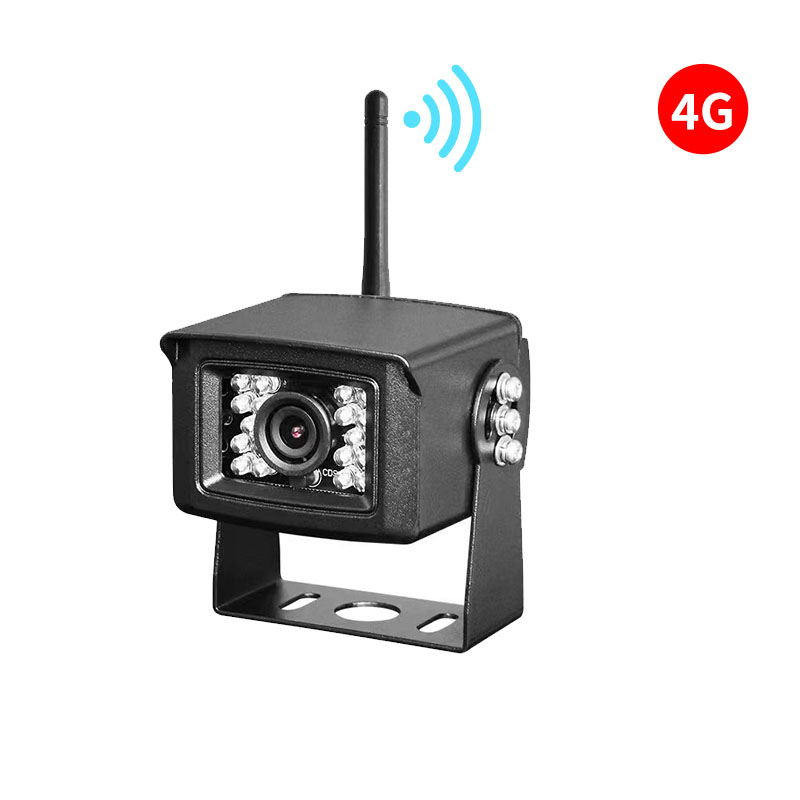

4G Camera, Remote Operation Camera

Model : IPC-DF903M-4G
Summarize : This product is a high-performance surveillance device with 1080P resolution, capable of providing clear and detailed image quality in low-light conditions. It supports both wired and 4G network connectivity, ensuring stable data transmission. The device incorporates advanced noise reduction technology, featuring 2D/3D noise reduction and digital wide dynamic range, effectively enhancing image clarity and detail. Additionally, it uses H.265X video compression technology to maintain high-definition quality at ultra-low bit rates, significantly saving storage space. To enhance security, it complies with national standard GB/T17626.5 and international standard IEC61000-4-5, offering lightning protection. The device is compatible with various platforms, including Che Zhili, Tongtianxing, SANY, Chaoyue, and 51, and supports all domestic networks. It also supports GPS and Beidou positioning for precise location services. In terms of power supply, it accommodates a wide voltage range of DC 12V-36V, making it suitable for diverse usage environments.

Product Description

Product Features

1080P Resolution: Provides clear and detailed images in low-light conditions.
Network Connectivity: Supports both wired and 4G network connections.
Noise Reduction Technology: Features 2D/3D noise reduction and digital wide dynamic range.
Video Compression: Utilizes advanced H.265X video compression technology for ultra-low bit rates while maintaining high-definition quality.
Lightning Protection: Complies with national standard GB/T17626.5 and international standard IEC61000-4-5.
Compatible Platforms: Supports various industry standard platforms, including Che Zhili, Tongtianxing, SANY, Chaoyue, and 51.
Universal Network Support: Compatible with all domestic networks.
Positioning Functionality: Supports GPS and Beidou positioning for precise location services.
Power Supply Range: Accommodates a wide voltage range of DC 12V-36V for versatile usage.

Product Parameters

Specification	IPC-DF903M-4G
System Structure	Embedded RTOS design, dual-core 32-bit DSP, pure hardware compression, watchdog
Sensor	2 Megapixels 1/2.9" black light CMOS sensor; Color 0.0001Lux@F1.2, Black & White 0.0001Lux@F1.2
Video Processing	H.265X encoding, dual stream, AVI format; Bitrate adjustable from 0.1M to 8Mbps; Frame rate adjustable from 1 to 30 fps
Image Output	Main stream: 19201080@12fps; Sub-stream: 640360@12fps
Shutter	1/50 (1/60) second to 1/10000 second
Lens	3.6mm
Day/Night Mode	Supports IR-CUT
Noise Reduction	Supports 2D/3D noise reduction
Wide Dynamic	Supports wide dynamic range
Audio Processing	G.711A encoding/decoding standard, supports two-way voice intercom function, supports audio-video synchronization
Audio Interface	1 input, level 2Vp-p, impedance 1kΩ; 1 output, impedance 16Ω, 30mw output power (audio alarm interface supported)
Network Interface	1 RJ45 Ethernet interface, 10/100M adaptive
Signal Interface	1 photoresistor interface, 1 IR-CUT drive interface, supports photoresistor input signal linkage with IR-CUT, infrared light
Reset Interface	Supports one-key reset function
TF Card	Supports up to 128G
Reliability	Comprehensive lightning protection, meets national and international standards; 7*24 hours 65℃ high-temperature test, stable and reliable (including whole machine test)
4G	Supports nationwide LTE
Positioning	Supports GPS and BeiDou positioning
Power Supply	DC12V-36V
Platform	Supports vehicle monitoring platforms such as Che Zhi Lian, Tong Tian Xing, Sany, 51, Chao Yue
Board Size	38mm42mm + 38mm40mm + 38mm*38mm

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
