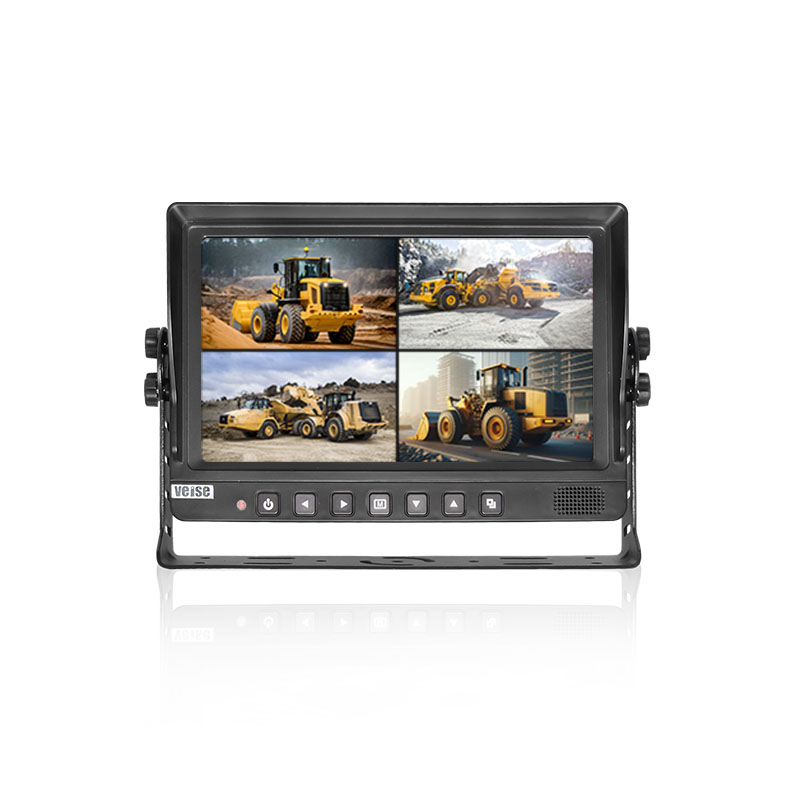

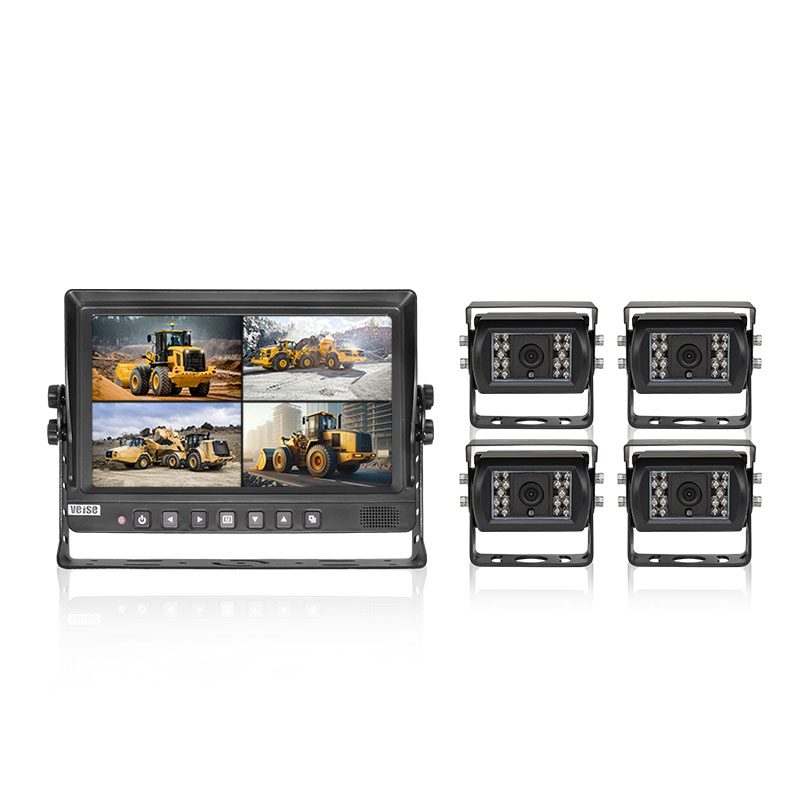

Video Input: Supports 4 video inputs with dual screen split Screen.
Screen Performance: IPS screen with fast response speed, wide viewing angle, true colors, and a resolution of 1024RGB×600.
Setting Functions: OSD menu allows for screen mirroring, normal image, delay time, and dual trigger priority application settings.
Appearance Design: Patented independent design, shell made of ABS+PC material, heat-resistant.
Sunshade Design: Removable sunshade to prevent sunlight interference with Screen.
Bracket Design: Rust-proof metal material with U-shape and double-side fastening for vibration resistance.
Brightness: 600cd/㎡ high brightness for clear images.
Voltage Protection: Overload pulse voltage protection design of DC24V+174V (350ms) to guard against vehicle transient pulses.
Power Design: Independent energy-saving low-power design with a wide working voltage range of DC11~32V.
Protection Mechanism: Built-in external power reverse polarity protection and LED thermal response constant current and voltage protection.
Automotive-grade DSP with 2 million pixels.
IP69K waterproof rating.
IR LED Night Vision Function.
Cold-resistant waterproof signal output cable.
4-core phosphor bronze aviation connector with double shielding.
Good anti-interference performance, low impedance, minimal signal transmission loss.
Dual injection molding for aviation connector ends, with good tensile and flexibility resistance.
| Model | HD Monitor (MHD-914S) | HD Monitor (MHD-914D) |
| Screen Type | 9-inch IPS Screen | |
| Resolution | 1024RGB(H) x 600(V) dot | |
| Video Input | 4 Channels | |
| Screen Mode | Single Screen / Multi-Screen Split | |
| Video Signal Input | CVBS / AHD 720P / 1080P | |
| OSD Menu Functions | Mirror / Normal settings, reverse delay settings, trigger priority, multilingual support | |
| Color System | PAL/NTSC (AUTO) | |
| Brightness (cd/m²) | 600 | 600 |
| Contrast | 800:1 | 800:1 |
| Recording Function | - | Real-time recording (2GB per hour for HD) |
| Recording File Format | - | AVI |
| Recording Capacity | - | Supports 16-512GB TF card |
| Surge and Overload Protection | ISO16750-2 Standard (24V system Us=174V, Ri=4Ω, td=350ms) | |
| Connector Type | 18-pin waterproof connector | |
| Operating Temperature | -20℃ to +70℃ | |
| Storage Temperature | -30℃ to +80℃ | |
| Operating Voltage | DC11-32V | |
| Vibration Level | GB/T 2423.56-2018 Standard (5G random vibration) | |
| Dimensions (L x W x T) | 210 x 143 x 84 mm | |
| Weight | 800g | |

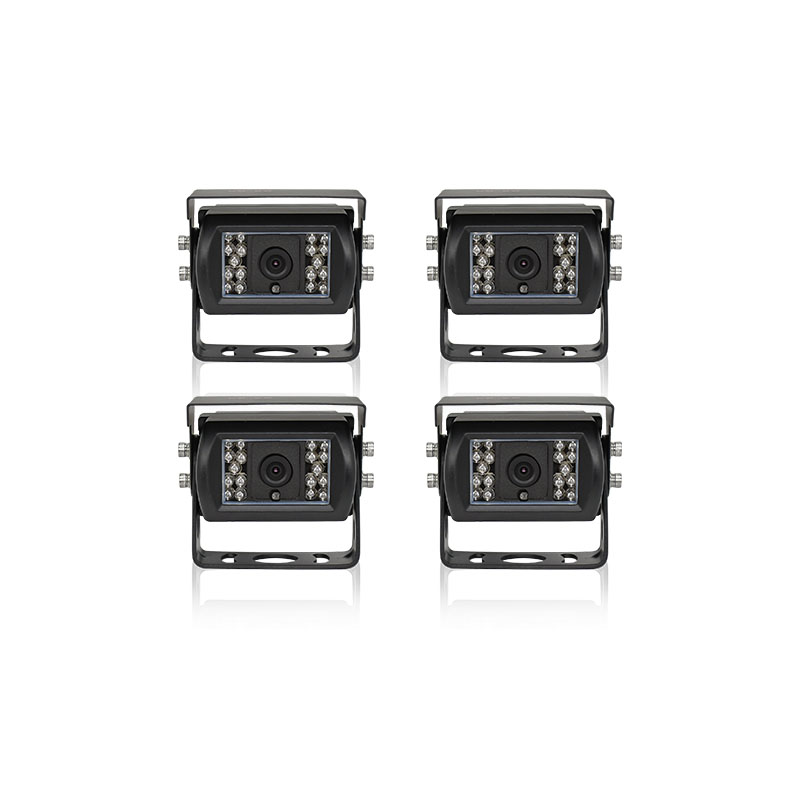

| Model | HD Camera (CHD-102Z) |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 130° |
| Infrared Distance | 15 meters (with 18 built-in 850nm IR LEDs) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | AHD 1080P |
| Shell Material | Aluminum Alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C, RH 95% Max |
| Storage Temperature | -30°C to +70°C, RH 95% Max |
| Vibration Level | GB/T 2423.56-2018 Standard (5G random vibration) |
| Body Interface | 4-pin aviation connector |
| Product Dimensions | 76(W) x 77(H) x 66(D) mm |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
