Product Features

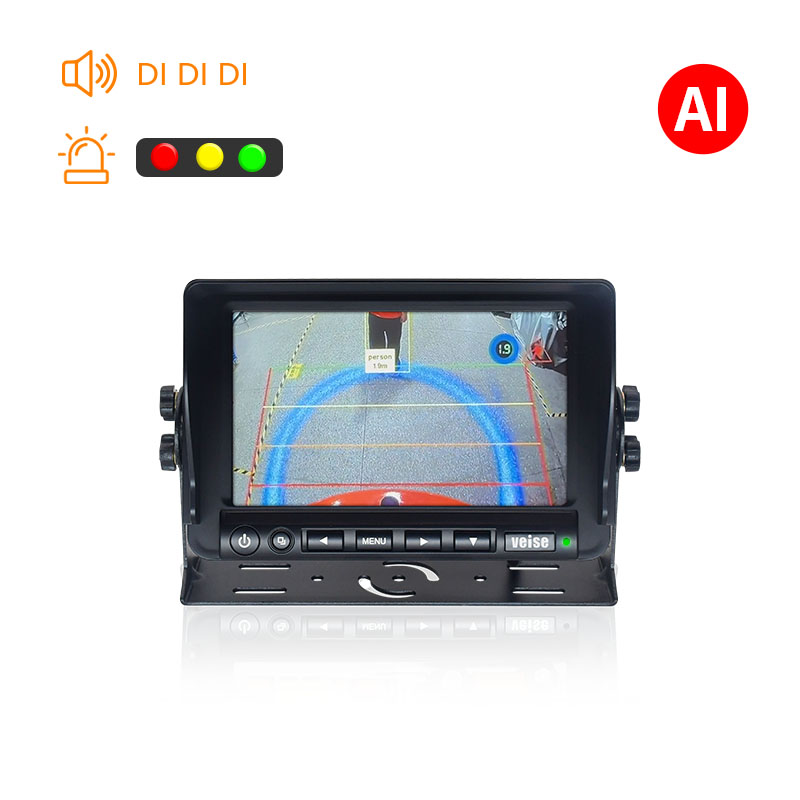

7-Inch HD Monitor
Video Input: Supports dual video inputs with split-screen display.
Display Performance: IPS screen with fast response time, wide viewing angles, true colors, and a resolution of 1024RGBX600.
Setting Functions: OSD menu allows for image mirroring, normal image, delay time, and dual-trigger priority settings.
Appearance Design: Patented independent design with high-temperature resistant ABS+PC housing.
Safety Features: It includes built-in AI warning signal control with a buzzer (alarm sound) and a three-color LED (safety distance warning light) for safety alerts.
Sunshade Design: Detachable sunshade to prevent sunlight interference.
Bracket Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.
Brightness: High brightness of 600cd/㎡ for clear images.
Voltage Protection: Protects against vehicle transient pulses with a load-dump pulse voltage of DC24V+174V (350ms).
Power Design: Energy-efficient independent power supply with a wide operating voltage range of DC11~32V.
Protection Mechanism: Built-in protection against external power polarity reversal and LED thermal response constant current and voltage protection.

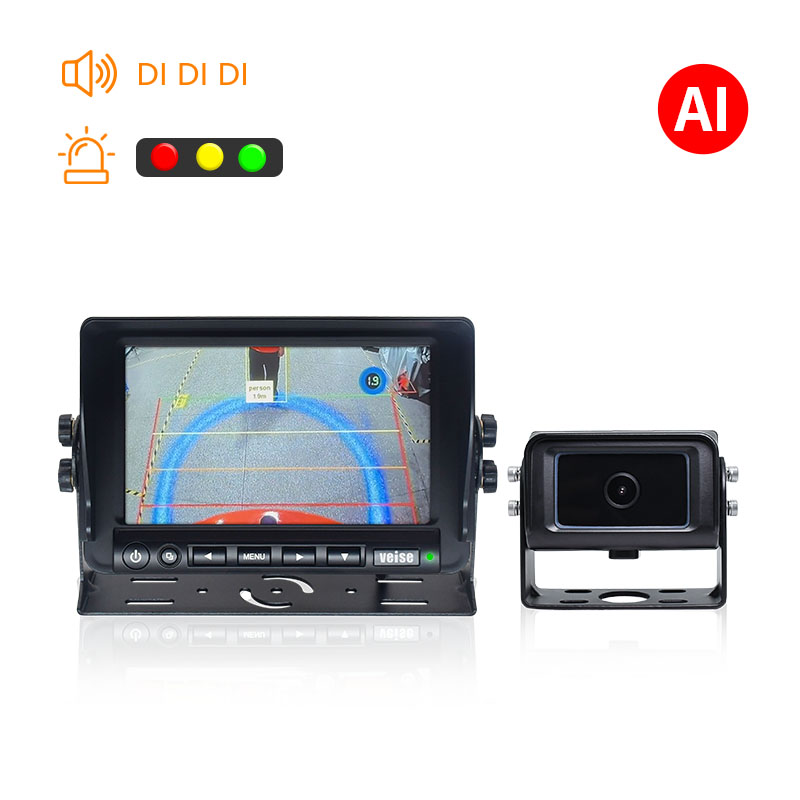

AI Human Shape Analysis Camera

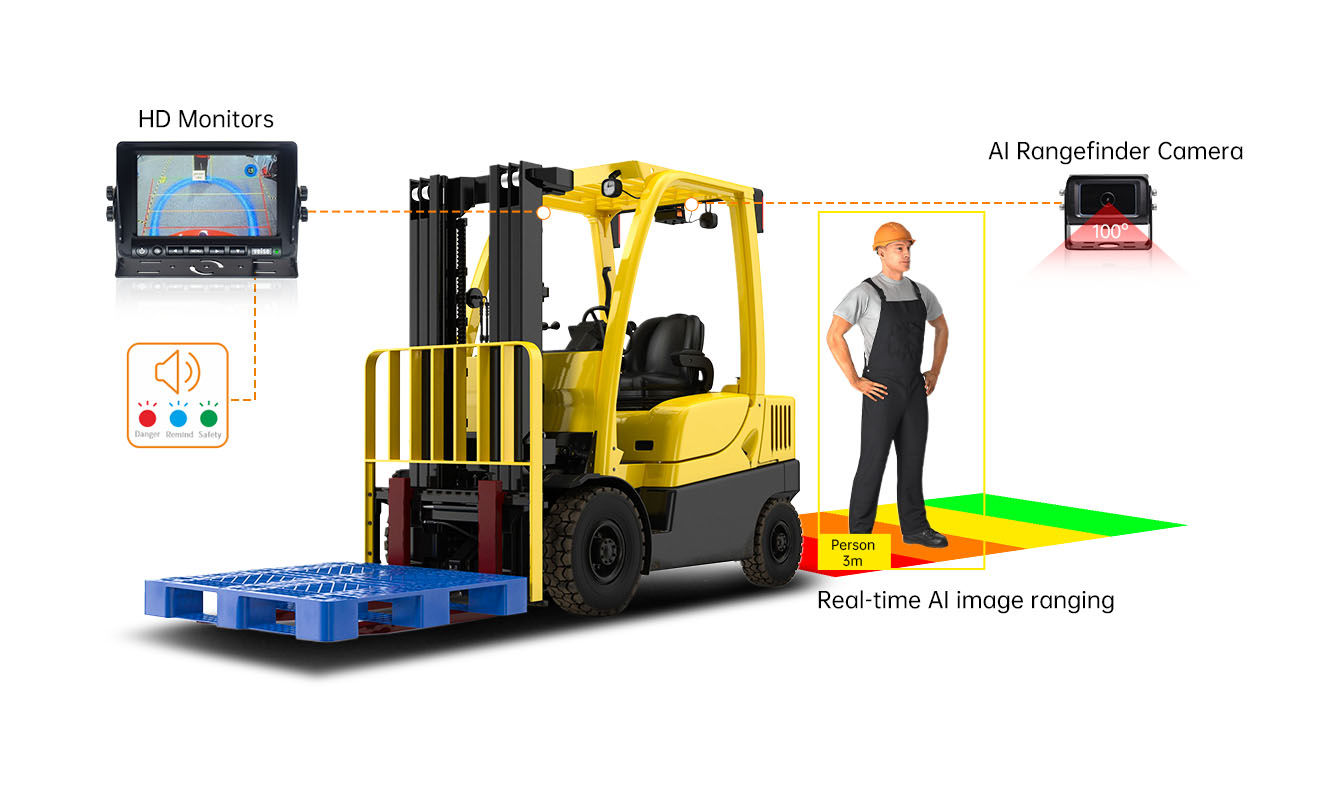

The AI humanoid analysis camera, based on cloud-based intelligent recognition algorithms, can learn and identify specific body movements of individuals. It accurately detects human presence in complex environments, primarily used for monitoring unauthorized access to restricted areas and certain body movements of individuals in specific zones, issuing alert signals that are sent to relevant monitoring systems.
Image measurement distance: 2 meters (customizable within 0-5 meters).
AI pre-warning signal output: 1-4 levels (green light blinks one, blue light blinks two, red light blinks three, red light is always on).
100° ultra-wide angle, automotive-grade DSP, 2 million HD pixels, IP69K waterproof rating, cold-resistant and waterproof signal tail line.
Connecting Cable
Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Parameters
HD Monitor (MHD-771J) |
Color Display | 7-inch IPS screen |
Resolution | 1024RGB(H) X 600(V) dot |
Video Input | 2 channels |
Display Mode | Single screen |
Video Signal Input | CVBS / AHD 720P / 1080P |
AI Pre-warning signal input | ●Green light - Safe, ●Blue light - Caution, ●Red light - Danger |
OSD Menu Functions | Mirror/normal image setting, reverse delay setting, trigger priority, multilingual support |
Color System | PAL/NTSC (AUTO) |
Brightness (cd/m2) | 600 |
Contrast Ratio | 800:1 |
Recording Function | Real-time recording (HD: 2GB per hour per channel) |
Recording File | AVI |
Recording Capacity | Supports 16-512GB TF card |
Surge and Load Dump Protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
Connector | 18-pin waterproof interface |
Operating Temperature | -20℃ to +70℃ |
Storage Temperature | -30℃ to +80℃ |
Operating Voltage | DC11-32V |
Vibration Level | GB∕T 2423.56-2018 standard (random 5G vibration) |
Dimensions (L x W x T) | 210 x 143 x 84mm |
Weight | 800g |
AI Camera (CHD-122MAI-FC) |
Image Sensor | 1/2.9 Color CMOS |
Effective Pixels | 1920(H) X 1080(V) |
Horizontal Resolution | 1080P |
Viewing Angle | 100° |
AI Pre-warning signal output | 1-4 levels (Green light - Safe, Blue light - Caution, Red light - Danger) |
Detection Target | Pedestrian/Non-motorized vehicle detection and warning |
Image Distance Measurement | 0-5 meters (customizable) |
S/N Ratio | ≥48dB (AGC Off) |
Video Output | AHD 1080P |
Housing Material | Aluminum alloy |
Waterproof Level | IP69K |
Operating Voltage | DC 12V ±10% |
Operating Temperature | -20°C ~ +60°C RH 95% Max |
Storage Temperature | -30°C ~ +70°C RH 95% Max |
Vibration Level | 5G (complies with GB-T2423056-2006 standard) |
Body Interface | 4-pin aviation connector |
Product Dimensions (W x H x D) | 74 x 64 x 56 mm |
