Summarize :
Through the high-definition display, the driver can more clearly observe the running status of the vehicle, as well as the changes in the surrounding environment, so as to better grasp the operation of the vehicle and improve the construction efficiency. In addition, the vehicle high-definition display also has the advantages of three-level sound and light alarm, easy operation, high resolution, high brightness, high contrast and wide viewing angle, etc., which can meet the needs of drivers in different scenarios and improve the driving experience and vehicle operating efficiency.

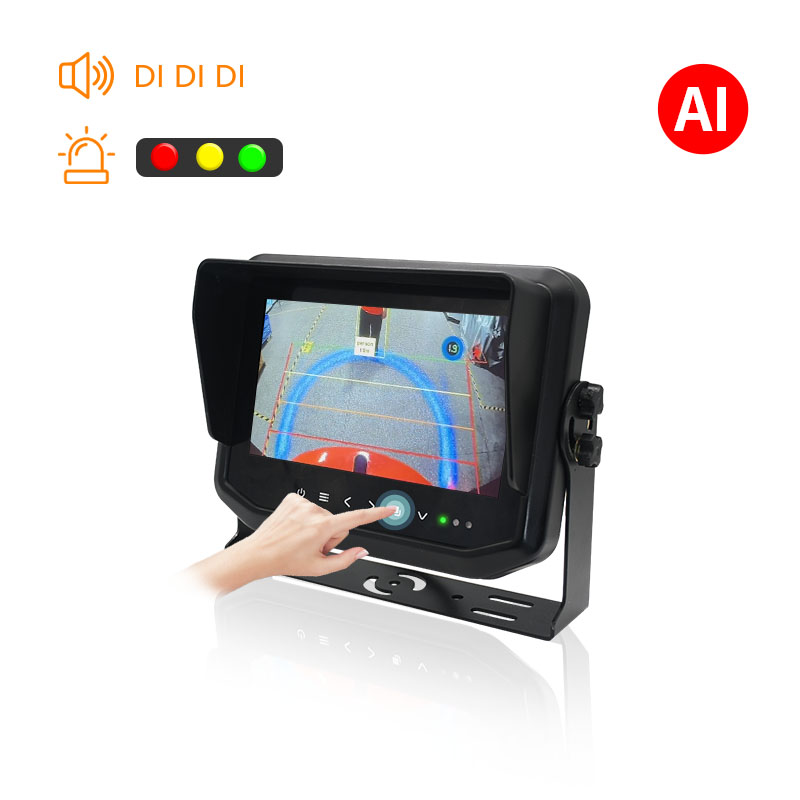

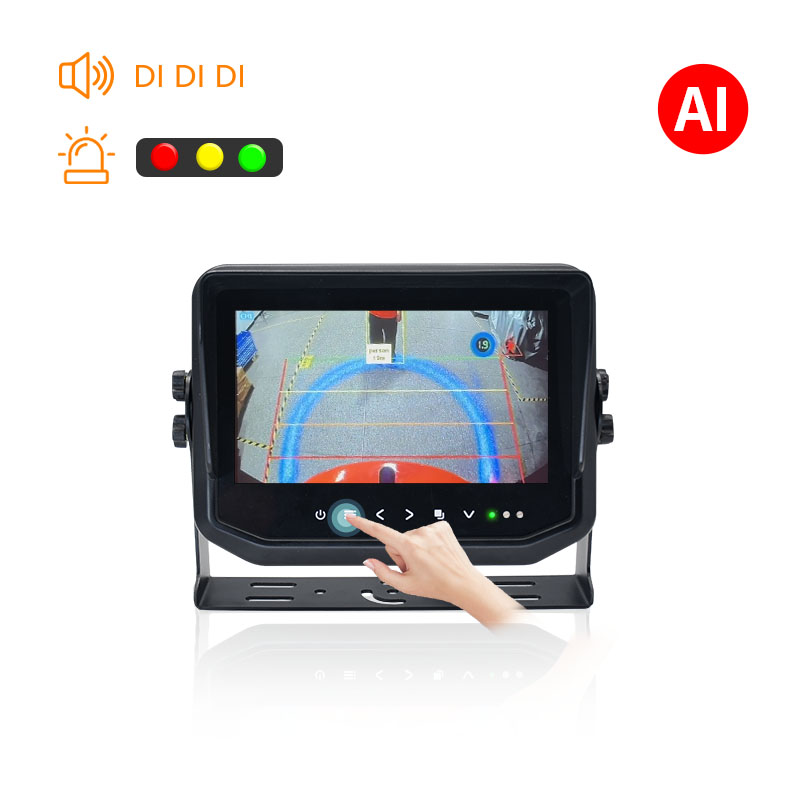

Display Screen : 7-inch IPS screen with fast response speed, wide viewing angles, true colors.
AI Warning :AI Camera warning signals that trigger monitor's buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts.
DVR: Real time recording and playback function, supporting 16-512GB TF card (standard 64GB);
Display screen full lamination process:The protective glass panel of the monitor and the display screen adopt a space free full lamination process structure to eliminate specular reflection and ensure clear and transparent image screens;
Protection Circuit Design: free operates voltage input DC 8-32V. pulse voltage protection against load disconnection,reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.

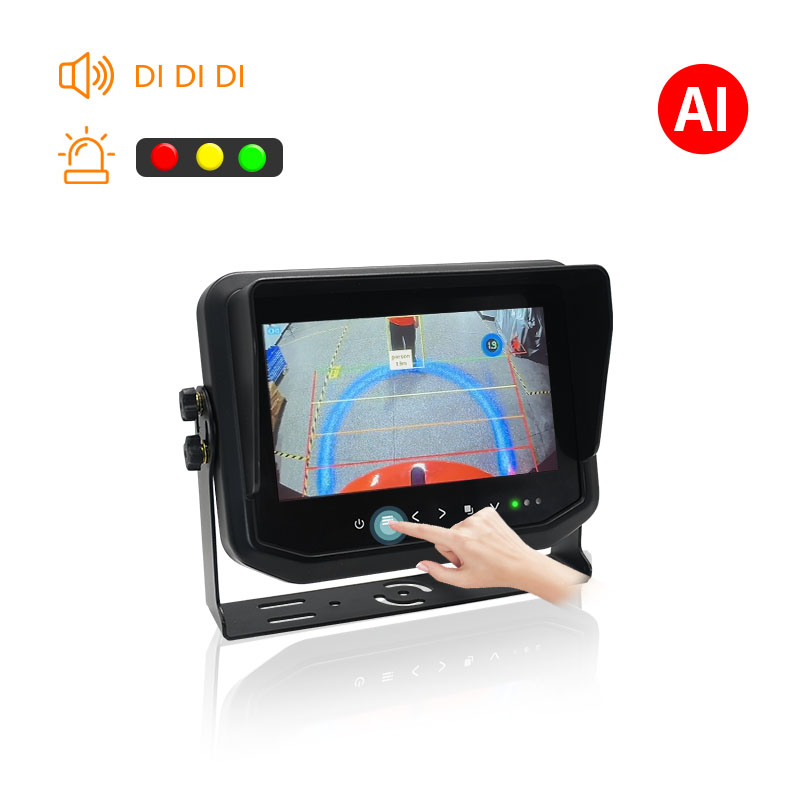

Sunshade Patented Design: Detachable sunshade to prevent sunlight interference.
Bracket Patented Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.
ISO16750-2 Standard (24V System Us=174V, Ri=4Ω, td=350ms)
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Operating Voltage
DC11-32V
Vibration Level
GB∕T 2423.56-2018 Standard (Random 5G Vibration)
Dimensions (L x W x T)
210 x 143 x 84mm
Weight
800g
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
