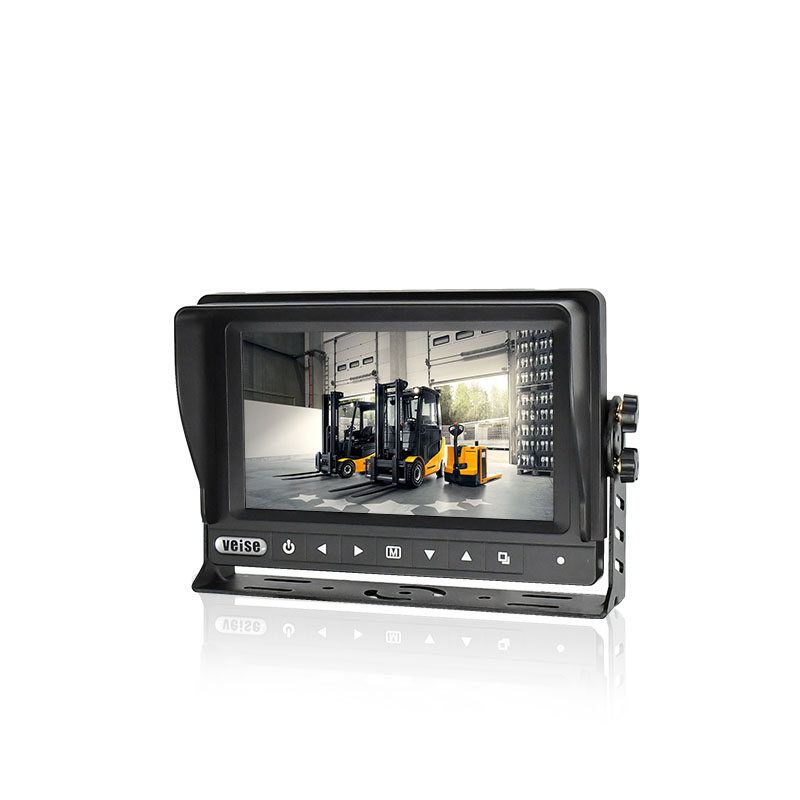

7" HD Waterproof Monitor

Model : MHD-754
Summarize : This product features a 7-inch waterproof digital screen display, which has a 1024x600 high resolution and a 600cd/㎡ high-brightness screen. It's equipped with an automotive industry-grade DSP and a graphical OSD menu for setting picture mirroring or normal display, reverse scale, and trigger priority application functions. The display adopts a patented waterproof structure design with front plastic and rear aluminum, being fully sealed and pressure-balanced, reaching a waterproof rating of IP68. Its bracket is made of anti-rust metal material and features a U-shaped and double-sided fastening anti-vibration design. Moreover, it has a wide working voltage range from DC11 to DC32V, along with circuit designs for load dump pulse voltage, reverse connection protection, and LED thermal response constant current and constant voltage protection to prevent improper use, damage from automotive pulse voltage and guarantee the shelf life.

Product Description

Product Features

7-inch waterproof monitor supports 2-way Video Input, realizing single-screen monitoring Screen.

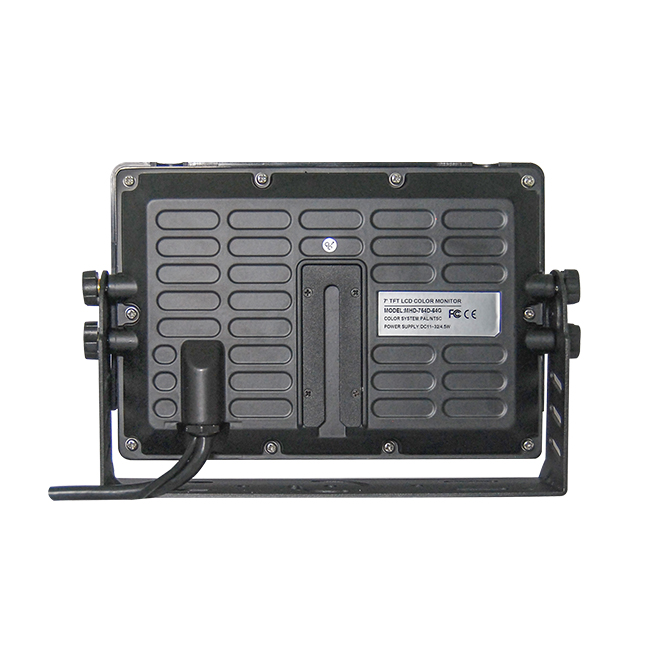

Special waterproof structure design of front plastic and rear aluminum, Waterproof Grade IP68. with high temperature resistance and heat dissipation characteristics.

IPS screen with high Resolution 1024RGBX600. fast response speed, large viewing angle, true color.

Vehicle-specific industrial-grade digital video processor to meet the -40 ° ~ 85 ° Working Temperature conditions.

OSD menu to set each Screen mirror image and positive image, delay time 0-30S, double trigger priority application function.

Translated with www.DeepL.com/Translator (free version).

Product Parameters

Model	MHD-754
Color Monitor Screen	7-inch IPS screen
Resolution	1024RGB(H) X 600(V)dot
Waterproof Rating	IP68
Video Inputs	Supports 4-channel video input
Screen Modes	Maximum quad-screen
Video Signal Input	CVBS /720P /1080P/960P
OSD Menu Functions	Support reverse driving screen trigger priority, delay, mirror image. Language: Chinese/English
Color Standard	PAL/NTSC (AUTO)
Brightness	600cd/m²
Contrast	800：1
Surge and Load Dump Protection	ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms)
Connector Sockets	2-meter connected line
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Operating Voltage	DC11-32V
Anti-vibration Grade	GB∕T 2423.56-2018 system (random 5G vibration)

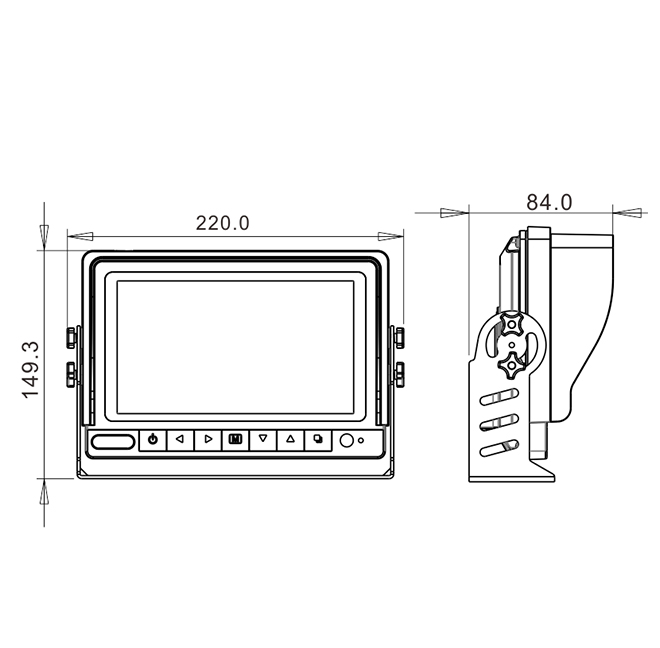

Size	(L x W x T) (220 x 149 x 84mm)
Weight	1140g

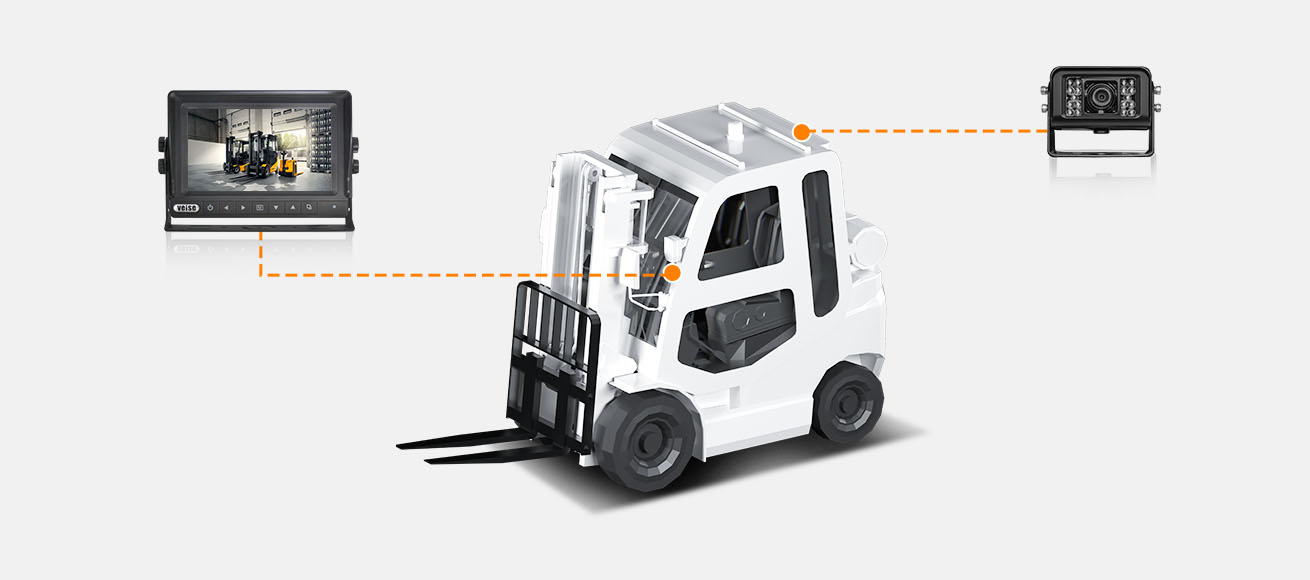

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
