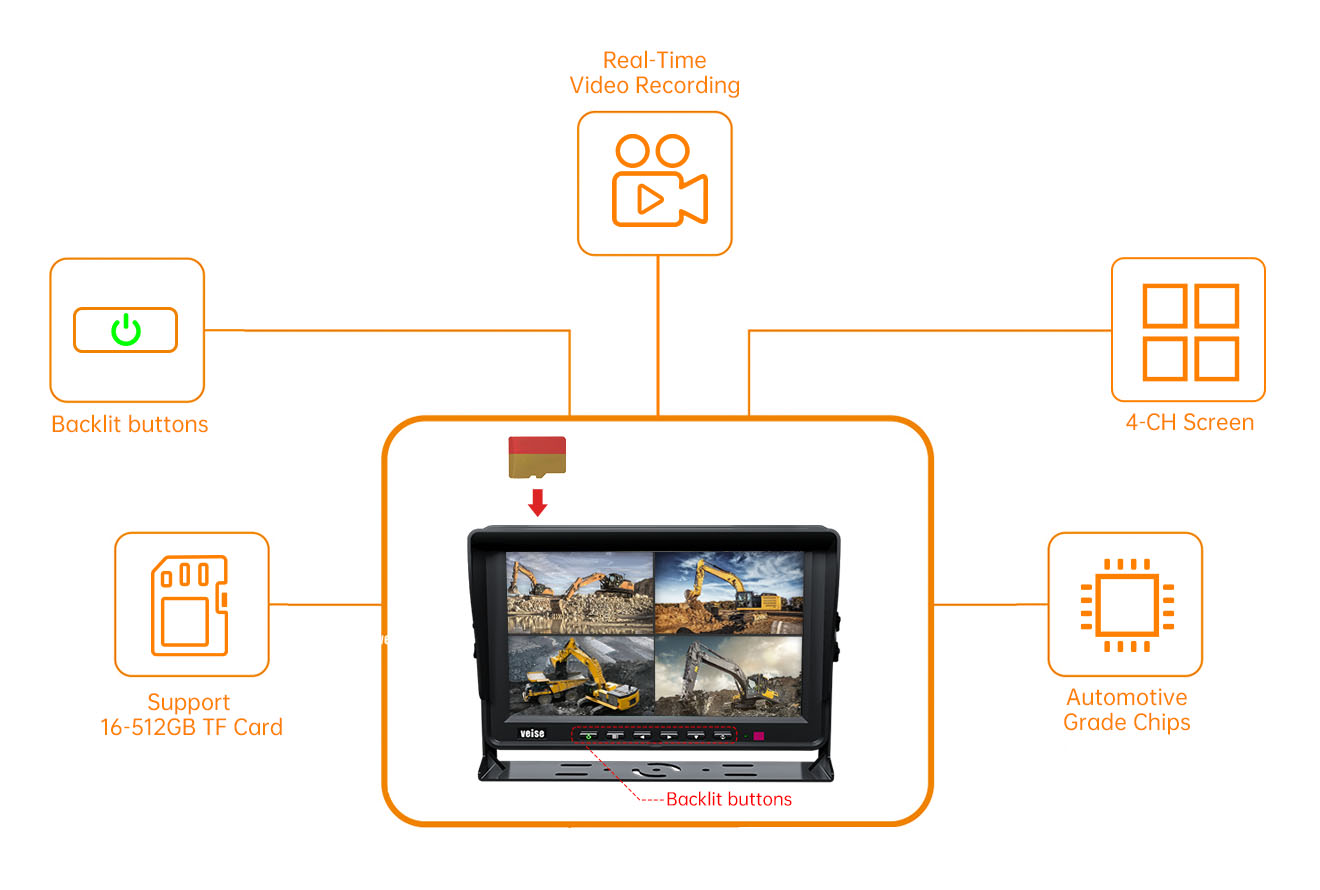

Display Screen: Equipped with a 10.1" 1024 x 600 high-resolution LCD screen for clear visibility.
Housing: Made of ABS+PC, providing a stable structure and excellent heat dissipation.

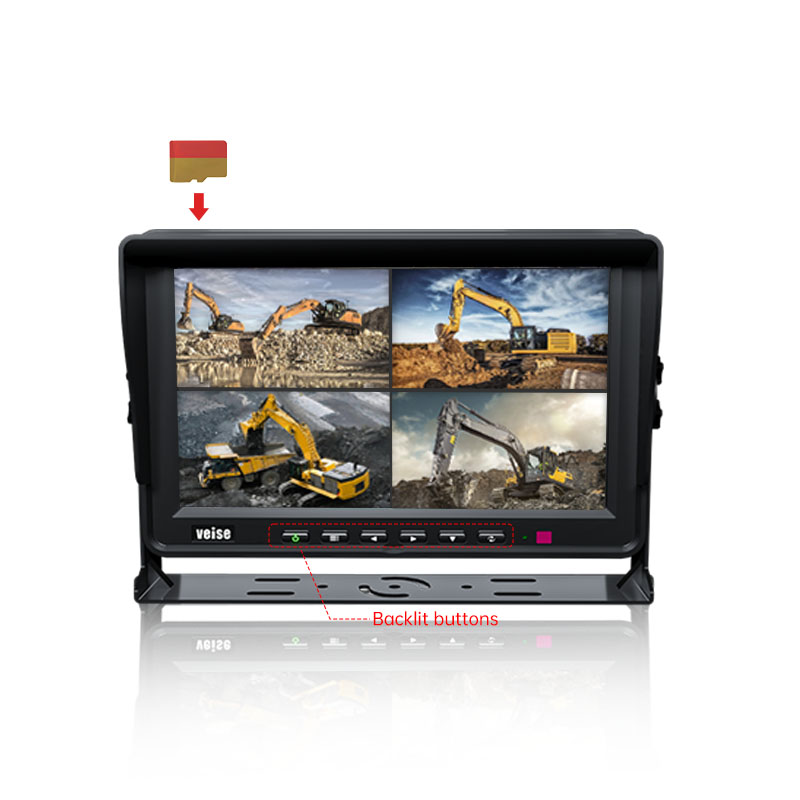

Operation: Supports backlit button functionality for sensitive and quick operation.
Storage: External TF card storage for video recording, supporting up to 512GB with automatic file overwrite.
Voltage Compatibility: Wide voltage input range of DC 11V-32V, suitable for various vehicles and machinery.
Safety Design: Built-in reverse polarity protection circuit to prevent device damage from incorrect connections.
Backlight Design: Features constant voltage/current circuit protection to extend service life.
Multi-View Display: Supports dual, triple, quad, and picture-in-picture display modes.
Image Adjustment: Each channel can be independently set for horizontal mirroring, upside-down installation, and 180° rotation.
Reverse Parking Assistance: Supports reverse parking scale line function for individual channels.
Vibration Resistance: Compact design, meeting the vibration resistance standard GB/T 2423.56-2018.
| Model | MHD-1054H |
| Screen | 10.1" IPS HD Digital Monitor |
| Resolution | 1024 x 600 |
| Viewing Angle (LR/UD) | L/R: 85°/85°, U/D: 85°/85° |
| Video Input | Up to 4 channels supported |
| Contrast Ratio | 800:1 |
| LED Backlight Brightness (cd/㎡) | 600 |
| Response Time (ms) | 25 |
| System | PAL/NTSC (AUTO) |
| Recording Video Format | AVI |
| Recording Storage Card Type | TF Card (Max. 512GB) |
| Recording Resolution | 1080P/720P/480P |
| Load Dump | DC24 + 174V/350ms |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Input Power | DC 11-32V |
| Dimensions (LxWxT) | 265 x 168 x 37 mm (without bracket) |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
