Product Features
10.1-inch 1024x600 high-Resolution display screen.

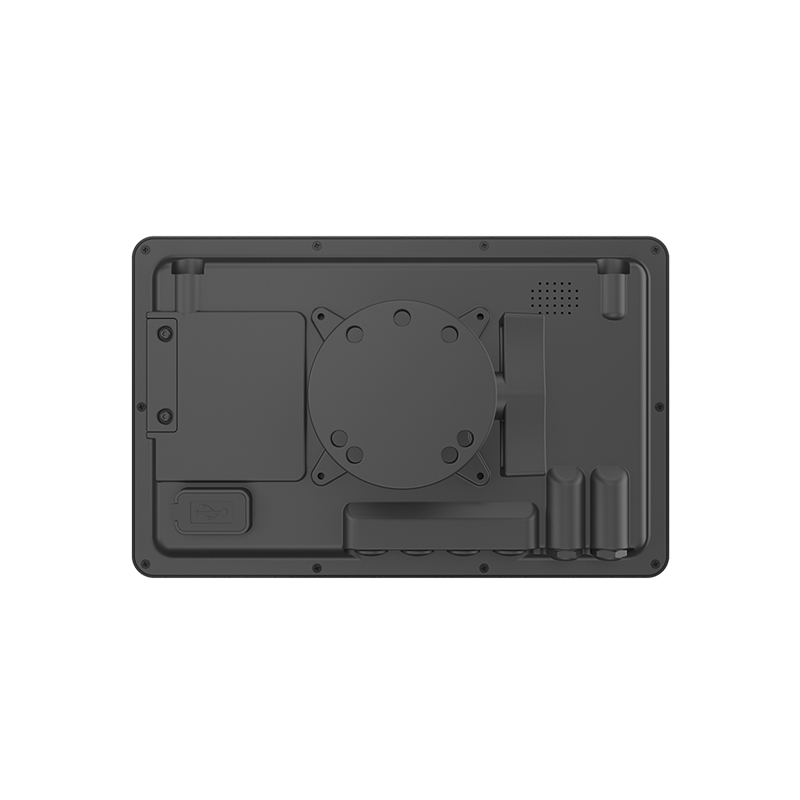

Aluminum alloy shell with stable structure and good heat dissipation effect.

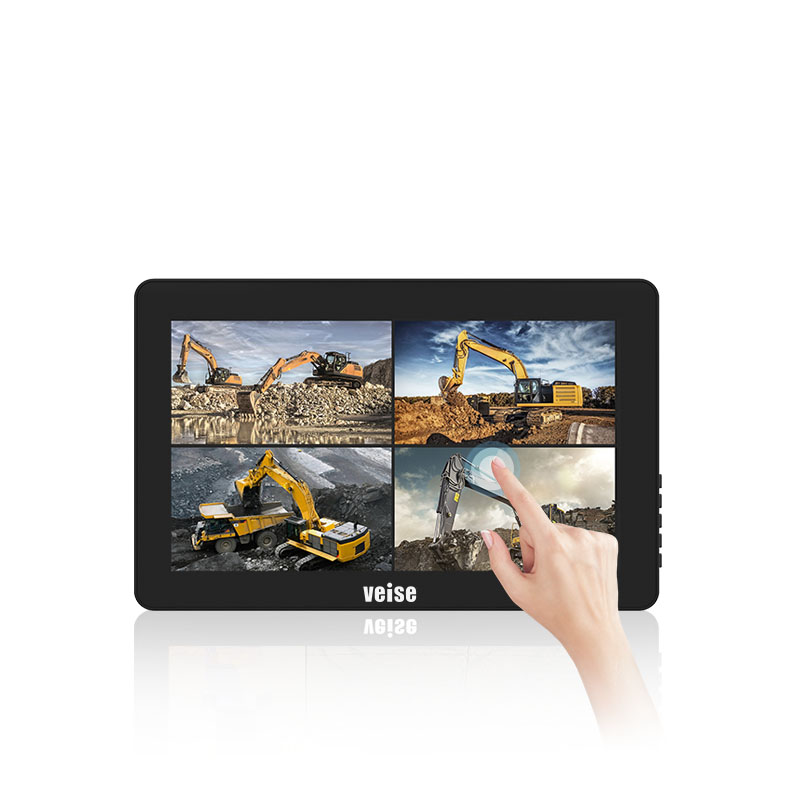

mechanical buttons + touch screen functional operation, sensitive and fast touchscreen operation.
External TF card stores the recording, with a maximum support of 512G, the recording files are automatically overlaid.
Wide range of voltage input DC11V-32V, which is widely applicable to various vehicles and mechanical equipment.
Built-in power reverse polarity protection circuit design, which effectively prevents equipment damage caused by human misoperation.
Back light source built-in constant voltage and constant current circuit protection design, which extends the service life compared to before.
Supports 10-language OSD menu operation.

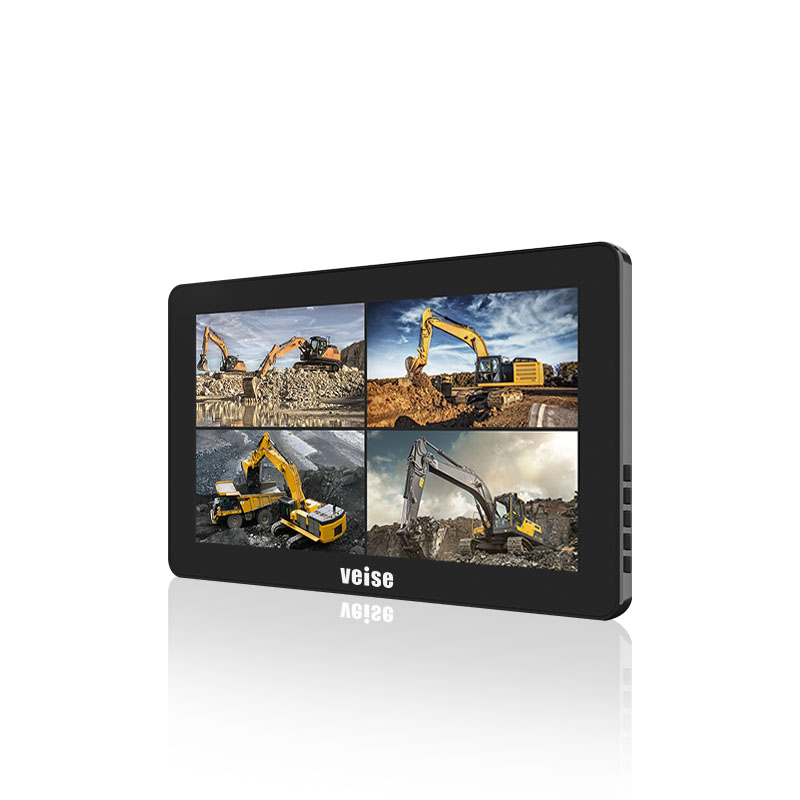

Supports multi-view mode displays such as double pictures / three pictures / four pictures / picture-in-picture.
The display of a single channel can be independently set with horizontal mirror.
Supports upside-down installation, and the picture display can be set to upside-down mode, with the picture and characters rotated 180°.
Supports the opening / closing of reverse scale auxiliary lines for a single channel.
The monitor has a complete and compact structure design, and the anti-vibration level complies with the GB/T 2423.56-2018 standard (random 5G vibration).
Product Parameters
| Model | MHD-1014MDTP |
| screen | 10.1-inch IPS HD digital screen |
| Resolution | 1024×(RGB)×600 |
| visible angle (LR/UD) | L/R:85/85 U/D: 85/85 |
| Contrast level | 800:1 |
| LED backlight brightness (cd/㎡) | 600 |
| response time (ms) | 25 |
| standard | PAL/NTSC (AUTO) |
| recording video format | AVI |
| type of recording storage card | TF card (maximally supports 512G) |
| recording Resolution | 1080P/720P/480P |
| Video Signal Input | supports 1080P/720P/CVBS signal |
| load dump | DC24+174V/350ms |
| working tempeature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| input power supply | DC11-32V |
| outer Size (LxWxT) | 265X168X37(mm) (without bracket） |
Reference Instructions for Recording Duration
| Video quality | 64G | 128G | 256G | 512G |
Recording times for different capacity TF cards can be found in this table. The actual recording time depends on the operating The actual recording time depends on the operating environment. This reference table shows the memory occupied by a single channel video file. memory for a single channel video file, users can select the TF card according to the Users can choose the TF card according to the video storage requirements, the maximum support 512G. |
| SD | 35G | 71H | 142H | 284H |
| HD | 32G | 64H | 128H | 256H |
| UHD | 24G | 48H | 96H | 192H |
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
