7-inch Vertical Backup Monitor

Model : MHD-781 MHD-782
Summarize : The product is a 7-inch HD IPS display monitor that supports dual video inputs and features an automotive-grade digital video processor operating in a temperature range of -40°C to 85°C. The OSD menu allows users to independently configure each display for mirrored or normal images, delay times, and dual-trigger priority functions. Its exterior is patented with a design made from high-temperature resistant ABS+PC materials. The buttons feature high-precision laser-etched white characters for clear visibility. The monitor has a resolution of 1024RGB x 600 and a brightness of 600cd/m², ensuring sharp and bright images. It includes protection against transient pulse damage with a load pulse voltage design of DC24V + 174V (350ms). The independent power supply is energy-efficient and features a stable low-power circuit design, operating within a wide voltage range of DC11-32V. Additionally, it has built-in protection against reverse polarity for the external power supply and LED thermal response constant current and voltage protection, extending the product's lifespan.
More Info : Online Service

Product Description

Product Features

7-inch HD IPS screen monitors supporting 2 channels of Video Input.

automotive-grade, -40°~85° digital video processor.

OSD menu respectively sets the mirror and normal images of the picture, time delay, and double-trigger priority function.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

The buttons are made with high-precision laser carving white characters, which are beautiful, clear, and easily visible.

1024RGBX600 high definition and 600cd/㎡ high brightness of clear images.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage to car transient pulses.

The independent power supply adopts energy-saving, low power consumption, and low-temperature circuit stable design.

DC11~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, LED thermal response constant current constant voltage protection service life circuit design.

Product Parameters

Model	MHD-781	MHD-782
Color Monitor Monitor	7-inch IPS screen
Resolution	1024RGB(H) X 600(V)dot
Video Input	2 channels of Video Input	2 channels+2-pictrue segmentation

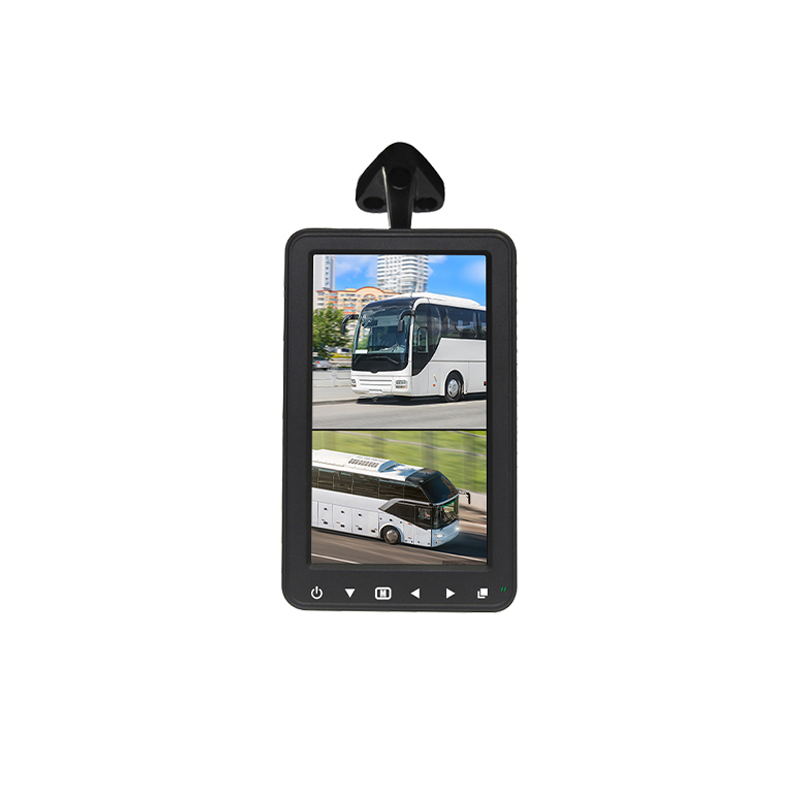

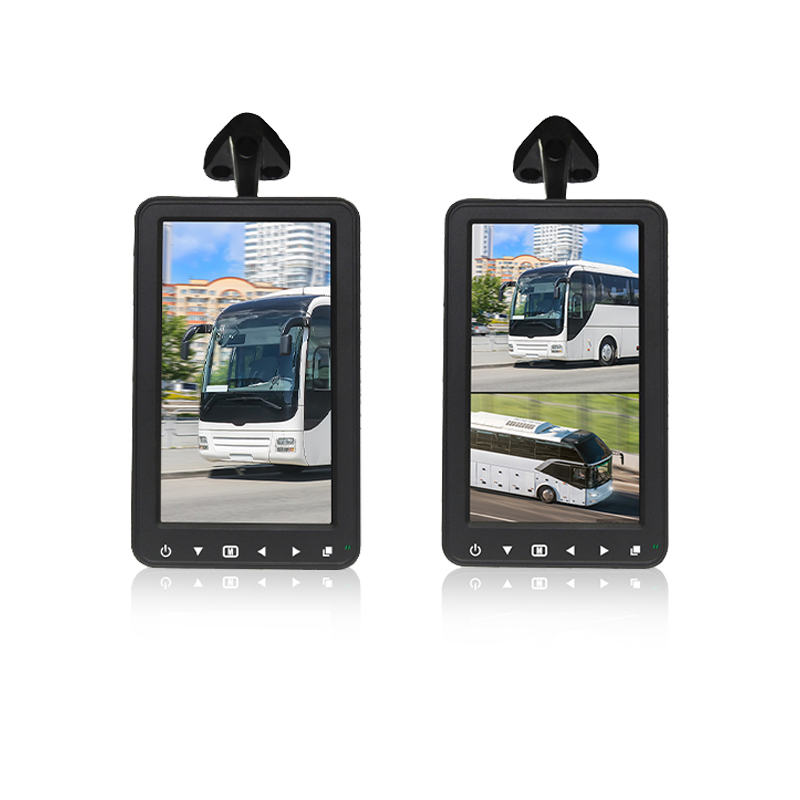

Screen Mode	single-picture	single-picture, double-picture
Video Signal Input	CVBS /AHD720P /1080P
OSD Menu Function	respectively sets the normal and mirror images of the picture, time delaying of reversing, the trigger of priority, and supports multi-languages
Color Standard	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
Contrast level	800：1
Surge and load dump protection	ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms）
Interface	2-meter straight-through line
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Working Voltage	DC11-32V
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)
Size	(L x W x T) (193 x 118 x 35mm)
Weight	800g

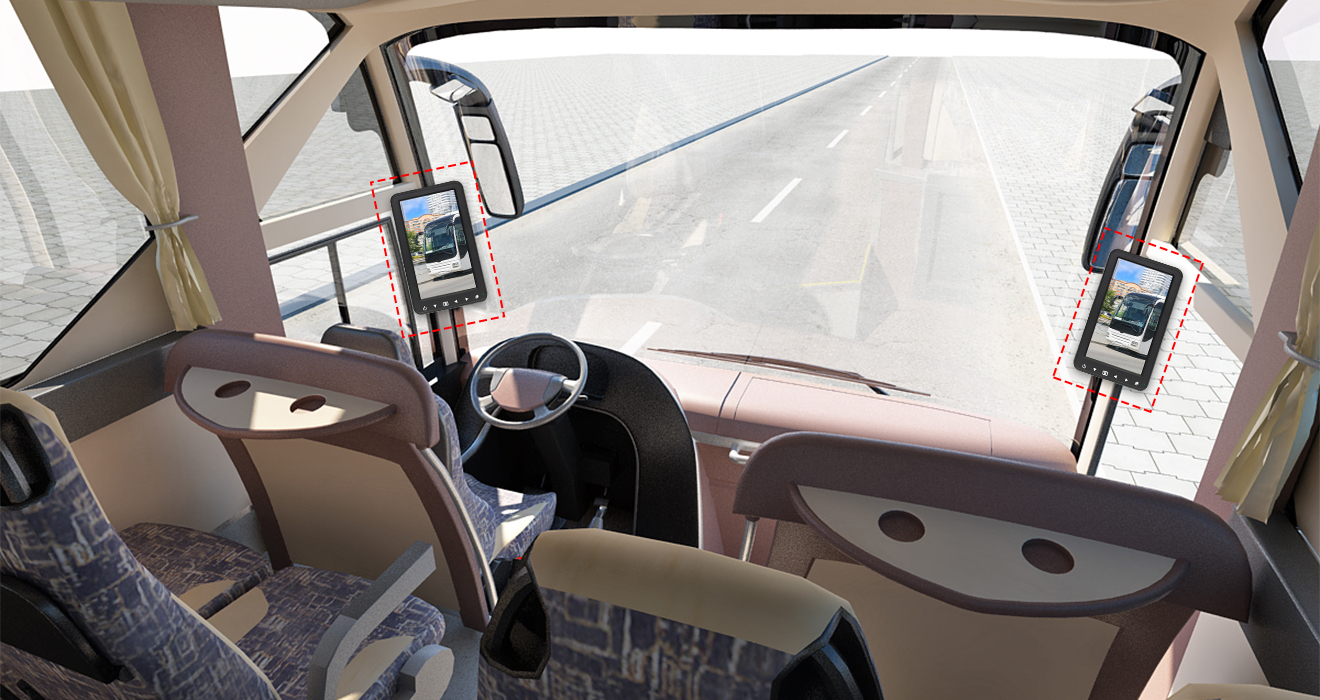

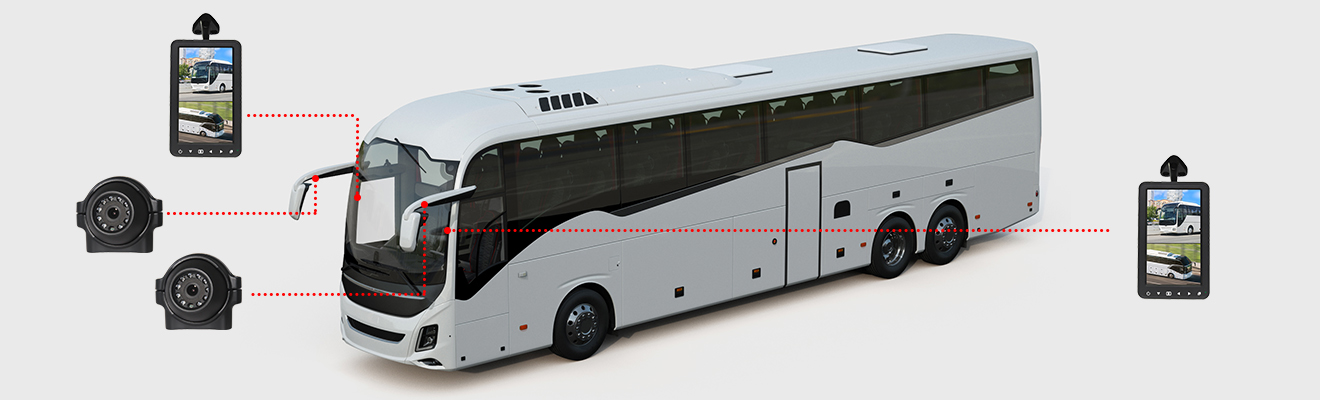

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
