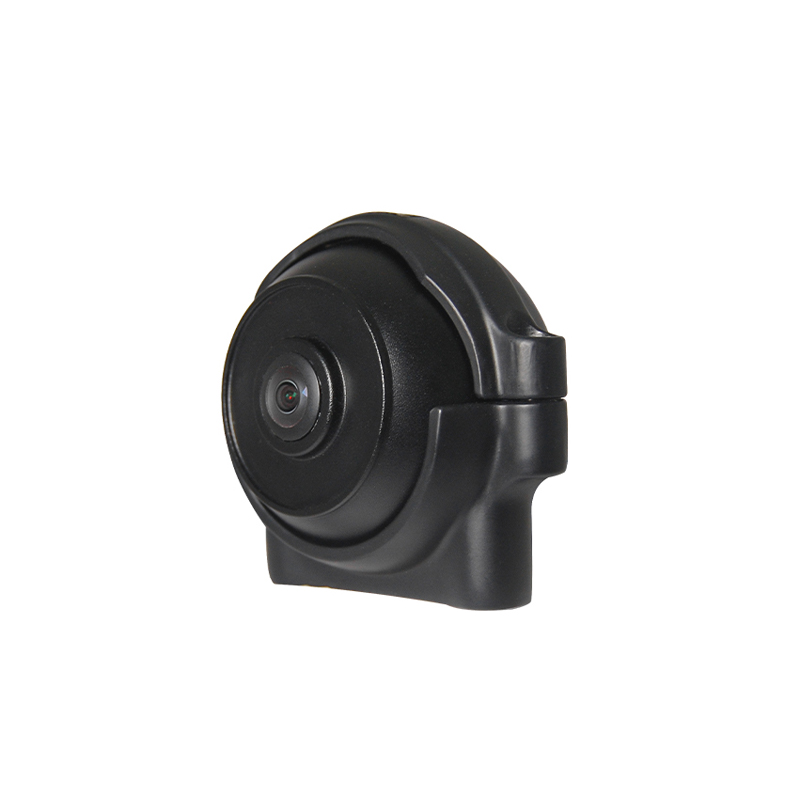

Wide Angle Backup Camera

Model : CHD-19B1S
Summarize : The product is a 720P HD camera with an effective pixel resolution of 1920(H) x 1080(V). Its housing is made from corrosion-resistant aluminum alloy, suitable for acidic and alkaline environments, and enhances heat dissipation. The fully sealed vacuum design filled with nitrogen prevents fogging, while the camera features an IP69K waterproof rating for all-weather use. The low-resistance video power line ensures that signal integrity is maintained over extended distances, and it is resistant to cold temperatures, making it suitable for freezing conditions. The aviation-grade connection interface adds waterproof sealing, is tightly secured against vibration, and is not prone to loosening. With a 165-degree ultra-wide viewing angle and a spherical structure that allows for adjustable monitoring angles, it is versatile for various installation positions, operating on a DC12V power supply.
More Info : Online Service

Product Description

Product Features

720P HD images;

Effective Pixel of the image 1920(H) X 1080(V);

Anti-corrosion shell spraying for acid-base environment; Aluminum alloy material enhances heat dissipation performance；

Nitrogen filling to prevent fogging after vacuuming inside the camera；

Fully sealed cameras with IP69K waterproof grade for all-weather environment;

The low impedance of video power cables ensure normal signals. Cold resistance characteristics ensures the cameras work perfectly under extremly low-temperature weather and frozen environments. The cameras are processed with fully sealed waterproof processing technology;

Fully sealed waterproof aviation interface is tightly fastened and not easily loosened;

165-degree super-wide visible angle;

The sphere structure is suitable for adjustable monitoring angles, making it convenient to install in any position;

DC12V working voltage.

Product Parameters

Model	CHD-19B1S
Image Sensor	1/2.8 Color Sony 225
Effective Pixel	1280(H)X960(V)
horizontal definition	720P
visible angle	165° super-wide angle
Night Vision Mode	full-colored night vision
Signal-to-noise Ratio	≥48dB(AGC Off)
Video Signal Input	AHD 720P
Housing Material	aluminum alloy
Waterproof Rating	IP69K
Working Voltage	DC 12V±10%
Working Temperature	- 20°C~+60°C
Storage Temperature	- 30°C~+70°C
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)

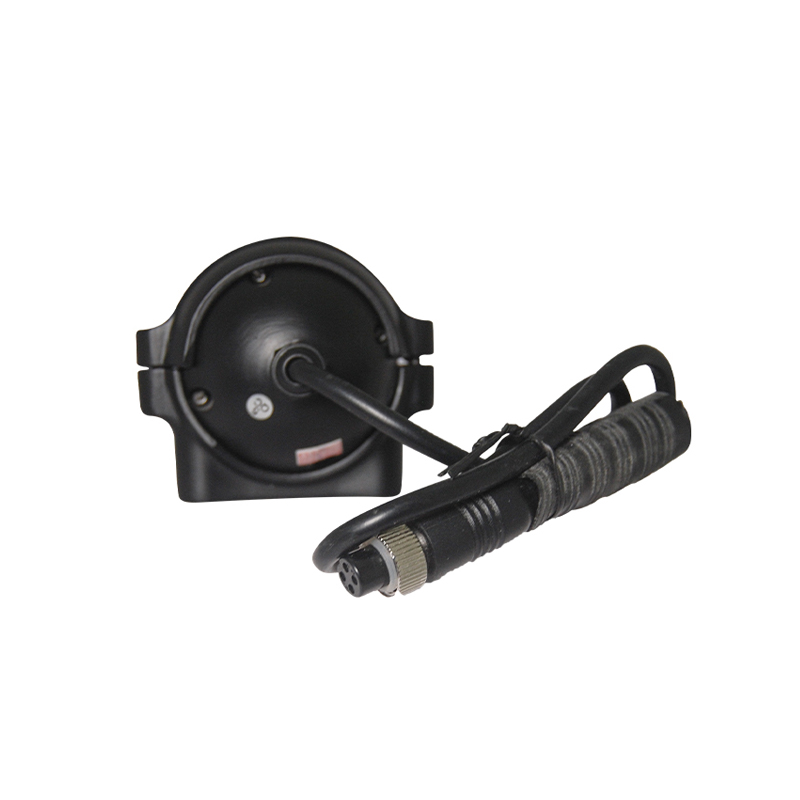

Interface Spec	4 pin aviation female plug

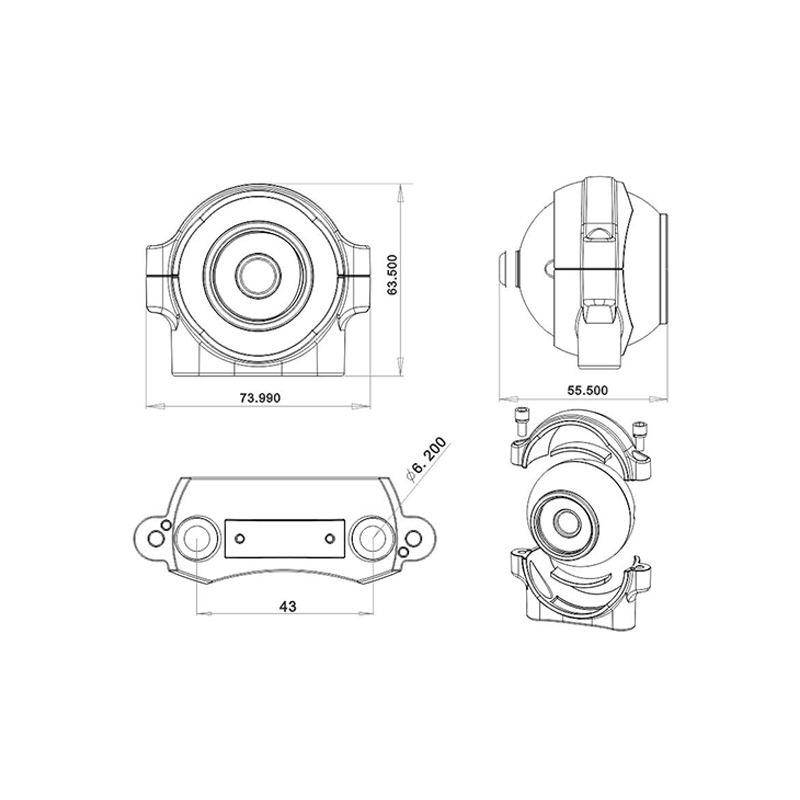

Size	74(W) x 64(H) x 56(D) mm

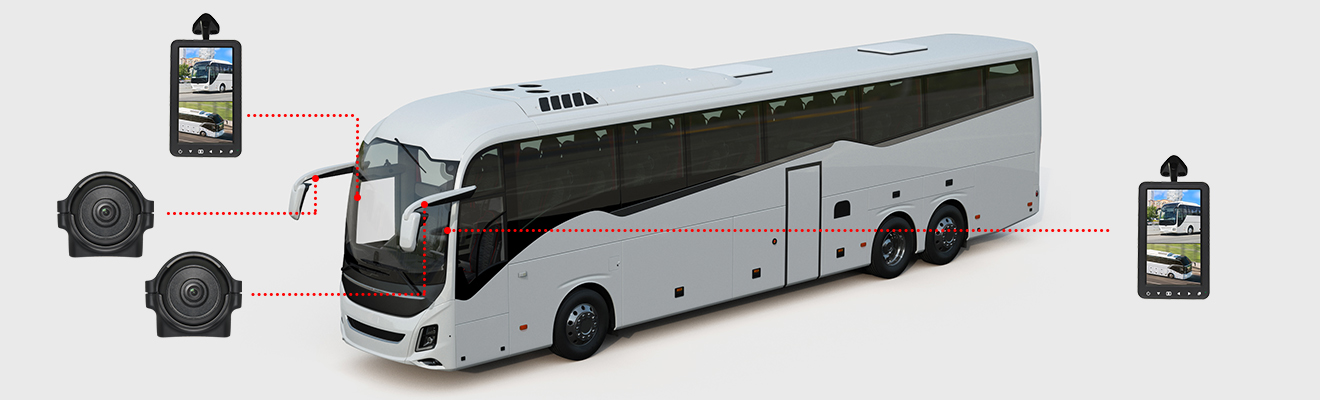

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
