Product Features
1080P HD images;
Effective Pixel of the images: 1920(H) X 1080(V);

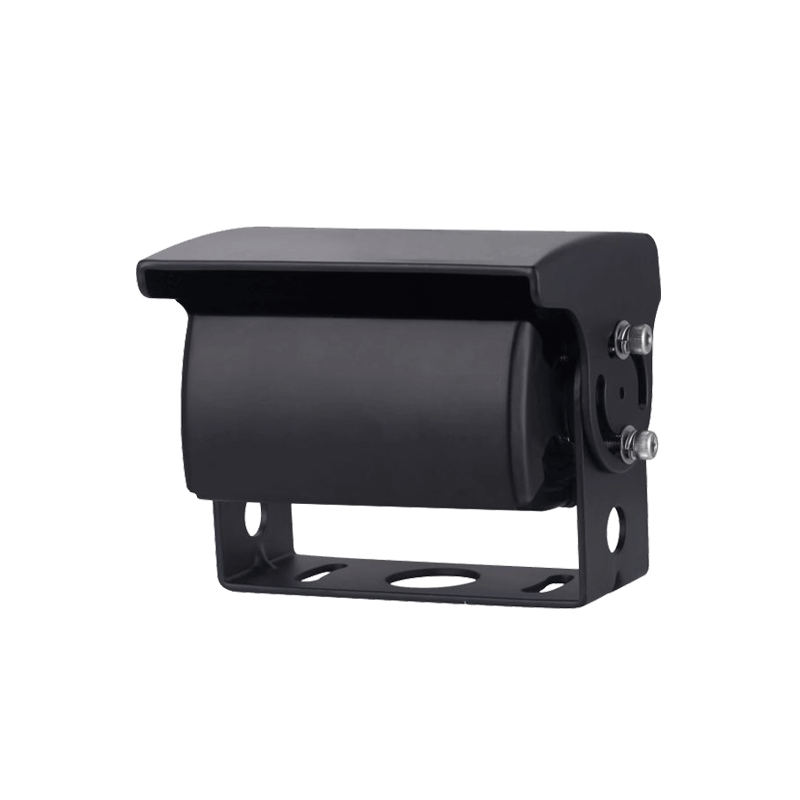

New transmission structure ensures the effectiveness and frequency of driving dust cover;
Anti-corrosion shell spraying for acid-base environment; Aluminum alloy material enhances heat dissipation performance；
12 pieces of 850nM infrared LED lights provide safe night vision supplementary lighting;
Nitrogen filling to prevent fogging after vacuuming inside the camera；
Fully sealed cameras with IP69K waterproof grade for all-weather environment;
The low impedance of video power cables ensure normal signals. Cold resistance characteristics ensures the cameras work perfectly under extremly low-temperature weather and frozen environments. The cameras are processed with fully sealed waterproof processing technology;
The visible window uses acrylic glass, which is suitable for vehicle road bumps and vibration;
Fully sealed waterproof aviation interface is tightly fastened and not easily loosened;
130-degree super-wide visible angle；
Unique U-shaped + double-sided reinforced design bracket increases the anti-vibration performance.
Automatic heating and atomization function; (Automatically turns on heating when the operating temperature of the camera is below 10 ℃)
Magnetic induction switching the image mirror/non mirror function and the reverse signal voltage controls to open the dust cover and the image delay；
DC12V working voltage
Product Parameters
| Model | CHD-142M |
| Image Sensor | 1/2.8 Color Sony 307 |
| Effective Pixel | 1920(H)X1080(V) |
| Horizontal Definition | 1080P |
| Visible Angle | 130° |
| Infrared Distance | 10m（12 built-in infrared lights） |
| Signal-to-noise Ratio | ≥48dB(AGC Off) |
| Video Signal Input | AHD 1080P |
| Housing Material | aluminum alloy |
| Waterproof Rating | IP69K |
| Working Voltage | DC11-32V |
| Working Temperature | - 40°C~+60°C RH95% Max(automatically start heating when the operating temperature inside the machine is lower than 10℃） |
| Storage Temperature | - 40°C~+70°C RH95% Max |
| Anti-vibration Rate | 5G ( meets GB-T2423056-2006 standard） |
| Interface Spec | 4 pin aviation female plug |

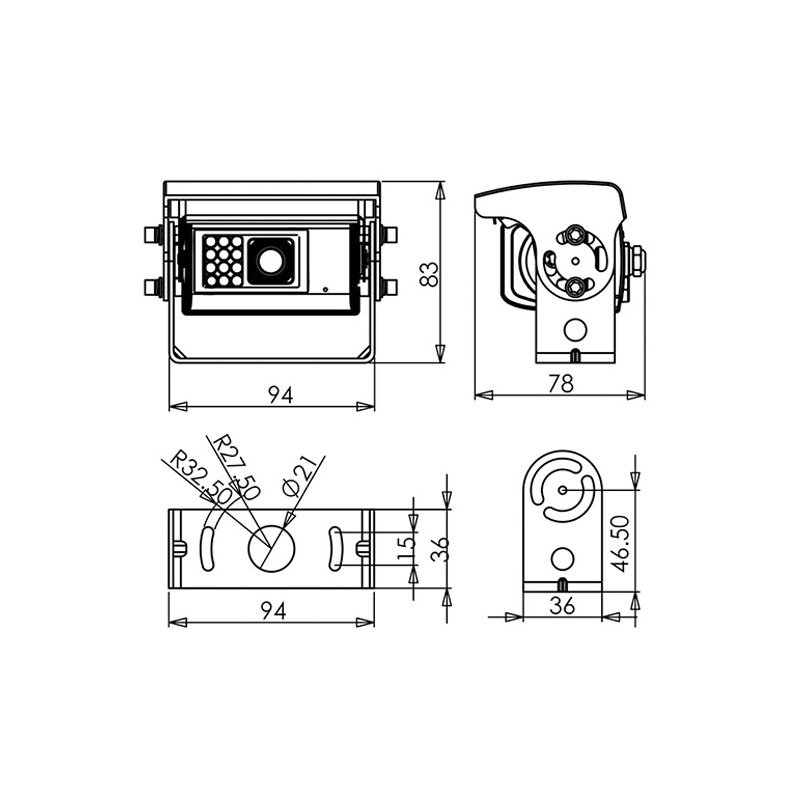

| Size | 94(W) x 83(H) x 78(D) mm |

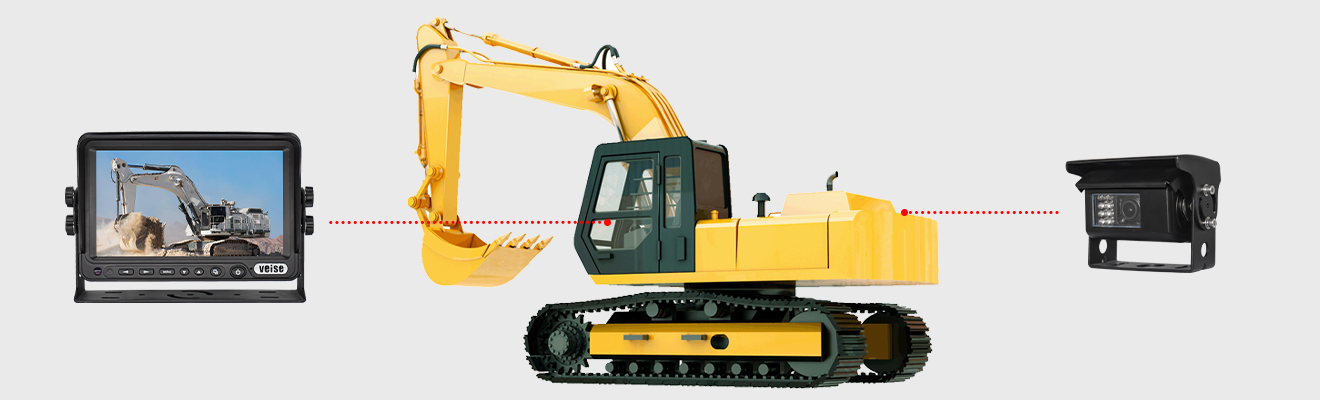

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
