10.1-inch Panoramic Camera Monitor (AVM) System
Dangers of Large Vehicle Blind Spots
Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.
Pedestrian & Vehicle Detection
It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)
Blind Spot Audible And Visual Alarm Warning driver

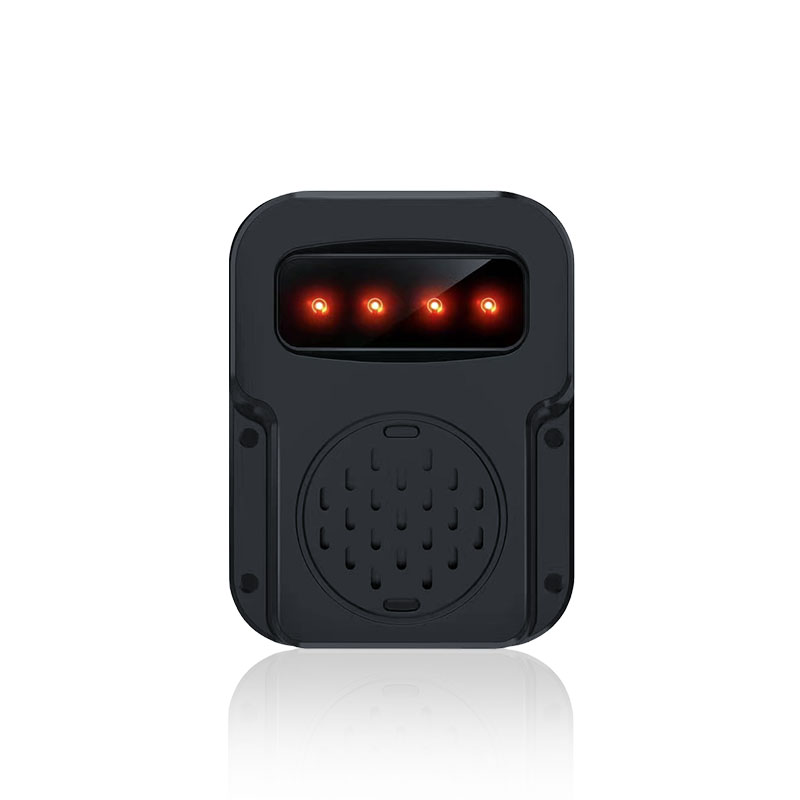

Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.
Product Features

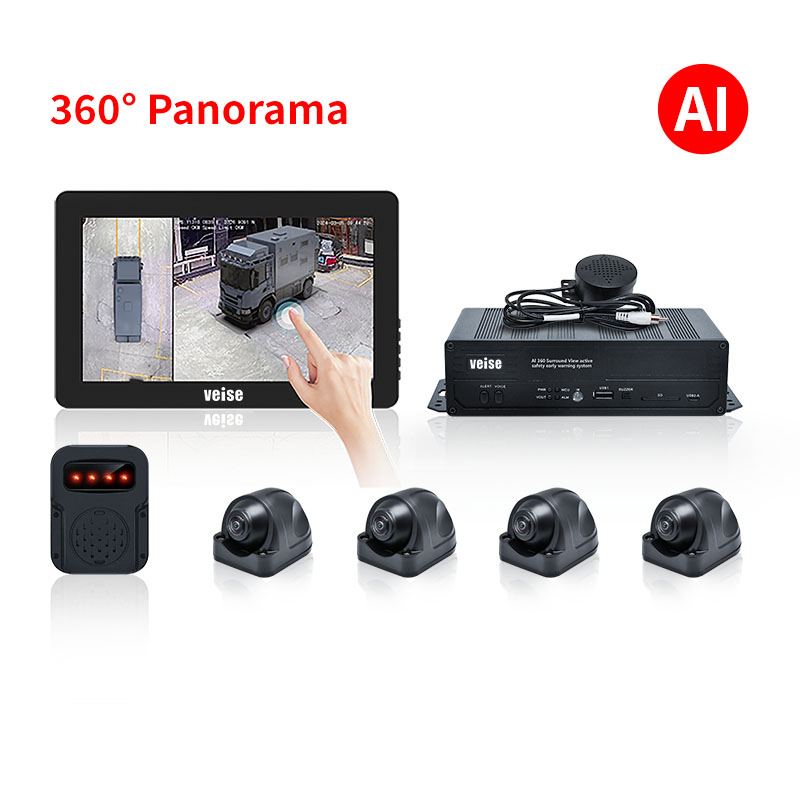

Around View Monitor System (AVM)
Shoot images by multiple (generally four) super-wide cameras. Carry out distortion correction and stitching on the taken images by special algorithms, forming a system that shows the panoramic images around the object. Intellectual (automatic, manual) fast stitching. The steering signal automatically switches between 3D/2D images of the vehicle. Intellectual voice control 12 kinds of image monitor modes. Detection and warning of safe distance for pedestrians and vehicles around the vehicle, achieving 360 ° blind spot free collision prevention
When the vehicle speed is below 25 kilometers per hour, the system will automatically switch the warning screen, turn lane assist warning screen, and link the external sound and light alarm
Support 4-channel AHD panoramic camera input, another 2-channel surveillance camera can be extended, support 16-channel radar probe input, support for flameout alarm function, support for CAN bus communication protocols
Support real-time recording, loop recording, video playback (SD card + MSATA storage mode)

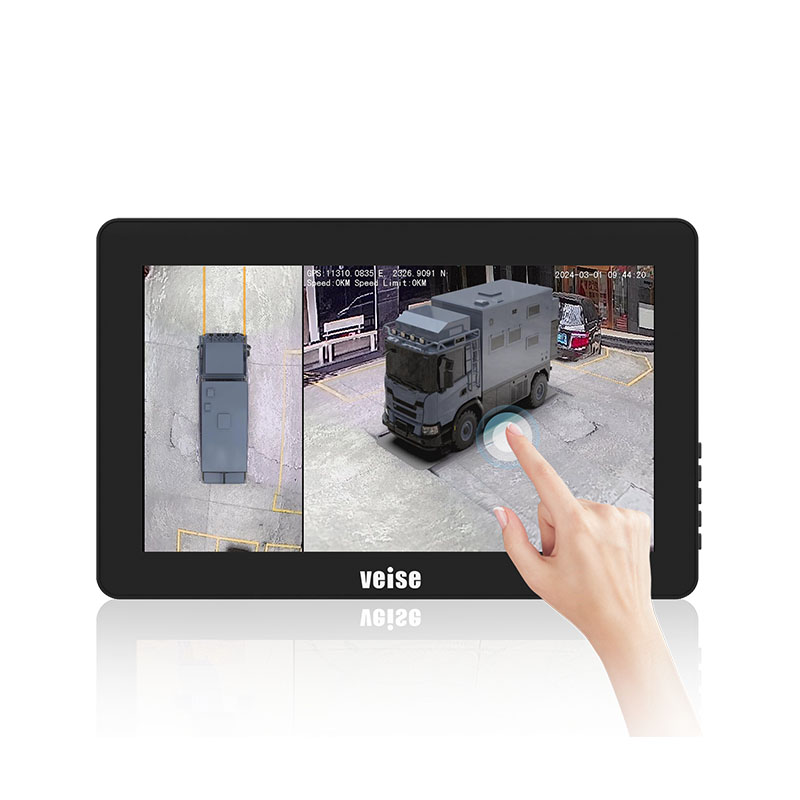

10.1-inch HD Touch Screen Monitor
10.1 inches IPS wide screen, automotive-grade industry DSP, 1024RGB(H) X 600(V)dot Resolution, HDMI Video Input
Optical sensing automatically controls the screen to switch between daytime/night brightness modes to avoid the impact of screen brightness on driving safety at night.
DC8~32V wide range of working voltage, independent power output, load dump pulse voltage protection, external power supply polarity reverse protection, LED constant current and constant voltage protection.

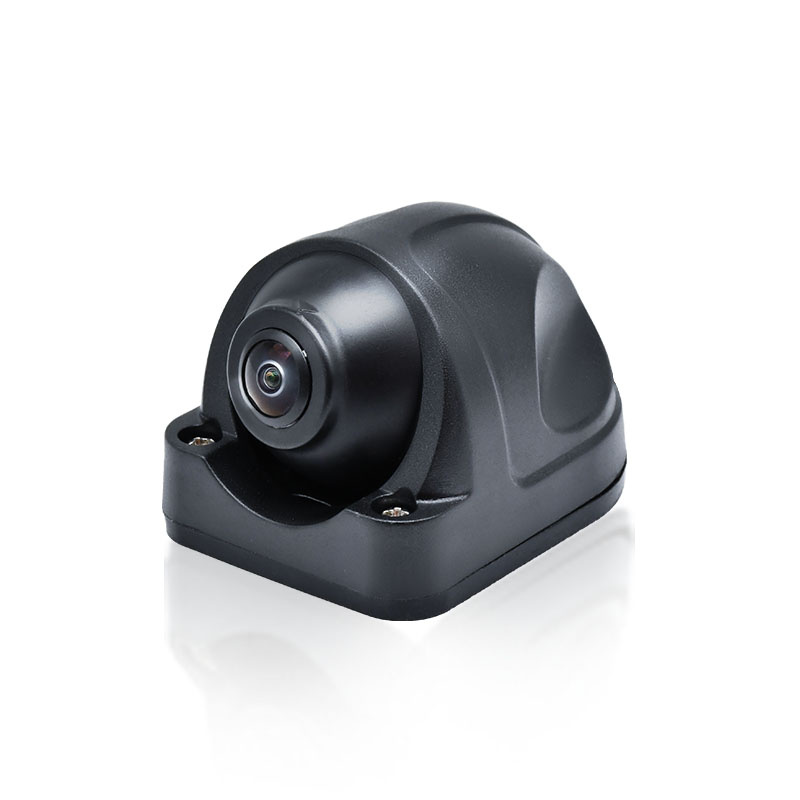

Super Wide Angle View Camera
210° super-wide, automotive-grade industry DSP, 2 million HD pixels, IP69K Waterproof Rate, starlight full color, cold-resistant waterproof signal output cable
Product Parameters
| Touch Screen Monitor | Model | MHD-3D1019HTP |
| Screen | 10.1-inch touchscreen |
| Resolution | 1024*600 |
| Brightness | 600cd/m2 |
| Screen Ratio | wide screen 16:9 |
| Viewing Angle | 85/85/85/85（left/rigth/up/down） |
| HDMI Input | Support one channel HDMI video input, in-car HDMI ruggedized interface |
| Brightness Adjustment | Light sensitivity automatically controls screen brightness, with 90% daytime brightness and 50% nighttime brightness |
| Working Voltage | DC10.8-33V |
| Working Temperature | -20℃~+70℃ |
| Storage Temperature | -30℃~+80℃ |
| Vibration Rating | GB∕T 2423.56-2018 standard (random 5G vibration) |
| Shell Material | aluminum alloy |
| Bracket | 360° all-directional bracket |
| Dimension | 264*168*37（without bracket） |
| |

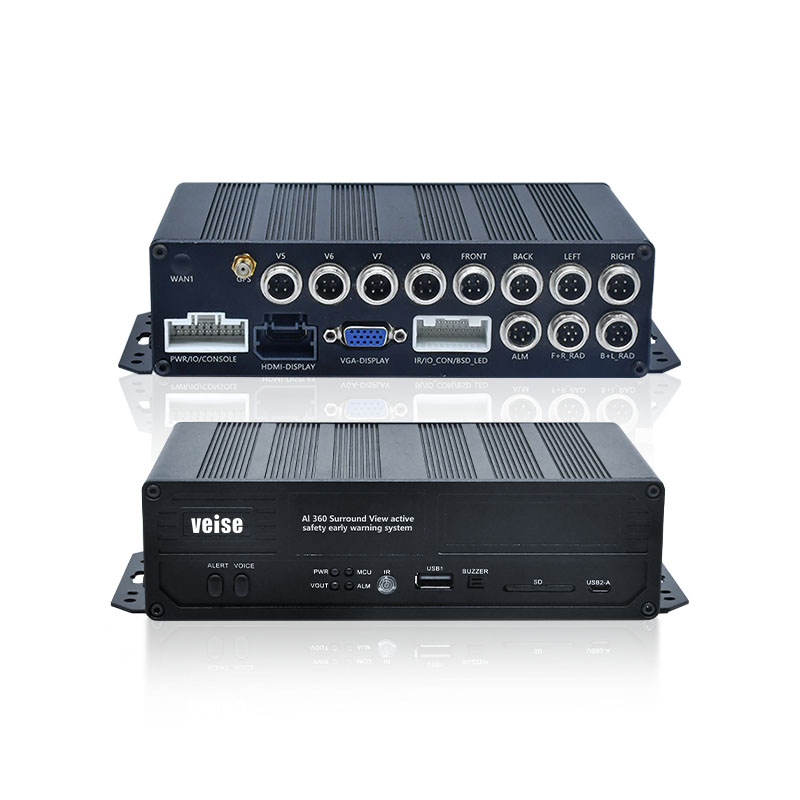

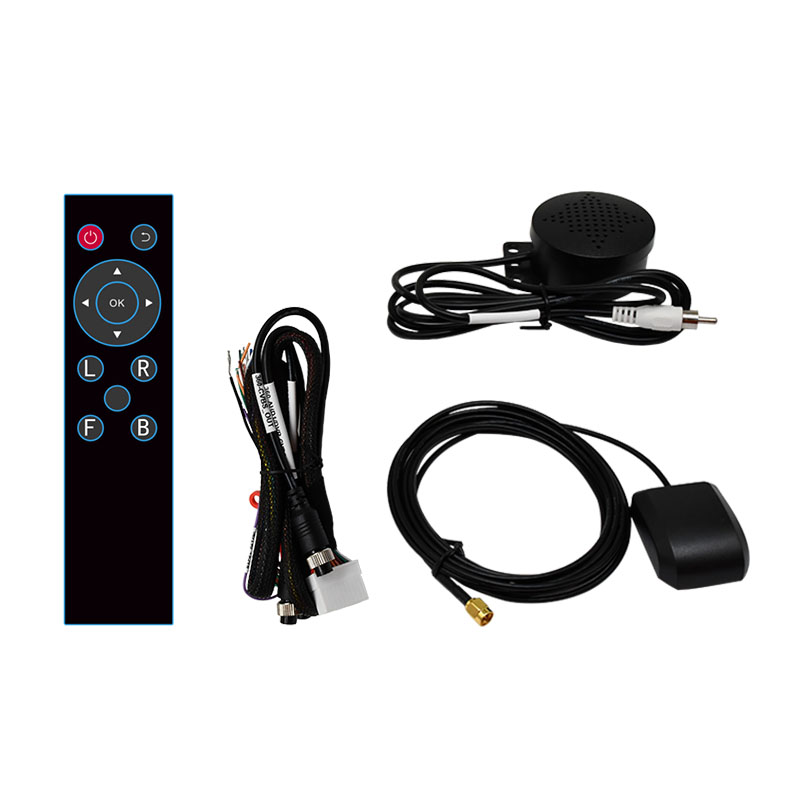

AVM+DVR | Model | DF-3DH8AI-HDMI |
Power Consumption
| 10-30W |
Video Output | CVBS/HDMI |
Video Input | four channel AHD panoramic cameras + four channel AHD cameras |
Early Warning Function | blind spot monitoring (BSD) |
Recording Storage | 2.5-inch HDD/SSD(128G-2TB)/ SD(16GB-1TB) [Optional] |
Video Format | H265 |
Recording Resolution | 1080P |
File Capacity | 1.25GB per hour |
Working Temperature | -20℃~+70℃ |
Storage Temperature | -40℃~+80℃ |
Vibration/shock | GB∕T 2423.56-2018 standard (random 5G vibration) |
Dimension | L*W*H=105*178*50（unit: mm） |
Weight | 0.65KG |
| Radar Mainframe【optional】 | Radar Warning | Supporting 16 probes of ultrasonic radar |
Detecting Distance | 2.5 meters |
Power Supply Parameter | DC12-33V/0.2W |
Radar Function | Blind Spot Detect (BSD)+ Lane Changing Assist (LCA)+Parking Assist |
| CAN Correspondence【optional】 | Function and Characteristic | High speed CAN bus transceiver, compliant with ISO11898 standard, low-power management, network wake-up function (Screen mode, AI alarm data output) |
Light and Sound Alarm【optional】 | Specification | DC12-36V/3W，prevention rate IP65, 16 level adjustable volume |
| |
| Panoramic Camera | Model | CHD-806Z |
Working Voltage | DC8-16V |
Resolution | 1080P |
Working Temperature | -20℃~+60℃ |
| Storage Tempertature | -30℃~+70℃ |
Video Frame Rate | 25 FPS/30 FPS |
Waterproof Rate | IP68 |
Low Illumination
| 0.01 Lux |
Vibration Rating | GB∕T 2423.56-2018 standard (random 5G vibration) |
Horizontal Angle | 210° |
Vertical Angle | 126° |
Product Applications
