  4. 10.1" HD 360° Panoramic Camera System

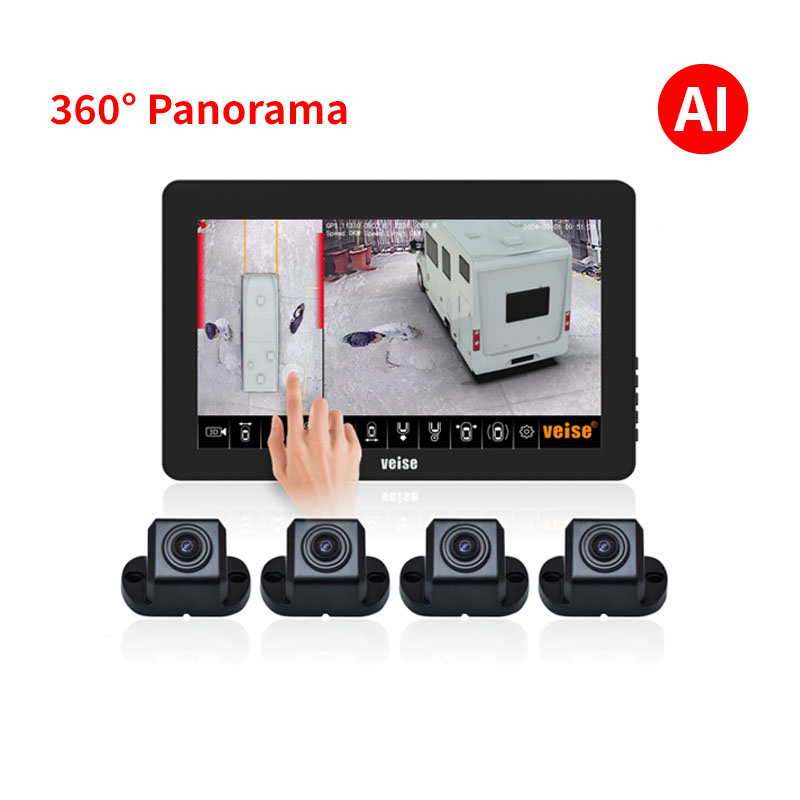

10.1-inch 360-Degree Panoramic Surround View Safety Assist Driving Display Integrated System

  • Model : HD3D-3D1014TPC802ZM4

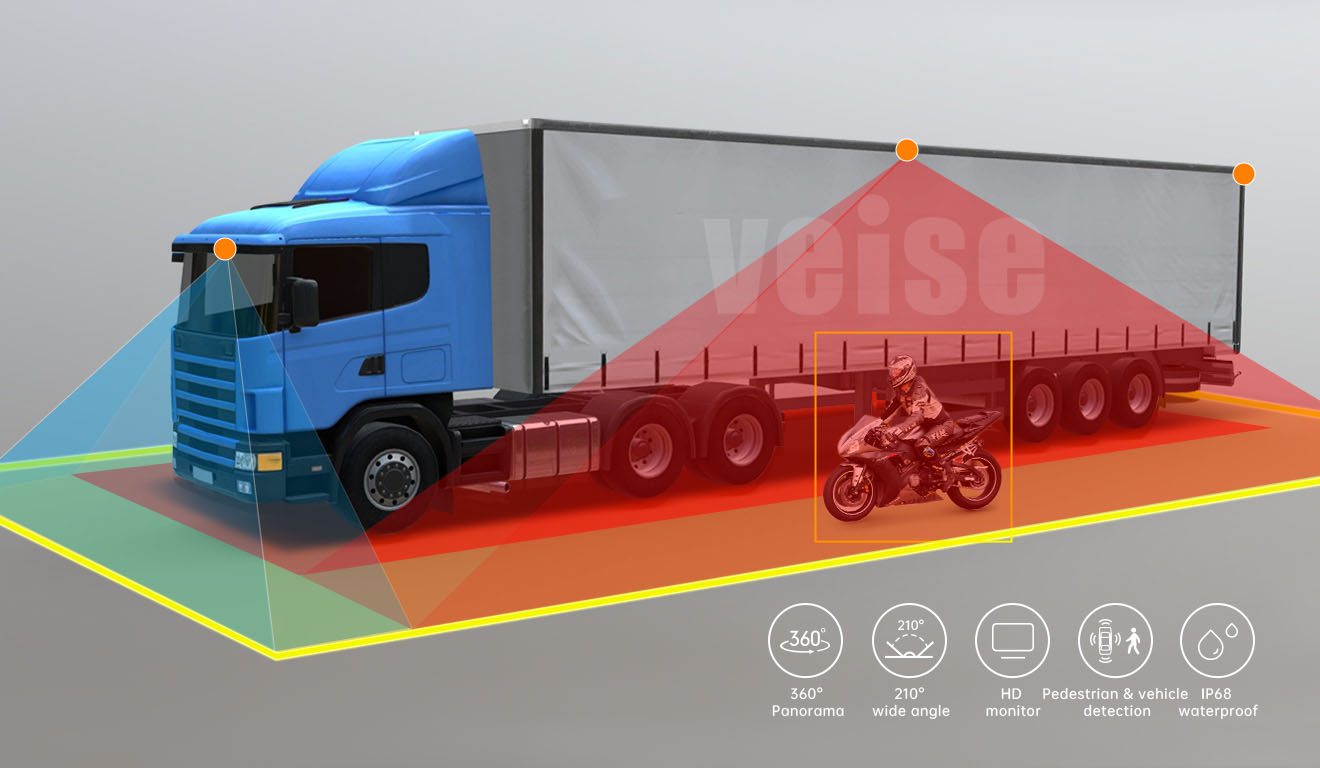

  • Summarize : Vehicles used in construction machinery, agricultural machinery, and municipal sanitation trucks often have wide bodies, long axles, and high driving positions, leading to significant visual safety blind spots around the vehicle. A single camera or multi-view rearview system cannot meet the requirements for monitoring multiple areas. The 360-degree panoramic pedestrian and vehicle detection warning system consists of four wide-angle, starlight full-color cameras installed at four positions on the vehicle. These cameras use 360° AI vision algorithms to synthesize a panoramic bird's-eye view of the vehicle's surroundings, combined with GPS speed sensing. When pedestrians or vehicles are around the vehicle, the system's in-vehicle touch 360 integrated display screen and the audio-visual alarm work together to provide intuitive safety warnings to the driver, making driving safer and more efficient. The panoramic surround view system integrated machine can achieve a full-view driving image without a control box, making installation convenient and quick.
  • More Info : Online Service

AVM Panoramic Surround View Display Integrated System (No Host Required)

Around View Monitor-AVM

  • Overview: The system captures images using multiple (four or six) ultra-wide-angle cameras. Special algorithms correct distortion and stitch the images to form a panoramic view of the surroundings.

  • Features:

    • Intelligent Stitching: Automatic and manual rapid stitching through GPS speed sensor and steering signal to automatically switch between 3D/2D driving image display modes.

    • Detection and Warning: Detects pedestrians and vehicles around the vehicle, providing 360° blind-spot-free collision prevention and safety distance warnings.

    • MCU Protocol: Exclusive MCU development protocol for CAN bus data interaction to meet various requirements.

    • User Control: Full touch control to switch any display mode, simple operation.

    • Automatic Switching: When the vehicle speed is below 25 km/h, the system automatically switches to warning screens and lane change assist warning screens, coordinating with external audio-visual alarms.

Technical Specifications

  • Camera Inputs: Supports 4-channel AHD panoramic camera input, expandable to 4 additional monitoring cameras, and supports 16 radar probe inputs.

  • Communication Protocol: Supports CAN bus communication protocol.

  • Recording: Supports real-time recording, loop recording, and playback (SD card storage).

  • Display:

    • IPS widescreen for true color and fast response.

    • Industrial-grade, low-temperature-resistant DSP.

    • Resolution: 1024 RGB(H) x 600(V) dot.

    • Automatic brightness control for day/night mode to ensure driving safety at night.

  • Power:

    • Wide working voltage range: DC 12~36V.

    • Independent power output, load dump pulse voltage protection, external power polarity reverse protection.

    • Constant current and voltage protection for LEDs to prevent misuse and ensure product longevity.

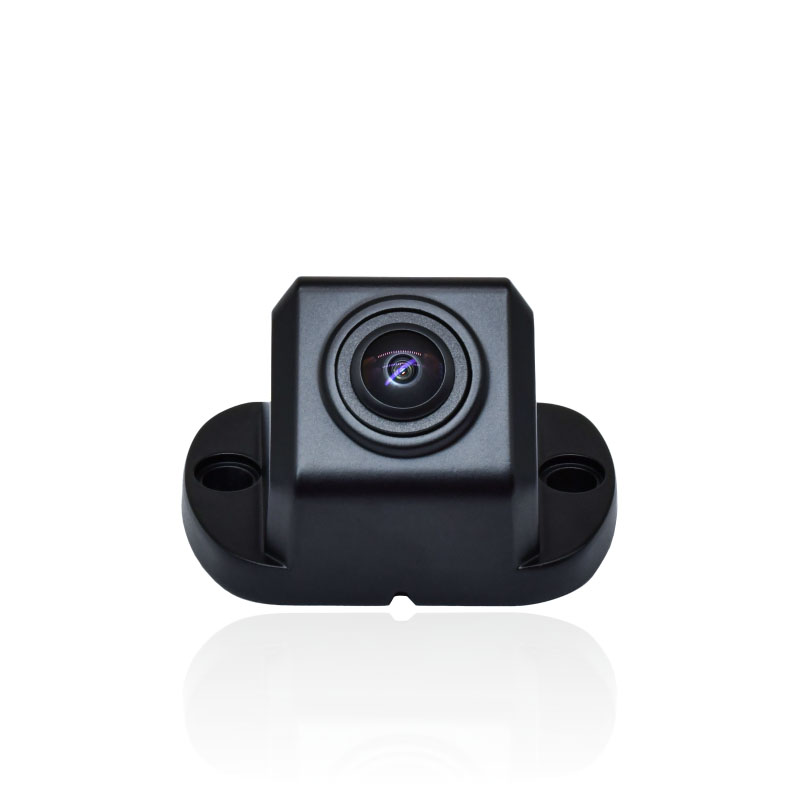

AHD Panoramic Cameras

  • Features:

    • 210° ultra-wide-angle.

    • Automotive-grade DSP.

    • 2 million high-definition pixels.

    • IP69K waterproof rating.

    • Starlight full-color.

    • Cold-resistant and waterproof signal output cable.

Product Parameters

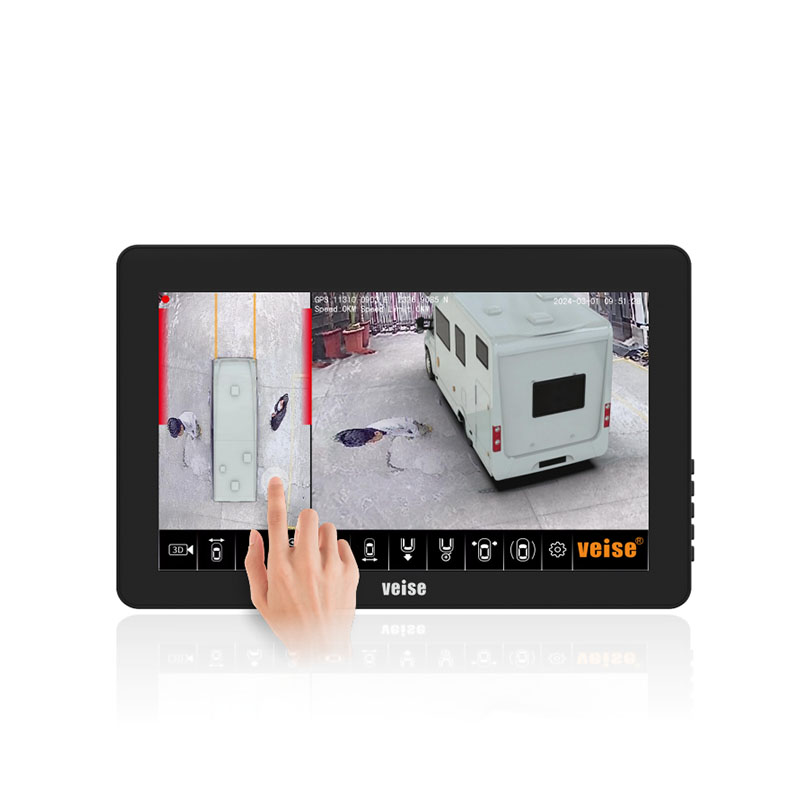

Name10.1-inch 360 Panoramic Surround View Touch Display Integrated System
Product ModelMHD-3D1014HDTP
System
Operating SystemLINUX
Operating LanguageChinese/Simplified, Traditional, English, Korean
Operation MethodButtons, Touch, Infrared
Touch
Touch TypeCapacitive Touch Screen
Display
Resolution & Size10.1 inches, 1024 x 600
Brightness600 cd/m²
Display RatioWidescreen 16:9
Viewing Angle85/85/85/85 (Left/Right/Up/Down)
Brightness AdjustmentAutomatic brightness control based on ambient light (Daytime: 90%, Nighttime: 50%)
Image Modes2D/3D free switching
Display Modes3D mode/Four-screen mode/Multiple 3D display modes
Video Input
Video Input4-channel AHD panoramic camera + 4-channel AHD camera
Speed SensorMCU-controlled, displays different screen modes based on vehicle speed
Warning
AI Vision Warning Function360-degree surround view system with built-in AI vision algorithm
BSD4-channel Blind Spot Detection
FWCBuilt-in Forward Collision Warning with image distance measurement
Detection TargetsPedestrians and non-motor vehicles + Vehicle recognition
Voice
Smart Voice PlaybackCustomizable audio warning playback
Recording Function
Video FormatH265
Recording Resolution1080P
File Capacity1.25GB per hour
PlaybackSupports local independent playback
Reliability
Operating Temperature-20°C to +70°C
Storage Temperature-40°C to +80°C
Vibration/ShockGB/T 2423.56-2018 standard (Random 5G vibration)
Housing MaterialAluminum alloy
Protection LevelIP65
Operating VoltageDC 12-36V / 15-20W
Product DimensionsL x W x H = 105 x 178 x 50 mm
Radar Host (Optional)
Radar WarningSupports 16 ultrasonic radar probes
Detection Distance2.5 meters
Power ParametersDC 12-33V / 0.2W
Radar FunctionsBlind Spot Detection (BSD) + Lane Change Assist (LCA) + Parking Assist
CAN Communication (Optional)
Features and CharacteristicsHigh-speed CAN bus transceiver, compliant with ISO11898 standard, low power management (display mode, AI alarm data output)
Audio-Visual Alarm (Optional)
SpecificationsDC 12-36V / 3W, IP65 protection level, 16-level adjustable volume
Panoramic Camera
ModelCHD-802Z
Operating VoltageDC 8-16V
Resolution1080P
Operating Temperature-20°C to +60°C
Storage Temperature-30°C to +70°C
Video Frame Rate25 FPS / 30 FPS
Waterproof LevelIP68
Low Illumination0.01 Lux
Vibration/ShockGB/T 2423.56-2018 standard (Random 5G vibration)
Horizontal Angle210 degrees
Vertical Angle126 degrees

Product Applications
