7-inch 360° Panoramic Surround View Safety Assist Driving Display Integrated System

Model : HD3D-3D7154H806ZM4

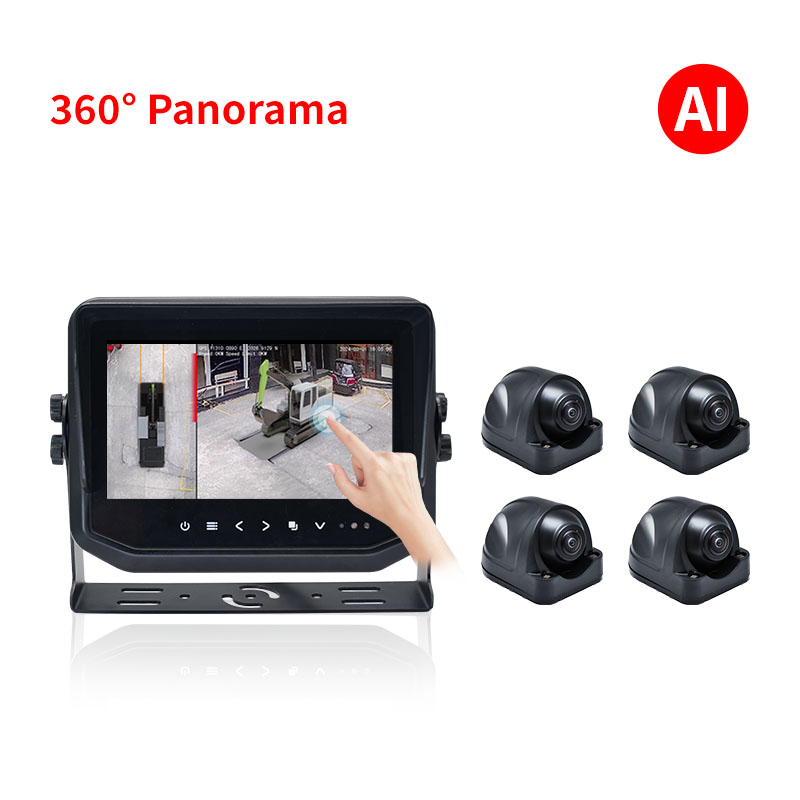

Summarize : Vehicles used in construction machinery, agricultural machinery, and municipal sanitation trucks often have wide bodies, long axles, and high driving positions, leading to significant visual safety blind spots around the vehicle. A single camera or multi-view rearview system cannot meet the requirements for monitoring multiple areas. The 360-degree panoramic pedestrian and vehicle detection warning system consists of four wide-angle, starlight full-color cameras installed at four positions on the vehicle. These cameras use 360° AI vision algorithms to synthesize a panoramic bird's-eye view of the vehicle's surroundings, combined with GPS speed sensing. When pedestrians or vehicles are around the vehicle, the system's in-vehicle touch 360 integrated display screen and the audio-visual alarm work together to provide intuitive safety warnings to the driver, making driving safer and more efficient. The panoramic surround view system integrated machine can achieve a full-view driving image without a control box, making installation convenient and quick.

More Info : Online Service

AVM Panoramic Surround View Monitor All-in-One (No Host Required)

Around View Monitor(AVM)

System Function: Captures images through multiple (four or six) ultra-wide-angle cameras and uses special algorithms for distortion correction and stitching to form a panoramic view around the object.
Intelligent Quick Stitching: Automatic and manual modes, automatically switches between 3D/2D driving image display modes through GPS speed sensor and steering signal.
Safety Detection and Warning: Detects pedestrians and vehicles around the car, providing 360° blind spot-free collision prevention.
Communication Protocol: Exclusive MCU development protocol CAN bus data interaction, meeting various needs.

Display and Operation

Touch Control: Full touch control, switch to any display mode, easy to operate.
Automatic Warning Screen Switching: When the vehicle speed is below 25 km/h, the system automatically switches to the warning screen and lane change assist warning screen, and links to the external sound and light alarm.

Input and Support

Camera Input: Supports 4 AHD panoramic camera inputs, expandable to 4 surveillance camera inputs.
Radar Probe Input: Supports 16 radar probe inputs.
Communication Protocol: Supports CAN bus communication protocol.

Recording Function

Recording Modes: Supports real-time recording, loop recording, and video playback (SD card storage).

Monitor Specifications

Screen: IPS widescreen, true color, fast response.
Resolution: 1024RGB(H) x 600(V) dot.
Brightness Control: Light-sensing automatic screen brightness mode switching for day and night to avoid affecting driving safety at night.

Power and Protection

Operating Voltage: DC 12~36V wide range operating voltage.
Protection Functions: Independent power output, load dump pulse voltage protection, external power polarity reverse protection, LED constant current and voltage protection to avoid misuse and ensure quality.

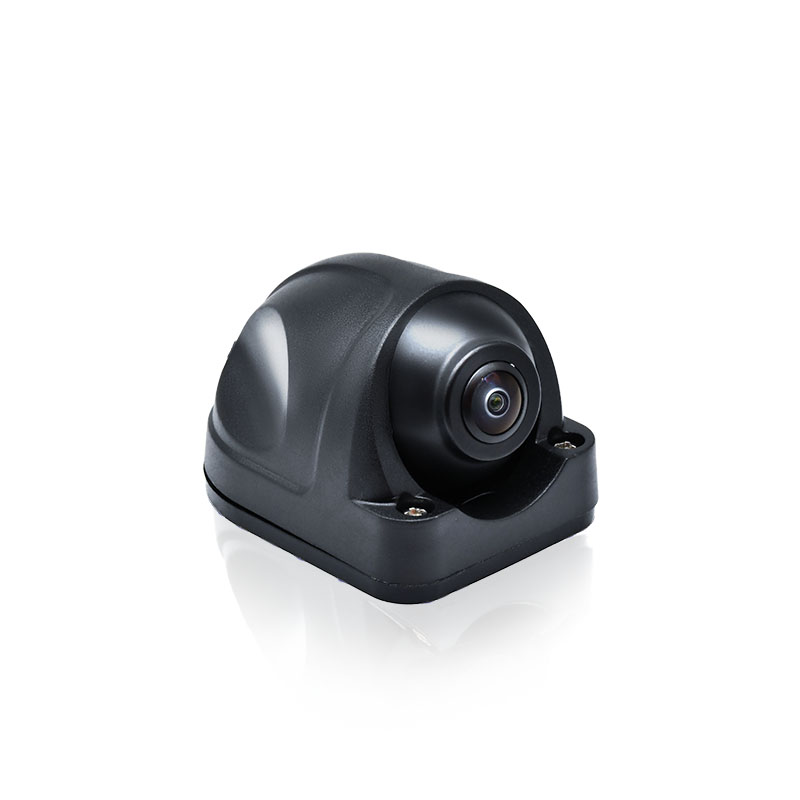

AHD Panoramic Camera

Camera Specifications: 210° ultra-wide angle, automotive-grade DSP, 2 million high-definition pixels.
Protection Level: IP69K waterproof rating.
Other Features: Starlight full-color, cold-resistant waterproof signal output cable.

Product Parameters

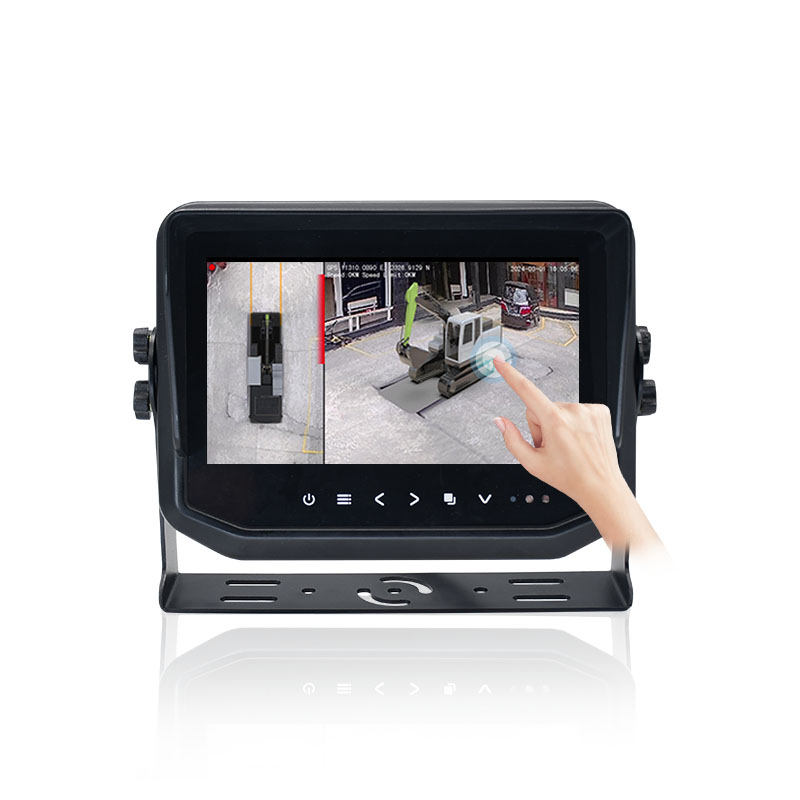

Name	7-inch 360 Panoramic Surround View Touch Display Integrated System
Product Model	MHD-3D1014HDTP
System
Operating System	LINUX
Operating Language	Chinese/Simplified, Traditional, English, Korean
Operation Method	Buttons, Touch, Infrared
Touch
Touch Type	Capacitive Touch Screen
Display
Resolution & Size	7-inches, 1024 x 600
Brightness	600 cd/m²
Display Ratio	Widescreen 16:9
Viewing Angle	85/85/85/85 (Left/Right/Up/Down)
Brightness Adjustment	Automatic brightness control based on ambient light (Daytime: 90%, Nighttime: 50%)
Image Modes	2D/3D free switching
Display Modes	3D mode/Four-screen mode/Multiple 3D display modes
Video Input
Video Input	4-channel AHD panoramic camera + 4-channel AHD camera
Speed Sensor	MCU-controlled, displays different screen modes based on vehicle speed
Warning
AI Vision Warning Function	360-degree surround view system with built-in AI vision algorithm
BSD	4-channel Blind Spot Detection
FWC	Built-in Forward Collision Warning with image distance measurement
Detection Targets	Pedestrians and non-motor vehicles + Vehicle recognition
Voice
Smart Voice Playback	Customizable audio warning playback
Recording Function
Video Format	H265
Recording Resolution	1080P
Memory	External USB port 16-512GB
File Capacity	1.25GB per hour
Playback	Supports local independent playback
Reliability
Operating Temperature	-20°C to +70°C
Storage Temperature	-40°C to +80°C
Vibration/Shock	GB/T 2423.56-2018 standard (Random 5G vibration)
Housing Material	Aluminum alloy
Protection Level	IP65
Operating Voltage	DC 12-36V / 15-20W
Product Dimensions	L x W x H = 105 x 178 x 50 mm
Radar Host (Optional)
Radar Warning	Supports 16 ultrasonic radar probes
Detection Distance	2.5 meters
Power Parameters	DC 12-33V / 0.2W
Radar Functions	Blind Spot Detection (BSD) + Lane Change Assist (LCA) + Parking Assist
CAN Communication (Optional)
Features and Characteristics	High-speed CAN bus transceiver, compliant with ISO11898 standard, low power management (display mode, AI alarm data output)
Audio-Visual Alarm (Optional)
Specifications	DC 12-36V / 3W, IP65 protection level, 16-level adjustable volume
Panoramic Camera
Model	CHD-806Z
Operating Voltage	DC 8-16V
Resolution	1080P
Operating Temperature	-20°C to +60°C
Storage Temperature	-30°C to +70°C
Video Frame Rate	25 FPS / 30 FPS
Waterproof Level	IP68
Low Illumination	0.01 Lux
Vibration/Shock	GB/T 2423.56-2018 standard (Random 5G vibration)
Horizontal Angle	210 degrees
Vertical Angle	126 degrees

Product Applications
