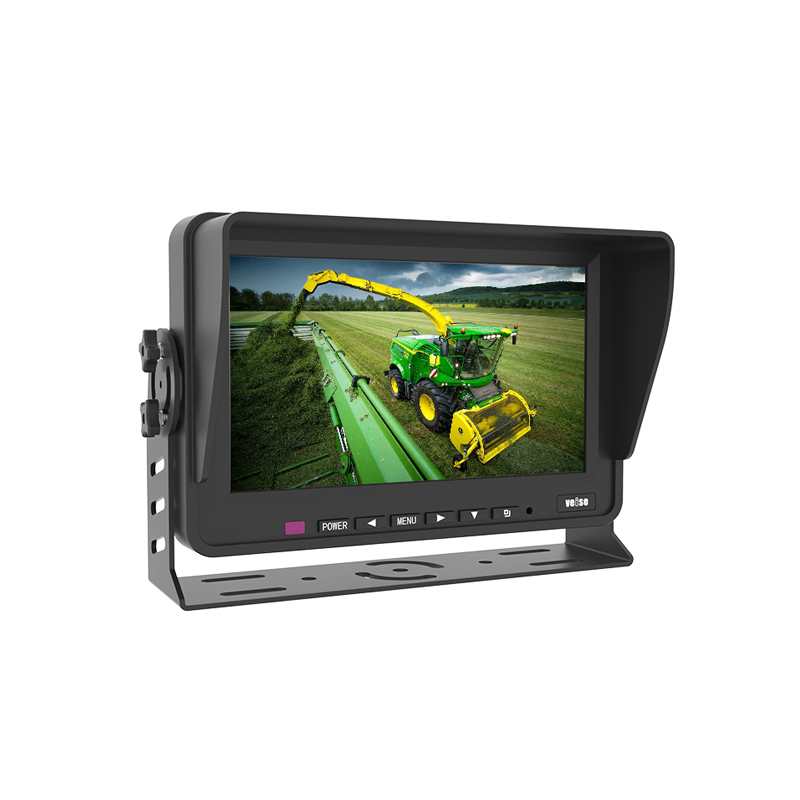

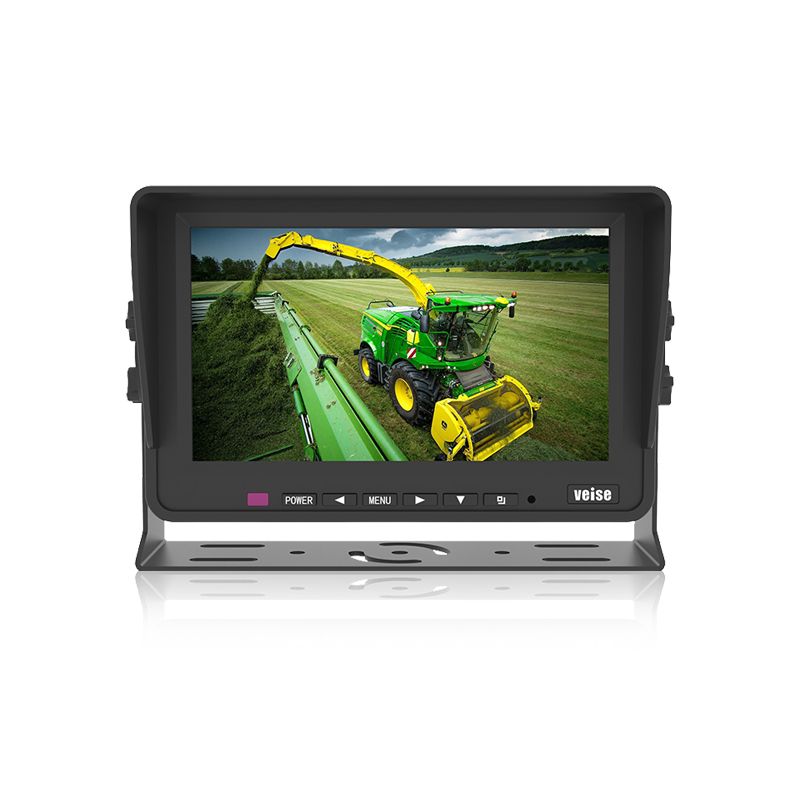

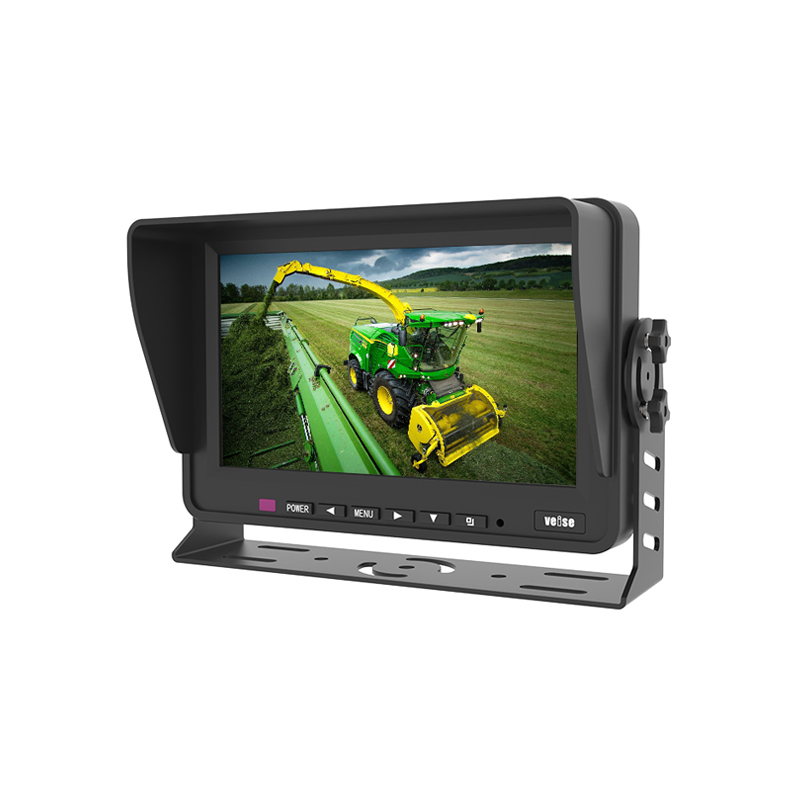

7-inch HD Rearview Monitor

Model : MHD-7131/MHD-7134M
Summarize : Through the high-definition monitor, the driver can observe the operating state of the vehicle more clearly, as well as the changes in the surrounding environment, to better grasp the operating situation of the vehicle and improve construction efficiency. In addition, the car's high-definition display also has the advantages of simple operation, high resolution, high brightness, high contrast, and wide viewing angle, which can meet the needs of the driver in different scenarios and improve the driving experience and vehicle operating efficiency.

Product Description

Product Features

7-inch IPS HD screen monitor supporting 4 channels (1080P/960P/720P/CVBS) of signal input mixedly.

1024RGBX600 high Resolution and 600cd/㎡ high brightness for clear images.

automotive-grade digital video processor.

Supports 4-picture Screen/Graphical OSD menu support the functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

Detachable sun hat to prevent the influence of solar sunlight irradiation on the Screen effect.

The buttons are made with high-precision laser carving white characters, which are beautiful, clear, and easily visible.

The bracket uses rust-proof metal Material, with U-shaped + double-sided fastening and anti-vibration design.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage of on-board transient pulses.

Built-in under-voltage and high-voltage protection circuits/DC12~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, LED constant current and constant voltage protection service life circuit design.

Product Parameters

Model	MHD-7131/MHD-7134M
Color Monitor Screen	7-inch IPS touchscreen
Resolution	1024RGB(H) X 600(V)dot
Video Input	4 channels (1080P/960P/720P/CVBS) of mixed signal input, can be used in a mixed way
Screen Mode	4-Screen
OSDmenu function	Support functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
Color Standard	PAL/NTSC (AUTO)
Brightness	600cd/m2
Contrast level	800：1
Surge and dump load protection	DC24+174V(Td350mS) 5pulses
Connector socket	18-core S terminal
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)
Working Voltage	DC11-32V
Weight	1140g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
