7-inch HD Quad DVR Monitor

Model : MHD-764D
Summarize : Through the high-definition monitor, the driver can observe the operating state of the vehicle more clearly, as well as the changes in the surrounding environment, to better grasp the operating situation of the vehicle and improve construction efficiency. In addition, the car's high-definition display also has the advantages of simple operation, high resolution, high brightness, high contrast, and wide viewing angle, which can meet the needs of the driver in different scenarios and improve the driving experience and vehicle operating efficiency. The cars' high-definition DVR monitor also has powerful data storage and analysis functions, which can store a large amount of video and audio data, and can quickly retrieve and view the records within a specific period, providing more possibilities for vehicle use and management.
More Info : Online Service

Product Description

Product Features

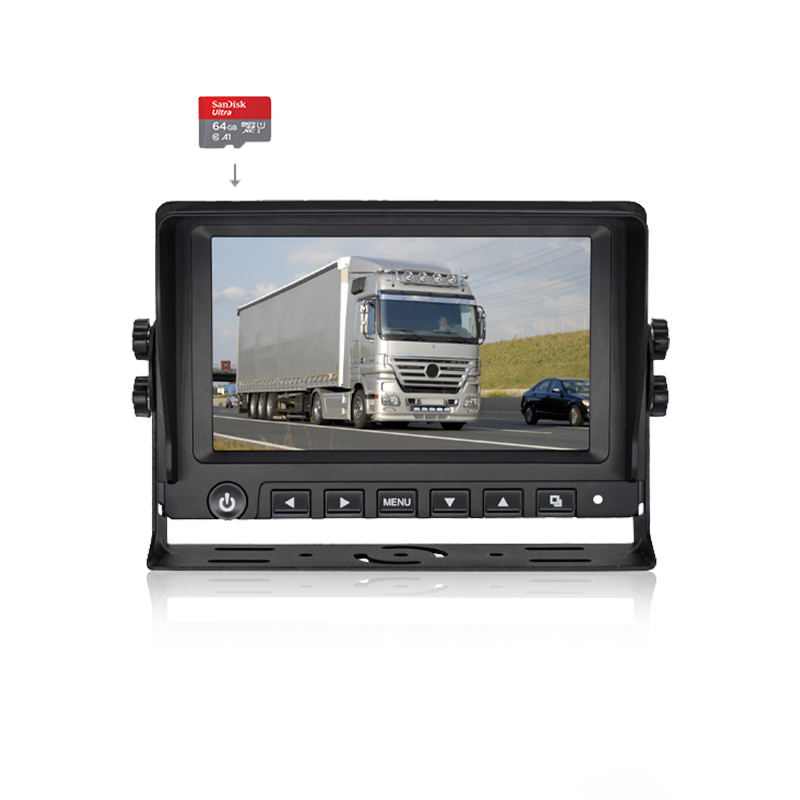

7-inch IPS HD Camera Monitor supporting 4 channels.

1080P/960P/720P/CVBS signal mixed input.

1024RGBX600 high-Resolution and 600cd/㎡ high brightness for clear images.

automotive-grade digital video processor.

Support the functions such as 12 kinds of picture Screening mode/graphical OSD menu supports single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc.

Self-designed appearance patent, the outer shell uses ABS + PC Materials, and has the feature of high temperature resistance, etc.

The detachable and installable sun hat can prevent the influence of solar irradiation on the Screen screen effect.

The buttons use high-precision laser carving white characters which are beautiful, clear and easily visible.

The bracket adopts rust-proof metal Material, with U-shaped + double-sided fastening and anti-vibration design.

Load dump pulse voltage DC24V + 174V (350ms) is designed to protect against damage of on-board transient pulses.

Built-in under-voltage and high-voltage protection circuits./DC12~32V wide range Working Voltage.

Built-in external power supply polarity reverse connection protection, LED thermal response constant current constant voltage. protection service life circuit design.

Product Parameters

Model	MHD-764D
Color Monitor Screen	7-inch IPS screen
function overview	review recording playback
Resolution	1024RGB(H) X 600(V)dot
operating system	Linux audio compression format: H.264
Video Input	4 channels of 1080P/960P/720P/CVBS signal mixed input, can be used in the mixed way

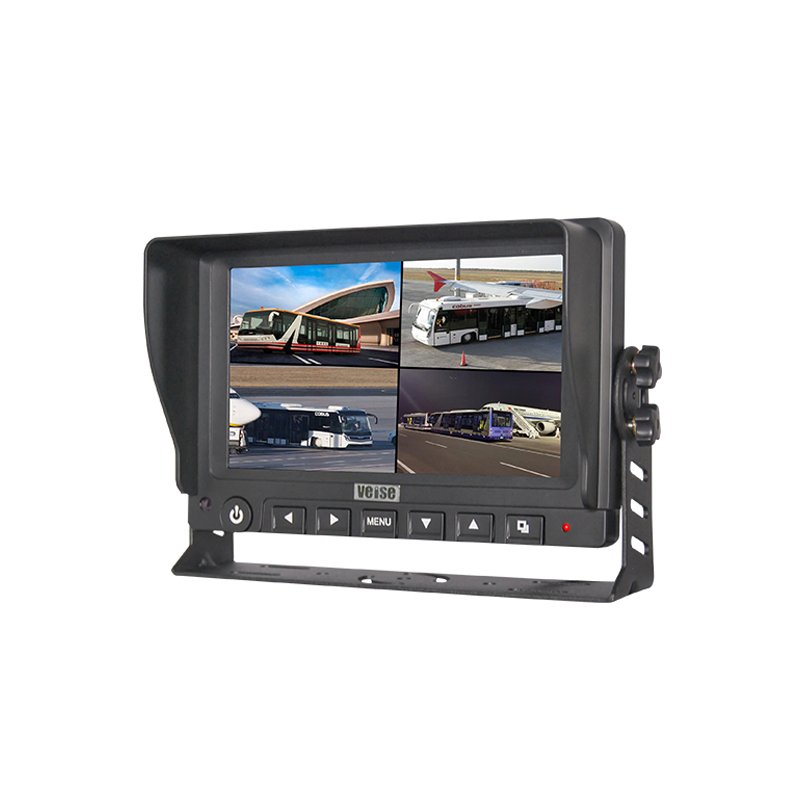

dispay mode	12 kinds of picture mode 1 picture/2 picture /3 picture /4 picture
storage capacity	external TF card (maximally supports 512G）
OSD Menu Function	Support the functions such as single-channel picture flipping left and right, up and down, reverse scale, reverse trigger, reverse delay, reverse priority, power-off memory, etc. Menu language: Chinese / English (optional).
Color Standard	PAL/NTSC (AUTO)
brightness	600cd/m2
Contrast level	800：1
surge and load dump protection	DC24+174V(Td350mS) 5pulses
Connector Socket	18-core S terminal
Working Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Anti-vibration Rate	GB∕T 2423.56-2018 standard (random 5G vibration)
Working Voltage	DC11-32V

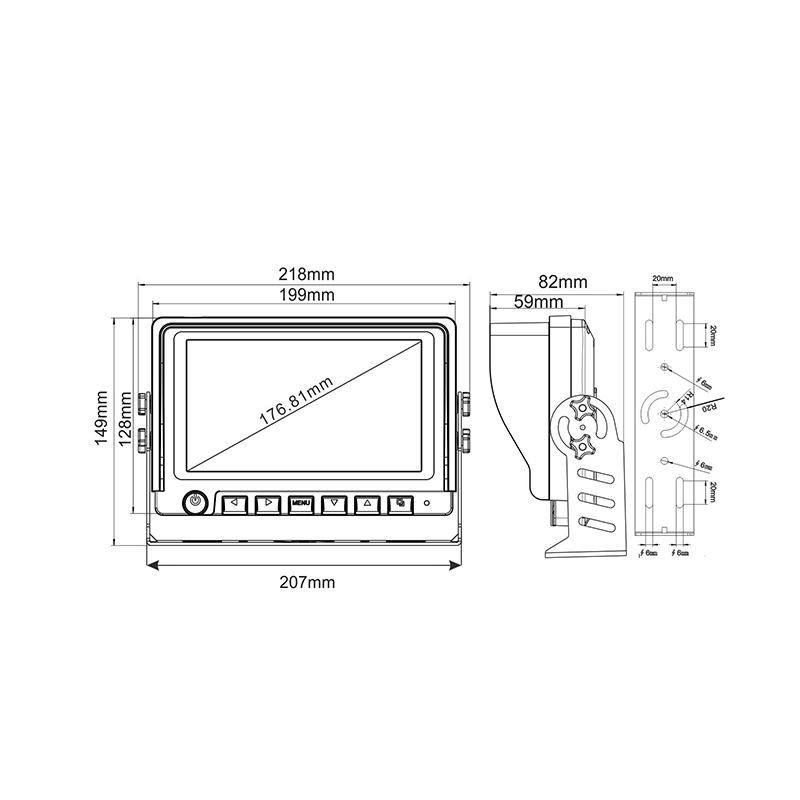

Size	(L x W x T) (208 x 149 x 82mm)
Weight	1140g

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
