10.1-inch 36x Zoom Wireless Camera Monitor System for Cranes and Hoists

10.1-inch 36x Zoom Wireless Camera Monitor System for Cranes and Hoists

Model : HDWS-1024SHD672M1-10W1

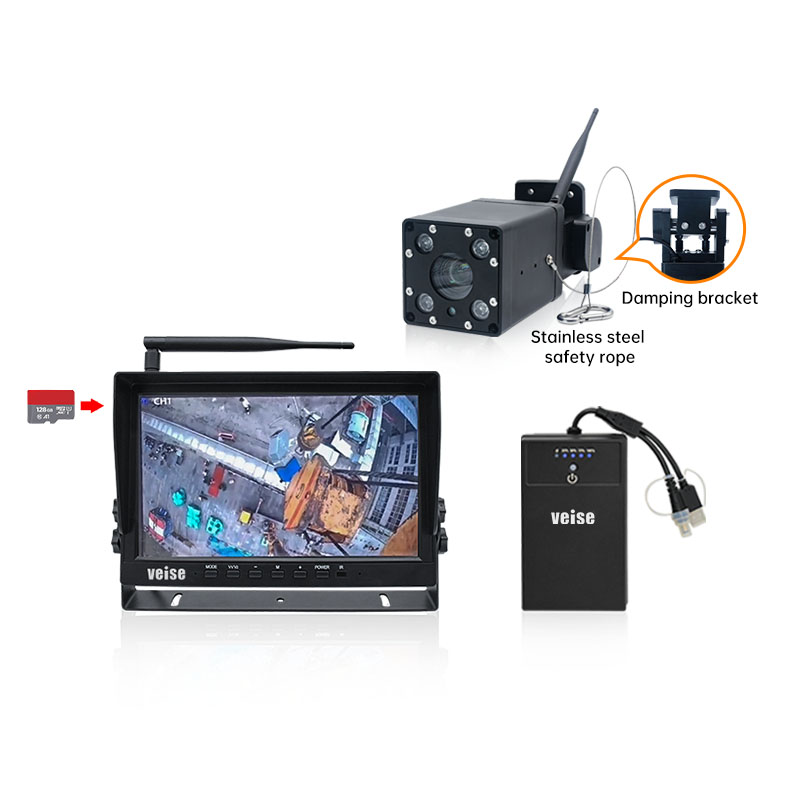

Summarize : 10.1-inch 1080P wireless zoom arm DVR system with a 36x wireless zoom camera. The zoom mechanism is simple, featuring a wireless monitor with remote control and supporting infrared night vision. This system is designed for use in cranes, hoists, and similar equipment to make operations easier, more efficient, and safer. It is widely used in port machinery, lifting industries, and industrial and construction scenarios.

Product Description

Product Features

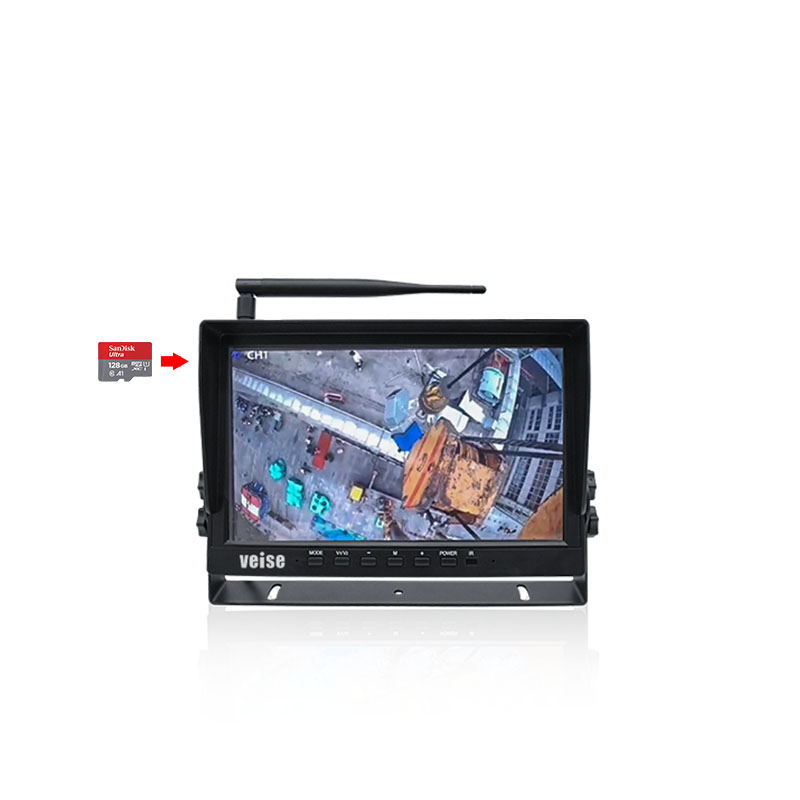

Wireless HD Monitor

Size and Resolution: 10.1-inch HD screen
Wireless Features: Built-in 2.4GHz wireless video receiver with frequency hopping for automatic pairing, strong anti-interference, and a transmission distance of up to 200 meters in open areas.
Function Settings: Industrial-grade DSP with a graphical OSD menu for setting image mirroring, normal/reverse guidelines, and prioritized application triggers.
Control Methods: Supports control of the wireless zoom camera's zoom and autofocus via monitor buttons and foot switch, with recording/replay functionality and supports up to 128GB SD card.
Structural Design: Rust-resistant metal U-shaped bracket with dual-side fastening for enhanced vibration resistance.
Power Protection: Operating voltage range of DC8–32V, includes pulse voltage protection, reverse polarity protection, and LED constant current/voltage protection.

1080P Digital Wireless 36x Zoom Camera

Zoom Features: Optical 36x zoom with digital stabilization.
Viewing Range: Viewing distance of 5–200 meters, with 4 built-in LED infrared lights that adjust power according to zoom level, supporting 50 meters of high-definition night vision.
Image Quality: Industrial-grade DSP with one million HD pixels, IP69K waterproof rating, vertical mechanical bracket design, and anti-drop rope feature.

Magnetic Rechargeable Waterproof Power Bank

Battery Capacity: 8000mAh fast-charging battery that supports fast charging protocols.
Design and Waterproofing: Magnetic attachment design with IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours.

Product Parameters

Wireless HD Monitor (MWHD-1024SHD)
Color Monitor Screen	10.1-inch IPS screen
Wireless receving	built-in 2.4G wireless reveiver
Picture mode	single picture/double picture
Operating frequency	2400〜2483.5MHZ
Recording function	maximally support 128GB SD card
Recording file	MP4 format
Reveiving sensitivity	≤-86 dB
Receiving distance	Up to 200m Clear Line of Sight
Multiple frequency point automatic frequency hopping channel code	80
Resolution	1024(H) X 600(V)dot
Color system	PAL/NTSC (AUTO)
Brightness(cd/m2)	600
Load dump	ISO16750-2 standard（24V system Us=174V,Ri= 4Ω,td=350ms）
Anti-vibration Grade	5G (meets GB-T2423056-2006 standard）
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Operating voltage	DC8-32V
Outer dimension	(L x W x T) (276 x 185 x 66.5mm)
1080P Digital Wireless 36x Zoom Camera (CWHD-672M)
Image Sensor	1/2.8 Color
Wireless transmission	built-in 2.4G digital wireless transmitter
Transmit power	18dBm
Transmit distance	Up to 200m Clear Line of Sight
Resolution	1080P
Effective Pixels	1920(H) X1080(V)
Optical zooom	36x
Focal length	5.35～96.3mm
Aperture value	F1.6～F3.5
Horizontal Angle	64.1～3.6 degree(wide angle-telescope
Visible distance	5-200 meters
Zoom speed	about 3 seconds(optics, wide angle-telescope)
Focus mode	autofocus
Day and night mode	IR-CUT automatically switch (color images in daytime, black and white at night)
Infrared distance	50 meters(built-in 4 high-power infrared lights)
Shell Material	aluminum alloy, anti-drop wire buckle design.
Installed bracket	vertical gravity stainless steel bracket
Waterproof Grade	IP69K
Voltage	DC12-24V
Operating Temperature	-20℃ to +60℃
Storage Temperature	-30℃ to +70℃
Anti-vibraion grade	5G (meets 符合GB-T2423056-2006 standard）
Outer dimension	220(W) x 90(H) x 90(D) mm
Magnetic Rechargeable Portable Power Bank (MP-03B10W1)
Cell type	lithium polymers
Product capacity	30000maH(3.7v) 111Wh
USB input( support fast charging）	USB universal port（ with fast chargeing agreement）12V/1.5A（It takes about 10.5 hours to fully charge）
DC output	DC12V/0.8A(DC5.5/2.1 male header)
Charge cycle temperature	0°~+40°
Charging and discharging times	＞800 times
Discharging Operating Temperature	-10°~+50°
Anti-drop design	anti-drop wire buckle design
Installation Method	magnetic base installation, 11 strong magnets(built-in 11 strong magnets, front horizontal pulling force, side pulling forece)
Waterproof Grade	IP67
Shockproof grade	5G
Outer dimension	148(W) x 88(H) x 45.5(D) mm

Product Applications

Tower Crane Backup Camera System Solutions
