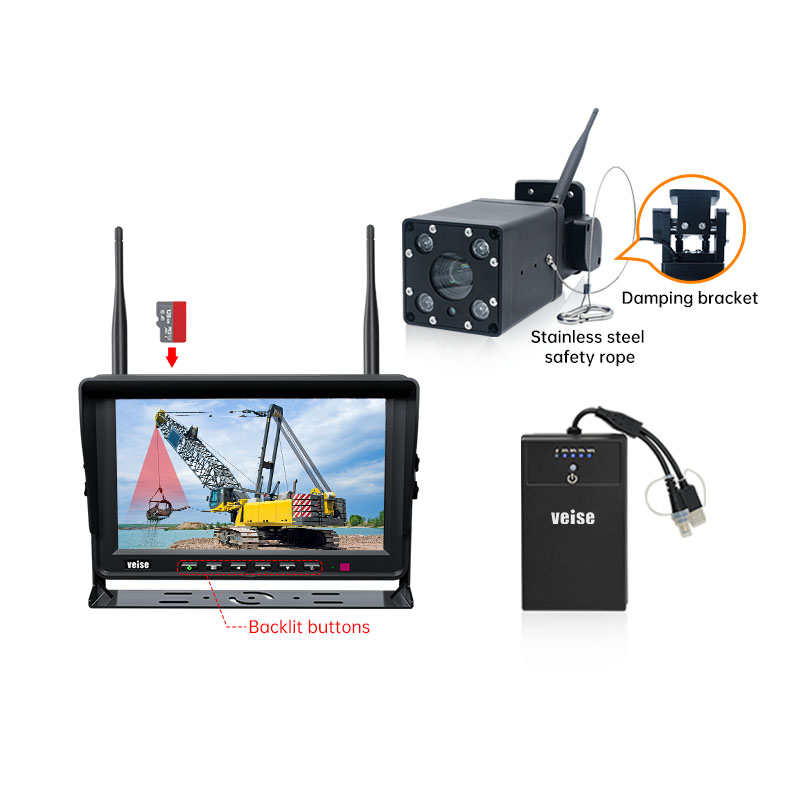

Product Features

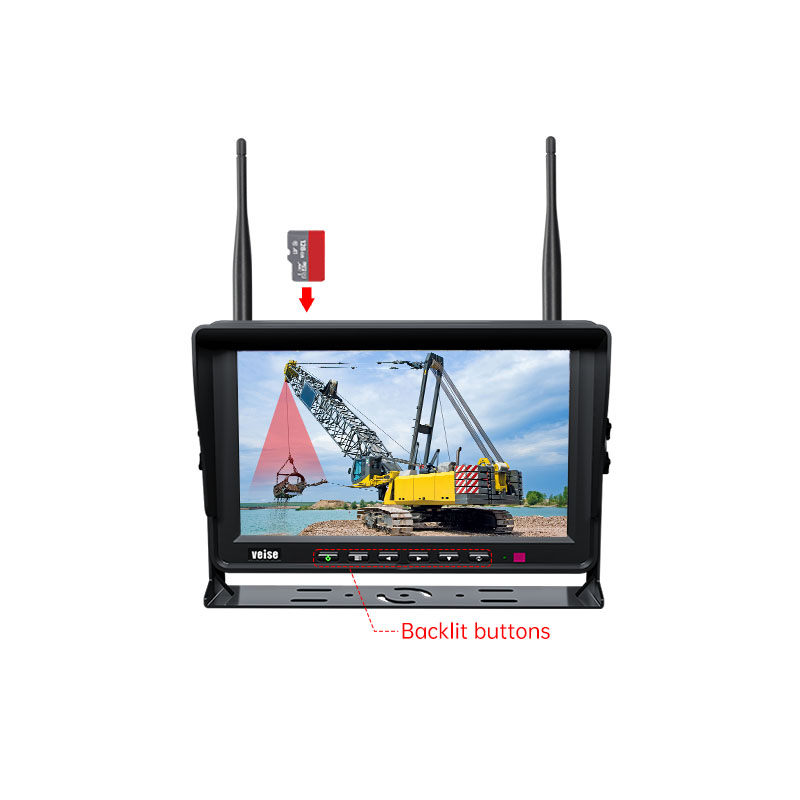

10.1-inch Backlit Button Monitor
Screen: Equipped with a 10.1-inch 1024 x 600 high-resolution LCD screen, providing clear visibility.
Enclosure: Made of ABS+PC, ensuring stable structure and good heat dissipation.
Operation Method: Supports backlit button functionality for sensitive and quick operation.
Storage Function: External TF card storage for video recording, supporting up to 512GB, with automatic overwrite of video files.
Voltage Compatibility: Wide-range voltage input (DC11V-32V), suitable for various vehicles and machinery.
Safety Design: Built-in reverse polarity protection circuit to prevent equipment damage due to incorrect operation.
Backlight Source Design: Equipped with a constant voltage and constant current circuit protection to extend service life.
Multi-View Display: Supports dual-screen, triple-screen, quad-screen, and picture-in-picture display modes.
Image Adjustment: Individual channel images can be independently set for horizontal mirroring, supporting upside-down installation and 180° image rotation.
Reverse Parking Assistance: Supports the on/off function of reverse parking guide lines for individual channels.
Anti-Vibration Design: Compact design, meeting the vibration resistance level of GB/T 2423.56-2018 standard.

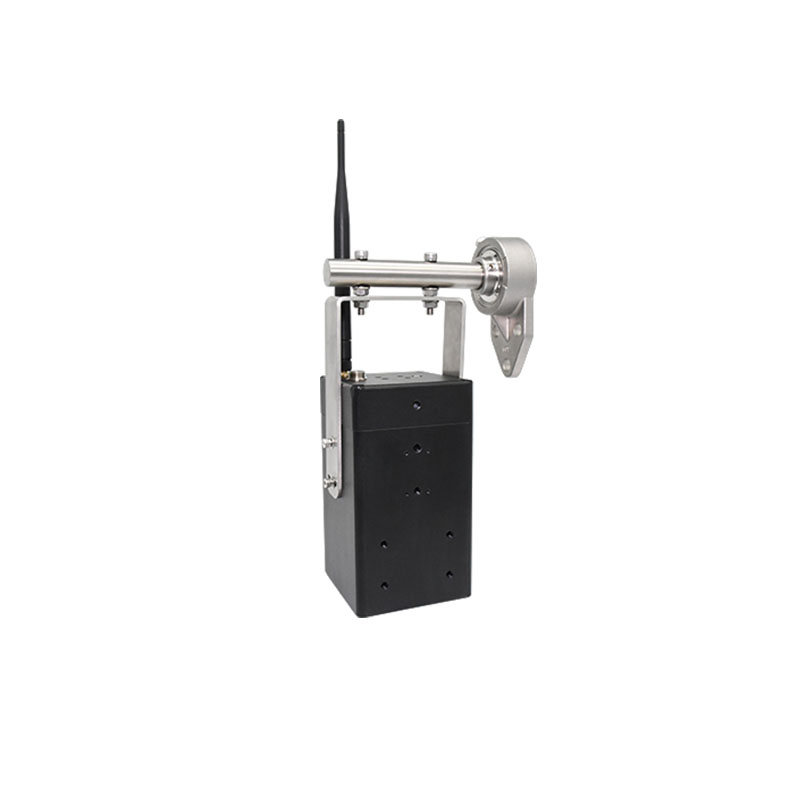

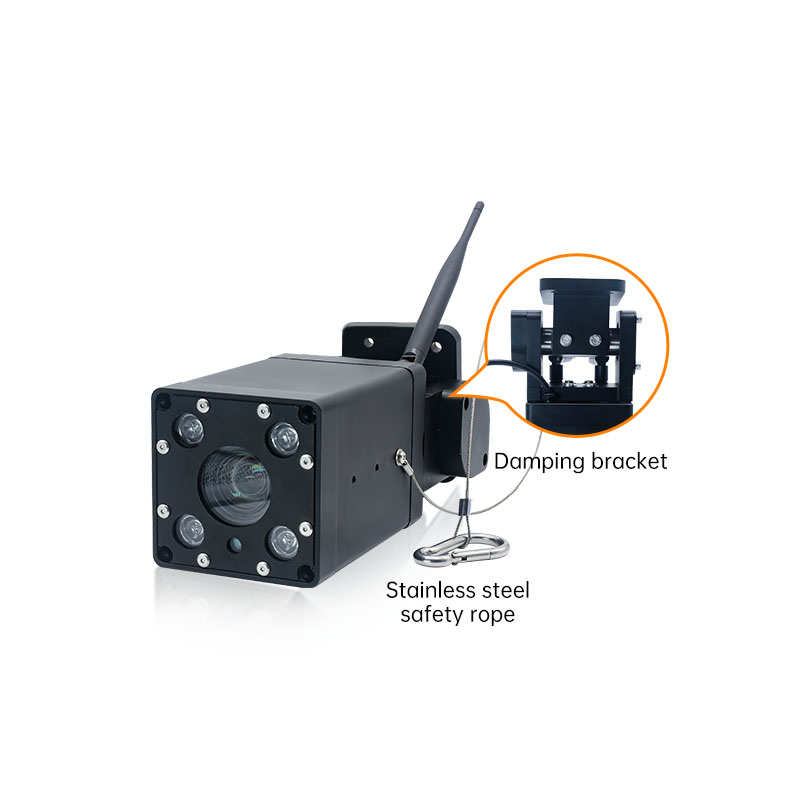

1080P Digital Wireless 36x Zoom Camera
Zoom Features: Optical 36x zoom with digital stabilization.
Viewing Range: Viewing distance of 5–200 meters, with 4 built-in LED infrared lights that adjust power according to zoom level, supporting 50 meters of high-definition night vision.
Image Quality: Industrial-grade DSP with one million HD pixels, IP69K waterproof rating, vertical mechanical bracket design, and anti-drop rope feature.

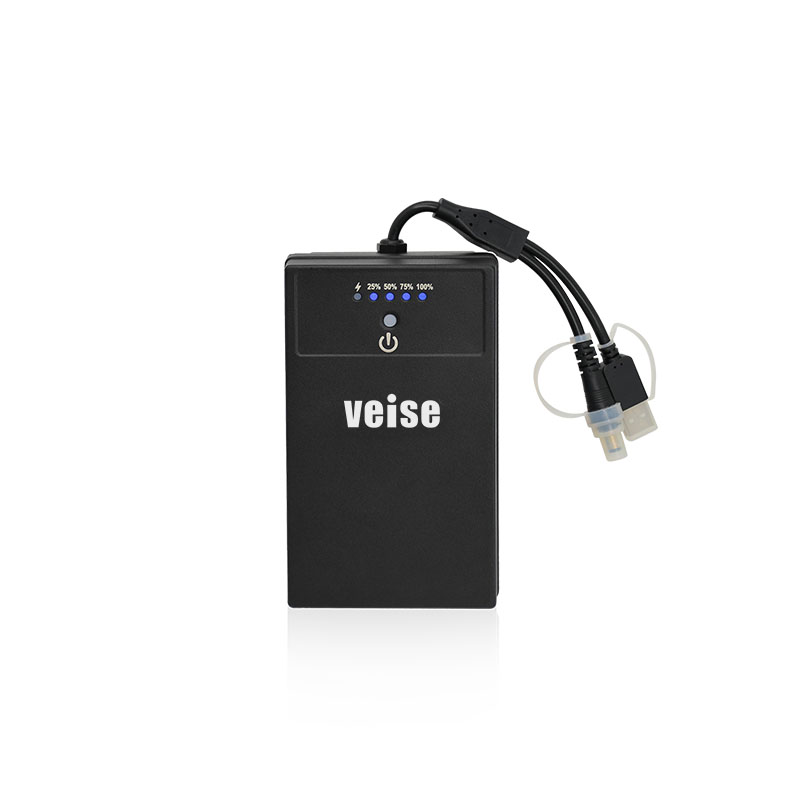

Magnetic Rechargeable Waterproof Power Bank
Battery Capacity: 8000mAh fast-charging battery that supports fast charging protocols.
Design and Waterproofing: Magnetic attachment design with IP67 waterproof rating, capable of powering the wireless zoom camera for up to 10 hours.
Product Parameters
| Model | MWHD-1054HD |
| Display Screen | 10.1-inch IPS HD Digital Display |
| Video Input | Single Channel |
| Wireless Reception | Built-in 2.4G Wireless Receiver |
| Operating Frequency | 2400-2483.5MHz |
| Reception Sensitivity | ≤ -86 dB |
| Reception Distance | ≤ 200 meters in open space |
| Resolution | 1024 x 600 |
| Viewing Angle (LR/UD) | L/R: 85/85 U/D: 85/85 |
| Contrast Ratio | 800:1 |
| LED Backlight Brightness (cd/㎡) | 600 |
| Response Time (ms) | 25 |
| Standard | PAL/NTSC (AUTO) |
| Recording Video Format | AVI |
| Recording Storage Card Type | TF Card (Maximum support 512G) |
| Recording Resolution | 1080P/720P/480P |
| Load Dump | ISO16750-2 Standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Vibration Resistance Level | GB/T 2423.56-2018 Standard (Random 5G vibration) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Input Voltage | DC11-32V |
| Dimensions (LxWxT) | 265 x 168 x 37 mm (without bracket) |
| Model | 1080P Digital Wireless 36x Zoom Camera (CWHD-672M) |
| Image Sensor | 1/2.8 Color |
| Wireless Transmission | Built-in 2.4G Digital Wireless Transmitter |
| Transmission Power | 18 dBm |
| Transmission Distance | ≤ 200 meters in open space |
| Resolution | 1080P |
| Effective Pixels | 1920 x 1080 |
| Optical Zoom | 36x |
| Focal Length | 5.35～96.3 mm |
| Aperture Range | F1.6～F3.5 |
| Horizontal Viewing Angle | 64.1°～3.6° (Wide Angle - Telephoto) |
| Viewing Distance | 5-200 meters |
| Zoom Speed | Approximately 3 seconds (Optical, Wide Angle - Telephoto) |
| Focus Mode | Auto Focus |
| Day/Night Mode | IR-CUT Automatic Switching (Color during the day, Black & White at night) |
| Infrared Distance | 50 meters (4 high-power infrared LEDs built-in) |
| Housing Material | Aluminum alloy with anti-drop steel cable clip design |
| Mounting Bracket | Vertical gravity stainless steel bracket |
| Water Resistance Rating | IP69K |
| Operating Voltage | DC12-24V |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Vibration Resistance Level | 5G (Complies with GB/T 2423.56-2018 Standard) |
| Dimensions (W x H x D) | 220 mm (W) x 90 mm (H) x 90 mm (D) |
| Model | Magnetic Mobile Rechargeable Power Supply (MP-03B10W1) |
| Battery Type | Lithium Polymer Battery |
| Product Capacity | 30,000mAh (3.7V) 111Wh |
| USB Input (Supports Fast Charging) | USB Universal Port (with fast charging protocol) 12V/1.5A (Approximately 10.5 hours to fully charge) |
| DC Output | DC12V/0.8A (DC5.5/2.1 male connector) |
| Charging Cycle Temperature | 0°~+40° |
| Charge/Discharge Cycles | >800 cycles |
| Discharge Operating Temperature | -10°~+50° |
| Anti-Drop Design | Anti-drop steel cable clip design |
| Installation Method | Magnetic base installation (11 strong magnets built-in; Horizontal pull force on the front > 20kg, side pull force > 8kg) |
| Water Resistance Rating | IP67 |
| Shock Resistance Level | 5G |
| Dimensions (W x H x D) | 148 mm (W) x 88 mm (H) x 45.5 mm (D) |

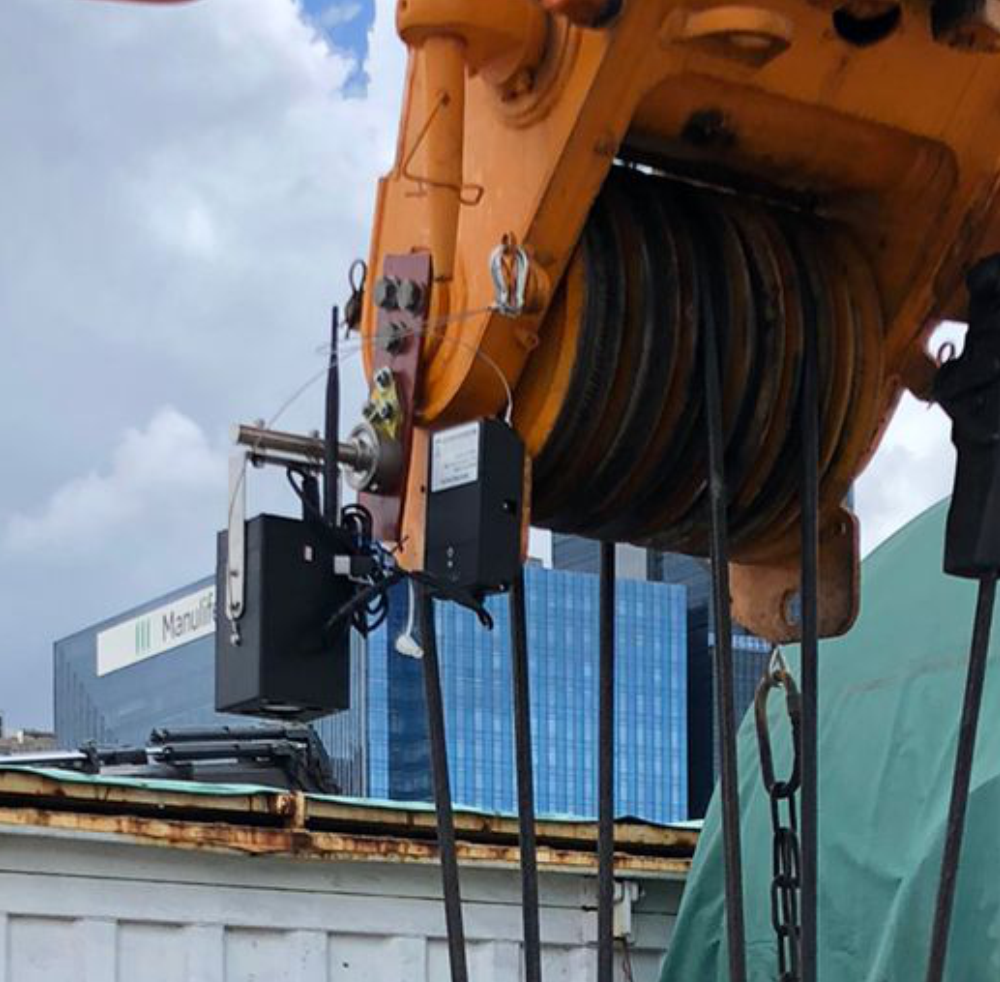

Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
