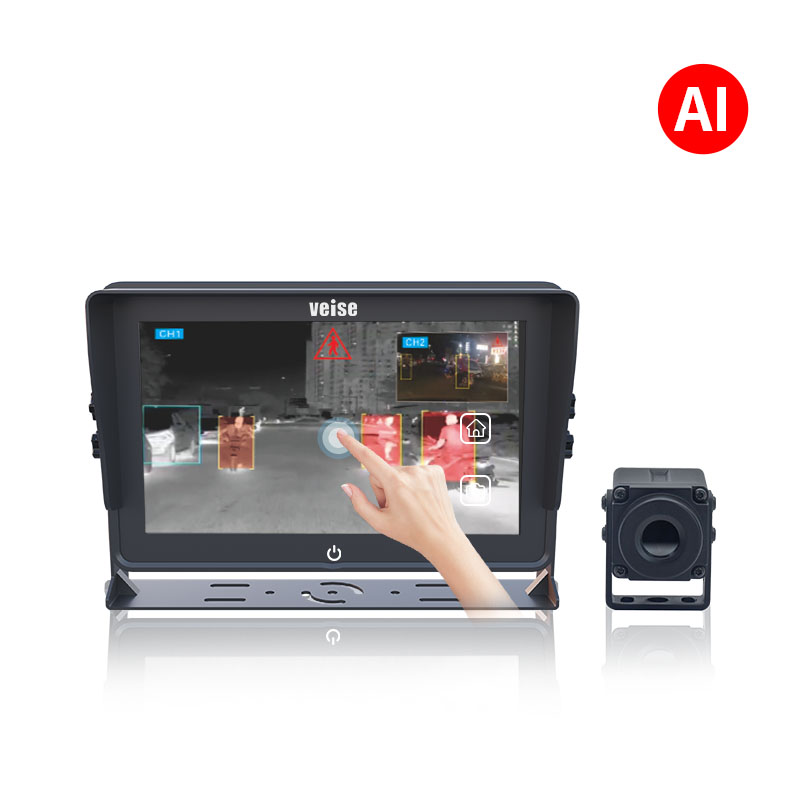

Dual Spectrum Thermal Imaging Security AI Camera System

Product Features

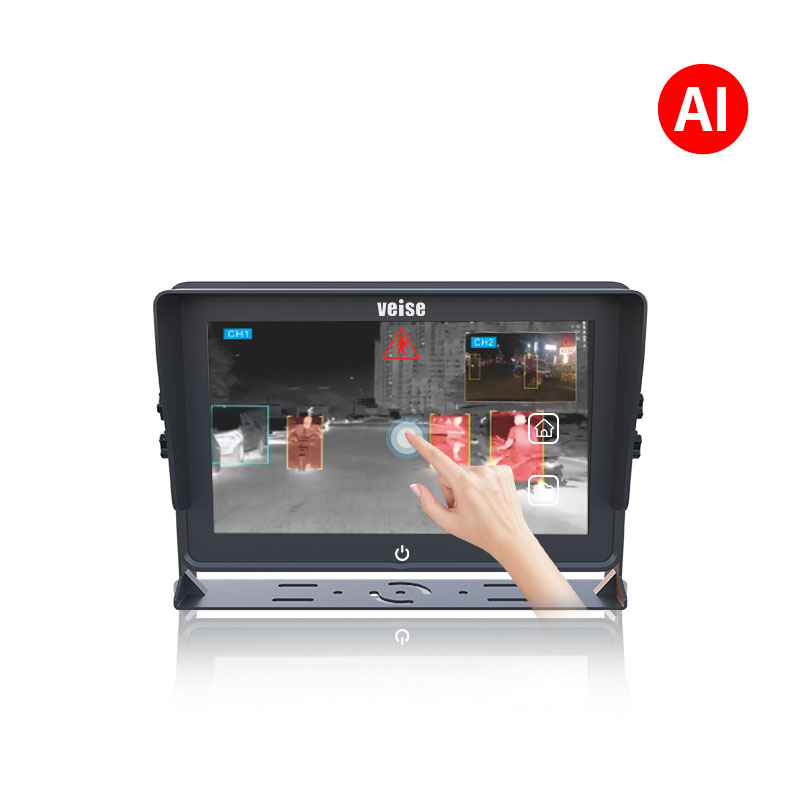

High-Definition DVR Touchscreen Monitor

1.Display Performance

• 7-inch IPS HD display, supporting mixed input of four-channel 1080P/960P/720P/CVBS signals.

• Resolution: 1024 x 600 with high brightness of 600cd/㎡, ensuring clear images.

• Supports quad-view display and graphical OSD menu.

• Single-channel view supports functions such as left-right and up-down image flipping, reverse scale, reverse trigger, and reverse delay.

2.Interactive Design

• Touch Function: Supports direct finger touch operation, enhancing user interaction flexibility.

• The display screen uses a full-lamination process, with seamless integration between the protective glass panel and the display screen, eliminating mirror reflection to ensure clear and transparent images.

3.Appearance and Structure

• Custom-designed appearance with a patent, using ABS+PC material for the housing, which is heat-resistant.

• Removable sunshade cap to prevent direct sunlight from affecting the display.

• Bracket made of rust-proof metal with a U-shaped and double-sided tightening anti-vibration design.

4.Electrical Performance

• Automotive-grade industrial digital video processor.

• Built-in load-dump pulse voltage protection (DC24V+174V, 350ms) to prevent damage from transient pulses in vehicles.

• Built-in negative pressure and over-voltage protection circuits, supporting a wide operating voltage range of DC12~32V.

• Built-in reverse polarity protection for external power supply and LED constant current and constant voltage protection to extend service life.

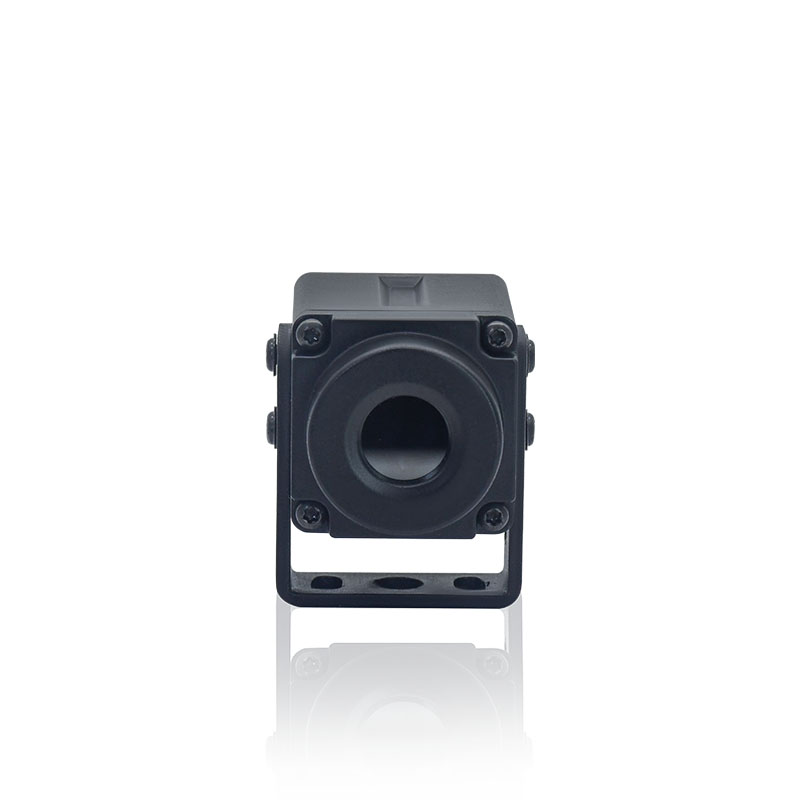

Vehicle-mounted HD thermal imaging camera

• Automotive-grade Design: Meets automotive-grade environmental requirements.

• Cost-effective for Automotive Applications: Focused on the in-vehicle industry, offering a high-performance, compact, lightweight, and low-power camera with multiple interface options (default AHD 1080P output).

• High-Performance Infrared Imaging: Utilizes a 256*192 resolution, 12μm high-performance vanadium oxide uncooled infrared detector, paired with 10mm/3.6mm lenses with excellent optical design. The result is outstanding imaging performance that fully meets the demands of in-vehicle applications.

• Panoramic Focus & Wide Field of View: Provides clear images with a wide field of view and long detection range. The camera can deliver clear infrared images up to 300 meters ahead, enhancing the driver's visibility and helping to detect potential obstacles earlier.

• Fog and Haze Penetration: The thermal imaging technology works even in low-visibility conditions such as sandstorms, dense fog, and haze, allowing for clear imaging in weather that limits human sight, ensuring 24/7 vehicle safety.

• Night Vision: Thermal imaging relies on temperature differences, not light. Even in complete darkness, it can still provide clear images, improving the driver's ability to anticipate and respond to hazards at night, reducing the likelihood of accidents.

• Anti-glare Interference: Thermal imaging collects infrared radiation from external sources to form images, which means it is unaffected by light changes or glare.

Thermal Imaging Features

Thermal imaging works by capturing temperature differences on the surface of objects, making it independent of light sources. This gives it the ability to effectively handle glare, provide clear images in low-light conditions, and penetrate through smoke, fog, and dense mist, making it suitable for all-weather operation.

Product Parameters

Application Scenarios

The onboard thermal imaging camera offers high accuracy, excellent stability, and easy installation. It can capture images in challenging conditions such as darkness, strong glare, smoke, and fog, providing a more comprehensive field of view. It is widely used in construction machinery, agricultural machinery, RVs for camping, yachts, sanitation vehicles, tunnel excavation equipment, and more.
