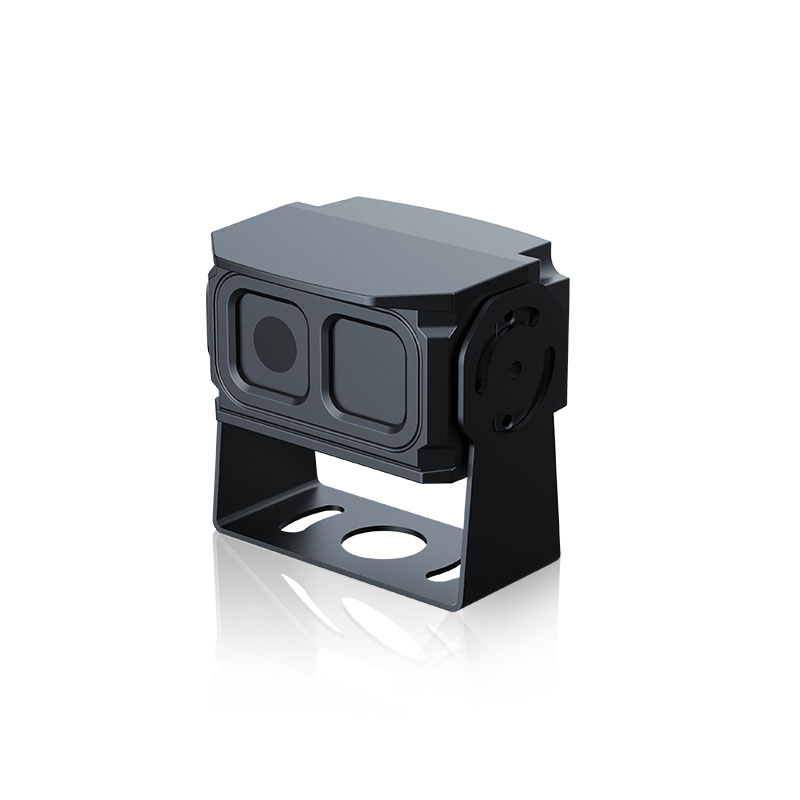

AHD Dual Spectrum Vehicle Mounted Thermal Imaging Camera

  • Model : RCX-042M-4.3MM
  • Summarize : AHD Dual Spectrum Vehicle-mounted Thermal Imaging Camera, which adopts a long-wave infrared detector with an image element spacing of 12 μm and a face array size of 256×192, and a 1080P HD visible camera, is able to provide a clearer, more detailed and high-quality picture. The product can effectively solve the key problems affecting driving safety in poor weather conditions such as low light at night, glare, rain, snow and haze. The built-in AI algorithm can quickly and accurately detect pedestrians and vehicles, thus realizing all-weather protection for drivers' driving safety.

Product Features

AHD Dual-Spectrum In-Vehicle Thermal Imaging Camera, featuring a long-wave infrared detector with a pixel pitch of 12μm and an array size of 256×192, as well as a 1080P high-definition visible light camera, capable of providing clearer and more detailed high-quality images. This product effectively addresses key issues affecting driving safety under low-light night conditions, glare, and adverse weather conditions such as rain, snow, and fog. The built-in AI algorithm can quickly and accurately detect pedestrians and vehicles, thereby ensuring driving safety around the clock.

Ultra-High Definition Dual-Spectrum Thermal Imaging Night Vision

  • Infrared Imaging Resolution: 256×192

  • Visible Light Resolution: 1080P HD

  • Image Processing Chip: New-generation Falcon LY300, delivering clearer image quality

  • Line of Sight: Ultra-long range, suitable for high-speed mode of commercial vehicles

AI Intelligent Recognition

  • Supported Objects: Pedestrians, vehicles, riders

  • Recognition Rate: >92%

  • Algorithm Integration: Highly integrated algorithm chip; no separate algorithm box required

Ultra-Fast Installation

  • Interface Type: Single AHD interface output with strong versatility

  • Installation Time: Less than 10 minutes

Superior Protection

  • Protection Level: IP67 dustproof and waterproof

  • Applicable Scenarios: All-weather use for commercial vehicles

Display Function

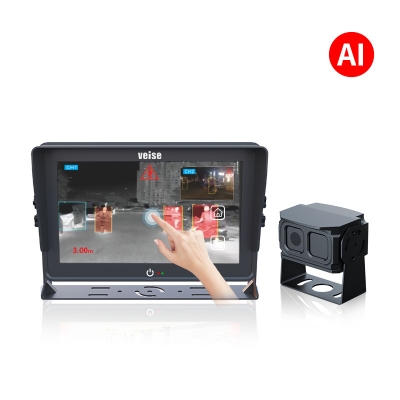

  • Supports Split-Screen/Full-Screen Display

  • Screen: Optional

Product Parameters

Product ModelRCX-042M-4.3MM
Basic Information
Thermal Imaging Resolution256×192
Thermal Imaging ModeWhite Hot Mode
Thermal Imaging Pixel Pitch@12μm WLP
Thermal Imaging Response Band8~14μm
Thermal Imaging Lens4.3mm, Fixed Focus: 1M to Infinity
Thermal Imaging Field of ViewHorizontal 40°×Vertical 30°
Thermal Imaging Detection RangeDetection & Recognition: 100 meters
Video Resolution1080P@25FPS
Visible Light Sensor BrandGalaxyCore
Visible Light Sensor ChipGC2053
Visible Light Field of ViewHorizontal 110°×Diagonal 130°×Vertical 70°
AI AlgorithmSupports pedestrian, vehicle, and rider recognition; Recognition rate >92%
System Performance
Operating VoltageDC12V±10%
Operating Current≤300mA@12V
Rated Power Consumption≤3.5W@12V
Interface
Video Output ModeDual-view of thermal imaging and visible light
Video Output FormatAHD
Tail Cable Connector4PIN Waterproof Aviation Plug
Physical Structure
Material of Structural ComponentsHigh-Density Aluminum Alloy
Environmental Parameters
Connector IP RatingIP68
Camera IP RatingIP69K
Storage Temperature-30℃~+85℃
Operating Temperature-30℃~+70℃
Operating Humidity20%~80%
Physical Performance
Module Weight300g (Net Weight) / 350g (Gross Weight)
Camera Module InstallationFixed forward on the roof of the cab
Tail Cable LengthL=1M


*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
