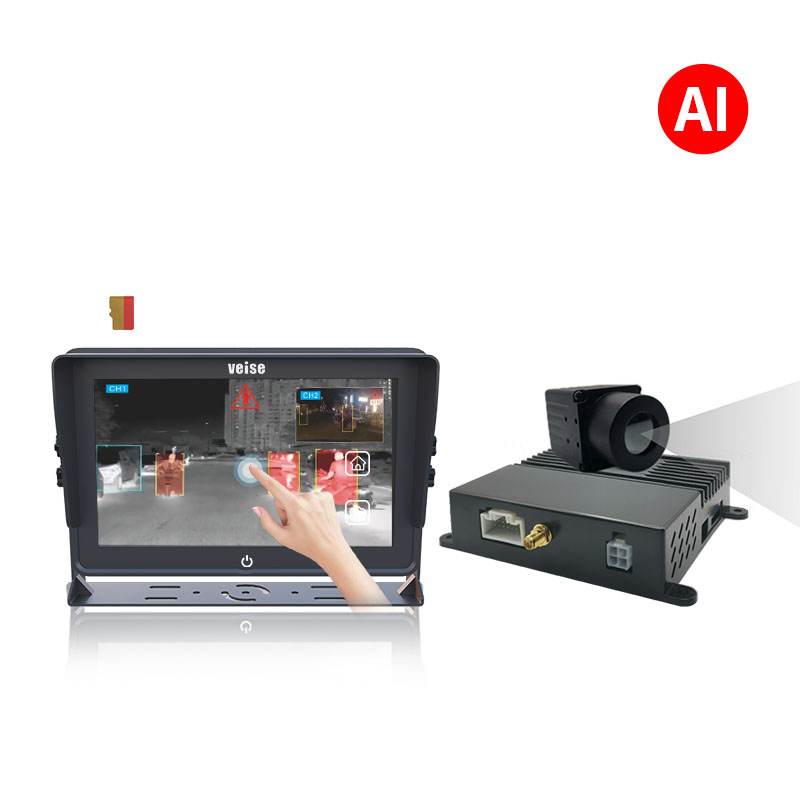

AI Intelligent Automotive Thermal Imaging Night Vision System

  • Model : HDS-1034MDTP0301-AI
  • Summarize : Vehicle-mounted thermal imaging camera with high accuracy, good stability, easy to install, can be no light at night, glare, smoke and dust cloud fog and other adverse weather conditions imaging, to provide a more comprehensive field of vision, widely used in construction machinery, agricultural machinery, camping caravans, yachts out of the voyage, sanitation vehicles, tunnels, excavators equipment, and so on.

Product Features

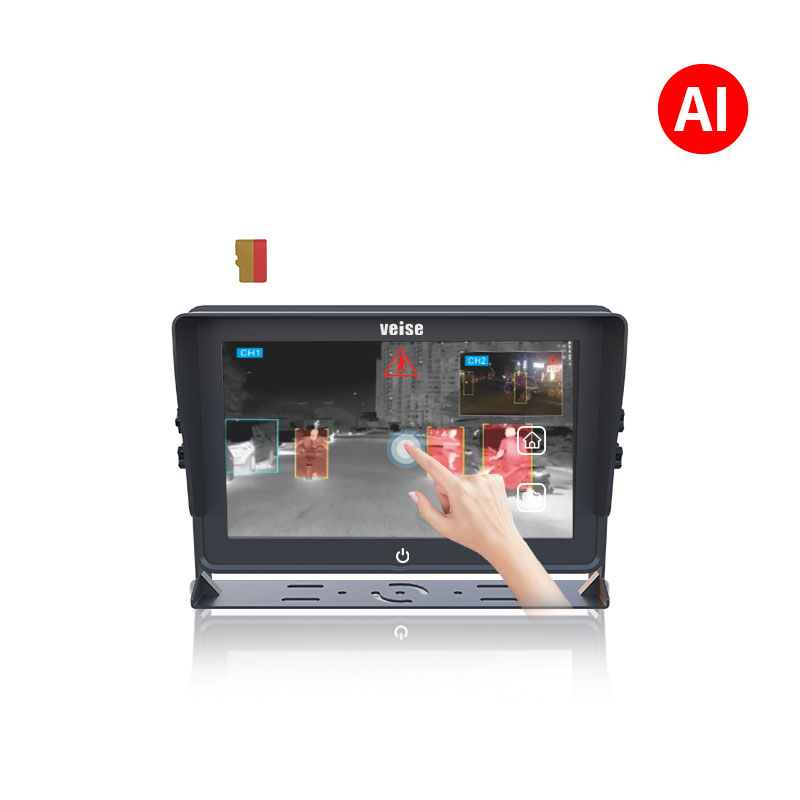

10.1-inch High-Definition Touchscreen Monitor

  • Display Screen: 10.1-inch high-definition touchscreen with a resolution of 1024×600, ensuring clear image display.

  • Enclosure: Made of aluminum alloy material, offering stable structure and good heat dissipation.

  • Operation Method: Touchscreen operation, which is sensitive and fast.

  • Storage Function: External TF card slot, supporting up to 512GB. Video files are automatically overwritten.

  • Voltage Compatibility: Wide-range voltage input (DC11V-32V), compatible with various vehicles and devices.

  • Safety Design: Built-in reverse polarity protection circuit to prevent equipment damage caused by incorrect connections.

  • Backlight Design: Equipped with constant voltage and constant current circuit protection to extend service life.

  • Multi-Language Support: Supports OSD menu operations in 10 languages.

  • Multi-View Display: Supports dual-view, triple-view, quad-view, and picture-in-picture modes.

  • Screen Technology: Full lamination process to eliminate mirror reflection and ensure clear and transparent images.

  • Image Adjustment: Single-channel images can be independently set for horizontal mirroring, supporting upside-down installation and 180° image rotation.

  • Reverse Parking Assistance: Supports reverse parking guide lines and toggle function.

  • Anti-Vibration Design: Designed in accordance with GB/T 2423.56-2018 standards, with a compact structure.

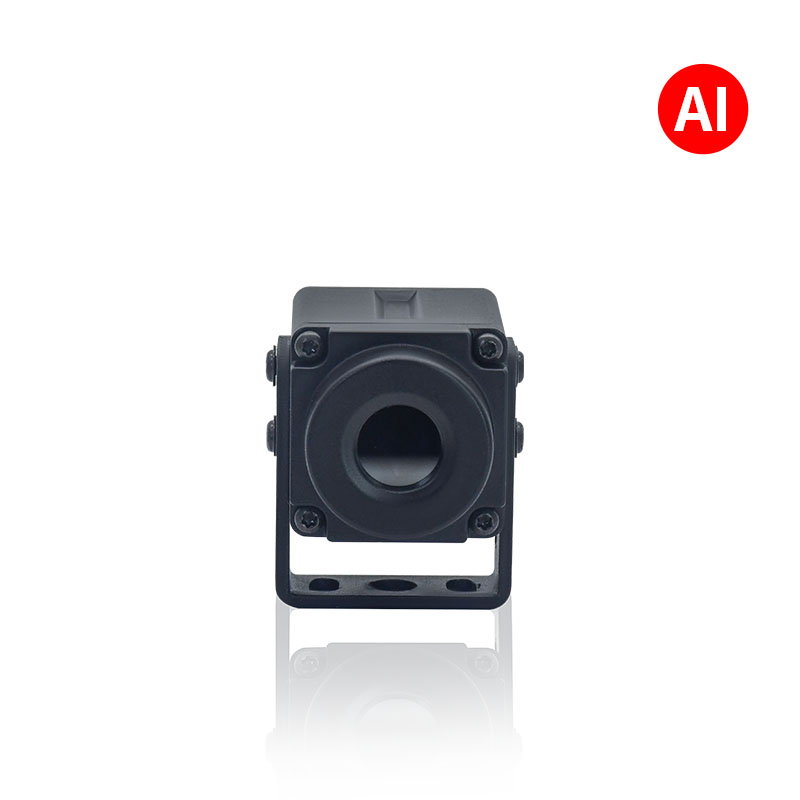

RCX-0301-AI Thermal Imaging Camera

1.Core Performance

  • Equipped with self-developed core algorithms for thermal imaging night vision and AI-based recognition of pedestrians and vehicles, the camera supports multiple resolution thermal imaging cameras (256×192, 384×288, 640×512) to achieve AI recognition of pedestrians and motor vehicles.

  • Supports synchronous video output via CVBS and UVC (USB) to meet the connectivity requirements of different devices.

2.Hardware Advantages

  • Utilizes a high-performance vanadium oxide uncooled infrared detector with a resolution of 640×512 and a pixel size of 12μm, combined with an excellent 16mm lens optical design, to deliver outstanding imaging results.

  • Offers a variety of display modes (white hot, black hot, rainbow, ironbow, yellow saturation, bird's eye mode; default is white hot) to meet the needs of different scenarios.

3.Environmental Adaptability

  • Penetrates haze: In adverse weather conditions such as dust, fog, and smog, the thermal imaging product can still produce clear images, enabling all-weather applications and ensuring the safety of vehicle operations.

  • Penetrates darkness: At night without light, the thermal imaging product relies on temperature imaging, which is not affected by light conditions. It can effectively increase the driver's detection distance and time, reducing the incidence of accidents.

  • Anti-glare interference: By capturing external infrared radiation to form images, it is not affected by changes in light conditions, thus avoiding glare interference.

4.Safety and Warning Functions

  • Provides AI-based recognition and distance warning for pedestrians and motor vehicles, helping drivers to detect targets in advance, expand their field of vision, and enhance driving safety.

5.Installation and Compatibility

  • Features a wide voltage design of 9 - 36V, allowing for quick installation in various motor vehicle and engineering machinery scenarios, suitable for a wide range of complex environments.

6.Automotive-Grade Design

  • Meets automotive-grade environmental requirements to ensure the stability and reliability of the product during vehicle operation

Thermal Imaging Features

Thermal imaging works by capturing temperature differences on the surface of objects, making it independent of light sources. This gives it the ability to effectively handle glare, provide clear images in low-light conditions, and penetrate through smoke, fog, and dense mist, making it suitable for all-weather operation.

Product Parameters

10.1” HD Touch Monitor

ModelMHD-1034MD
Display Screen10.1-inch IPS HD Digital Display
Resolution1024 x 600
Viewing Angle (LR/UD)L/R: 85°/85°<br>U/D: 85°/85°
Contrast Ratio800:1
LED Backlight Brightness (cd/㎡)600
Response Time (ms)25
SystemPAL/NTSC (AUTO)
Recording Video FormatAVI
Recording Storage Card TypeTF Card (Up to 512GB)
Recording Resolution1080P/720P/480P
Video Signal InputSupports 1080P/720P/CVBS Signals
Load DumpDC24+174V/350ms
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
Input PowerDC11-32V
Dimensions (LxWxT)265x168x37mm (Excluding Bracket)

RCX-0301-AI Thermal Imaging Camera Parameters

Detector
Detector TypeVanadium Oxide Uncooled Infrared Focal Plane Detector
Response Band8~14μm
NETD50mK@25℃, F#1.0
Resolution640×512
Pixel Pitch12μm
Optics
Lens16mm
Focusing MethodAthermalized Fixed Focus Lens, Manual Focus
Field of View (FOV)28°×22° (16mm)
Detection Range (Person/Vehicle)<1000 meters
Recognition Range (Person/Vehicle)<400 meters
Frame Rate25Hz
Image AlgorithmDetail Enhancement, Automatic Shutter Correction
Video FormatUVC/White Hot Mode
Others
Lens ProtectionHigh-Strength Protective Window
Window DefrostingSupported (Activates below 2°C, Deactivates above 7°C)
Power Consumption<1W (Heater Off) / <3W (Heater On)
Operating Temperature-30~70°C
ProtectionAluminum Alloy Housing, Sealed to IP67
DimensionsL49×W35×H35mm
WeightApproximately 100g

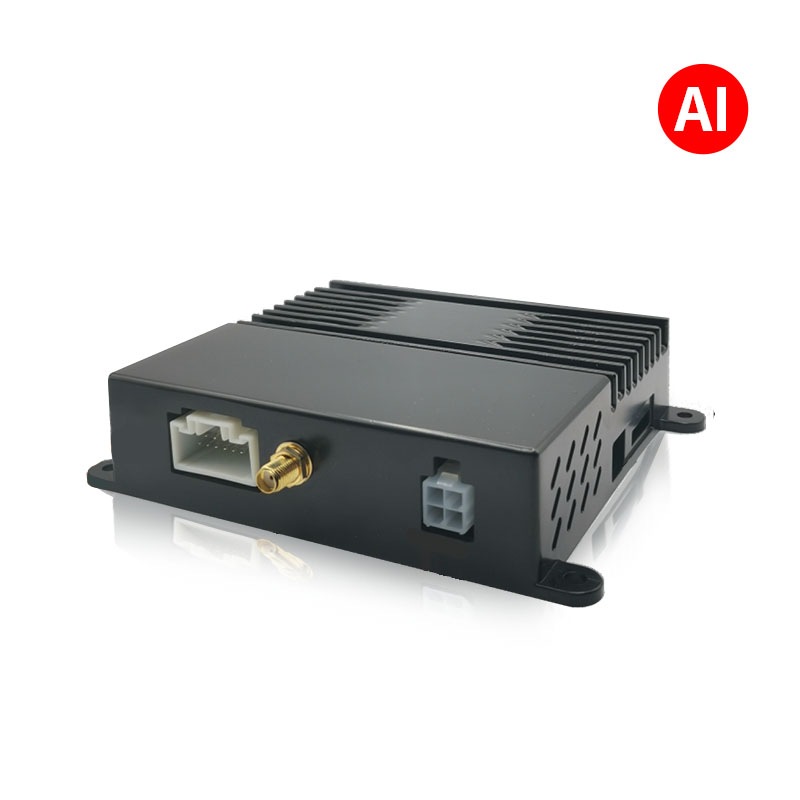

Controller Parameters

System Performance
SystemLinux
Power Supply9-36V Wide Voltage
NPU3TOPS
Power Consumption<5W
Recognition TypeHuman and Vehicle Target Recognition, Distance Estimation
Recognition Accuracy≥95%
Real-Time Performance≥21 FPS
AI Recognition RangeHuman (60-100m), Vehicle (200-300m)
Interfaces
Camera Interface6P BMW-Style Connector
Video OutputPAL/USB Synchronous Output
Parameter SettingsInfrared Remote Control
Communication InterfaceTTL Serial Port (Output Type, Coordinates, Distance)
AlertHorn Alarm Based on Vehicle Speed and Linkage Distance
APP Playback
System VersionAndroid 5-14
LanguageSimplified Chinese, Traditional Chinese, English, Russian
OperationSupports Auto-Start, Voice Activation
Others
Operating Temperature-30~70°C
DimensionsL110×W100×H25mm
WeightApproximately 360g

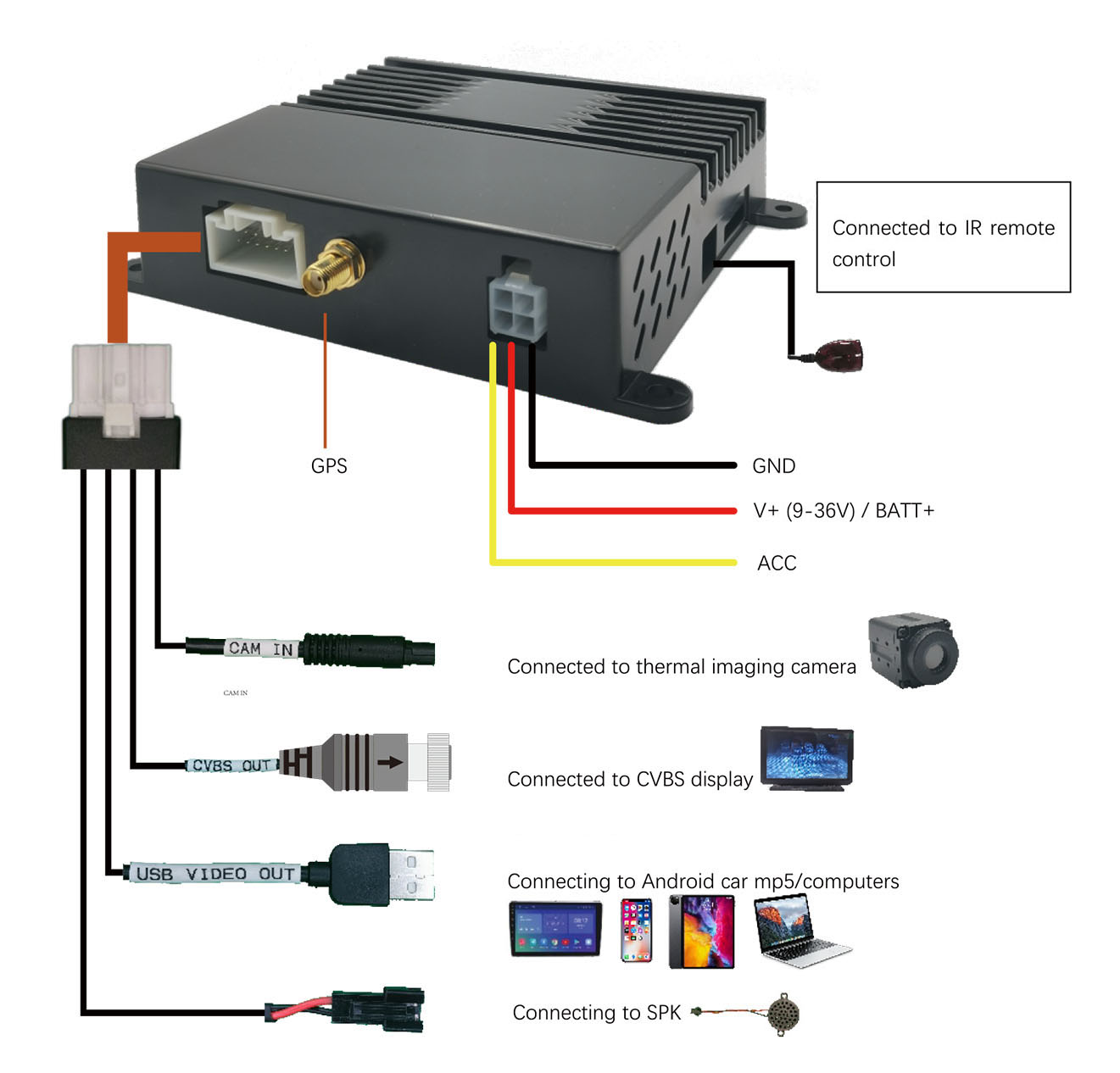

Host Connection Diagram

Application Scenarios

The onboard thermal imaging camera offers high accuracy, excellent stability, and easy installation. It can capture images in challenging conditions such as darkness, strong glare, smoke, and fog, providing a more comprehensive field of view. It is widely used in construction machinery, agricultural machinery, RVs for camping, yachts, sanitation vehicles, tunnel excavation equipment, and more.
