Product Features
Automotive-grade Design: Meets automotive-grade environmental requirements.
Cost-effective for Automotive Applications: Focused on the in-vehicle industry, offering a high-performance, compact, lightweight, and low-power camera with multiple interface options (default AHD 1080P output).
High-Performance Infrared Imaging: Utilizes a 256*192 resolution, 12μm high-performance vanadium oxide uncooled infrared detector, paired with 10mm/3.6mm lenses with excellent optical design. The result is outstanding imaging performance that fully meets the demands of in-vehicle applications.
Panoramic Focus & Wide Field of View: Provides clear images with a wide field of view and long detection range. The camera can deliver clear infrared images up to 300 meters ahead, enhancing the driver's visibility and helping to detect potential obstacles earlier.
Fog and Haze Penetration: The thermal imaging technology works even in low-visibility conditions such as sandstorms, dense fog, and haze, allowing for clear imaging in weather that limits human sight, ensuring 24/7 vehicle safety.
Night Vision: Thermal imaging relies on temperature differences, not light. Even in complete darkness, it can still provide clear images, improving the driver's ability to anticipate and respond to hazards at night, reducing the likelihood of accidents.
Anti-glare Interference: Thermal imaging collects infrared radiation from external sources to form images, which means it is unaffected by light changes or glare.
Thermal Imaging Features
Thermal imaging works by capturing temperature differences on the surface of objects, making it independent of light sources. This gives it the ability to effectively handle glare, provide clear images in low-light conditions, and penetrate through smoke, fog, and dense mist, making it suitable for all-weather operation.
Product Parameters
| Detector & Lens | Model | RCX-012M |
| Sensor | Vanadium Oxide Uncooled Detector |
| Resolution | 256 * 192 |
| Response Band | 8 ~ 14 μm |
| Pixel Size | 12 μm |
| Packaging | Wafer Level Packaging |
| Frame Rate | 25 fps |
| NETD | ≤ 50 mK @ F 1.0, 300 K |
| Effective Focal Length | 3.6 mm/ F 1:1.0 | 10 mm/ F 1:1.0 |
| Field of View | 49° * 37° | 18° * 13° |
| Image Parameters | Image Correction | Shutter Automatic Correction Technology |
| Detail Enhancement | Supported |
| Noise Reduction | Supported |
| Bad Pixel Correction | Supported |
| Video Output | AHD (720P/1080P optional) / White Hot Mode |
| Window Defrost | Supported (activates below 2°C, deactivates above 7°C) |

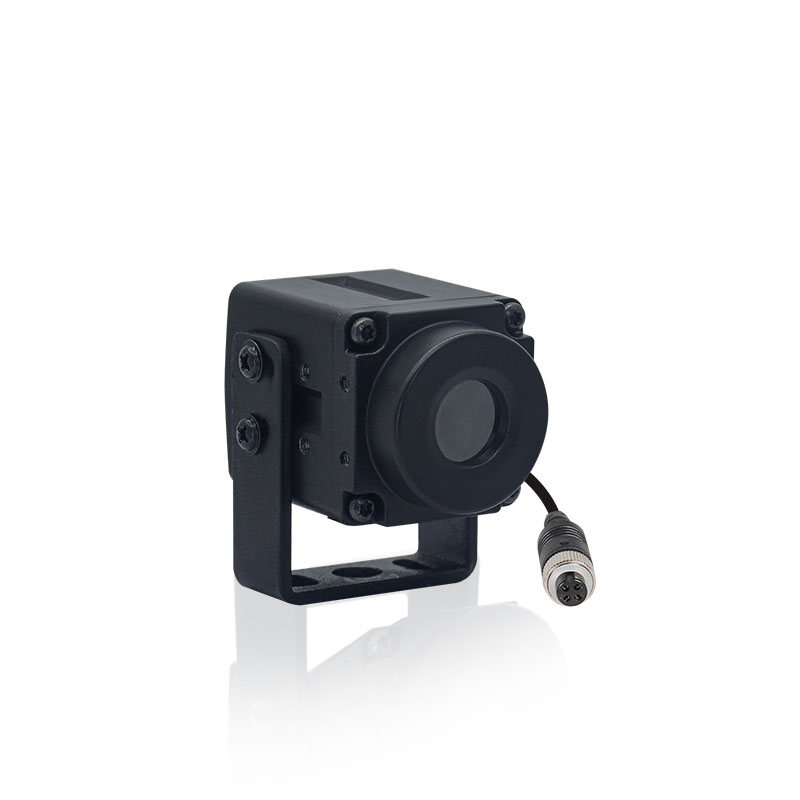

| System Parameters | Power | DC 12V (Standard 4-pin aviation female connector) |
| Power Consumption | < 1.5W (heating off) | < 3.5W (heating on) |
| Operating Temperature | -30°C ~ 70°C |
| Storage Temperature | -40°C ~ 80°C |
| Vibration Resistance | 5G |
| Protection Level | IP67 |

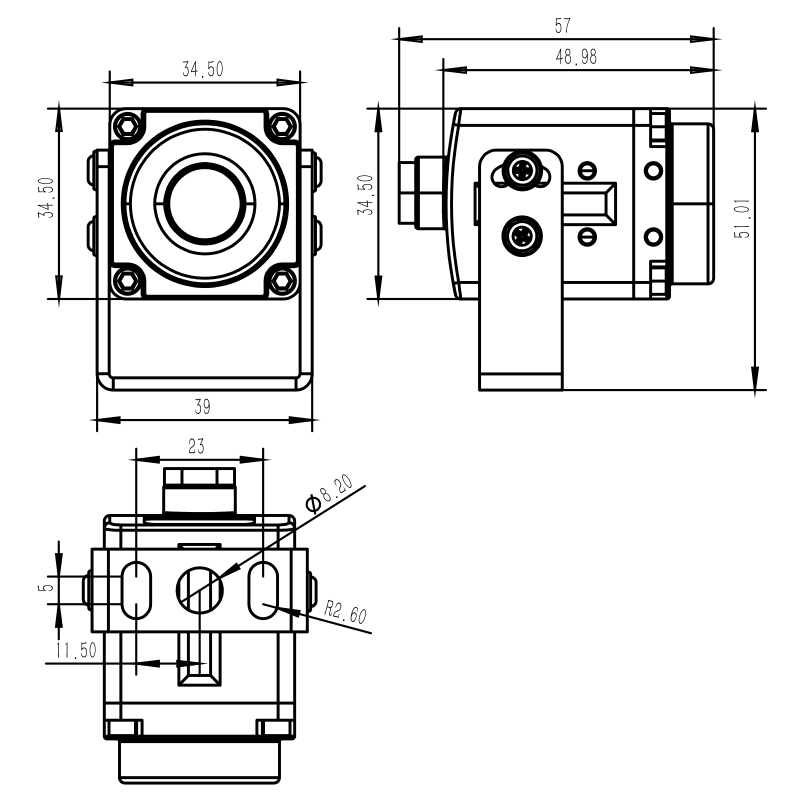

| Dimensions | 34 * 34 * 49 mm |
| Detection Range | Detection Distance | < 85 m (Human) < 125 m (Vehicle) | < 250 m (Human) < 320 m (Vehicle) |
| Detection Target | Human (1.8 * 0.5 m), Vehicle (2.3 * 2.3 m) |
Application Scenarios
The onboard thermal imaging camera offers high accuracy, excellent stability, and easy installation. It can capture images in challenging conditions such as darkness, strong glare, smoke, and fog, providing a more comprehensive field of view. It is widely used in construction machinery, agricultural machinery, RVs for camping, yachts, sanitation vehicles, tunnel excavation equipment, and more.
