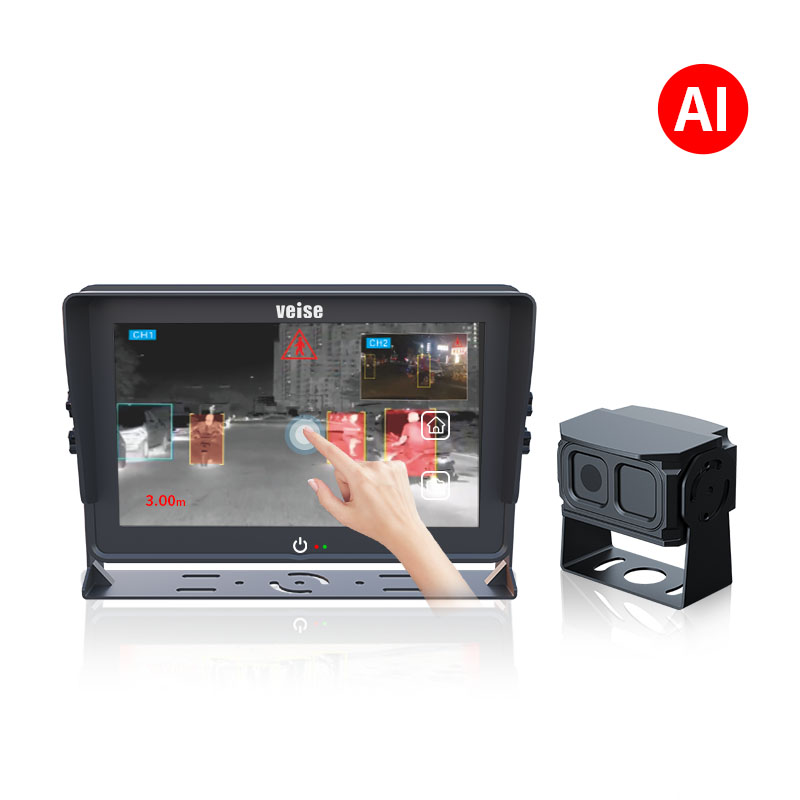

AHD Dual Spectrum Vehicle Mounted Thermal Imaging Video Surveillance System

  • Model : HDS-1034MD042M
  • Summarize : AI intelligent dual-spectrum thermal imaging video surveillance system, touch monitor integrated thermal imaging AI man-vehicle detection and ranging algorithm, integrated infrared light and visible light AI camera in one, support a variety of display modes. Infrared thermal imaging can be imaged at night in the absence of light, glare, smoke and dust clouds and other adverse weather conditions, and complementary with the visible light camera to provide a more comprehensive vision, widely used in mining vehicles, special vehicles, assisted driving

Product Features

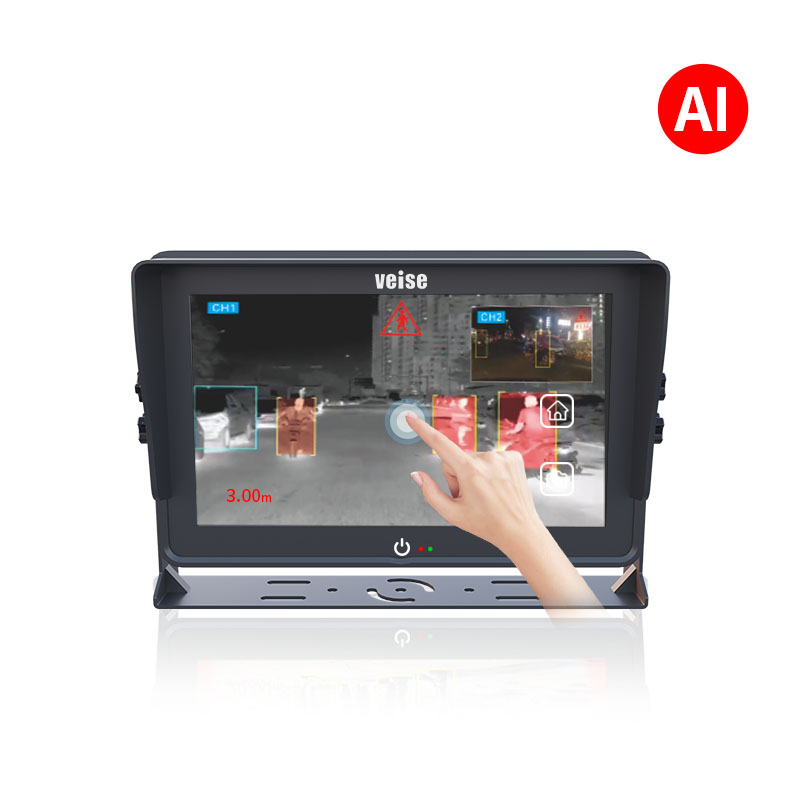

10.1-inch High-Definition Touchscreen Monitor

  • Display Screen: 10.1-inch high-definition touchscreen with a resolution of 1024×600, ensuring clear image display.

  • Enclosure: Made of aluminum alloy material, offering stable structure and good heat dissipation.

  • Operation Method: Touchscreen operation, which is sensitive and fast.

  • Storage Function: External TF card slot, supporting up to 512GB. Video files are automatically overwritten.

  • Voltage Compatibility: Wide-range voltage input (DC11V-32V), compatible with various vehicles and devices.

  • Safety Design: Built-in reverse polarity protection circuit to prevent equipment damage caused by incorrect connections.

  • Backlight Design: Equipped with constant voltage and constant current circuit protection to extend service life.

  • Multi-Language Support: Supports OSD menu operations in 10 languages.

  • Multi-View Display: Supports dual-view, triple-view, quad-view, and picture-in-picture modes.

  • Screen Technology: Full lamination process to eliminate mirror reflection and ensure clear and transparent images.

  • Image Adjustment: Single-channel images can be independently set for horizontal mirroring, supporting upside-down installation and 180° image rotation.

  • Reverse Parking Assistance: Supports reverse parking guide lines and toggle function.

  • Anti-Vibration Design: Designed in accordance with GB/T 2423.56-2018 standards, with a compact structure.

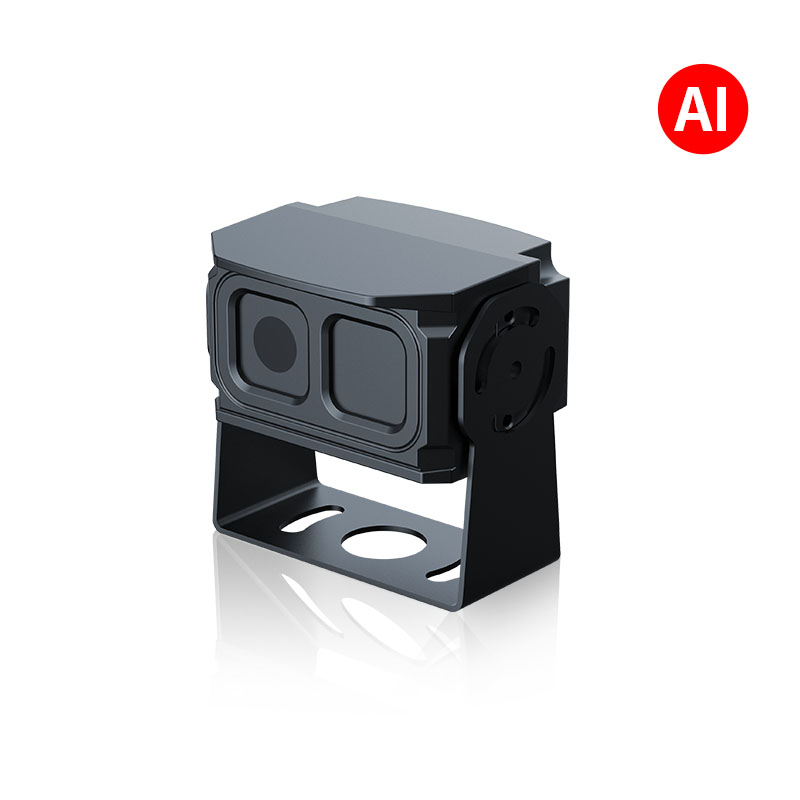

AHD Dual-Spectrum In-Vehicle Thermal Imaging Camera

Imaging System:

  • Infrared Imaging: Pixel spacing of 12μm, array size of 256×192, long-wave infrared detector.

  • Visible Light Imaging: 1080P high-definition camera.

  • Image Processing: Equipped with the Falcon LY300 chip for clearer image quality.

  • Viewing Range: Ultra-long viewing range, suitable for high-speed mode of commercial vehicles.

AI Intelligent Recognition:

  • Recognition Targets: Pedestrians, vehicles, cyclists.

  • Recognition Rate: Over 92%.

  • Algorithm Integration: Highly integrated into the chip, eliminating the need for a separate algorithm box.

Easy Installation:

  • Interface Type: Single AHD interface output, with strong versatility.

  • Installation Time: Less than 10 minutes.

  • Protection Rating: IP67 dustproof and waterproof, suitable for all-weather use in commercial vehicles.

Display Function:

  • Display Modes: Supports split-screen and full-screen display, with optional screen selection.

Product Features

ModelMHD-1034MD
Display Screen10.1-inch IPS HD Digital Display
Resolution1024 x 600
Viewing Angle (LR/UD)L/R: 85°/85°<br>U/D: 85°/85°
Contrast Ratio800:1
LED Backlight Brightness (cd/㎡)600
Response Time (ms)25
SystemPAL/NTSC (AUTO)
Recording Video FormatAVI
Recording Storage Card TypeTF Card (Up to 512GB)
Recording Resolution1080P/720P/480P
Video Signal InputSupports 1080P/720P/CVBS Signals
Load DumpDC24+174V/350ms
Operating Temperature-20°C to +70°C
Storage Temperature-30°C to +80°C
Input PowerDC11-32V
Dimensions (LxWxT)265x168x37mm (Excluding Bracket)
Product ModelRCX-042M-4.3MM
Basic Information
Thermal Imaging Resolution256×192
Thermal Imaging ModeWhite Hot Mode
Thermal Imaging Pixel Pitch@12μm WLP
Thermal Imaging Response Band8~14μm
Thermal Imaging Lens4.3mm, Fixed Focus: 1M to Infinity
Thermal Imaging Field of ViewHorizontal 40°×Vertical 30°
Thermal Imaging Detection RangeDetection & Recognition: 100 meters
Video Resolution1080P@25FPS
Visible Light Sensor BrandGalaxyCore
Visible Light Sensor ChipGC2053
Visible Light Field of ViewHorizontal 110°×Diagonal 130°×Vertical 70°
AI AlgorithmSupports pedestrian, vehicle, and rider recognition; Recognition rate >92%
System Performance
Operating VoltageDC12V±10%
Operating Current≤300mA@12V
Rated Power Consumption≤3.5W@12V
Interface
Video Output ModeDual-view of thermal imaging and visible light
Video Output FormatAHD
Tail Cable Connector4PIN Waterproof Aviation Plug
Physical Structure
Material of Structural ComponentsHigh-Density Aluminum Alloy
Environmental Parameters
Connector IP RatingIP68
Camera IP RatingIP69K
Storage Temperature-30℃~+85℃
Operating Temperature-30℃~+70℃
Operating Humidity20%~80%
Physical Performance
Module Weight300g (Net Weight) / 350g (Gross Weight)
Camera Module InstallationFixed forward on the roof of the cab
Tail Cable LengthL=1M

Application Scenarios

The onboard thermal imaging camera offers high accuracy, excellent stability, and easy installation. It can capture images in challenging conditions such as darkness, strong glare, smoke, and fog, providing a more comprehensive field of view. It is widely used in construction machinery, agricultural machinery, RVs for camping, yachts, sanitation vehicles, tunnel excavation equipment, and more.

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
