AI Pedestrian Detection System with Waterproof Monitor

AI Pedestrian Detection System with Waterproof Monitor

Model : HDS-751122MAIM1
Summarize : Because the driver operating the mechanical equipment of the vehicle needs to be highly concentrated, in the case of having no time to observe the picture of the onboard rear-view monitor and without the reverse radar warning, it is extremely prone to potential safety hazards, resulting in economic losses. The AI vehicle driving detection and pre-alert system not only eliminates the complicated processes of installing and wiring the reverse radar but also can detect the presence of personnel in the working area in real-time and provide warnings, which enhances the efficiency of vehicle operation removes safety hazards, and avoids economic losses. The IP68 waterproof display is widely used in the safety monitoring of mechanical equipment vehicles in operating environments such as high humidity outdoors, large amounts of dust, underground operations, and the rainy season.
More Info : Online Service

Product Description

Product Features

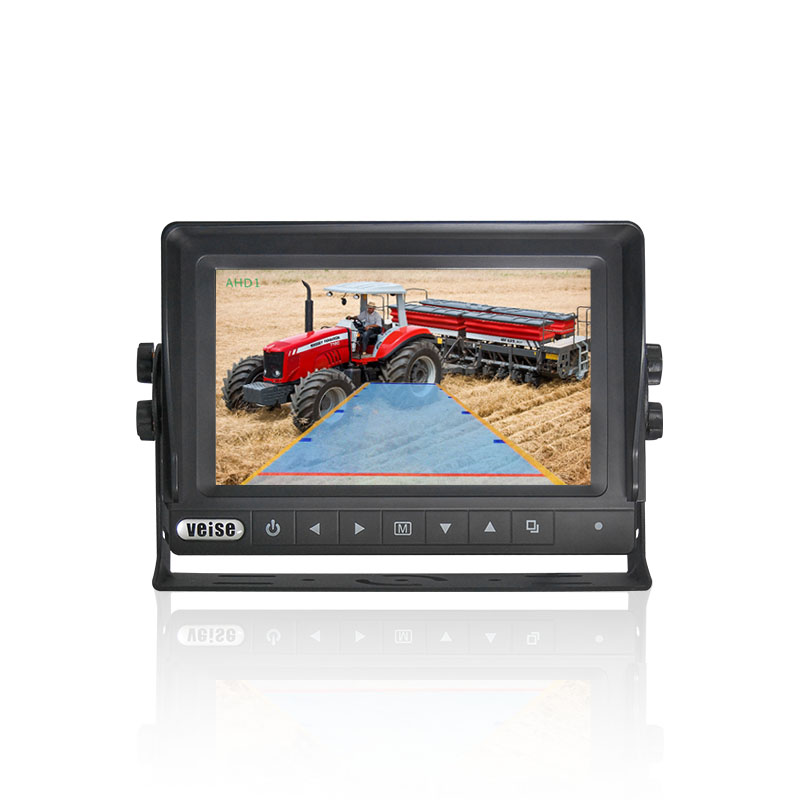

HD Waterproof Monitor

7-inch waterproof monitor supporting 2-channel video input
Fully sealed IP68 waterproof rating with patented temperature and pressure balance design
Automotive-grade DSP for low-temperature durability, IPS Screen for accurate colors
Fast response time, OSD menu for image mirroring, normal/reverse Screen settings, reverse image delay, and priority trigger application settings
Wide operating voltage DC11~32V, independent power output
Protection against load dump pulse voltage, reverse polarity protection for external power supply
LED constant current and voltage protection to prevent improper use and ensure longevity

Product Parameters

Waterproof monitor（MHD-751）
Color Monitor Screen	7-inch IPS screen
Resolution	1024RGB(H) X 600(V)dot
Waterproof Rating	IP68
Video Input	2-channel Video Input
Screen Mode	Single screen
Video Signal Input	CVBS /720P /1080P
OSD Menu Function	Support reversing screen trigger priority, delay, mirror Chinese/English language
TV System	PAL/NTSC (AUTO)
Brightness (cd/m2)	600
Contrast	800:1
Throw the load pulse	ISO16750-2 standard (24V system Us=174V,Ri=4Ω,td=350ms)
Tail Line of the Body	2-meter connected line
Operating Temperature	-20℃ to +70℃
Storage Temperature	-30℃ to +80℃
Operating Voltage	DC11-32V
Vibration rating	GB∕T 2423.56-2018 system (random 5G vibration)
Dimension	(L x W x T) (220 x 149 x 84mm)
Weight	1140g

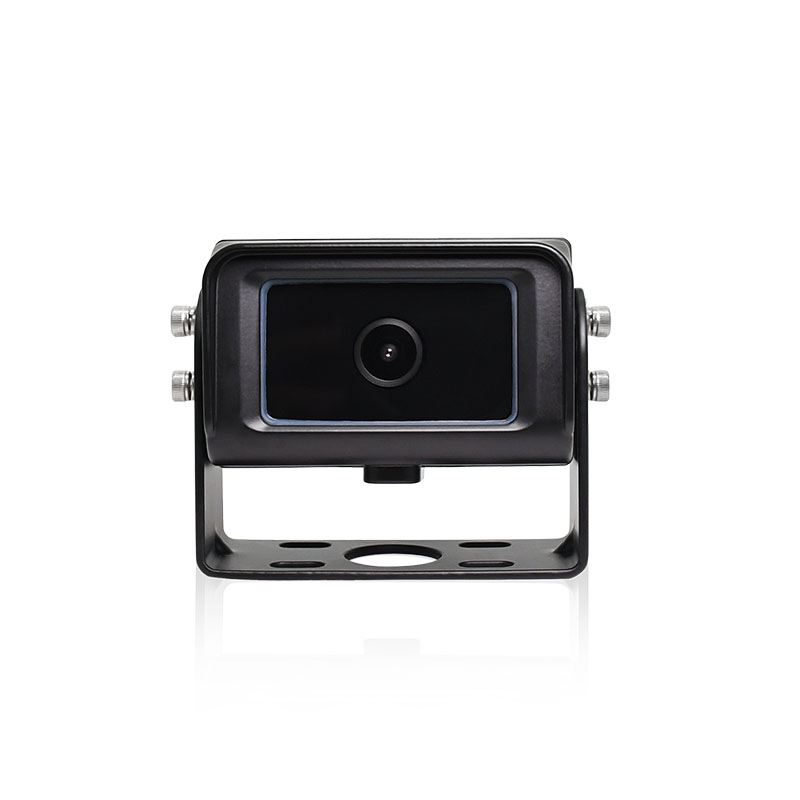

HD AI Pedestrian Detection Camera

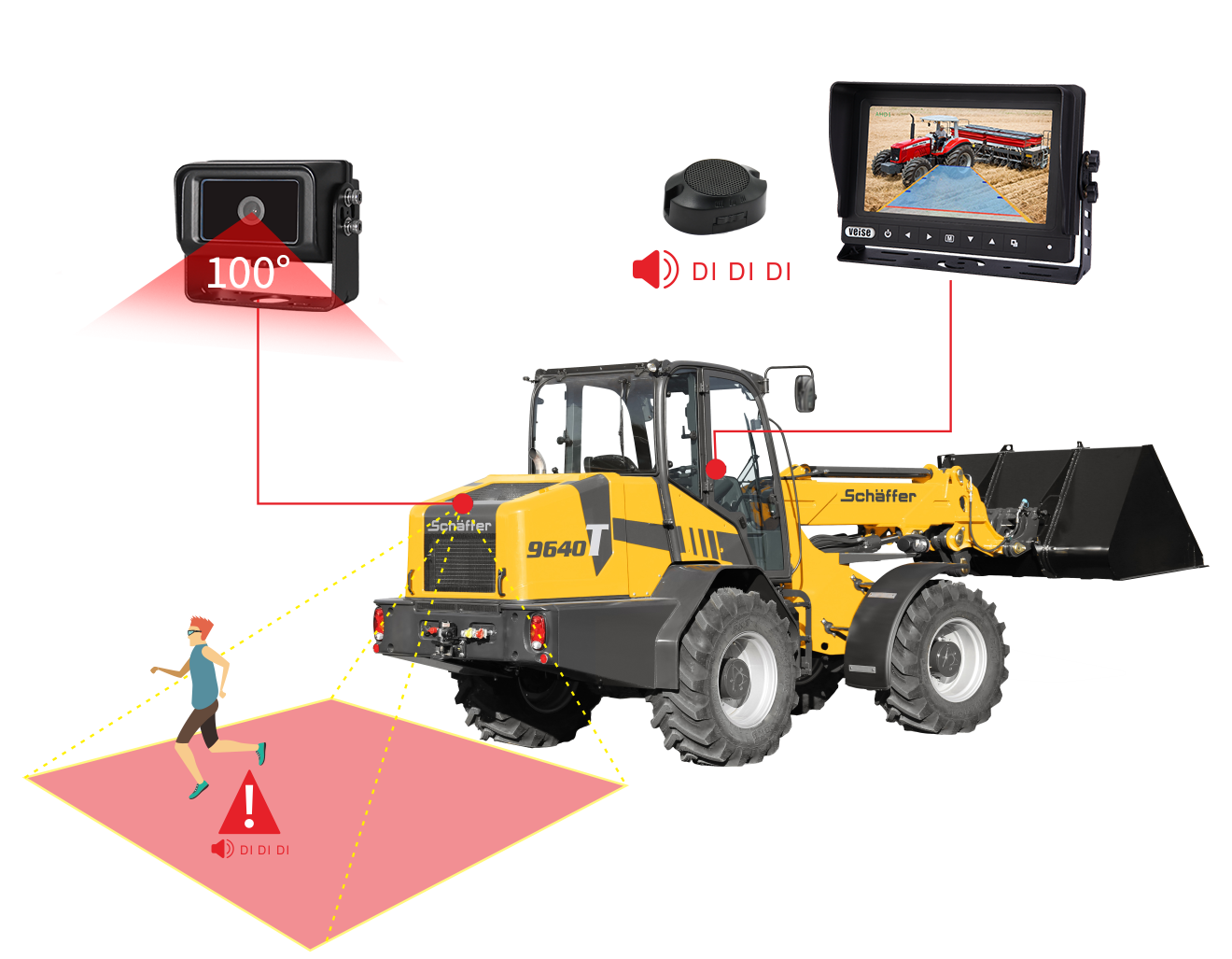

HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!

Effective Pixels: 1920(H) x 1080(V)

Waterproof Rating: IP69K

AI Camera (CHD-122MAI)
Image Sensor	1/2.9 Color CMOS
Effective Pixels	1920(H) x 1080(V)
Horizontal Resolution	1080P
Field of View	100°
AI Alarm I/O Output	1-4 levels PWM
Detection Targets	Pedestrians/non-motorized vehicles
Detection Image Ranging	0-5 meters (customizable)
Signal-to-Noise Ratio	≥48dB (AGC Off)
Video Output	AHD 1080P
Housing Material	Aluminum alloy
Waterproof Rating	IP69K
Operating Voltage	DC 12V ±10%
Operating Temperature	-20°C to +60°C (RH95% Max)
Storage Temperature	-30°C to +70°C (RH95% Max)
Vibration Resistance	GB∕T 2423.56-2018 standard (random 5G vibration)
Body Interface	4-core aviation connector
Product Dimensions	74(W) x 64(H) x 56(D) mm

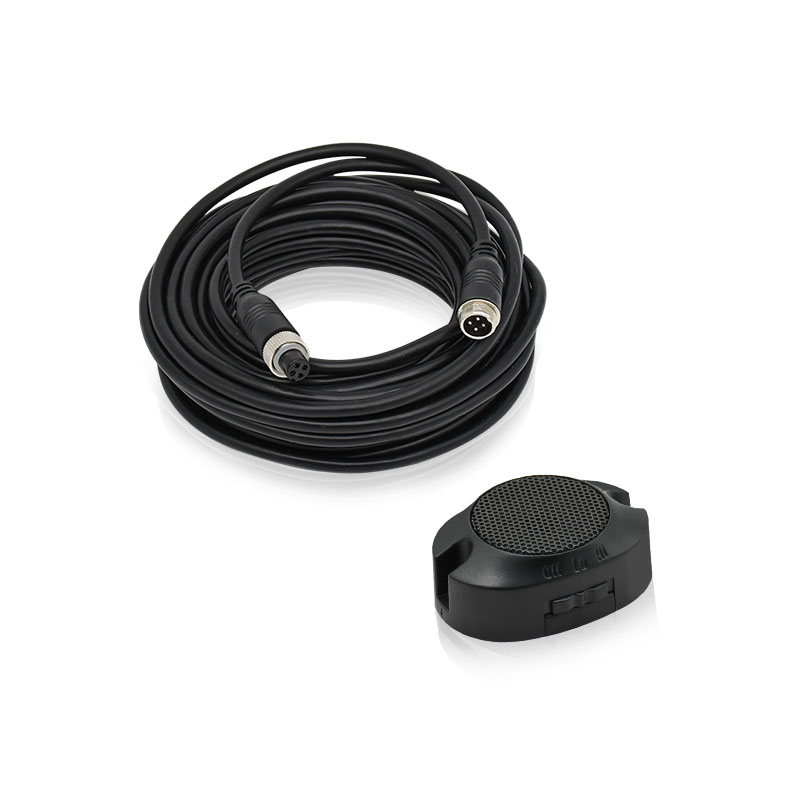

Video Power Connecting Cable

Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.

Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.

Product Applications

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
