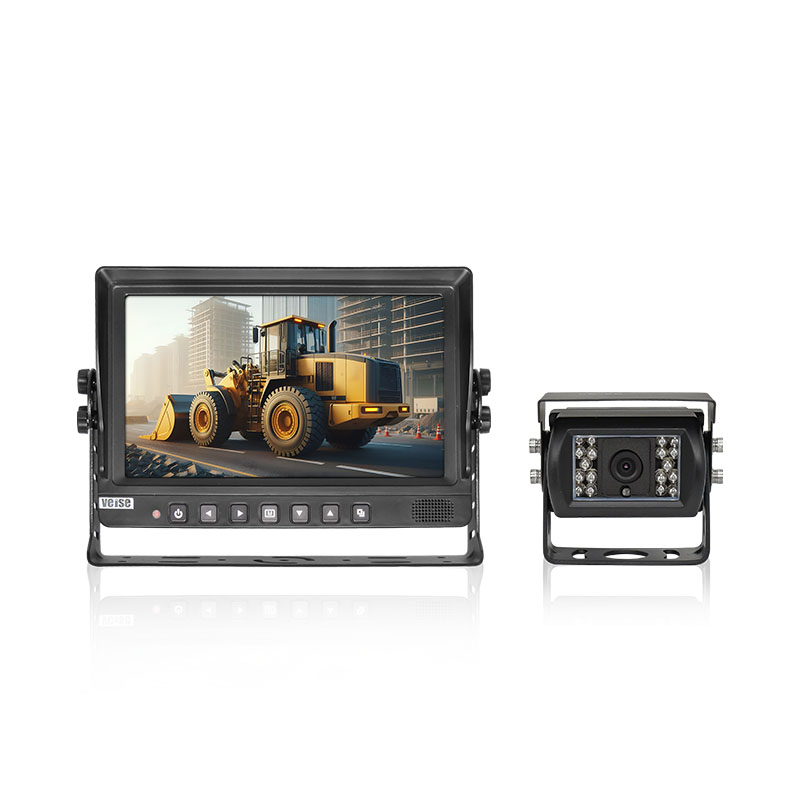

Product Features

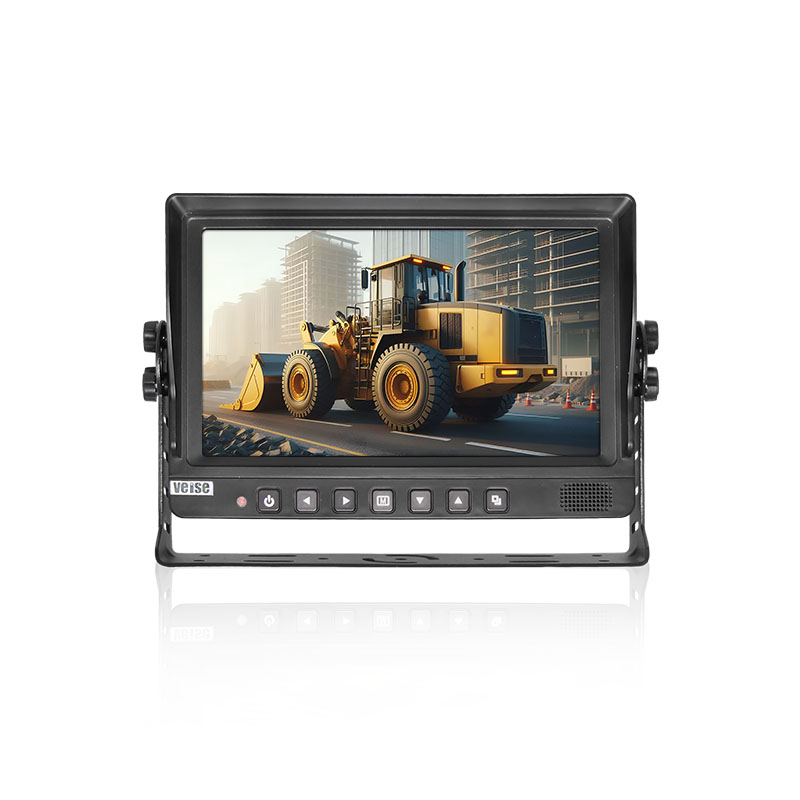

9-inch HD Monitor
Video Input: Supports 2 video inputs with dual-screen split Screen.
Screen Performance: IPS screen with fast response time, wide viewing angles, true-to-life colors, and a resolution of 1024RGB x 600.
Settings Functionality: OSD menu allows for screen mirroring, normal image Screen, adjustable delay time, and dual-trigger priority application.
Appearance Design: Custom-designed appearance with patented design, featuring a shell made from ABS+PC materials for high temperature resistance.

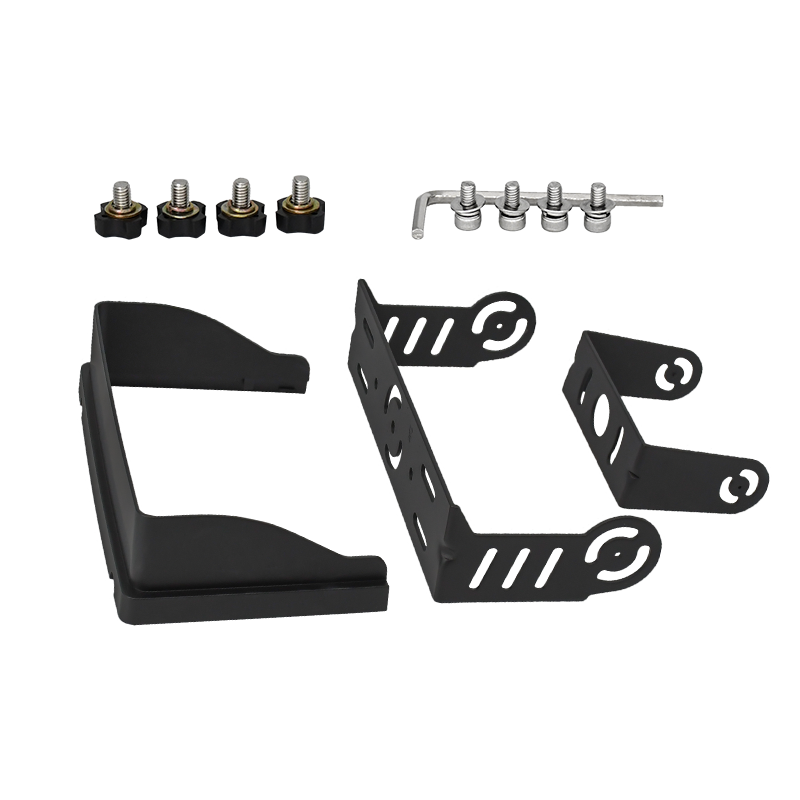

Sunshade Design: Removable sunshade to prevent sunlight from affecting Screen quality.
Bracket Design: Rust-resistant metal material with a U-shaped and double-sided fastening design for vibration resistance.
Brightness: High brightness of 600 cd/m² for clear images.
Voltage Protection: Designed to handle transient pulse protection with a load pulse voltage of DC24V + 174V (350ms).
Power Design: Independent energy-saving low-power design with a wide operating voltage range of DC11~32V.
Protection Mechanism: Built-in reverse polarity protection for external power supply and LED thermal response constant current and voltage protection.

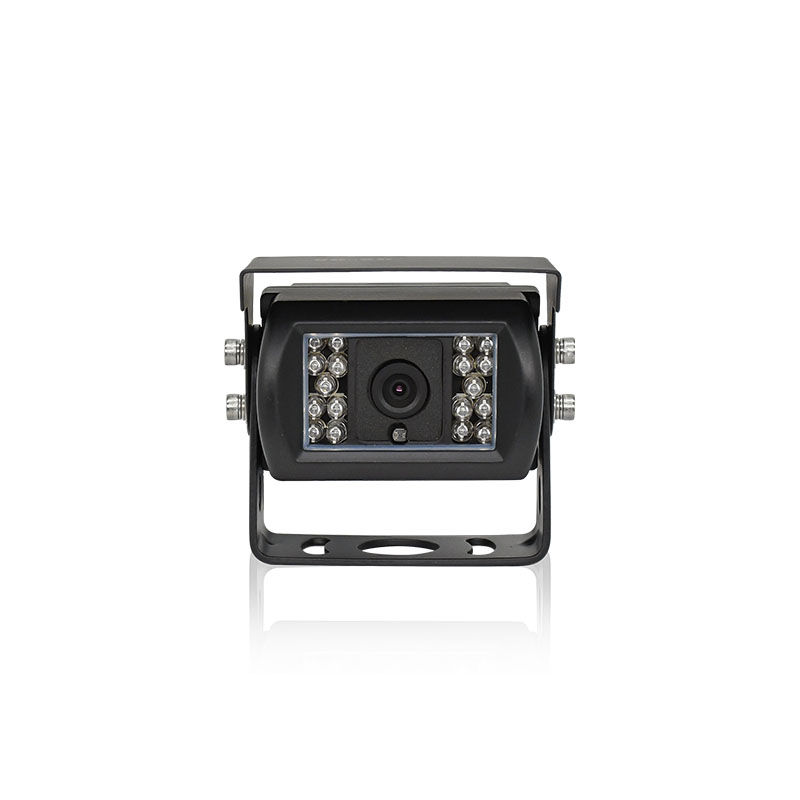

HD Car Camera
2 Million Pixels: High-definition resolution.
Heat-Dissipating Aluminum Alloy Shell: Ensures durability.
Nitrogen-Filled: Prevents fogging, waterproof rated IP69K (patented waterproof testing equipment).
Cold-Resistant Waterproof Tail Wire: Suitable for extreme environmental conditions.
Product Parameters
| Model | MHD-911 |
| Screen Type | 9-inch IPS Color LCD Screen |
| Resolution | 1024 (H) x 600 (V) |
| Video Input | Supports up to 2 channels of HD 1080P/720P/CVBS video signals |
| Screen Mode | Single channel switch |
| Color Format | PAL/NTSC (AUTO) |
| Brightness (cd/m²) | 600 |
| Load Pulse | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Vibration Resistance | GB/T 2423.56-2018 standard (random 5G vibration) |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC 11-32V |
| Dimensions | 244 (W) x 179 (H) x 81 (D) mm |
| Model | CHD-102Z |
| Effective Pixels | 1920 (H) x 1080 (V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 130° |
| Infrared Range | 15 meters (with 18 built-in 850nm infrared lights) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | HD 1080P |
| Shell Material | Aluminum alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C, RH 95% Max |
| Storage Temperature | -30°C to +70°C, RH 95% Max |
| Vibration Resistance | GB/T 2423.56-2018 standard (random 5G vibration) |
| Body Interface | 4-pin aviation connector |
| Product Dimensions | 76 (W) x 77 (H) x 66 (D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
