Product Feature
HD Camera
Original Imported SONY DSP
2 Megapixels High Definition
Heat-dissipating Aluminum Alloy Housing
Nitrogen-filled to Prevent Fogging
Waterproof IP69K (Patent-protected Waterproof Testing Equipment)
Cold-resistant and Waterproof Tail Wire for Extreme Environments
Product Parameters

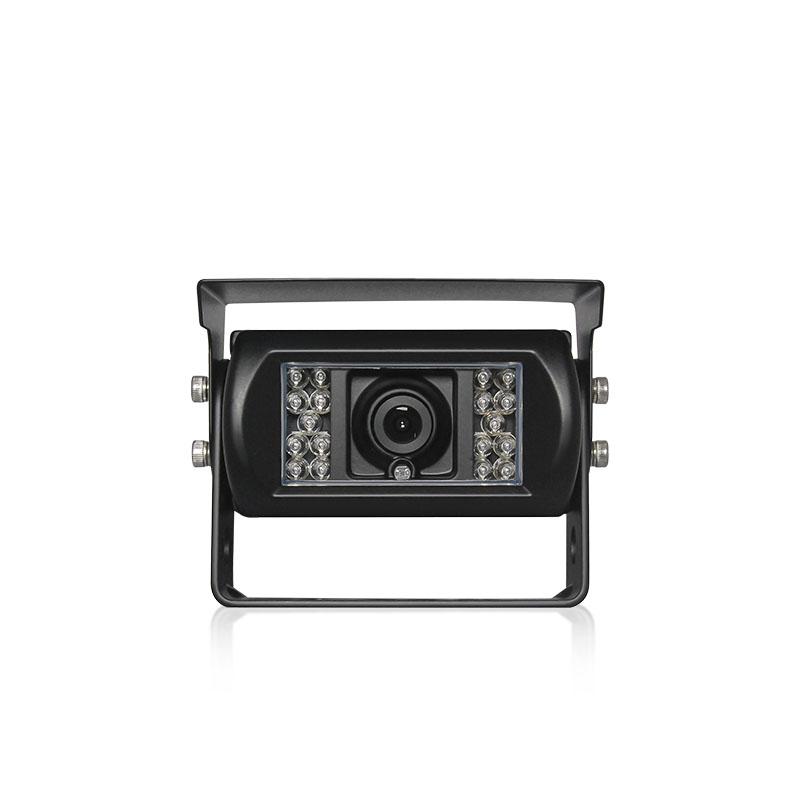

| Model | AHD Waterproof Camera (CHD-132M) |
| Image Sensor | 1/2.8 Color Sony |
| Effective Pixels | 1920(H) x 1080(V) |
| Horizontal Resolution | 1080P |
| Viewing Angle | 130° |
| Infrared Distance | 15 meters (built-in 18 pcs 850nm infrared LEDs) |
| Waterproof Rating | IP69K |
| Operating Voltage | DC12V ± 10% (powered by monitor) |
| Operating Temperature | -20℃ to +60℃ |
| Storage Temperature | -30℃ to +70℃ |
| Vibration Resistance | GB/T 2423.56-2018 standard (random 5G vibration) |
| Dimensions | 108(W) x 78(H) x 75(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
