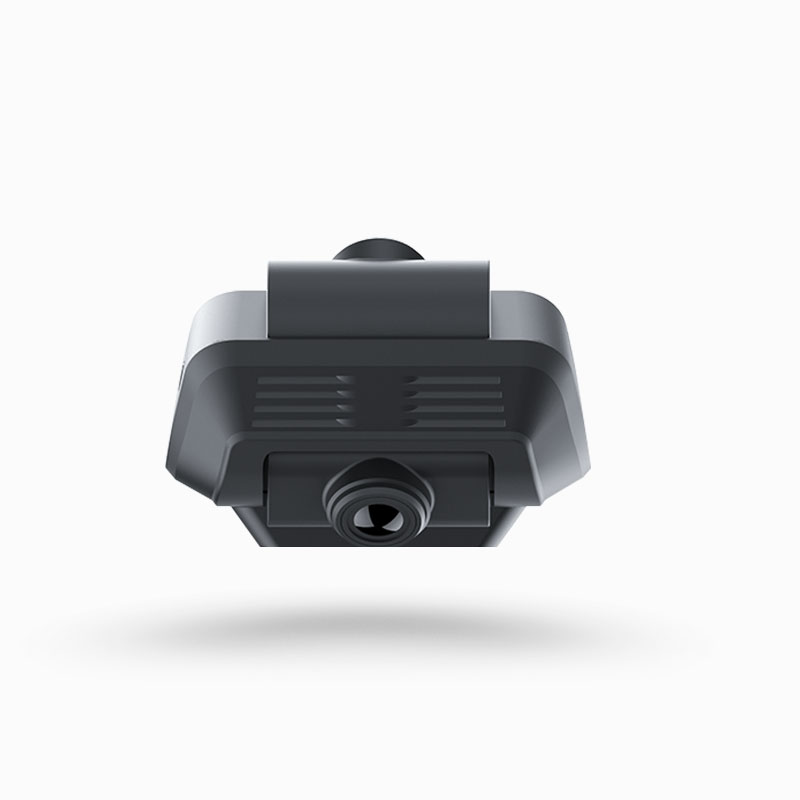

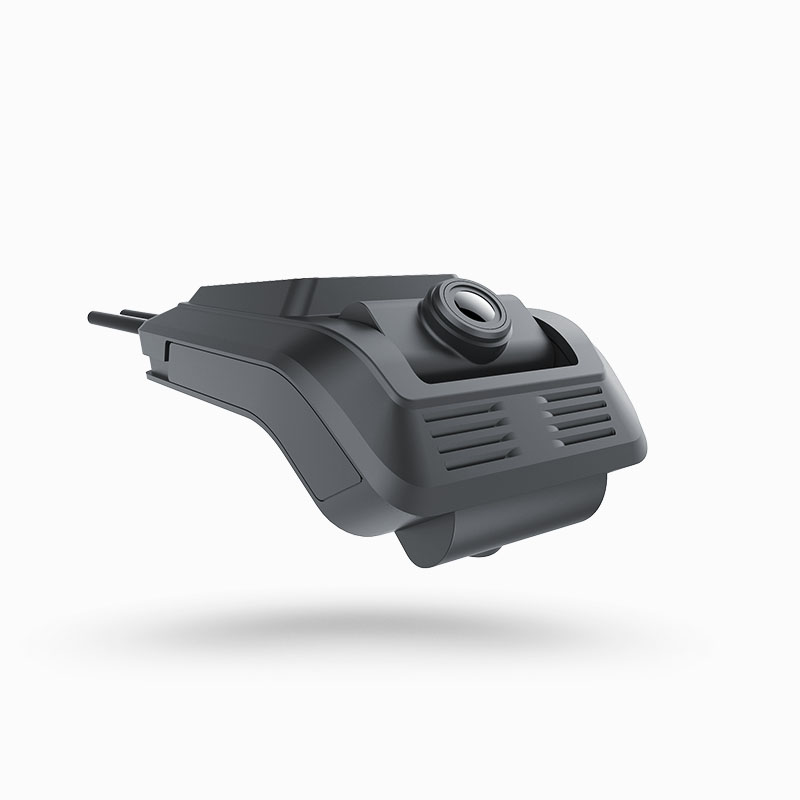

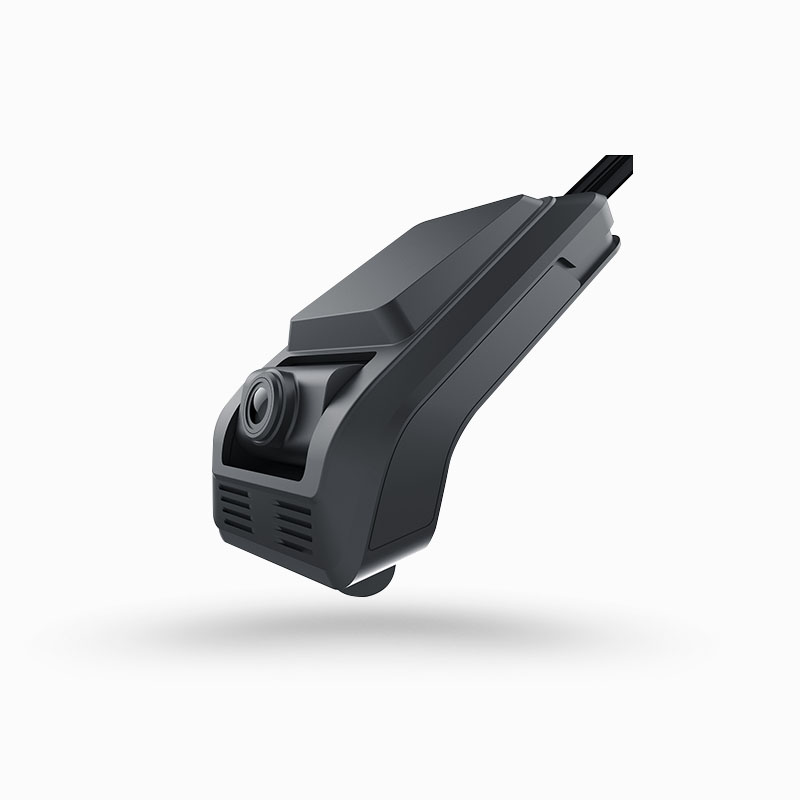

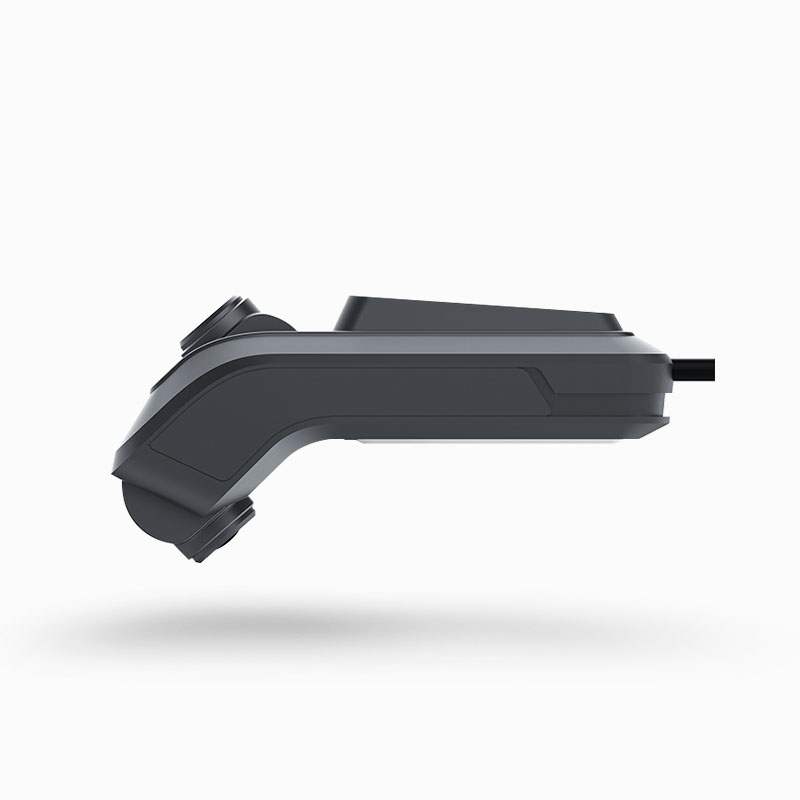

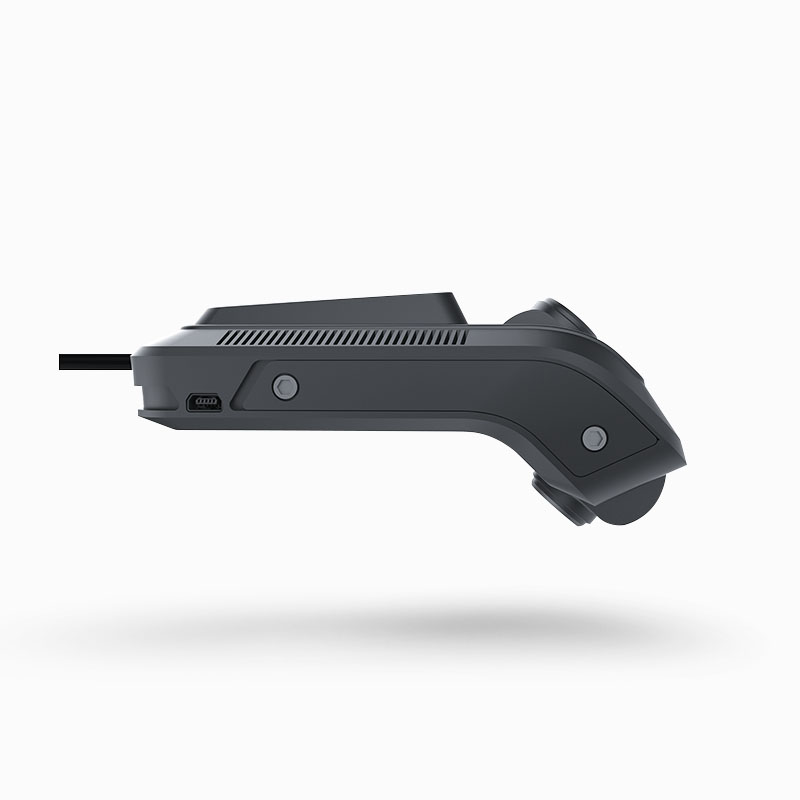

2-Channels AI intelligent 4G Dash Camera

2-Channels AI intelligent 4G Dash Camera

Model : DF-V01-4G
Summarize : This product features H.265 and H.264 encoding and decoding for efficient storage and transmission, supporting dual-channel 1080p at 25fps. It includes a built-in AI algorithm for ADAS and DMS functions, and offers dual-mode precise positioning with GPS and Beidou. It supports one TF card of up to 512GB and includes a super capacitor to ensure video file integrity. The device is compatible with 4G global frequency bands and offers optional WiFi hotspot support. Additionally, it supports a mobile app for video preview and parameter configuration, along with one-channel IO alarm low output and one channel of RS232.
More Info : Online Service

Product Description

Product Features

H.265 & H.264 encoding and decoding,Save storage space and transmission flow；
Support 2-channel 1080p * 25fps;
Built in AI intelligent algorithm, which can support ADAS and DMS functions；
Support GPS + Beidou dual-mode precise positioning；
Support 1 TF card, up to 512GB;
super capacitor double guarantees the integrity of video files；
Support 4G, it can support global frequency band；
Support WiFi hotspot(Optional).
Support mobile app, client, preview video and parameter configuration；
Support 1CH IO alarm low output and 1CH of RS232；

Product Parameters

ITEM	Technical Specifications
CPU	Dual-Core processor@1.5GHz,Total coding resources 1080p@60fps NPU@1.0TOPS neural network acceleration engine
Memory	2Gb DDR3
Video Input	Active Pixels: 1920×1080,1080×720, H.264&H.265 format
Video Input	2-ch Built-in CMOS camera
Configuration	Support mobile APP preview and setting
Audio input / output	Built-in MIC and speaker, G.711a format
Video recording resolution	2-ch 1080p*25fps,Simultaneous recording of sound and video.
G-Sensor	Built-in 3-axis acceleration
External interface	1-ch RS232, reserved for communication with peripherals
Alarm Input/output	1-ch SOS /1-ch Low output
Positioning module	GPS / Beidou Positioning Module
4G	built-in 4G module,TDD-LTE, FDD-LTE
WIFI	Optional support, 2.4G, 802.11b/g/n, AP mode
Storage	Support 1 TF card, Support 16G/32G/64G/128G/256GB/512GB
USB	Micro USB, support usb wifi dongle
Upgrade	TF card and OTA
AI - ADAS	Lane departure, collision alarm, Distance detection, pedestrian detection etc
AI - DSM	Fatigue driving detection, Smoking, call mobile phone, Occlusion, Unsafe driving behavior habit detection
Input voltage	DC:+10V ～ +36V
Power consumption	Normal working state ＜ 5W (without external equipment)
Power off protection	Super capacitor design, support abnormal power failure, ensure the integrity of video files
Working Temperature	-25℃ to +70℃
Working relative temperature	20% to 80%
Communication protocol	JT/T808-2011，JT/T808-2019，CMSV6
Equipment size	120mm77mm55mm
Net weight	240g

*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
