9-inch AI reverse camera system with audible and visual warning monitor and remote control for adjusting the auxiliary line of the reversing scale

Product Features

9-inch HD  Monitor(with Remote Control)

• Video Input: Supports 1 video input with single-picture display.

• Display Performance: IPS screen with fast response time, wide viewing angle, true color representation, and a resolution of 1024RGB × 600.

• Settings Function: OSD menu allows settings for image mirroring, normal image, delay time, and dual-trigger priority application functions.

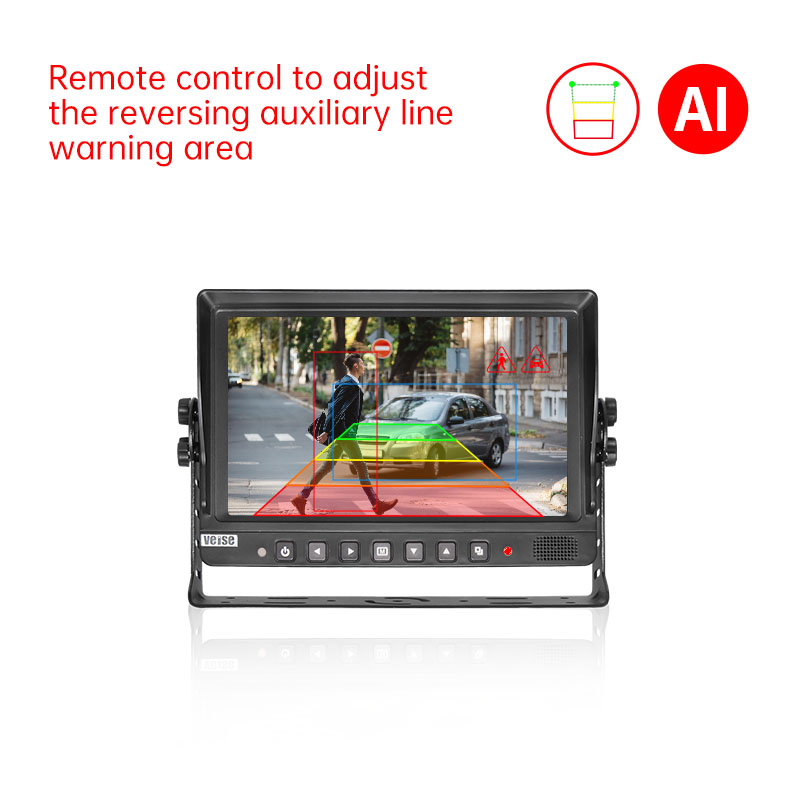

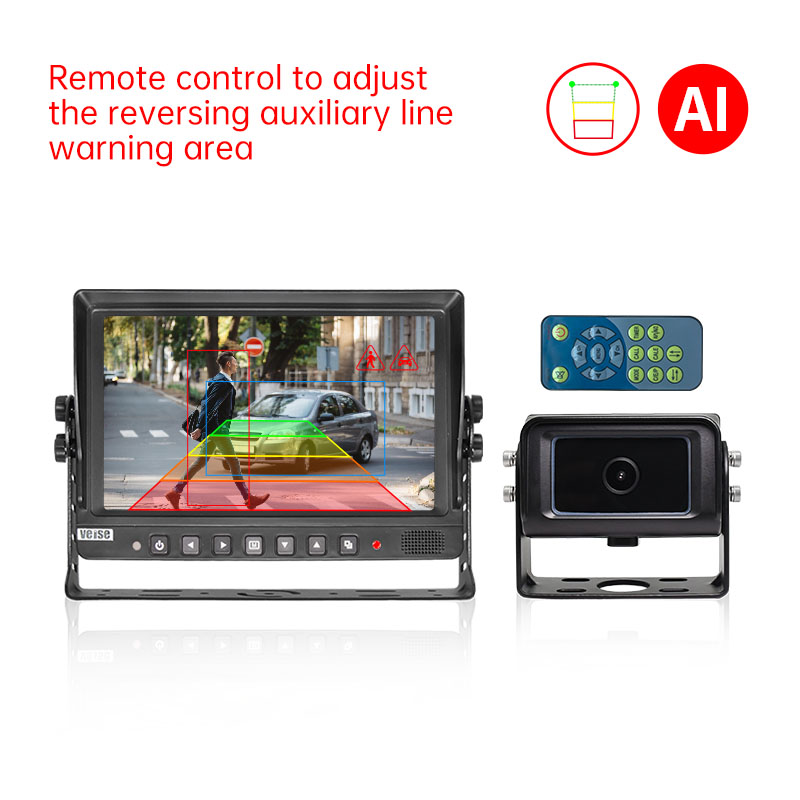

• Monitoring warning area freely adjust: equipped with a remote control to remotely adjust the AI camera rearview scale auxiliary line.

• Appearance Design: Custom-designed appearance with a patent, using ABS+PC material for the housing, which is heat-resistant.

• Safety Function: Built-in AI early warning signal control with a beeping alarm and tri-color LED warning light for safety alerts.

• Sunshade Design: Detachable sunshade cap to prevent sunlight from affecting the display quality.

• Bracket Design: Rust-proof metal material with a U-shaped and double-sided tightening anti-vibration design.

• Brightness: High brightness of 600 cd/m² for clear images.

• Voltage Protection: Protection against load dump pulse voltage, designed for DC24V + 174V (350ms) to safeguard against transient pulses in vehicles.

• Power Supply Design: Independent power supply with energy-saving low power consumption, and a wide operating voltage range of DC11-32V.

• Protection Mechanism: Built-in protection against reverse polarity of external power supply and LED thermal response constant current and constant voltage protection.

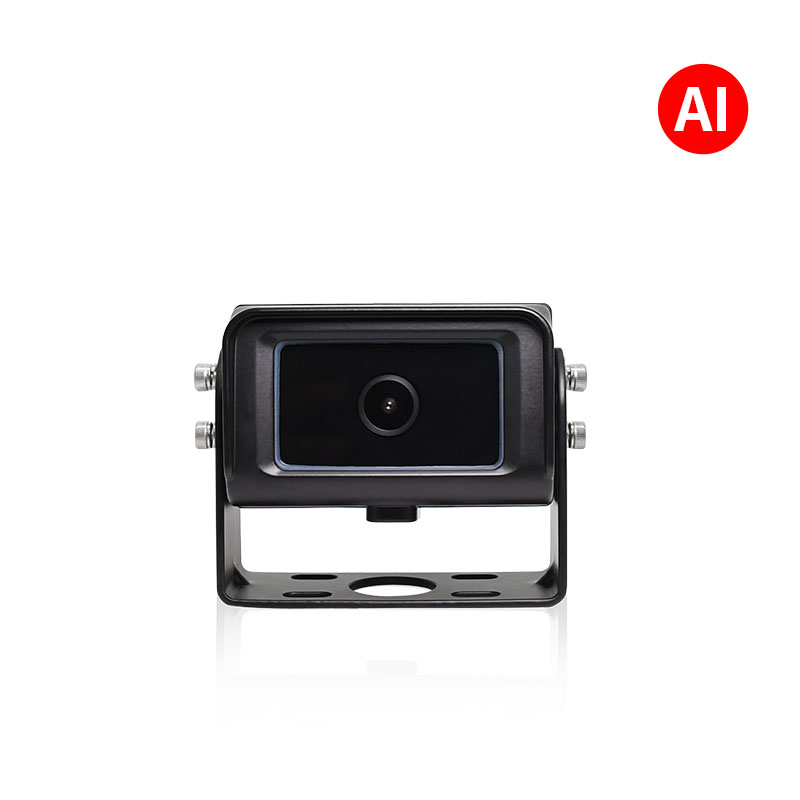

AI Pedestrian and Vehicle Detection Camera

Working Principle: By analyzing and learning the characteristics of the target's shape, movement, and posture, the camera detects pedestrians and vehicles.

The AI pedestrian and vehicle detection camera employs deep learning technology to detect pedestrians and vehicles in real-time in front of, beside, and behind the vehicle. It alerts the driver to the potential risk of collision with pedestrians or vehicles, thereby enhancing driving safety!

AI Early Warning Signal Output: 1-4 levels (green light flashes once, yellow light flashes twice, red light flashes three times, red light stays on constantly);

Image Ranging: 2 meters (customizable within 0-5 meters);

100° Ultra-Wide Angle, Automotive-Grade DSP, 2 million high-definition pixels, IP69K water resistance rating, cold-resistant and waterproof signal tail cable.

Cable

• 4-core phosphor bronze aviation connector with double shielding, providing excellent interference resistance.

• Low impedance and minimal signal attenuation during transmission.

• The aviation connector and cable are doubly injection-molded, offering good tensile strength, flexibility, and resistance to swinging and stretching.
