AI Pedestrian Detection Audible & Visual Warning System
Model :
HSD-7184J732MAI1
Summarize :
Due to the highly concentrated thoughts by machinery equipment vehicles operators, they often do not have the time to monitoring the vehicle's backup monitor screen image. This is especially true in situations where no reverse radar warning system is installed. During vehicle operation, this can easily create safety hazards for personnel, leading to economic losses. The AI pedestrian detection backup system not only eliminates the need for the complex wiring and installation of reverse radar,but also allows the AI backup camera to capture personnel in the monitoring area in real time, unlike ordinary cameras. It built-in LED warning light safety tips for pedestrians，and sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver, thus enhancing vehicle operation efficiency, eliminating safety hazards, and preventing economic losses. This system is widely used in trucks, forklifts, buses, and construction vehicles. The monitor supports real-time recording, playback, and safe distance display functions. Waterproof monitor are particularly suitable for safety monitoring of mechanical equipment and vehicle operations in special environmental conditions such as high humidity, rainy season, tunnels, and dust.

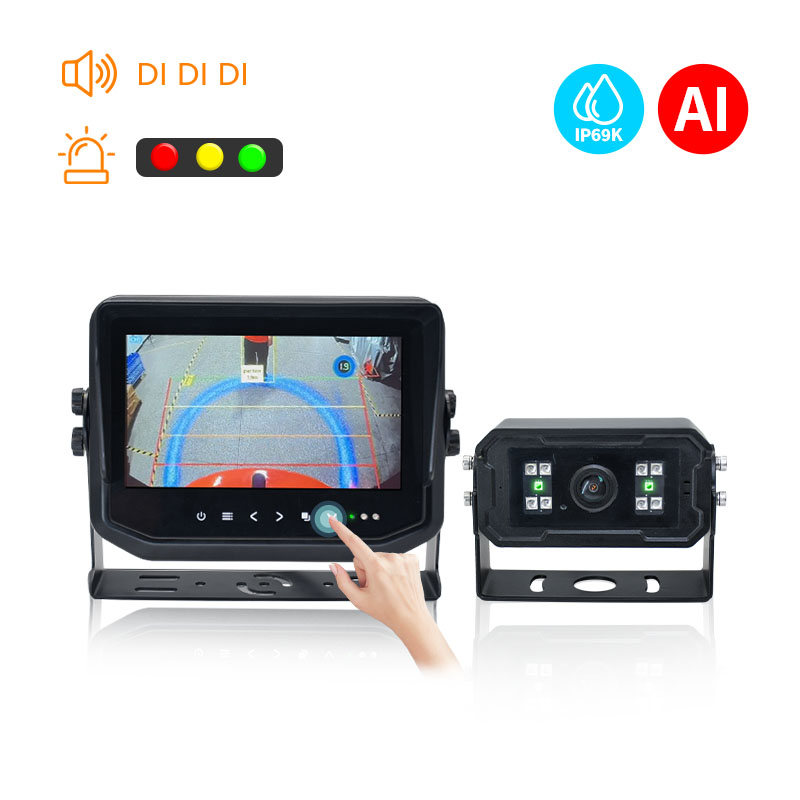

AI Pedestrian Detection Audible & Visual Warning System with 7-inch Waterproof Monitor and AI Camera
Dangers of Large Vehicle Blind Spots
Large vehicles such as trucks, freight trucks, and buses have significant blind spots. When these vehicles are driving at high speeds and encounter motorcyclists changing lanes or pedestrians suddenly appearing during turns, accidents can occur easily.
Pedestrian & Vehicle Detection
It can detect bicycle/electric bicycle riders, pedestrians, and vehicles. Users can activate or deactivate the pedestrian and vehicle detection alert function at any time. (According to user preferences, the camera can be installed on the left, right, rear, or overhead position)
Blind Spot Audible And Visual Alarm Warning Driver
Due to the high concentration required by vehicle and machinery operators, they often do not have the time to constantly monitor the vehicle's rearview monitor image screen. AI pedestrian vehicle detecting and warning camera to capture personnel in the monitoring area in real time, It sends warning signals that trigger the built-in buzzer alarm and LED strobe light alerts on the monitor to remind the driver.
Wide Angle View
The cameras use a wide angle lens, achieving a horizontal angle of 140-150 degrees. This offers user a broader range for monitoring blind spots.

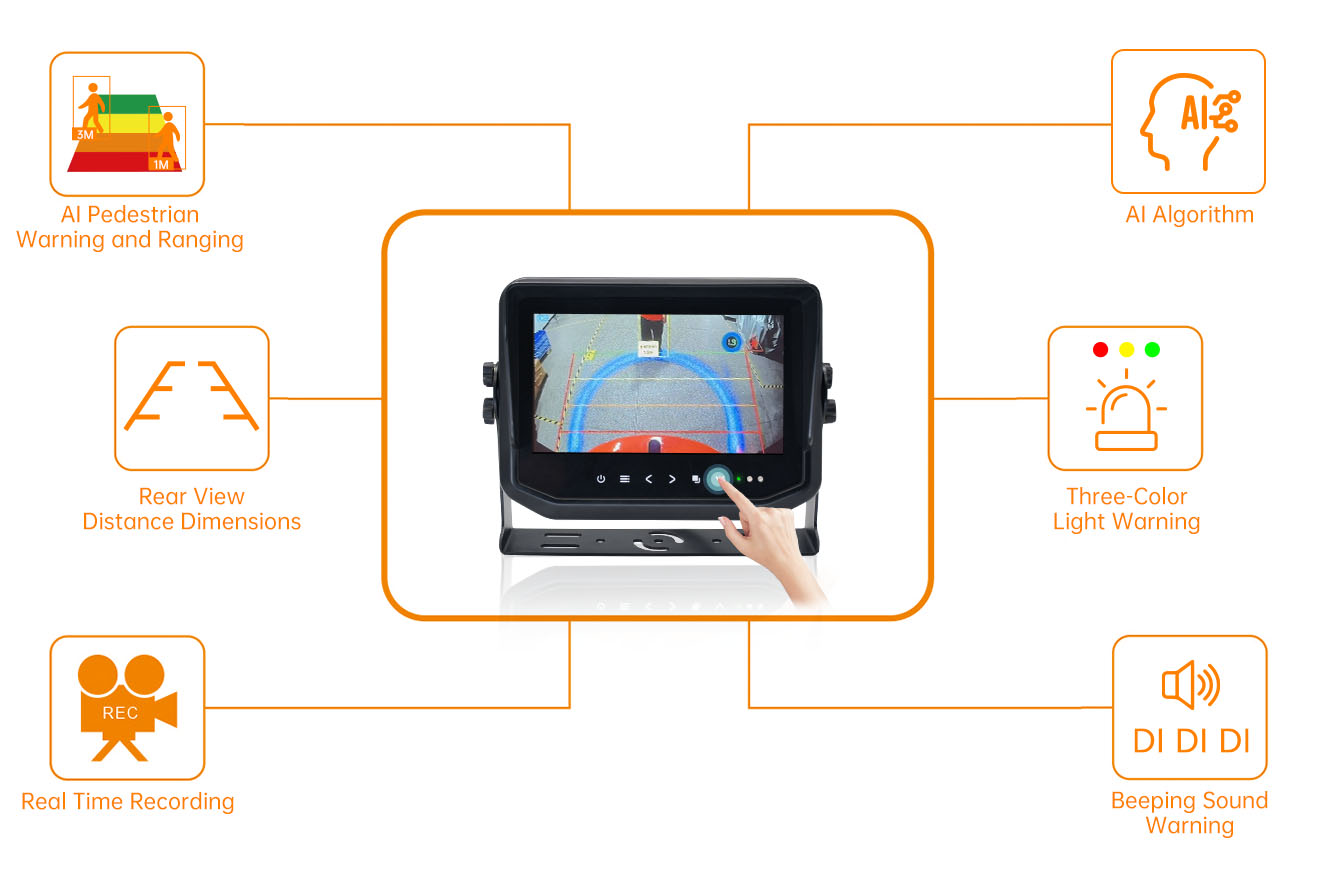

Product Features

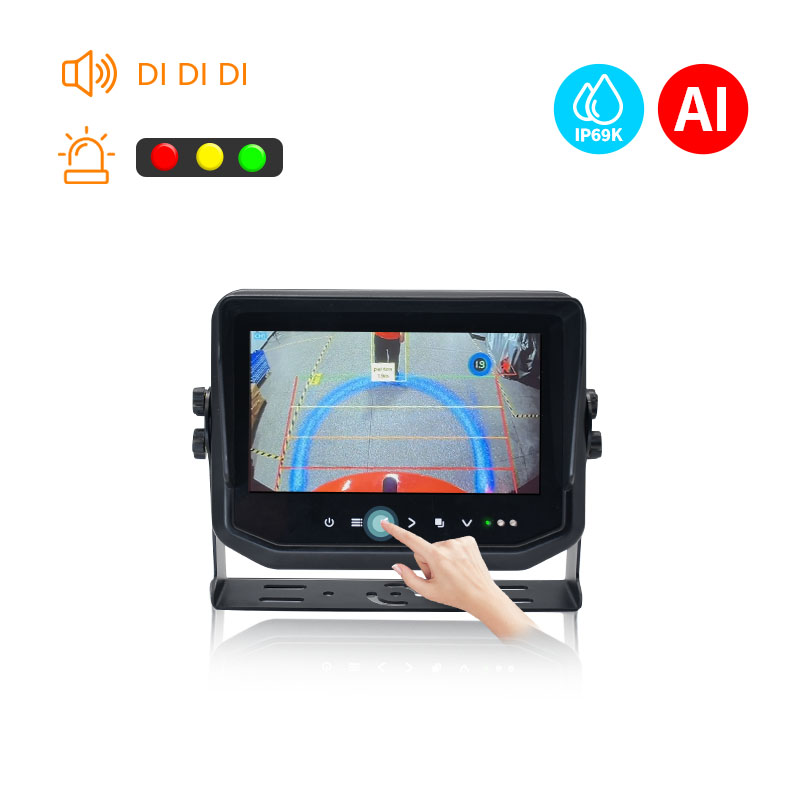

7-Inch HD Waterproof Audible & Visual Warning Monitor
Display Screen : 7-inch IPS screen with fast response speed, wide viewing angles, true colors.
AI Warning : AI Camera warning signals that trigger monitor's buzzer alarm and LED strobe light alerts on the monitor to remind the driver for safety alerts.
DVR: Real time recording and playback function, supporting 16-512GB TF card (standard 64GB);
Display screen full lamination process: The protective glass panel of the monitor and the display screen adopt a space free full lamination process structure to eliminate specular reflection and ensure clear and transparent image screens;
Protection Circuit Design: free operates voltage input DC 8-32V. pulse voltage protection against load disconnection,reverse polarity protection for external power, and LED constant current and voltage protection to prevent misuse and ensure longevity.
Sunshade Patented Design: Detachable sunshade to prevent sunlight interference.
Bracket Patented Design: Rust-resistant metal material with U-shaped and dual-side fastening for vibration resistance.
ISO16750-2 Standard (24V System Us=174V, Ri=4Ω, td=350ms)
Operating Temperature
-20℃ to +70℃
Storage Temperature
-30℃ to +80℃
Operating Voltage
DC11-32V
Vibration Level
GB∕T 2423.56-2018 Standard (Random 5G Vibration)
Dimensions (L x W x T)
210 x 143 x 84mm
Weight
800g

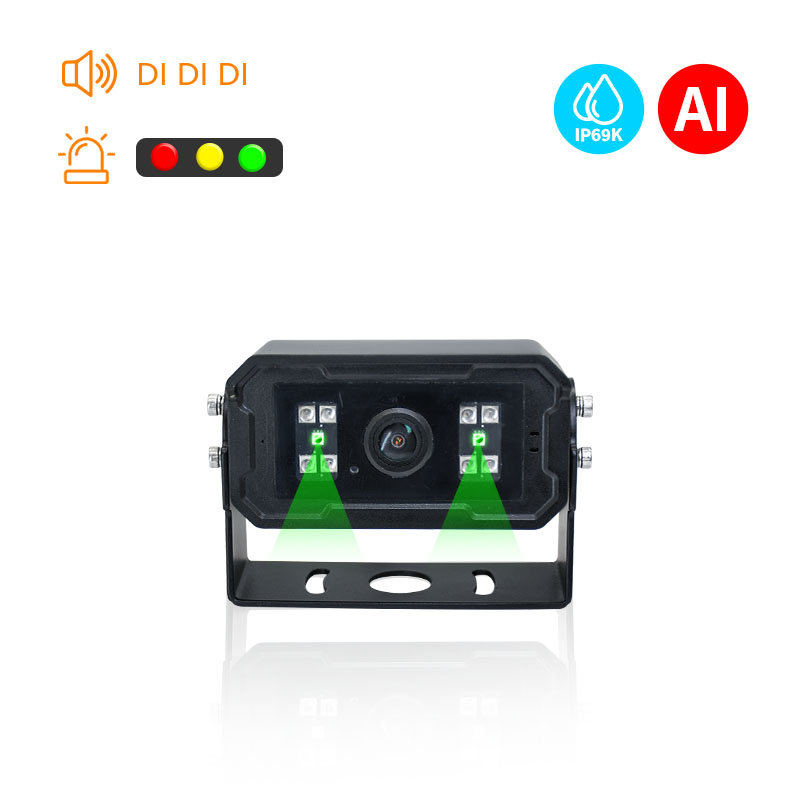

HD AI Pedestrian Detection Audible & Visual Warning Camera
HD AI Pedestrian Detection Camera adopts deep learning technology to detect pedestrians in front of the vehicle, on the side, and behind the vehicle in real time, so as to warn drivers of potential risks of collision with pedestrians, and improve the driving safety!

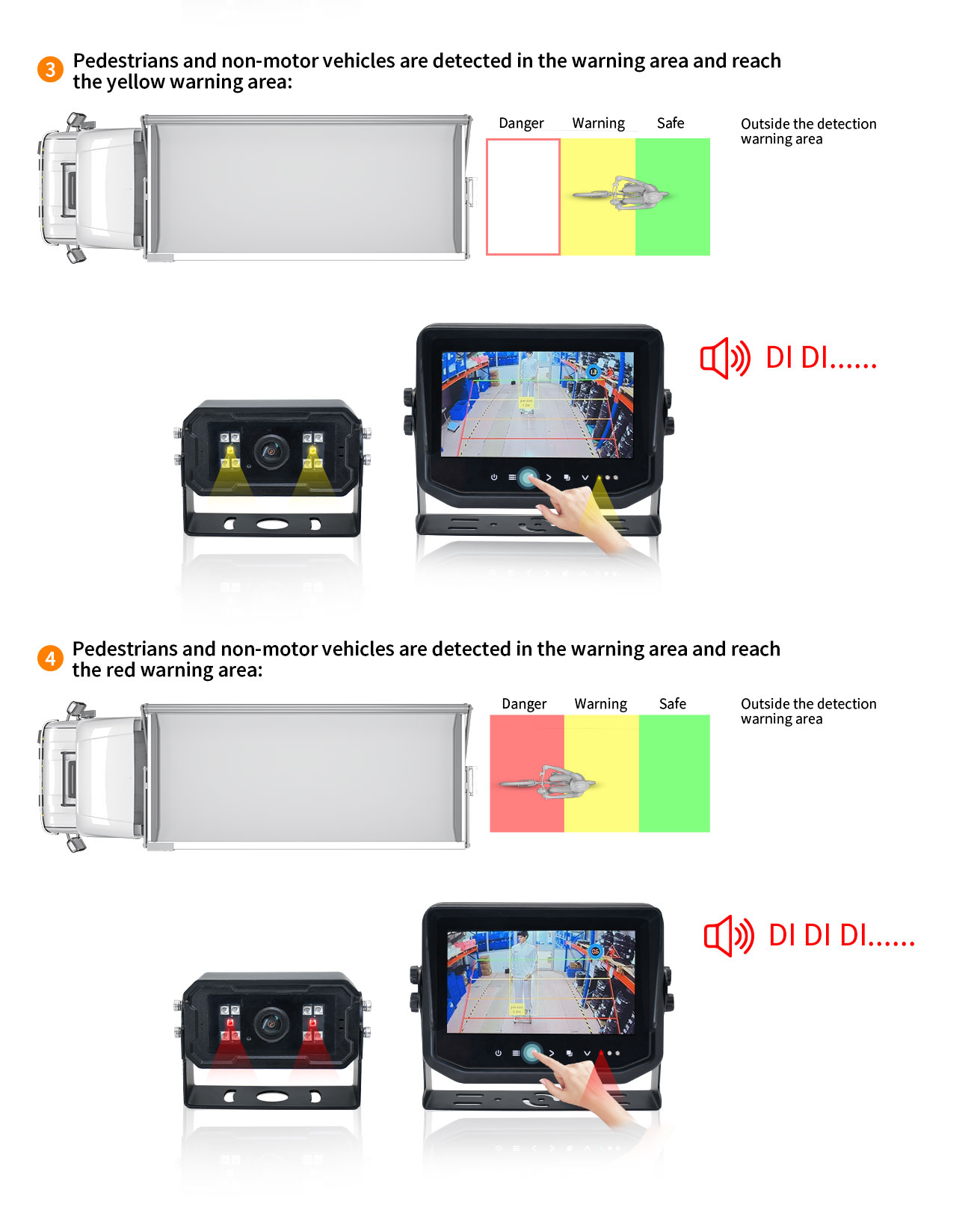

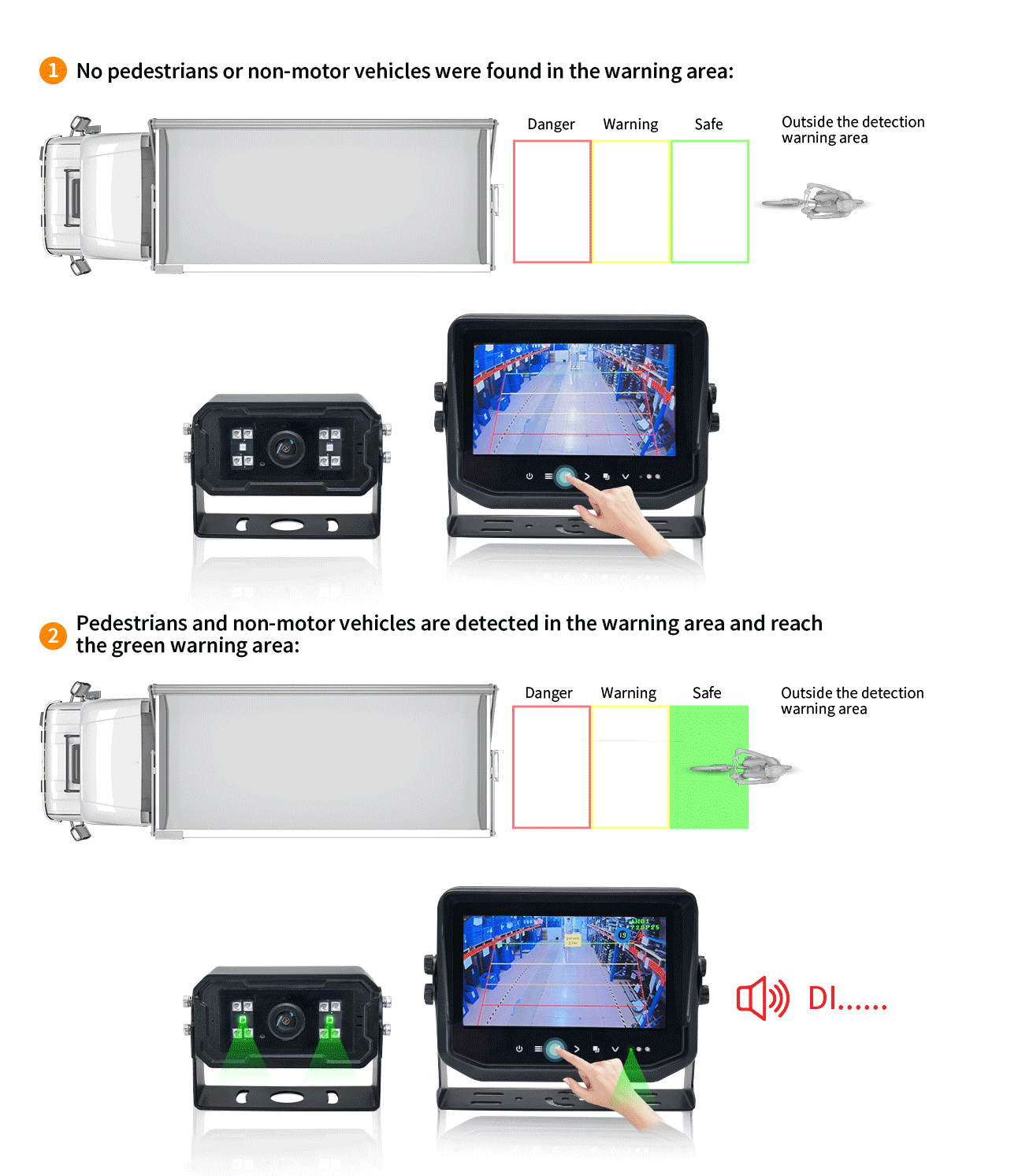

Monitoring area personnel safety warning:
Green light blinking one, yellow light blinking two, red light blinking three, red light always on and buzzer alarm sound
Image distance measurement: 2 meters (within 0-5 meters can be customized)
HD AI Pedestrian Detection Audible & Visual Warning Camera (CHD-732MAI)

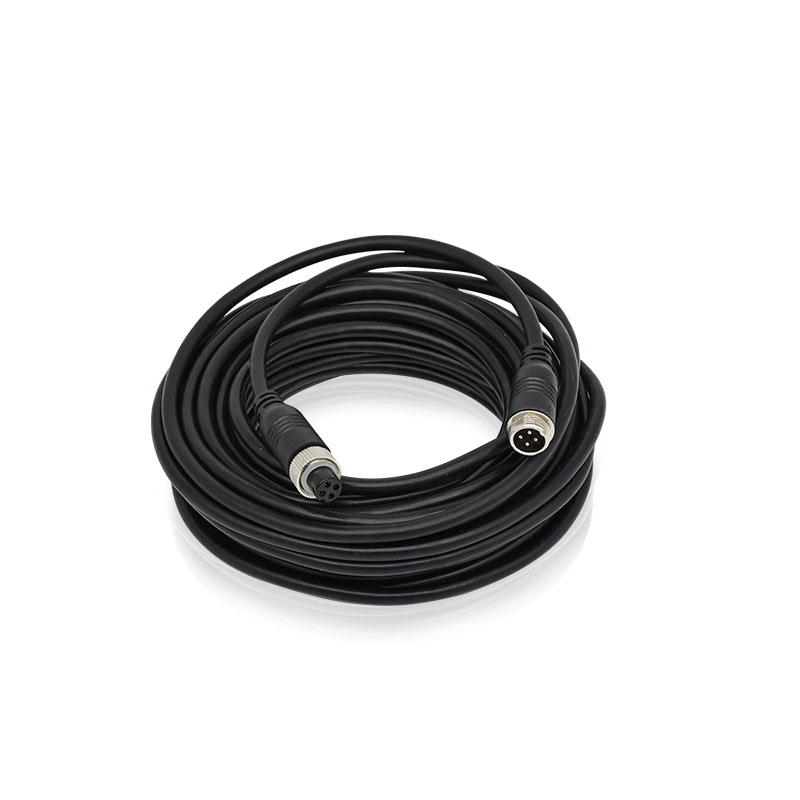

Material: 4-core phosphor bronze aviation plug with dual-shielded connection cable for good anti-interference.
Features: Low impedance, minimal signal transmission attenuation, double injection-molded aviation plug tail cable for excellent tensile and swing resistance.
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
