Product Features
7-inch HD Monitor
Video Input: Supports dual video inputs with split-screen display for two video sources.
Display Performance: IPS screen with fast response time, wide viewing angle, and true color reproduction. Resolution is 1024 x 600.
Settings Function: OSD menu allows for settings such as image mirroring, normal display, delay time, and dual-trigger priority application functions.
Design: Proprietary patented appearance design. Housing made of ABS + PC materials, heat-resistant.

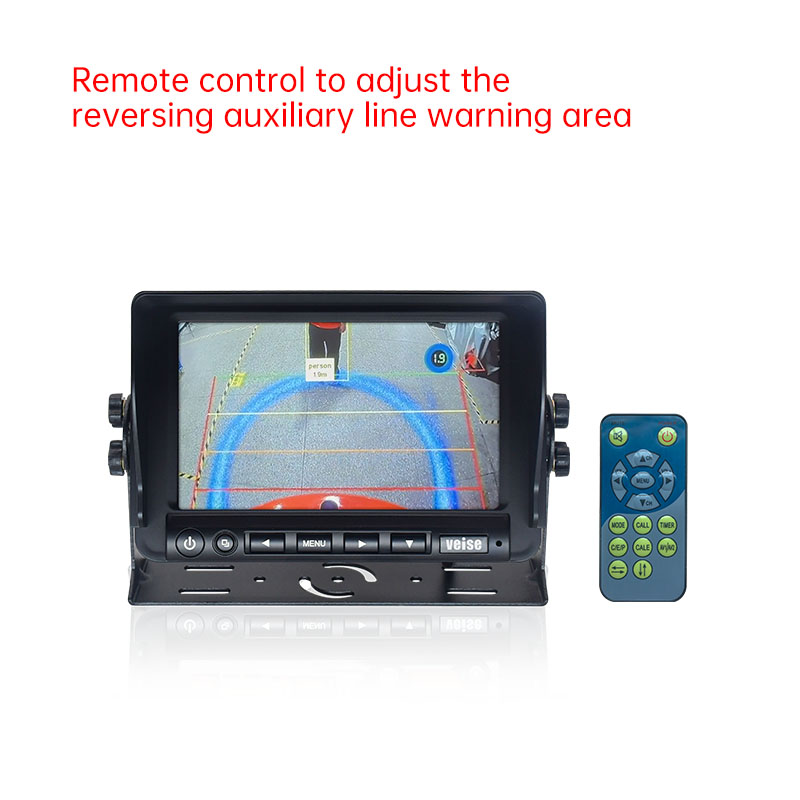

Adjustable Monitoring and Alarm Zones: Equipped with a remote control to adjust the rearview ratio auxiliary lines of the AI camera.
Safety Features: Built-in AI warning signal control with beeper alarm and tri-color LED warning light for safety alerts.
Sunshade Design: Detachable sunshade cap to prevent sunlight from affecting display quality.
Mounting Design: Rust-proof metal material with U-shaped and dual-sided tightening anti-vibration design.
Brightness: 600cd/㎡ high brightness for clear image display.
Voltage Protection: Load dump pulse voltage protection for DC24V + 174V (350ms) to safeguard against automotive transient pulses.
Power Supply Design: Independent power supply with energy-saving and low power consumption, operating within a wide voltage range of DC11~32V.
Protection Mechanism: Built-in protection against reverse polarity of external power supply and LED thermal response constant current and constant voltage protection.

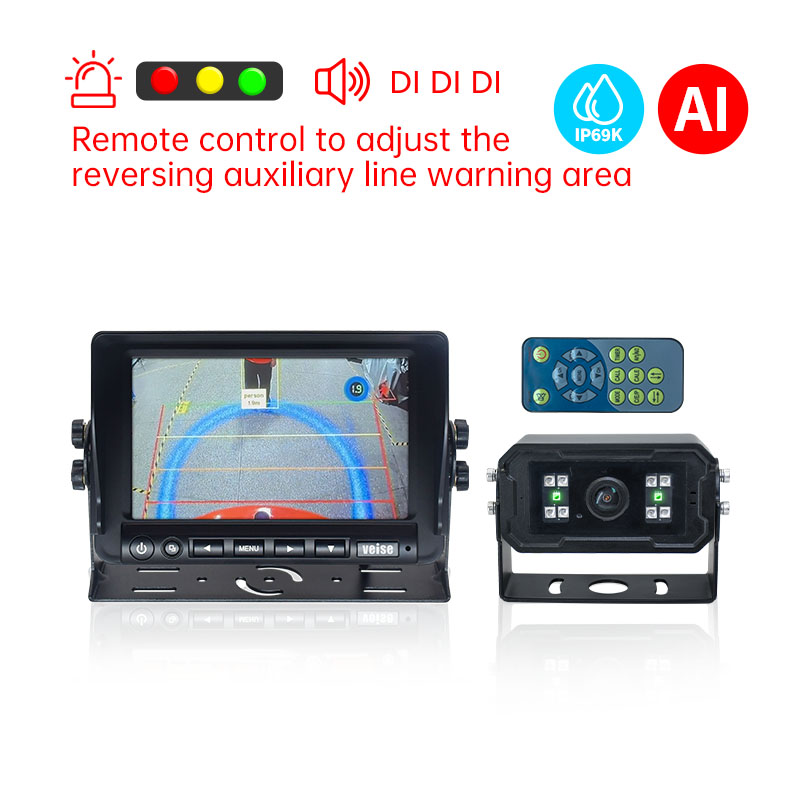

AI Pedestrian and Vehicle Detection Camera
The AI Pedestrian and Vehicle Detection Camera uses deep learning technology to detect pedestrians and vehicles in real-time in front of, beside, and behind the vehicle. It alerts the driver to the potential risk of collision with pedestrians or vehicles, thereby enhancing driving safety!
Personnel Safety Warning in Monitoring Area:
Green light flashes once
Yellow light flashes twice
Red light flashes three times
Red light stays on with a beeping alarm
Image Ranging: 2 meters (customizable within 0-5 meters);
Features:
100° ultra-wide-angle view
Automotive-grade DSP
2 million high-definition pixels
IP69K waterproof rating
Cold-resistant, waterproof signal tail cable
Cable
4-core phosphor bronze aviation connector with double shielding, providing excellent interference resistance; low impedance with minimal signal attenuation; the aviation connector and tail cable are double-molded, offering good tensile strength, flexibility, and durability against shaking and stretching.
Product Parameters
| Model | HD Monitor (MHD-771J-RC) |
| Color Display | 7-inch IPS Screen |
| Resolution | 1024 x 600 |
| Video Input | Single-channel |
| Display Mode | Single Picture |
| Video Signal Input | CVBS / AHD720P / 1080P |
| AI Warning Signal Input | ● Green Light - Safe, ● Yellow Light - Caution, ● Red Light - Danger |
| OSD Menu Function | Separate settings for normal/mirror image, reverse delay time setting, trigger priority, multi-language support |
| Color System | PAL/NTSC (AUTO) |
| Brightness | 600 cd/m² |
| Contrast Ratio | 800:1 |
| Surge and Load Dump Protection | ISO16750-2 standard (24V system Us=174V, Ri=4Ω, td=350ms) |
| Connector Socket | 18-pin waterproof interface |
| Operating Temperature | -20℃ to +70℃ |
| Storage Temperature | -30℃ to +80℃ |
| Operating Voltage | DC11-32V |
| Vibration Resistance | GB/T 2423.56-2018 standard (random vibration 5G) |
| Dimensions | (L x W x T) (210 x 143 x 84 mm) |
| Weight | 800g |
| Model | AI Camera (CHD-702M-AIRC) |
| Image Sensor | 1/2.9" Color CMOS |
| Effective Pixels | 1920 x 1080 |
| Horizontal Resolution | 1080P |
| Viewing Angle | 100° |
| Warning Light | Green Light - Safe, Yellow Light - Caution, Red Light - Danger |
| Audio Warning | Built-in Beeper |
| Detection Targets | Pedestrian and Non-motorized Vehicle Detection and Warning |
| Image Ranging | 0-5 meters (customizable) |
| Signal-to-Noise Ratio | ≥48dB (AGC Off) |
| Video Output | AHD 1080P |
| Housing Material | Aluminum Alloy |
| Waterproof Rating | IP69K |
| Operating Voltage | DC 12V ±10% |
| Operating Temperature | -20°C to +60°C, RH95% Max |
| Storage Temperature | -30°C to +70°C, RH95% Max |
| Vibration Resistance | 5G (Complies with GB/T 2423.56-2018 standard) |
| Body Connector | 4-core Aviation Connector |
| Product Dimensions | 74(W) x 64(H) x 56(D) mm |
Product Applications
*This product information is for reference only! If there is any change, the actual product shall prevail, the final interpretation right belongs to our company!
