AI Pedestrian Vehicle Detection System with Remote Control for Adjustment of Reversing Auxiliary Line Warning Zone

Product Features

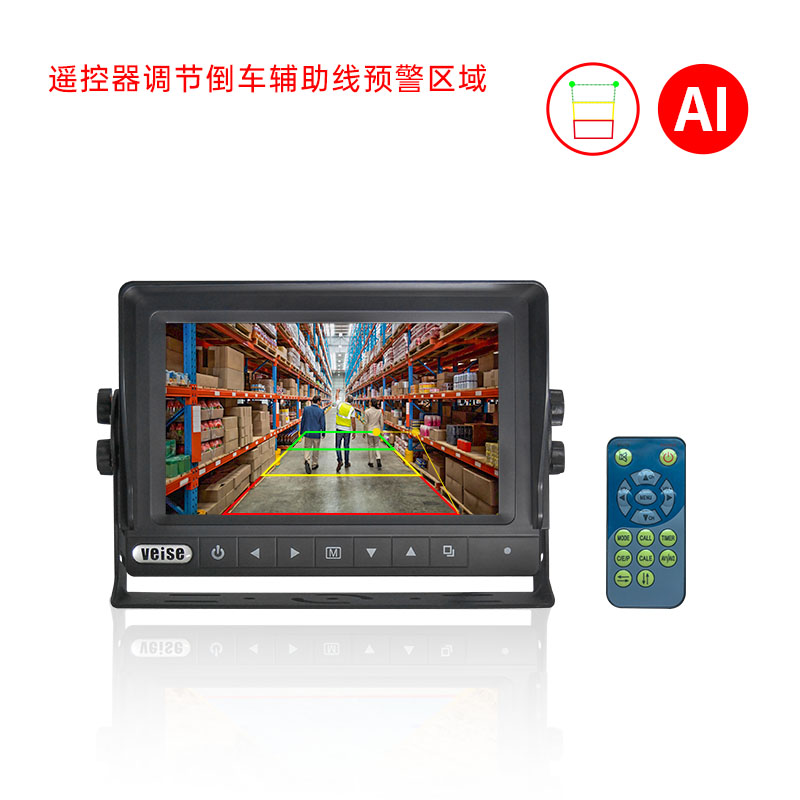

7" High - Definition Waterproof Monitor (Comes with Remote Control)

• Display Performance: The 7 - inch waterproof display uses an IPS screen, offering true - to - life colors and a fast response time.

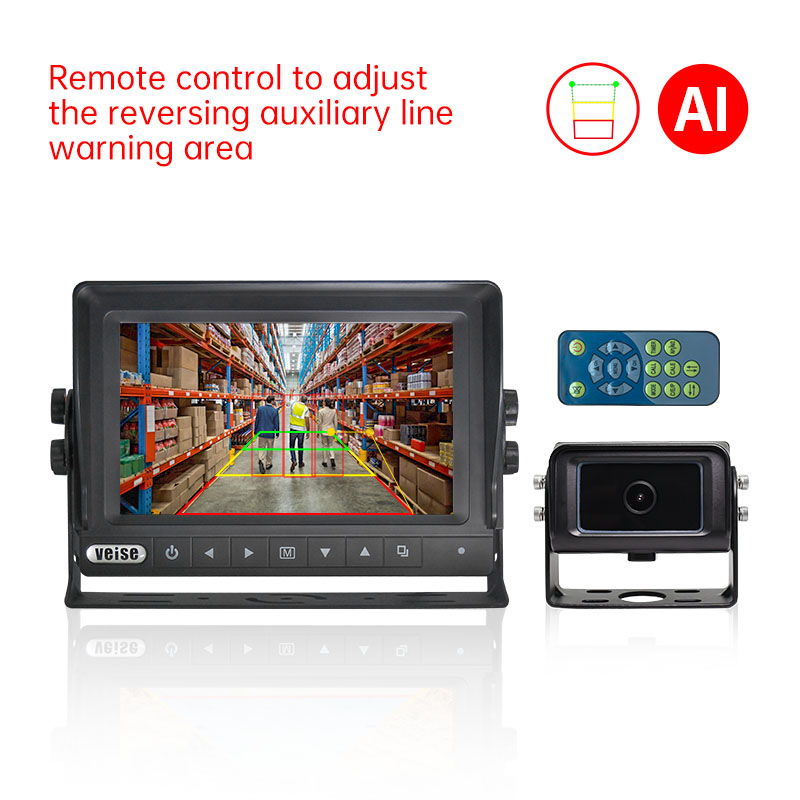

• Monitoring warning area freely adjust: equipped with a remote control to remotely adjust the AI camera rearview scale auxiliary line.

• Waterproof and Protection Design: It has a fully - sealed IP68 waterproof rating and a patented temperature - pressure balance design, meeting the automotive industry's industrial - grade standards. It is also equipped with a low - temperature - resistant DSP chip.

• Function Settings: Through the OSD menu, application functions such as screen mirroring and normal display, reverse - gear screen delay, and trigger priority can be individually set.

• Power - Related Features: It operates within a voltage range of DC11 - 32V and has an independent power output. It is equipped with protection functions against load - dump pulse voltage, reverse polarity of the external power supply, and constant - current and constant - voltage protection for LEDs. These features effectively prevent damage caused by improper use and ensure the stable operation of the product during the warranty period.

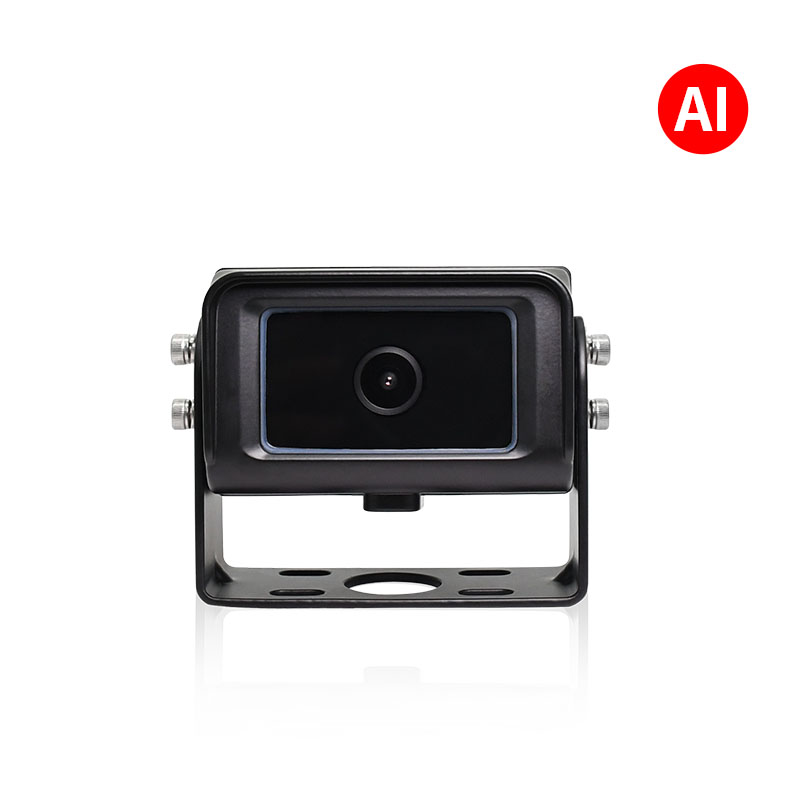

AI Pedestrian and Vehicle Detection Camera

• Working Principle: By analyzing and learning the characteristics of the target's shape, movement, and posture, the camera detects pedestrians and vehicles.

• The AI pedestrian and vehicle detection camera employs deep learning technology to detect pedestrians and vehicles in real-time in front of, beside, and behind the vehicle. It alerts the driver to the potential risk of collision with pedestrians or vehicles, thereby enhancing driving safety!

• Image Ranging: 2 meters (customizable within 0-5 meters);

• 100° ultra-wide angle, automotive-grade DSP, 2 million high-definition pixels, IP69K water resistance rating, cold-resistant and waterproof signal tail cable.

Cable

• 4-core phosphor bronze aviation connector with double shielding, providing excellent interference resistance.

• Low impedance and minimal signal attenuation during transmission.

• The aviation connector and cable are doubly injection-molded, offering good tensile strength, flexibility, and resistance to swinging and stretching.

Product Parameters

Product Applications
